DECOR STRAW FILAMENT LAMP IN METAL HOUSING

Choose your product version

3.5W 818 E27

3.5W 818 E27

3.5W 818 E27

3.5W 818 E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
DECOR LED STRAW FILAMENT GLOBE 125 12 BLACK DIM 3.5W 818 E27 E27 3.5 W 220…240 V 25000 h 110 lm 12 W 320 ° Yes
DECOR LED STRAW FILAMENT SQUARE 100 BLACK DIM 3.5W 818 E27 E27 3.5 W 220…240 V 25000 h 110 lm 12 W 320 ° Yes
DECOR LED STRAW FILAMENT SQUARE 100 16 GOLD DIM 3.5W 818 E27 E27 3.5 W 220…240 V 25000 h 150 lm 16 W 320 ° Yes
DECOR LED STRAW FILAMENT GLOBE 125 16 GOLD DIM 3.5W 818 E27 E27 3.5 W 220…240 V 25000 h 150 lm 16 W 320 ° Yes

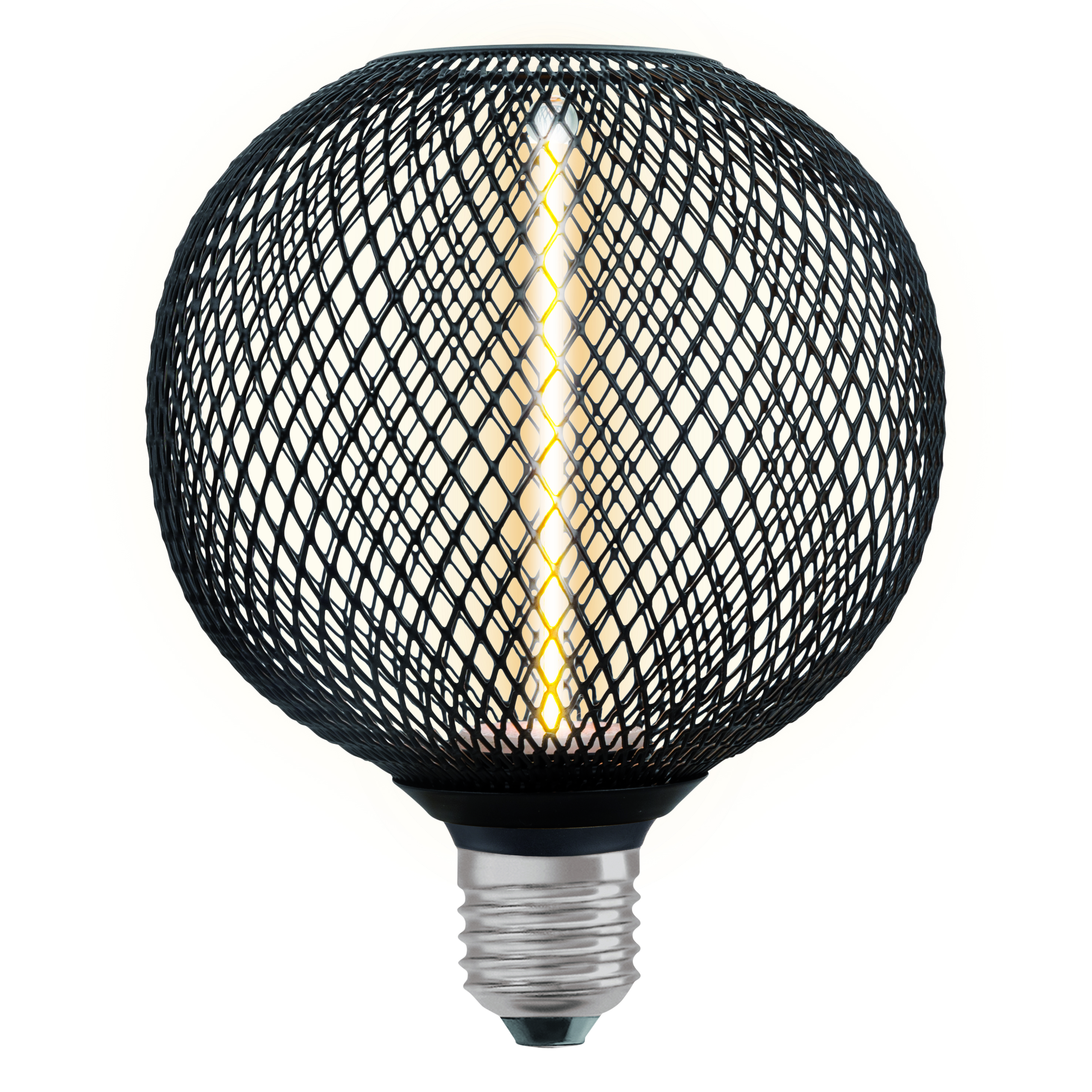

DECOR LED STRAW FILAMENT GLOBE 125 12 BLACK DIM 3.5W 818 E27

Product benefits
  • The integrated lamp delivers a modern and luxurious atmosphere
  • The special design offers comfortable light distribution
  • Type of protection: IP20, Ideal for indoor use
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 3.5 W
Construction wattage 3.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 12 W
Nominal current 19 mA
Type of current AC
Inrush current 2.36 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 320
Max. lamp number on MCB B16 A 514
Total harmonic distortion 141.90 %
Power factor λ 0.74

Photometrical data

Luminous intensity Not relevant
Luminous flux 110 lm
Luminous efficacy 31 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Comfort warm white
Color temperature 1800 K
Color rendering index Ra 80
Light color 818
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 150.00 mm
Diameter 125.00 mm
Maximum diameter 125 mm
Product weight 84.00 g

Temperatures & operating conditions

Ambient temperature range -25…+40 °C
Maximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference LDECOG125BK 3,5

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Claim of equivalent power Yes
Length 150.00 mm
Height 125.00 mm
Width 125.00 mm
R9 Colour rendering index 20
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.887
LED light source replaces a fluorescent light source No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • The integrated lamp delivers a modern and luxurious atmosphere
  • The special design offers comfortable light distribution
  • Type of protection: IP20, Ideal for indoor use
Areas of application
  • Perfect for decorative installations
  • Luxurious living areas
Product features
  • The integrated lamp features a unique straw-shaped design
  • Metal housing has two versions: Globe and Square
  • Two different colors are offered for the lamp housing: Gold and Black
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Lifetime up to 25,000 h
  • The integrated lamp cannot be detached from the housing
  • Pleasant light: Warm white comfort light color
  • Can be used directly as luminaire
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075840249 Folding box
1		 140 mm x 140 mm x 200 mm 158.00 g 3.92 dm³
4058075840256 Shipping box
4		 298 mm x 292 mm x 215 mm 886.00 g 18.71 dm³
Declarations of conformity
LED lamp LDECO PDF (331.08 KB)

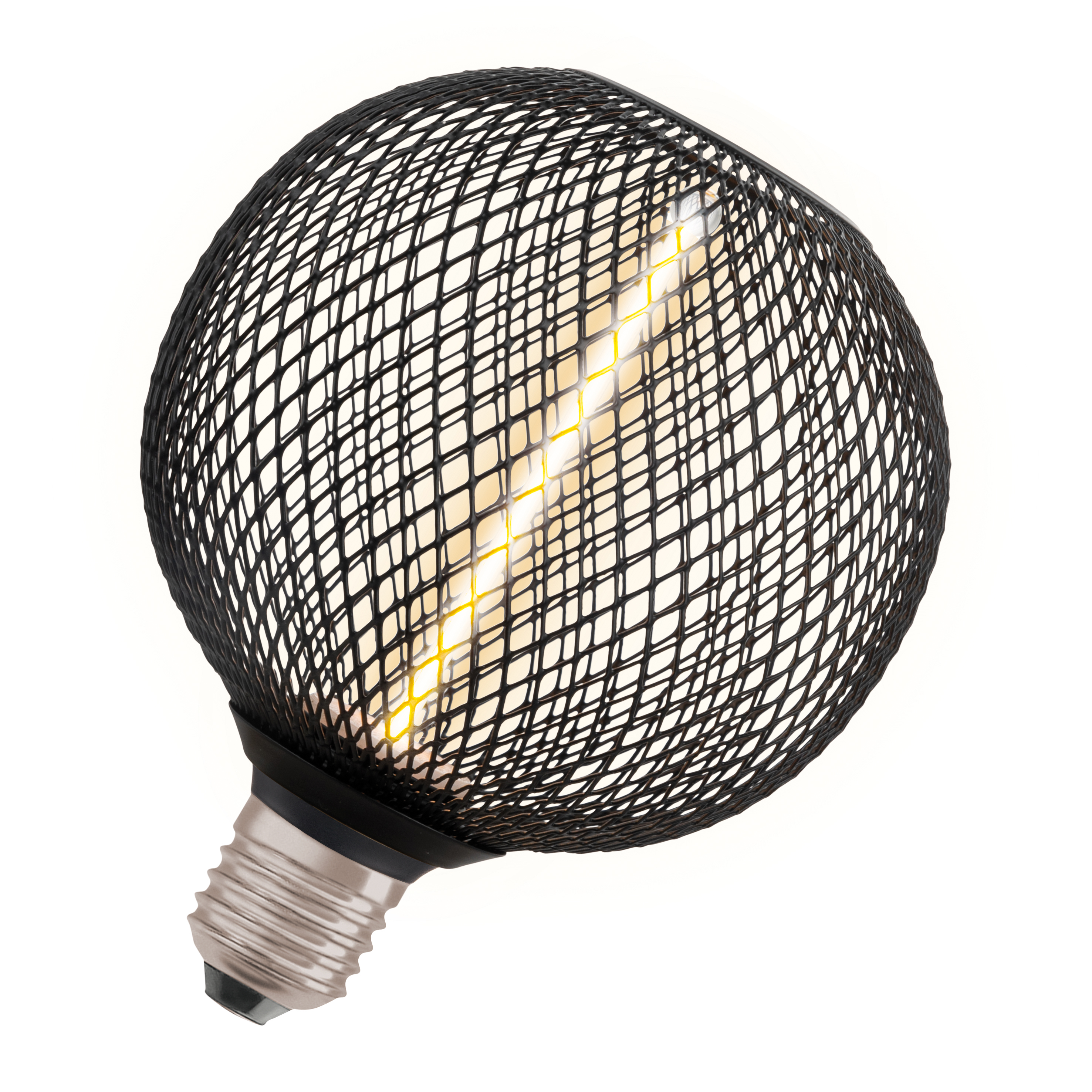

Product image: white background, diagonal
LED FLAT LAMPS NON-DIM Black Globe Glass St raw E27 JPG (3.29 MB)
Product image: white background, upright
LED FLAT LAMPS NON-DIM Black Globe Glass St raw E27 JPG (5.82 MB)
Product line drawing with letters
LED FLAT LAMPS NON-DIM Black Globe Glass St raw E27 SVG (33.46 KB)
Product line drawing with numbers
LED FLAT LAMPS NON-DIM Gold Globe Glass-Str aw E27 SVG (144.68 KB)
Product line drawing - technical
LED FLAT LAMPS NON-DIM Black Globe Glass St raw E27 SVG (29.04 KB)
Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED DECOR GLOBE 12 5 3.5W 818 STRAW BK E2 7 JPG (1.37 MB)
Packaging image, frontal
FC1 LED DECOR GLOBE 12 5 3.5W 818 STRAW BK E2 7 JPG (894.22 KB)
Packaging image, spacial
FC1 LED DECOR GLOBE 12 5 3.5W 818 STRAW BK E2 7 JPG (1.14 MB)
Spectral power distribution
EPREL Data Spectral Di agram LEDr _1800K_Big_ Shape_Smoke JPG (171.63 KB)

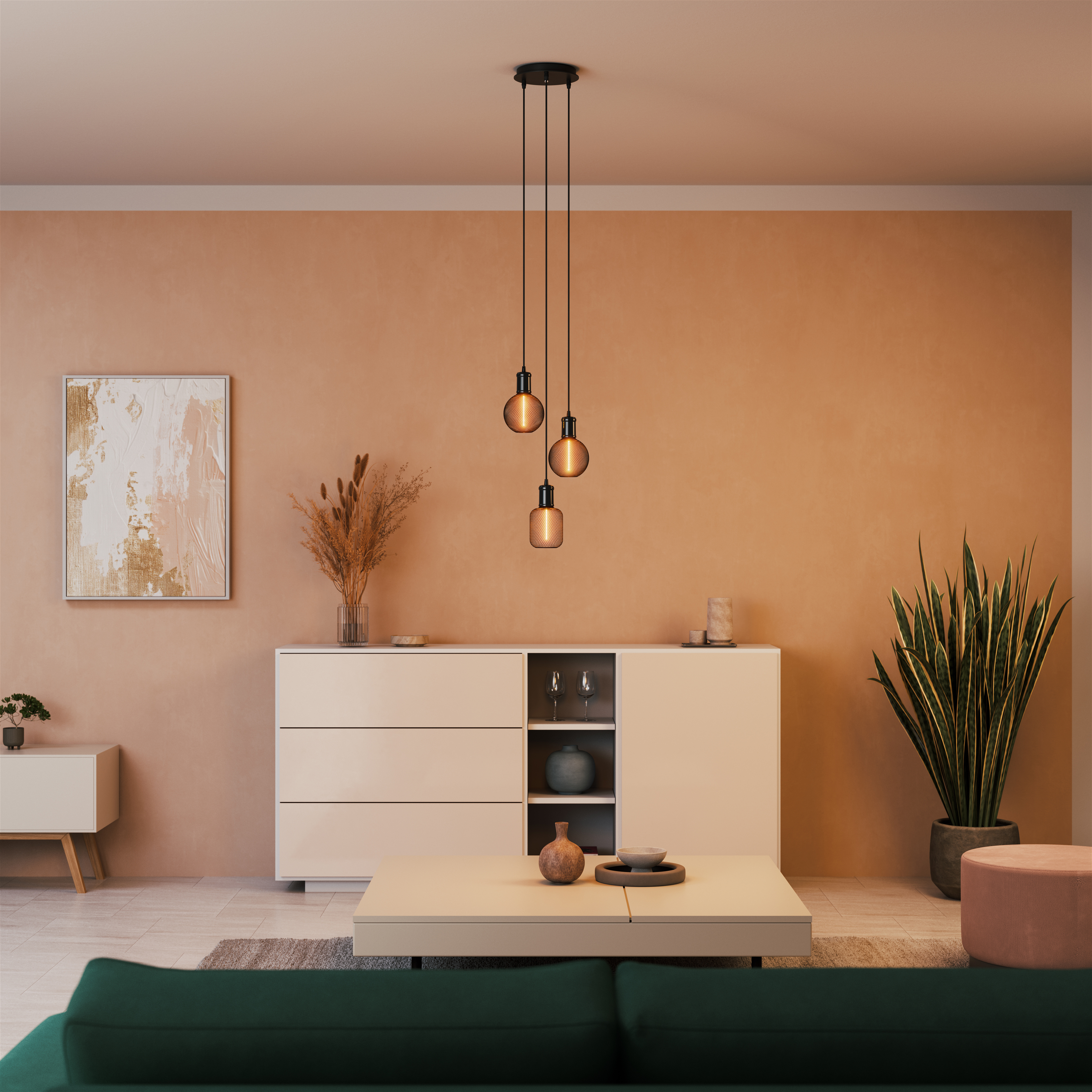

Application pictures
Flat and Cage Lamps Re ndering 3D Coffeetabl e JPG (6.18 MB)
Application pictures
Close-up DECOR LED STR AW FILAMENT GLOBE 125 12 BLACK JPG (8.05 MB)
EAN EFO number
4058075840249 3773670
