LED Retrofit CLASSIC B

Choose your product version

1.5W 827 Clear E14

2.5W 827 Frosted B22d

2.5W 827 Clear B22d

2.5W 827 Clear E14

2.5W 827 Frosted E27

2.5W 840 Clear E14

4W 827 Clear B15d

4W 827 Frosted B22d

4W 827 Clear E14

4W 827 Frosted E14

4W 827 Frosted E27

4W 827 Clear E27

4W 840 Frosted B22d

4W 840 Clear B22d

4W 840 Frosted E27

4W 865 Frosted E14

4W 865 Clear E14

5.9W 827 Frosted B22d

5.9W 827 Clear E14

5.9W 827 Frosted E27

5.9W 840 Frosted E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Star Classic B 15 Filament 1.5W 827 Clear E14 E14 1.5 W 220…240 V 15000 h 136 lm 15 W 300 ° No
LED Star Classic B 25 2.5W 827 Frosted B22d B22d 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Star Classic B 25 Filament 2.5W 827 Clear B22d B22d 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Star Classic B 25 Filament 2.5W 827 Clear E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Star Classic B 25 2.5W 827 Frosted E27 E27 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Star Classic B 25 Filament 2.5W 840 Clear E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Star Classic B 40 Filament 4W 827 Clear B15d B15d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 4W 827 Frosted B22d B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 Filament 4W 827 Clear E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 4W 827 Frosted E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 4W 827 Frosted E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 Filament 4W 827 Clear E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 4W 840 Frosted B22d B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 Filament 4W 840 Clear B22d B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 4W 840 Frosted E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 4W 865 Frosted E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 40 Filament 4W 865 Clear E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Star Classic B 60 Filament 5.9W 827 Frosted B22d B22d 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Star Classic B 60 Filament 5.9W 827 Clear E14 E14 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Star Classic B 60 Filament 5.9W 827 Frosted E27 E27 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Star Classic B 60 Filament 5.9W 840 Frosted E14 E14 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No


LED Star Classic B 15 Filament 1.5W 827 Clear E14

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 1.5 W
Construction wattage 1.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 15 W
Nominal current 12 mA
Type of current AC
Inrush current 1,45 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 310
Max. lamp number on MCB B16 A 666
Power factor λ > 0.40

Photometrical data

Luminous flux 136 lm
Nominal useful luminous flux 90° 136 lm
Luminous efficacy 90 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 100.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 16.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 55 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 2.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

ILCOS DRBB/C-1,3-827-220-240-E14-35
Order reference LEDSCLB15 1,5W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 100.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.40
LED light source replaces a fluorescent light source No
EPREL ID 1402954,523091
Model number AC32470,AC17468

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Lifetime up to 15,000 h
  • Lamp made of glass
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075436701 Folding box
1		 36 mm x 49 mm x 145 mm 28.00 g 0.26 dm³
4058075604827 Shipping box
6		 129 mm x 111 mm x 120 mm 223.00 g 1.72 dm³
Declarations of conformity
LED lamps CLA,B,G,P PDF (223.84 KB)
PRODUCT DATASHEET
LED STAR CL B FIL 15 non-dim 1,5W/827 E14 PDF (227.64 KB)
PRODUCT DATASHEET
STCLASB15CL1.5W2700KE1 4en PDF (299.89 KB)
Product image: white background, diagonal
542078_LED STAR CLASSI C B25 clear WW E14 TIF (32.43 MB)
Product image: white background, upright
LED STAR CLASSIC B25 c lear WW E14 TIF (54.04 MB)
Product line drawing with letters
600983_RFCLB25 2 W/827 E14 clear SVG (11.62 KB)
Product line drawing, front, no dimensions
600990_RFCLB25 2 W/827 E14 clear SVG (8.45 KB)

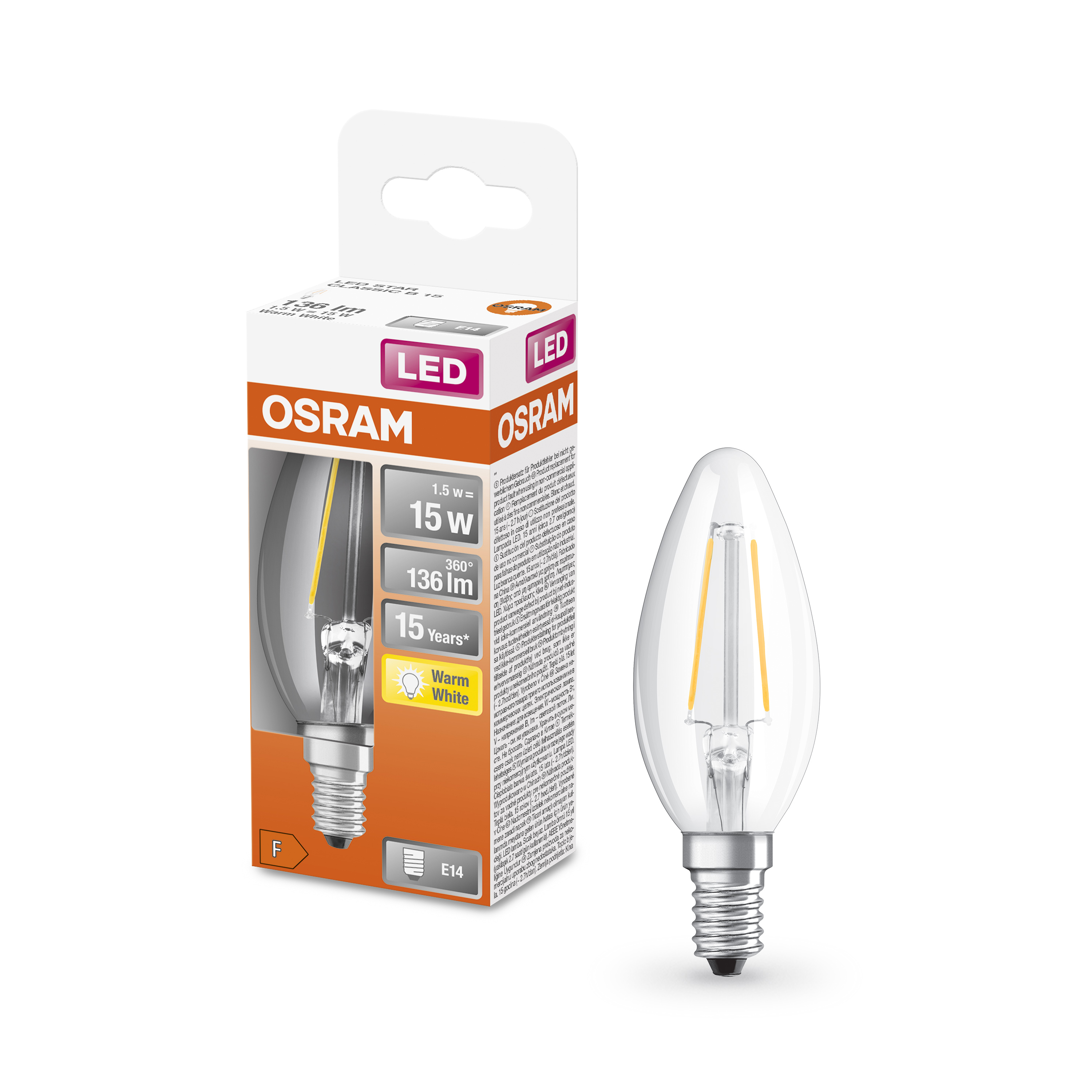

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLB15 1,5W-827 230 V FIL E14 FS1 OSRAM JPG (1.06 MB)
Packaging image, frontal
LED ST CLB 15 1.5W 827 FIL E14 MiCh TIF (1.68 MB)
Packaging image, spacial
LED ST CLB 15 1.5W 827 FIL E14 MiCh TIF (1.55 MB)
Energy label
EL-4058075436701-AC324 70 PDF (21.58 KB)
Energy label
EL-4058075436701-AC174 68 PDF (21.6 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN EFO number
4058075436701 3730077
