OSRAM DULUX LED D VT EM & AC MAINS

Choose your product version

5.5W 830 G24D

5.5W 840 G24D

LAUNCH JUNE

5.5W 865 G24D

7.5W 830 G24D

7.5W 840 G24D

LAUNCH JUNE

7.5W 865 G24D

9.5W 830 G24D

9.5W 840 G24D

LAUNCH JUNE

9.5W 865 G24D

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux
DULUX LED D13 VT EM & AC MAINS 5.5W 830 G24D G24d 5.5 W 220…240 V 30000 h 640 lm 13 W 300 ° No
DULUX LED D13 VT EM & AC MAINS 5.5W 840 G24D G24d 5.5 W 220…240 V 30000 h 700 lm 13 W 300 ° No
DULUX LED D13 VT EM & AC MAINS 5.5W 865 G24D G24d 5.5 W 220…240 V 30000 h 700 lm
DULUX LED D18 VT EM & AC MAINS 7.5W 830 G24D G24d 7.5 W 220…240 V 30000 h 870 lm 18 W 300 ° No
DULUX LED D18 VT EM & AC MAINS 7.5W 840 G24D G24d 7.5 W 220…240 V 30000 h 950 lm 18 W 300 ° No
DULUX LED D18 VT EM & AC MAINS 7.5W 865 G24D G24d 7.5 W 220…240 V 30000 h 950 lm
DULUX LED D26 VT EM & AC MAINS 9.5W 830 G24D G24d 9.5 W 220…240 V 30000 h 1000 lm
DULUX LED D26 VT EM & AC MAINS 9.5W 840 G24D G24d 9.5 W 220…240 V 30000 h 1200 lm 26 W 300 ° No
DULUX LED D26 VT EM & AC MAINS 9.5W 865 G24D G24d 9.5 W 220…240 V 30000 h 1200 lm


DULUX LED D26 VT EM & AC MAINS 9.5W 830 G24D

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9.5 W
Construction wattage 9.50 W
Nominal voltage 220…240 V
Operating mode Conventional control gear (CCG), AC
Nominal current 42 mA
Type of current AC
Inrush current 22 A
Suitable for DC input Yes
Input voltage DC 186…260 V 1)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 27
Max. lamp number on MCB B10 A - CCG without compensation 95
Max. lamp number on MCB B10 A - CCG with compensation 8
Max. lamp number on MCB B16 A 34
Max. lamp number on MCB B16 A - CCG without compensation 152
Max. lamp number on MCB B16 A - CCG with compensation 10
Total harmonic distortion ≤ 30 %

1) Permitted voltage range

Photometrical data

Luminous flux 1000 lm
Luminous efficacy 105 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Dimensions & Weight

Overall length 132.00 mm
Diameter 37.70 mm
Tube diameter 35 mm
Product weight 98.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 75 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h

Additional product data

Base (standard designation) G24d
Mercury-free Yes
Design / version Frosted

Certificates & Standards

Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference DULUX LED D26 V

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G24d
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 132.00 mm
Height 37.70 mm
Width 37.70 mm
Chromaticity coordinate x 0.440
Chromaticity coordinate y 0.403
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,90
Displacement factor 0,90
LED light source replaces a fluorescent light source No
EPREL ID 1404742,1412875,2206824,2324415
Model number AC46430,AC47826,AC47826,AC71124,AC81517

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Only suitable for vertical application
  • Lifetime up to 30,000 h
  • Single-ended two-pin plug-in G24d base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Not suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075824577 Folding box
1		 41 mm x 49 mm x 134 mm 120.00 g 0.27 dm³
4099854109850 Shipping box
10		 232 mm x 117 mm x 149 mm 1339.00 g 4.04 dm³
User instruction / safety instructions
OSRAM DULUX LED D VERT ICAL PDF (3.06 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
DULUXLED PDF (241.93 KB)
Declarations of conformity
LEDTUBE PDF (310.92 KB)
Product datasheet -> old version of product
DULUXLEDD26VTEM&ACMAIN S9.5W830G24Den PDF (210.75 KB)
Product image: white background, diagonal with OSRAM logo
DULUX LED VT EM JPG (1.39 MB)
Product image: white background, diagonal
DULUX LED VT EM JPG (1.38 MB)
Product image: white background, horizontal, OSRAM logo
DULUX LED VT EM JPG (1.36 MB)
Product image: white background, horizontal
DULUX LED VT EM JPG (1.36 MB)
Product image: white background, upright, OSRAM logo
DULUX LED VT EM JPG (1.37 MB)
Product image: white background, upright
DULUX LED VT EM JPG (1.36 MB)
Product line drawing with letters
DULUX LED VT EM SVG (11.27 KB)
Product line drawing with numbers
DULUX LED VT EM SVG (11.78 KB)
Product line drawing - technical
DULUX LED VT EM SVG (5.76 KB)

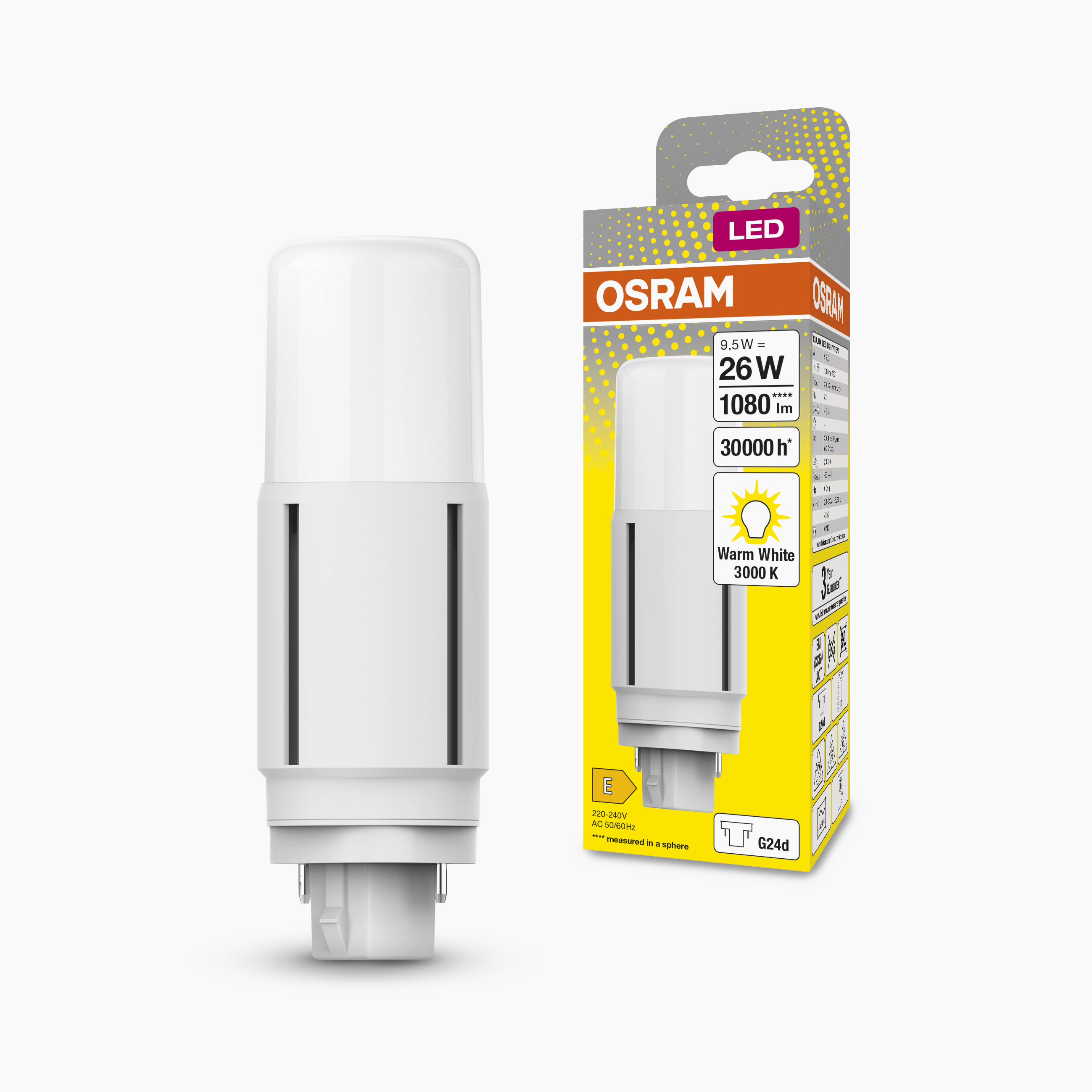

Combo Shot = Product Beauty Shot + Packaging Image
DULUX LED D26 VT EM 9. 5W 830 G24D MiCh JPG (1.24 MB)

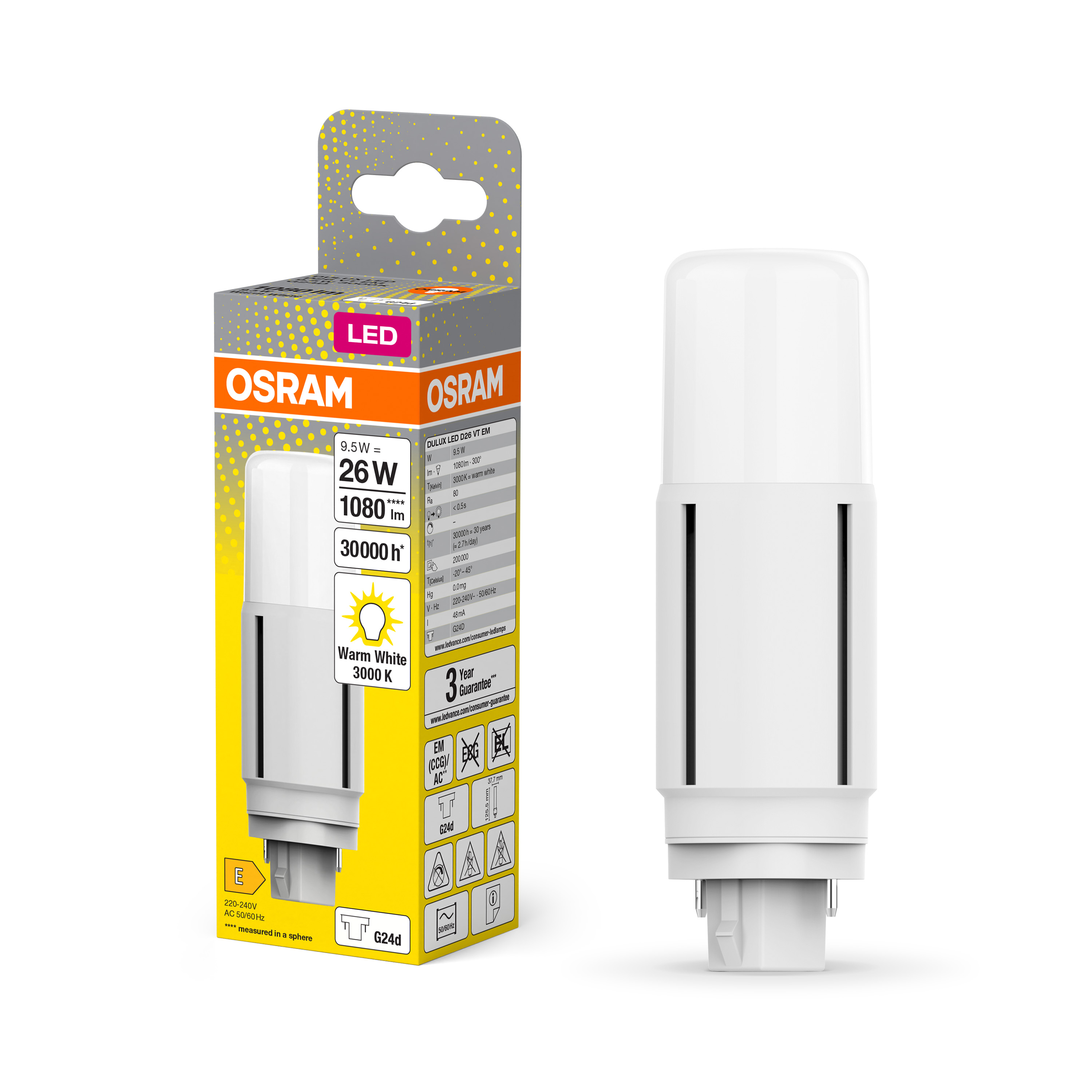

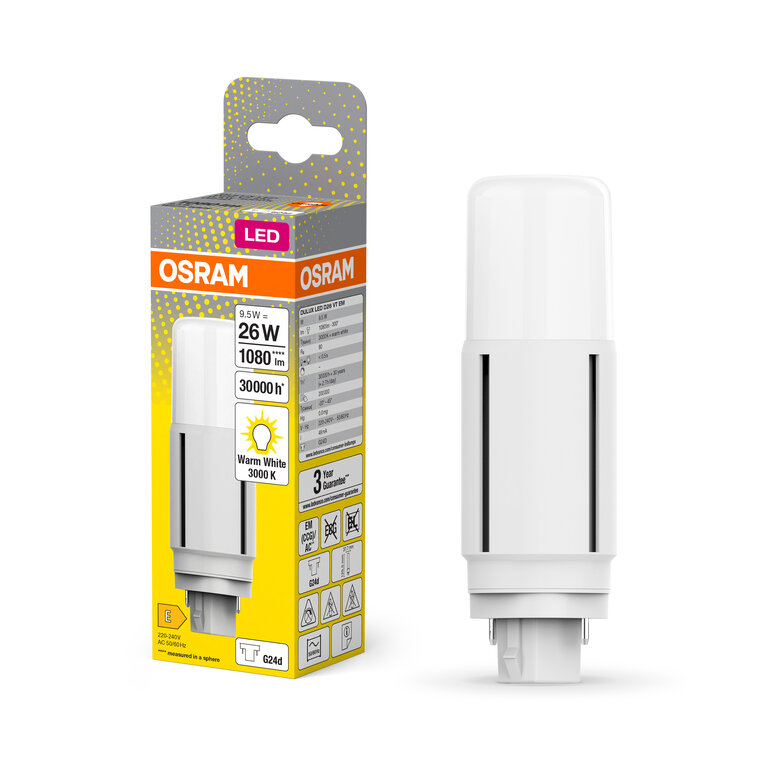

Combo Shot = Product Beauty Shot + Packaging Image
FC1 DULUX LED D26 VT E M 9.5W 830 G24D JPG (563.04 KB)

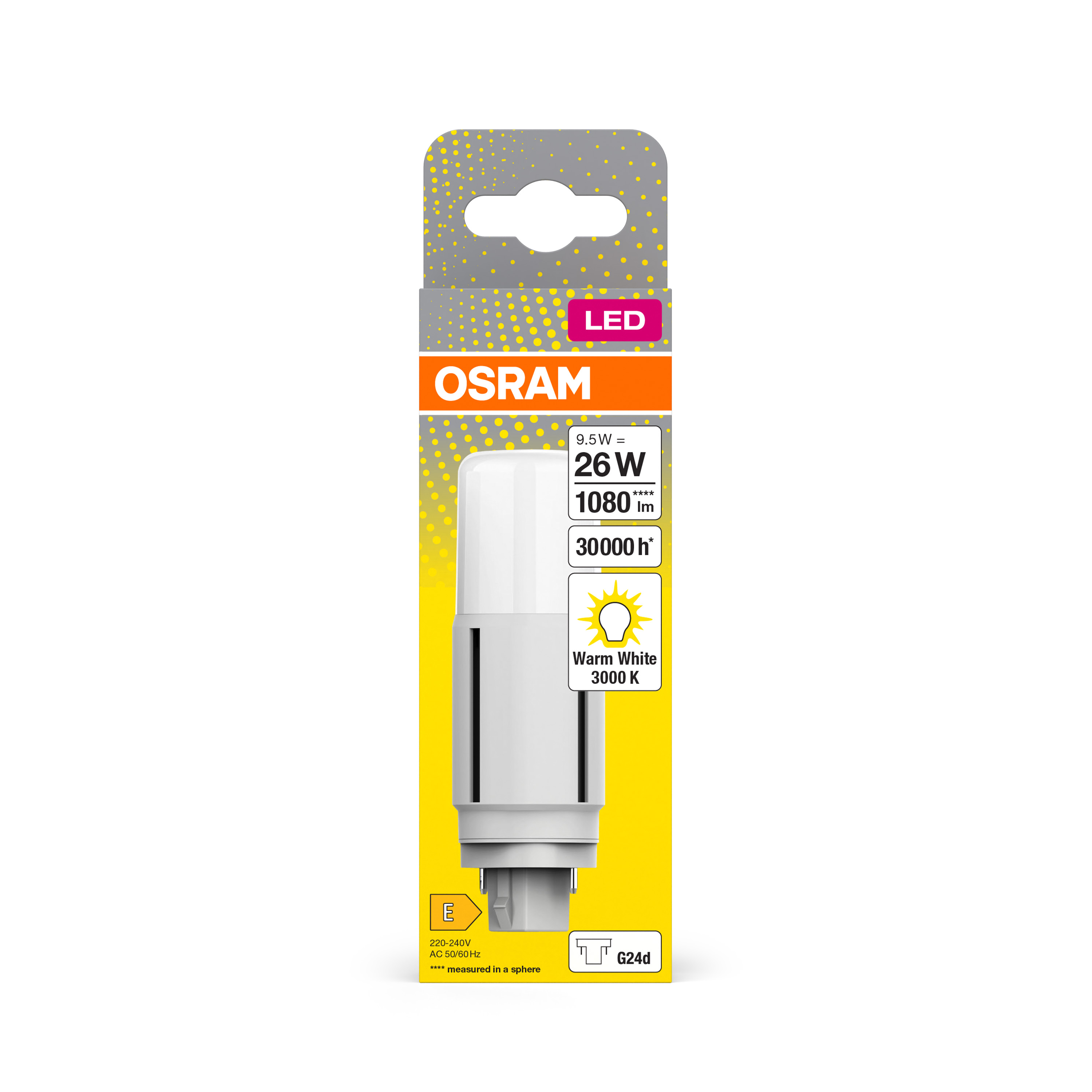

Packaging image, frontal
DULUX LED D26 VT EM 9. 5W 830 G24D MiCh JPG (356.44 KB)

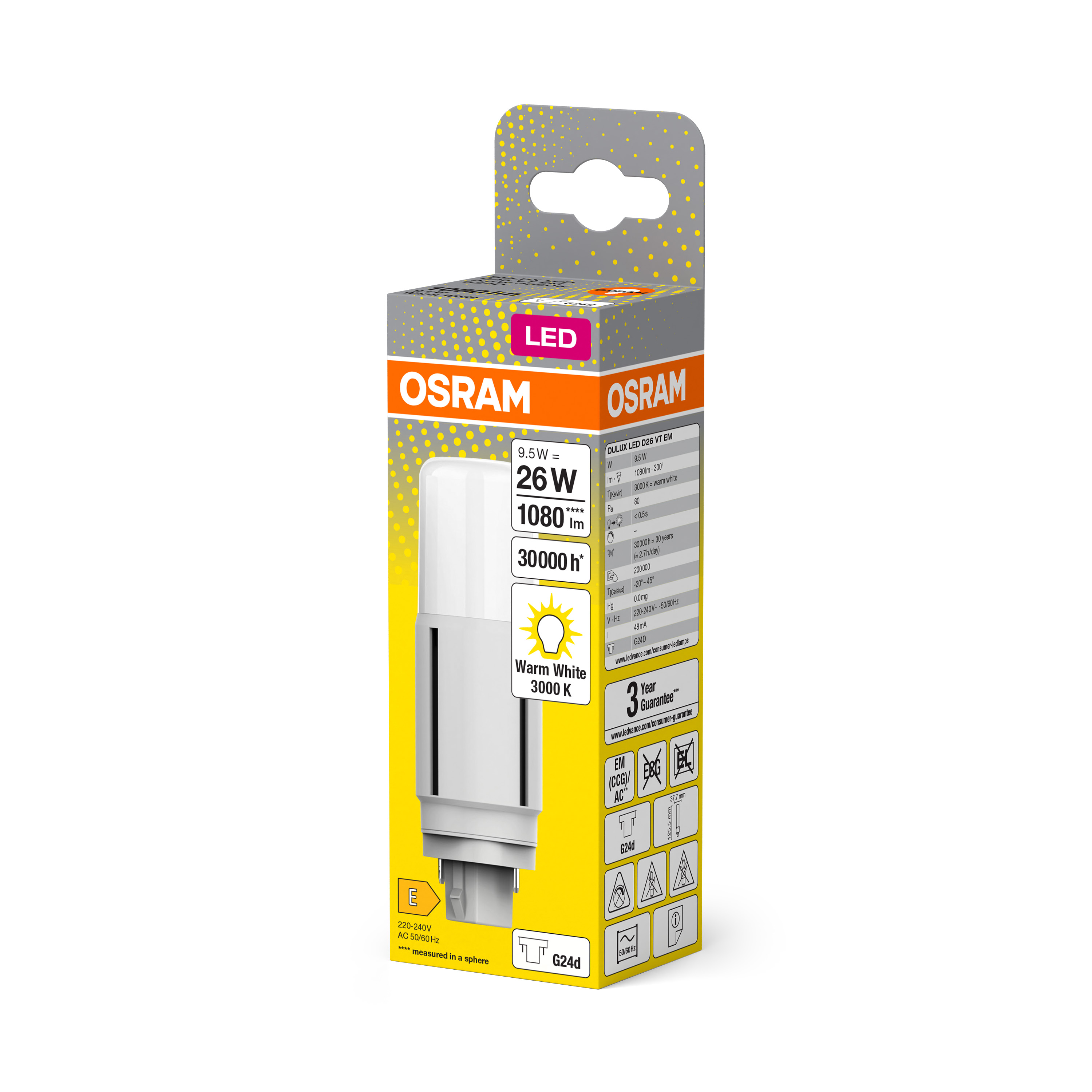

Packaging image, spacial
DULUX LED D26 VT EM 9. 5W 830 G24D MiCh JPG (516.12 KB)

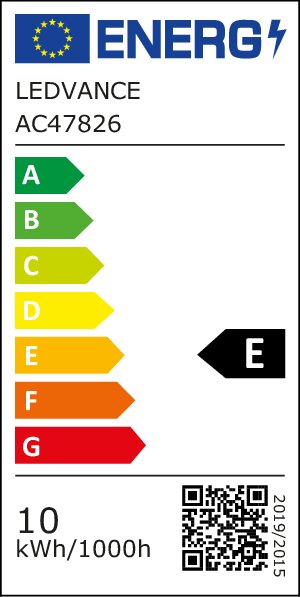

Energy label
EL-4058075824577-AC478 26 PDF (21.59 KB)

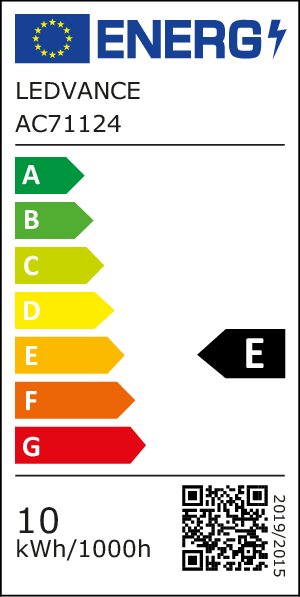

Energy label
EL-4058075824577-AC711 24 PDF (21.29 KB)
IES file (IES)
DULUX LED D26 VT EM 9. 5W 830 G24D IES (14.4 KB)
LDT file (Eulumdat)
DULUX LED D26 VT EM 9. 5W 830 G24D LDT (10.37 KB)
Light distribution curve type polar
DULUX LED D26 VT EM 9. 5W 830 G24D SVG (20.02 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 3000K PNG (115.07 KB)
