OSRAM DULUX LED D EM & AC MAINS

Choose your product version

5W 830 G24D-1

5W 840 G24D-1

6W 830 G24D-1

6W 840 G24D-1

LAUNCH JUNE

6W 865 G24D-1

7W 830 G24D-2

7W 840 G24D-2

LAUNCH JUNE

7W 865 G24D-2

9W 830 G24D-3

9W 840 G24D-3

LAUNCH JUNE

9W 865 G24D-3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux
DULUX LED D10 EM & AC MAINS 5W 830 G24D-1 G24d-1 5 W 220…240 V 30000 h 540 lm 10 W 120 ° No
DULUX LED D10 EM & AC MAINS 5W 840 G24D-1 G24d-1 5 W 220…240 V 30000 h 600 lm 10 W 120 ° No
DULUX LED D13 EM & AC MAINS 6W 830 G24D-1 G24d-1 6 W 220…240 V 30000 h 600 lm 13 W 120 ° No
DULUX LED D13 EM & AC MAINS 6W 840 G24D-1 G24d-1 6 W 220…240 V 30000 h 660 lm 13 W 120 ° No
DULUX LED D13 EM & AC MAINS 6W 865 G24D-1  G24d-1 6 W 220…240 V 30000 h 660 lm
DULUX LED D18 EM & AC MAINS 7W 830 G24D-2 G24d-2 7 W 220…240 V 30000 h 700 lm 18 W 120 ° No
DULUX LED D18 EM & AC MAINS 7W 840 G24D-2 G24d-2 7 W 220…240 V 30000 h 770 lm 18 W 120 ° No
DULUX LED D18 EM & AC MAINS 7W 865 G24D-2 G24d-2 7 W 220…240 V 30000 h 770 lm
DULUX LED D26 EM & AC MAINS 9W 830 G24D-3 G24d-3 9 W 220…240 V 30000 h 990 lm 26 W 120 ° No
DULUX LED D26 EM & AC MAINS 9W 840 G24D-3 G24d-3 9 W 220…240 V 30000 h 1100 lm 26 W 120 ° No
DULUX LED D26 EM & AC MAINS 9W 865 G24D-3 G24d-3 9 W 220…240 V 30000 h 1100 lm
LAUNCH JUNE


DULUX LED D26 EM & AC MAINS 9W 865 G24D-3

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Operating mode Conventional control gear (CCG), AC 1)
Nominal current 43 mA
Type of current AC
Inrush current 18.2 A
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 32
Max. lamp number on MCB B10 A - CCG without compensation 93
Max. lamp number on MCB B10 A - CCG with compensation 8
Max. lamp number on MCB B16 A 41
Max. lamp number on MCB B16 A - CCG without compensation 149
Max. lamp number on MCB B16 A - CCG with compensation 11
Total harmonic distortion ≤ 20 %

1) Check ECG compatibility at ledvance.com/compatibility

Photometrical data

Luminous flux 1100 lm
Luminous efficacy 122 lm/W
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Dimensions & Weight

Overall length 171.00 mm
Diameter 35.00 mm
Tube diameter 27,0 mm
Product weight 62.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 75 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h

Additional product data

Base (standard designation) G24d-3
Mercury-free Yes
Design / version Frosted
Product remark Available from June 2025

Certificates & Standards

Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference DULUX LED D26 E

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G24d-3
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 171.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.3123
Chromaticity coordinate y 0.3282
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 2206881,2324430
Model number AC71108,AC81501

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Rotatable base around its longitudinal axis (± 90°)
  • Lifetime up to 30,000 h
  • Single-ended two-pin plug-in G24d base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Not suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854502477 Folding box
1		 37 mm x 49 mm x 175 mm 77.00 g 0.32 dm³
4099854502484 Shipping box
10		 203 mm x 110 mm x 189 mm 878.00 g 4.22 dm³
User instruction / safety instructions
DULUX LED D EM PDF (3.06 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

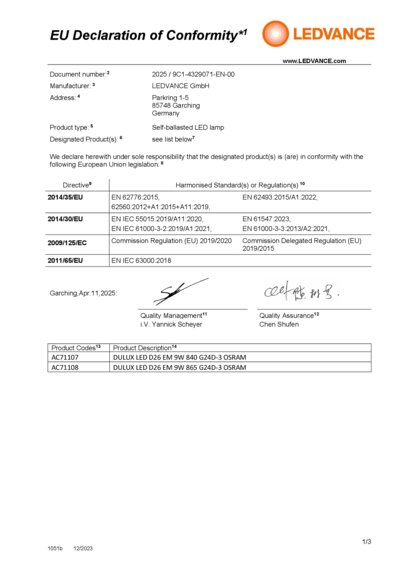

Declarations of conformity
LEDTUBE PDF (277.71 KB)
Product image: white background, diagonal with OSRAM logo
DULUX LED D EM JPG (1.04 MB)
Product image: white background, diagonal
DULUX LED D EM JPG (1.02 MB)
Product image: white background, upright, OSRAM logo
DULUX LED D EM JPG (1.03 MB)
Product image: white background, upright
DULUX LED D EM JPG (176.06 KB)
Product line drawing with letters
DULUX LED D EM SVG (12.34 KB)
Product line drawing with numbers
DULUX LED D EM 9W SVG (12.33 KB)
Product line drawing - technical
DULUX LED D EM SVG (6.44 KB)

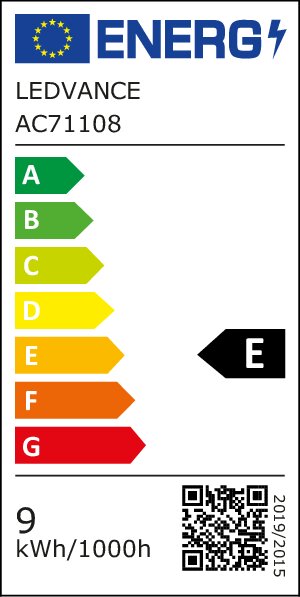

Energy label
