Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|
| DULUX LED SQ16 EM & AC MAINS 7W 830 GR8 | GR8 | 7 W | 220…240 V | 30000 h | 720 lm | 16 W | 130 ° | No |
| DULUX LED SQ16 EM & AC MAINS 7W 835 GR8 | GR8 | 7 W | 220…240 V | 30000 h | 720 lm | 16 W | 130 ° | No |
| DULUX LED SQ16 EM & AC MAINS 7W 840 GR8 | GR8 | 7 W | 220…240 V | 30000 h | 800 lm | 16 W | 130 ° | No |
| Nominal wattage | 7 W |
| Construction wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | CCG, AC Mains 1) |
| Claimed equiv. conventional lamp power | 16 W |
| Nominal current | 30 mA |
| Type of current | AC |
| Inrush current | 4 A |
| Suitable for DC input | Yes |
| Input voltage DC | 186…264 V 2) |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 112 |
| Max. lamp number on MCB B10 A - CCG without compensation | 45 |
| Max. lamp number on MCB B10 A - CCG with compensation | 30 |
| Max. lamp number on MCB B16 A | 180 |
| Max. lamp number on MCB B16 A - CCG without compensation | 72 |
| Max. lamp number on MCB B16 A - CCG with compensation | 48 |
| Total harmonic distortion | ≤ 30 % |
| Power factor λ | > 0.90 |
1) Check ECG compatibility at ledvance.com/compatibility
2) Permitted voltage range
| Luminous flux | 800 lm |
| Nominal useful luminous flux 90° | 800 lm |
| Luminous efficacy | 114 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.90 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
| Beam angle | 130 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
| Overall length | 137.10 mm |
| Diameter | 134.00 mm |
| Tube diameter | 13 mm |
| Maximum diameter | 13 mm |
| Product weight | 68.00 g |
| Ambient temperature range | -20…+50 °C 1) |
| Maximum temperature at tc test point | 75 °C |
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 200000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
| Base (standard designation) | GR8 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | Available from June 2025 |
| Dimmable | No |

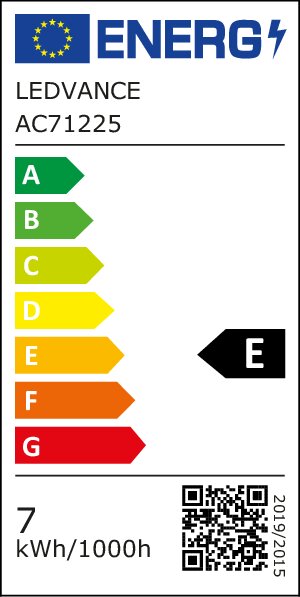

| Energy efficiency class | E 1) |
| Energy consumption | 7.00 kWh/1000h |
| Type of protection | IP20 |

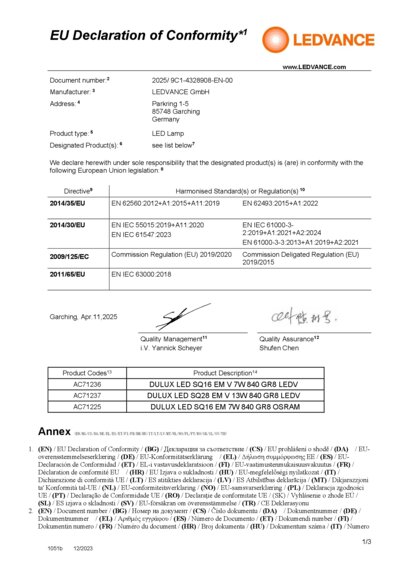

| Standards | CE, EAC, UKCA |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
| Order reference | DULUX LED SQ16 |
| Temperature range at storage | -20…+80 °C |
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | GR8 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0 W |
| Claim of equivalent power | No |
| Length | 137.10 mm |
| Height | 134.00 mm |
| Width | 134.00 mm |
| Chromaticity coordinate x | 0.3818 |
| Chromaticity coordinate y | 0.3797 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.90 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 2206897 |
| Model number | AC71225 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854501999 | Folding box 1 |
41 mm x 151 mm x 152 mm | 96.00 g | 0.94 dm³ |
| 4099854502002 | Shipping box 10 |
426 mm x 161 mm x 164 mm | 1175.00 g | 11.25 dm³ |
