OSRAM DULUX LED D/E HF & AC MAINS

Choose your product version

6W 830 G24Q-1

6W 840 G24Q-1

LAUNCH JUNE

6W 865 G24Q-1

7W 830 G24Q-2

7W 840 G24Q-2

LAUNCH JUNE

7W 865 G24Q-2

10W 830 G24Q-3

10W 840 G24Q-3

LAUNCH JUNE

10W 865 G24Q-3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
DULUX LED D/E13 HF & AC MAINS 6W 830 G24Q-1 G24q-1 6 W 220…240 V 30000 h 600 lm 13 W 120 ° No
DULUX LED D/E13 HF & AC MAINS 6W 840 G24Q-1 G24q-1 6 W 220…240 V 30000 h 660 lm 13 W 120 ° No
DULUX LED D/E13 HF & AC MAINS 6W 865 G24Q-1 G24q-1 6 W 220…240 V 30000 h 660 lm 13 W 120 ° No
DULUX LED D/E18 HF & AC MAINS 7W 830 G24Q-2 G24q-2 7 W 220…240 V 30000 h 700 lm 18 W 120 ° No
DULUX LED D/E18 HF & AC MAINS 7W 840 G24Q-2 G24q-2 7 W 220…240 V 30000 h 770 lm 18 W 120 ° No
DULUX LED D/E18 HF & AC MAINS 7W 865 G24Q-2 G24q-2 7 W 220…240 V 30000 h 770 lm 18 W 120 ° No
DULUX LED D/E26 HF & AC MAINS 10W 830 G24Q-3 G24q-3 10 W 220…240 V 30000 h 990 lm 26 W 120 ° No
DULUX LED D/E26 HF & AC MAINS 10W 840 G24Q-3 G24q-3 10 W 220…240 V 30000 h 1100 lm 26 W 120 ° No
DULUX LED D/E26 HF & AC MAINS 10W 865 G24Q-3 G24q-3 10 W 220…240 V 30000 h 1100 lm 26 W 120 ° No
LAUNCH JUNE


DULUX LED D/E13 HF & AC MAINS 6W 865 G24Q-1

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 220…240 V
Operating mode ECG, AC Mains 1)
Claimed equiv. conventional lamp power 13 W
Nominal current 28 mA
Type of current AC
Inrush current 3 A
Suitable for DC input Yes
Input voltage DC 186…264 V 2)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 150
Max. lamp number on MCB B16 A 240
Total harmonic distortion ≤ 30 %
Power factor λ > 0.90

1) Check ECG compatibility at ledvance.com/compatibility
2) Permitted voltage range

Photometrical data

Luminous flux 660 lm
Nominal useful luminous flux 90° 660 lm
Luminous efficacy 110 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.90
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 120 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 130.00 mm
Diameter 33.00 mm
Tube diameter 33,0 mm
Maximum diameter 33 mm
Product weight 58.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 70 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G24q-1
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark Available from June 2025

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 8.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference DULUX LED D/E13

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G24q-1
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 130.00 mm
Height 33.00 mm
Width 33.00 mm
Chromaticity coordinate x 0.3123
Chromaticity coordinate y 0.3282
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 2206900
Model number AC71187

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
  • Single-ended four-pin plug-in G24q base
  • Rotatable base around its longitudinal axis (± 90°)
  • Lifetime up to 30,000 h
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
  • Not suitable for operation with conventional control gear.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854501777 Folding box
1		 37 mm x 49 mm x 137 mm 70.00 g 0.25 dm³
4099854501784 Shipping box
10		 203 mm x 110 mm x 151 mm 801.00 g 3.37 dm³
User instruction / safety instructions
OSRAM DULUX D/E LED PDF (3.47 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LEDTUBE PDF (261.24 KB)
Product image: white background, diagonal with OSRAM logo
DULUX LED DE13 HF G24Q -1 JPG (842.01 KB)
Product image: white background, diagonal
DULUX LED D/E HF 6W JPG (833.56 KB)
Product image: white background, upright, OSRAM logo
DULUX LED DE13 HF G24Q -1 JPG (816.11 KB)
Product image: white background, upright
DULUX LED D/E HF 6W JPG (808.73 KB)
Product line drawing with letters
DULUX LED D/E HF 6W SVG (27.85 KB)
Product line drawing with numbers
DULUX LED D/E 13 SVG (29.08 KB)
Product line drawing - technical
DULUX LED D/E HF 6W SVG (21.68 KB)

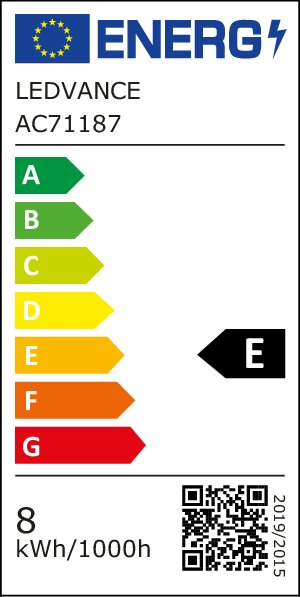

Energy label
EL-4099854501777-AC711 87 PDF (21.44 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 6500K PNG (104.93 KB)
