Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | |||
|---|---|---|---|---|---|---|---|---|
| LED TUBE T5 HF L8 SHORT 288 mm 4W 830 | G5 | 4 W | 17…40 V | 30000 h | 380 lm | |||
| LED TUBE T5 HF L8 SHORT 288 mm 4W 840 | G5 | 4 W | 17…40 V | 30000 h | 400 lm | |||
| LED TUBE T5 HF L13 SHORT 517 mm 7W 830 | G5 | 7 W | 30…55 V | 30000 h | 770 lm | 13 W | 190 ° | No |

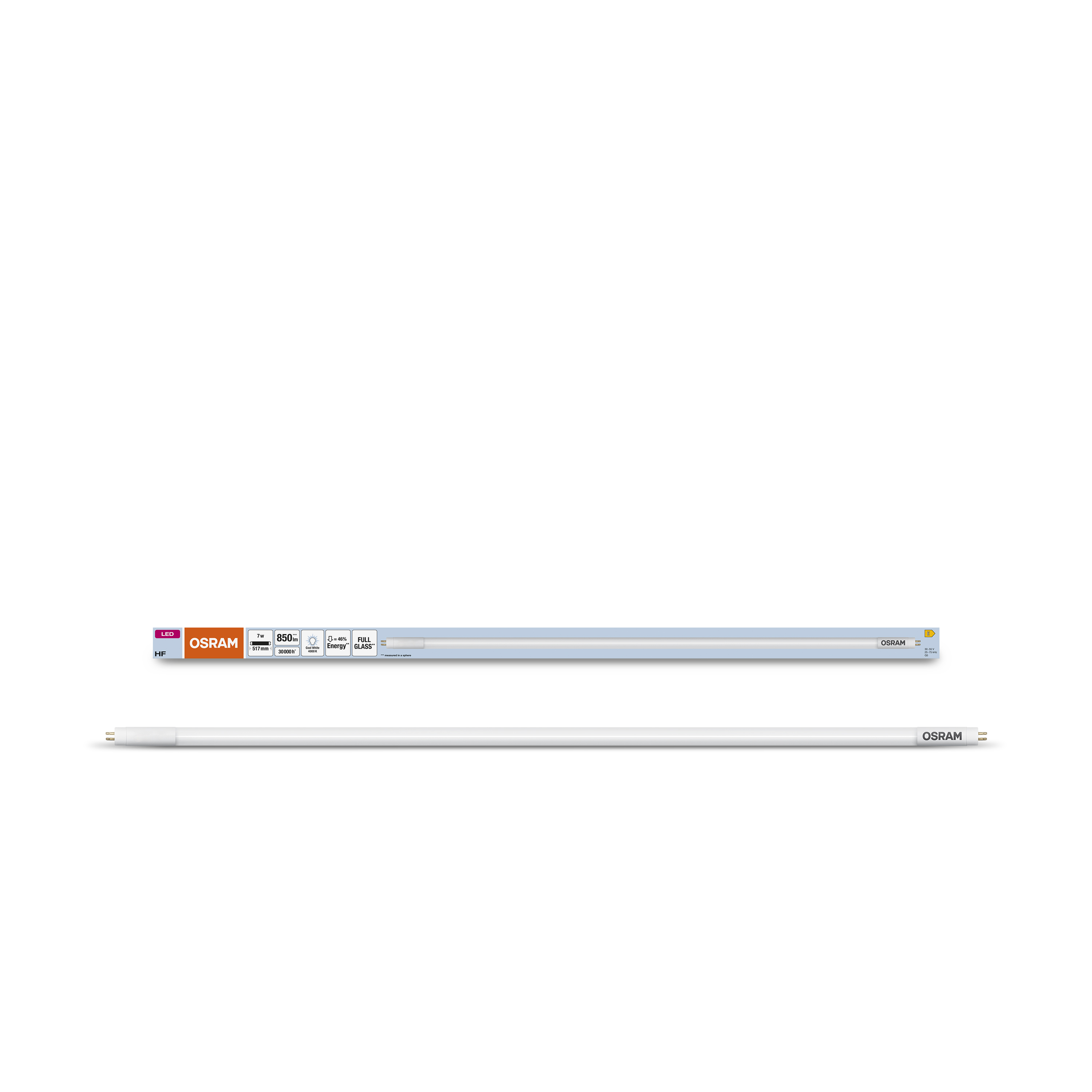

| LED TUBE T5 HF L13 SHORT 517 mm 7W 840 | G5 | 7 W | 30…55 V | 30000 h | 850 lm | 13 W | 190 ° | No |
| Nominal wattage | 7 W |
| Construction wattage | 7.00 W |
| Nominal voltage | 30…55 V |
| Operating mode | Electronic control gear (ECG) 1) |
| Nominal current | 215 mA |
| Type of current | AC |
| Inrush current | 21 A |
| Operating frequency | 25…75 kHz |
| Mains frequency | 25…75 kHz |
| Total harmonic distortion | 120 % |
| Power factor λ | 0.59 |
1) Check ECG compatibility at ledvance.com/compatibility
| Luminous flux | 850 lm |
| Luminous efficacy | 121 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 80 |
| Light color | 840 |
| Standard deviation of color matching | ≤5 sdcm |
| Rated LLMF at 6,000 h | 0.90 |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0.4 |
| Beam angle | 190 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
| Overall length | 530.00 mm |
| Length with base excl. base pins/connection | 517.00 mm |
| Diameter | 18.50 mm |
| Tube diameter | 16 mm |
| Maximum diameter | 19 mm |
| Product weight | 68.00 g |
| Ambient temperature range | -20…+45 °C 1) |
| Maximum temperature at tc test point | 65 °C |
| Performance temp. acc. to IEC 62717 | 40 °C 2) |
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 200000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
| Base (standard designation) | G5 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Dimmable | No |

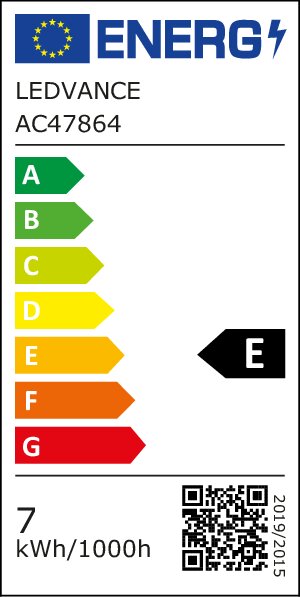

| Energy efficiency class | E 1) |
| Energy consumption | 7.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, UKCA, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
| Order reference | LEDTUBE T5HF L1 |
| Temperature range at storage | -20…+80 °C |
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | G5 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0 W |
| Networked standby power for CLS | 0 W |
| Claim of equivalent power | No |
| Length | 530.00 mm |
| Height | 18.50 mm |
| Width | 18.50 mm |
| Chromaticity coordinate x | 0,382 |
| Chromaticity coordinate y | 0,38 |
| R9 Colour rendering index | 80 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| Displacement factor | 0,86 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1392491,1407628 |
| Model number | AC46404,AC47864,AC47864 |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

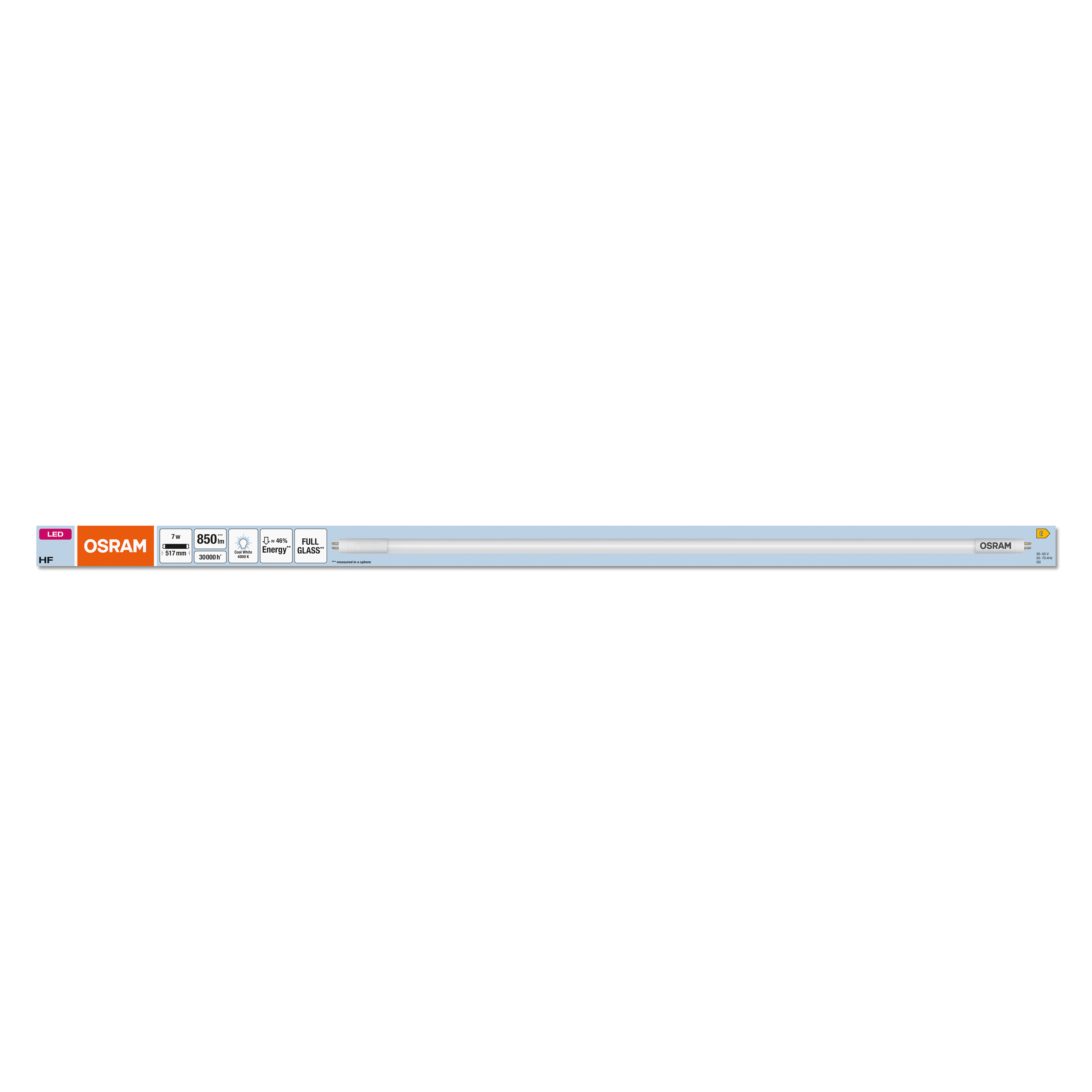

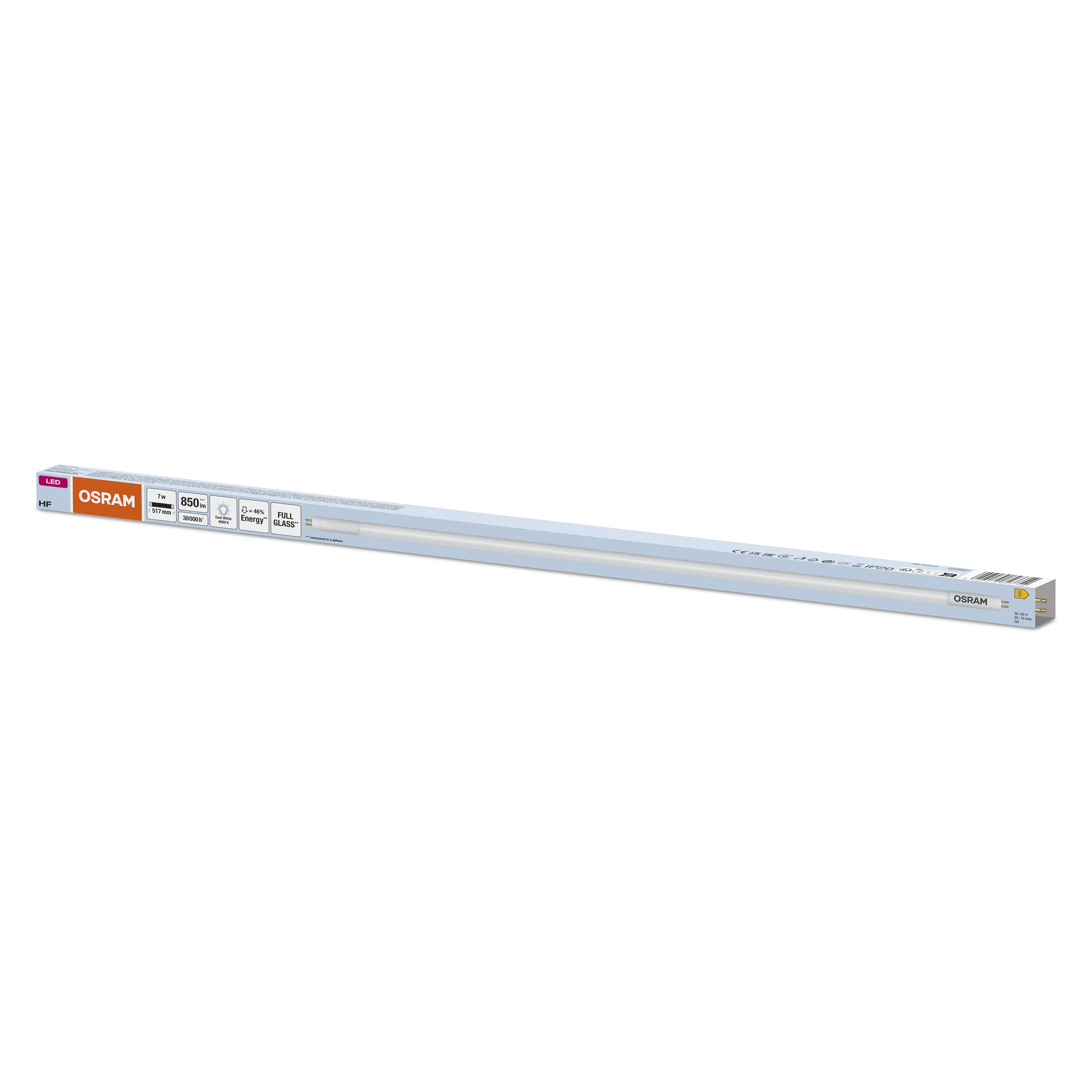

| 4058075823754 | Sleeve 1 |
533 mm x 23 mm x 23 mm | 82.00 g | 0.28 dm³ |
| 4099854077579 | Folding box 10 |
118 mm x 48 mm x 535 mm | 892.00 g | 3.03 dm³ |
| 4058075823761 | Shipping box 10 |
540 mm x 125 mm x 59 mm | 1042.00 g | 3.98 dm³ |
