LED TUBE T8 EM

Choose your product version

438 mm 5.4W 830

438 mm 5.4W 840

438 mm 5.4W 865

600 mm 6.6W 830

600 mm 6.6W 840

600 mm 6.6W 865

720 mm 7W 830

720 mm 7W 840

720 mm 7W 865

900 mm 10W 830

900 mm 10W 840

900 mm 10W 865

1050 mm 11.6W 830

1050 mm 11.6W 840

1050 mm 11.6W 865

1200 mm 15W 830

1200 mm 15W 840

1200 mm 15W 865

1500 mm 18.3W 830

1500 mm 18.3W 840

1500 mm 18.3W 865

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T8 15 EM 438 mm 5.4W 830 G13 5.4 W 220…240 V 30000 h 585 lm 15 W 190 ° No
LED TUBE T8 15 EM 438 mm 5.4W 840 G13 5.4 W 220…240 V 30000 h 650 lm 15 W 190 ° No
LED TUBE T8 15 EM 438 mm 5.4W 865 G13 5.4 W 220…240 V 30000 h 650 lm 15 W 190 ° No
LED TUBE T8 18 EM 600 mm 6.6W 830 G13 6.6 W 220…240 V 30000 h 720 lm 18 W 190 ° No
LED TUBE T8 18 EM 600 mm 6.6W 840 G13 6.6 W 220…240 V 30000 h 800 lm 18 W 190 ° No
LED TUBE T8 18 EM 600 mm 6.6W 865 G13 6.6 W 220…240 V 30000 h 800 lm 18 W 190 ° No
LED TUBE T8 16 EM 720 mm 7W 830 G13 7 W 220…240 V 30000 h 765 lm 16 W 190 ° No
LED TUBE T8 16 EM 720 mm 7W 840 G13 7 W 220…240 V 30000 h 850 lm 16 W 190 ° No
LED TUBE T8 16 EM 720 mm 7W 865 G13 7 W 220…240 V 30000 h 850 lm 16 W 190 ° No
LED TUBE T8 30 EM 900 mm 10W 830 G13 10 W 220…240 V 30000 h 1080 lm 30 W 190 ° No
LED TUBE T8 30 EM 900 mm 10W 840 G13 10 W 220…240 V 30000 h 1200 lm 30 W 190 ° No
LED TUBE T8 30 EM 900 mm 10W 865 G13 10 W 220…240 V 30000 h 1200 lm 30 W 190 ° No
LED TUBE T8 38 EM 1050 mm 11.6W 830 G13 11.6 W 220…240 V 30000 h 1260 lm 38 W 190 ° No
LED TUBE T8 38 EM 1050 mm 11.6W 840 G13 11.6 W 220…240 V 30000 h 1400 lm 38 W 190 ° No
LED TUBE T8 38 EM 1050 mm 11.6W 865 G13 11.6 W 220…240 V 30000 h 1400 lm 38 W 190 ° No
LED TUBE T8 36 EM 1200 mm 15W 830 G13 15 W 220…240 V 30000 h 1620 lm 36 W 190 ° No
LED TUBE T8 36 EM 1200 mm 15W 840 G13 15 W 220…240 V 30000 h 1800 lm 36 W 190 ° No
LED TUBE T8 36 EM 1200 mm 15W 865 G13 15 W 220…240 V 30000 h 1800 lm 36 W 190 ° No
LED TUBE T8 58 EM 1500 mm 18.3W 830 G13 18.3 W 220…240 V 30000 h 2000 lm 58 W 190 ° No
LED TUBE T8 58 EM 1500 mm 18.3W 840 G13 18.3 W 220…240 V 30000 h 2200 lm 58 W 190 ° No
LED TUBE T8 58 EM 1500 mm 18.3W 865 G13 18.3 W 220…240 V 30000 h 2200 lm 58 W 190 ° No


LED TUBE T8 15 EM 438 mm 5.4W 830

Product benefits
  • High color homogeneity
  • Energy savings of up to 69 % compared to conventional T8 fluorescent lamps
  • Instant flickerfree starting
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5.4 W
Construction wattage 5.40 W
Nominal voltage 220…240 V
Operating mode Conventional control gear (CCG), AC Mains
Nominal current 25 mA
Type of current AC
Inrush current 8 A
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 88
Max. lamp number on MCB B10 A - CCG without compensation 75
Max. lamp number on MCB B10 A - CCG with compensation 31
Max. lamp number on MCB B16 A 110
Max. lamp number on MCB B16 A - CCG without compensation 94
Max. lamp number on MCB B16 A - CCG with compensation 40
Total harmonic distortion < 30 %
Power factor λ 0.90

Photometrical data

Luminous flux 585 lm
Luminous efficacy 108 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 451.00 mm
Length with base excl. base pins/connection 438.00 mm
Diameter 26.80 mm
Tube diameter 25,8 mm
Maximum diameter 28 mm
Product weight 75.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 70 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 6.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T8 15 E

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power <0.5 W
Claim of equivalent power No
Length 451.00 mm
Height 26.80 mm
Width 26.80 mm
Chromaticity coordinate x 0.44
Chromaticity coordinate y 0.403
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1333999,1529765
Model number AC45406,AC51418,AC51418

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High color homogeneity
  • Energy savings of up to 69 % compared to conventional T8 fluorescent lamps
  • Instant flickerfree starting
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Corridors, stairways, parking garages
  • Domestic applications
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires
  • T8 LED tube made of glass with G13 base
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Mercury-free and RoHS compliant
  • Single and tandem operation on conventional control gear (≤0.9m versions)
  • Type of protection: IP20
Equipment / Accessories
  • Suitable for operation on magnetic control gear
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The Tc Point is located underneath the product label on the front side of the lamp.
  • Not suitable for emergency lighting.
  • All electrical connections must be made by a qualified person.
  • Disconnect mains before installation.
References / Links
  • For current information see www.ledvance.com/osram-led-tube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854038501 Sleeve
1		 27 mm x 29 mm x 545 mm 110.50 g 0.43 dm³
4099854038518 Shipping box
8		 580 mm x 143 mm x 100 mm 1194.00 g 8.29 dm³
User instruction / safety instructions
LEDTUBE T8 EM OSRAM PDF (2.85 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LEDTUBE T8 EM PDF (407.19 KB)
Declarations of conformity
LED TUBE T8 EM PDF (388.22 KB)
Product image: white background, diagonal with OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM JPG (915.08 KB)
Product image: white background, diagonal
LED TUBE T8 EM JPG (769.9 KB)
Product image: white background, horizontal, OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM horizontal JPG (135.08 KB)
Product image: white background, upright, OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM JPG (656.82 KB)
Product image: white background, upright
LED TUBE T8 EM JPG (650.51 KB)
Product line drawing with letters
338276_SubstiTUBE Basi c ST8-HB SVG (8.95 KB)
Product line drawing with letters
LEDTUBE T8 EM SVG (9.49 KB)
Product line drawing with numbers
LEDTUBE T8 EM 438 SVG (15.56 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)

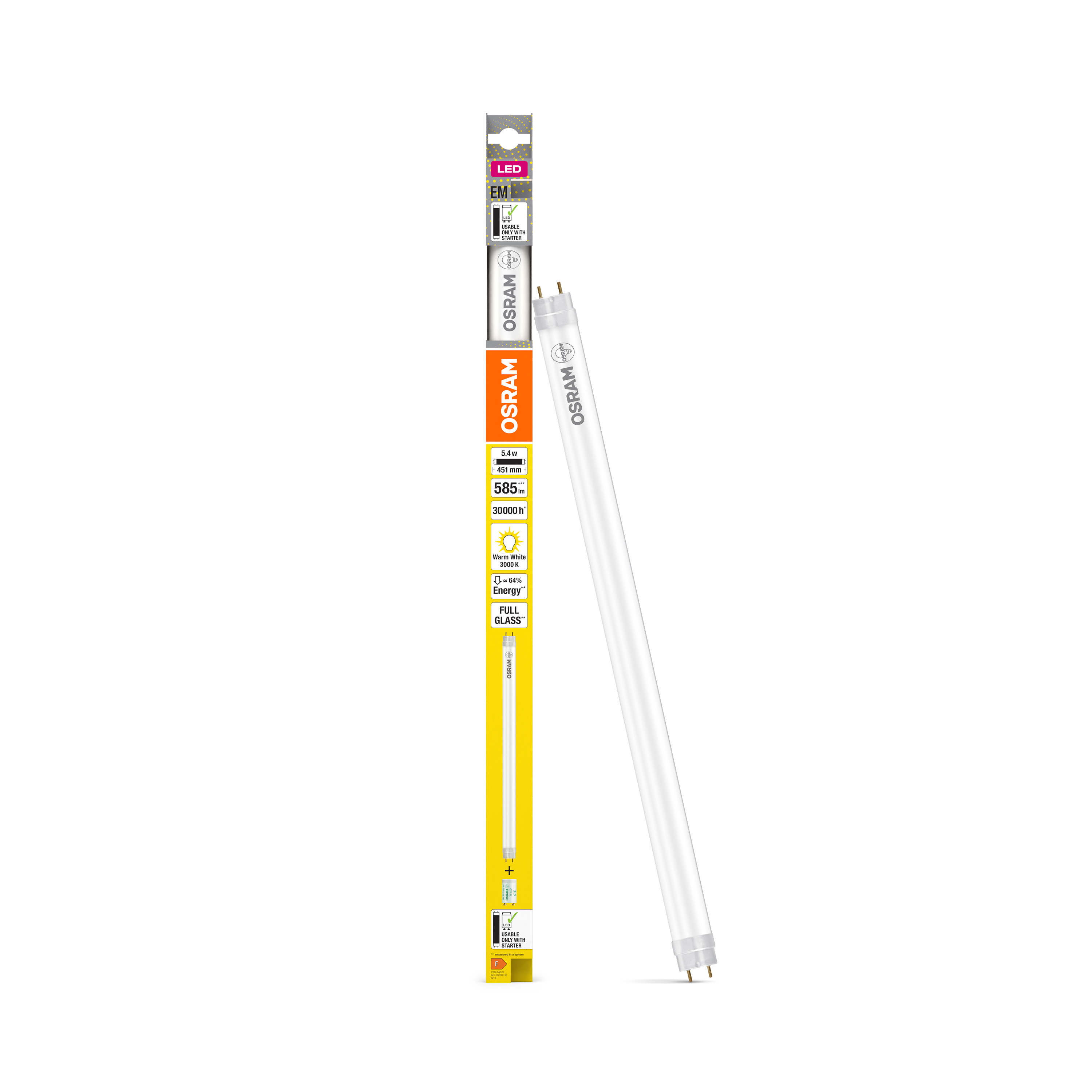

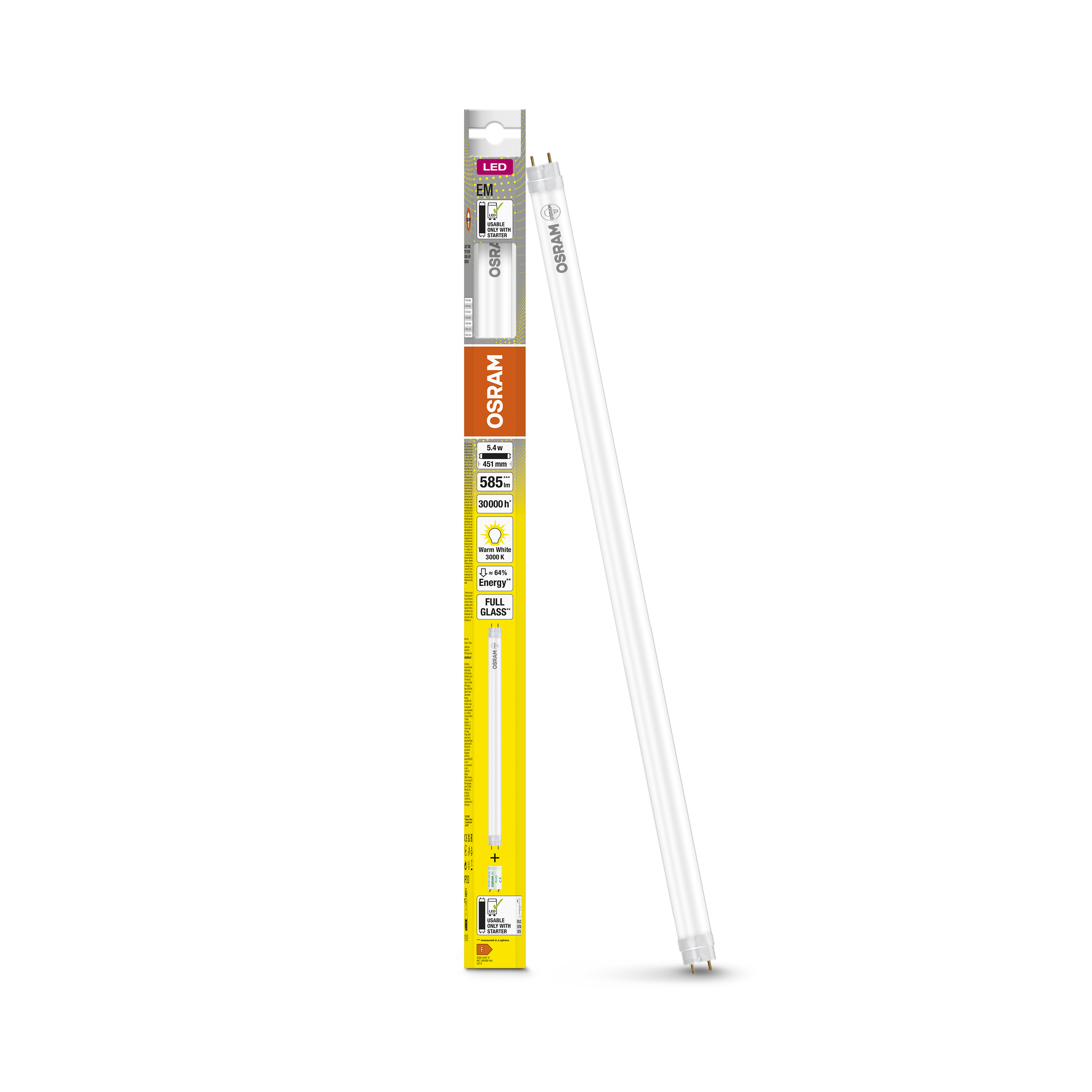

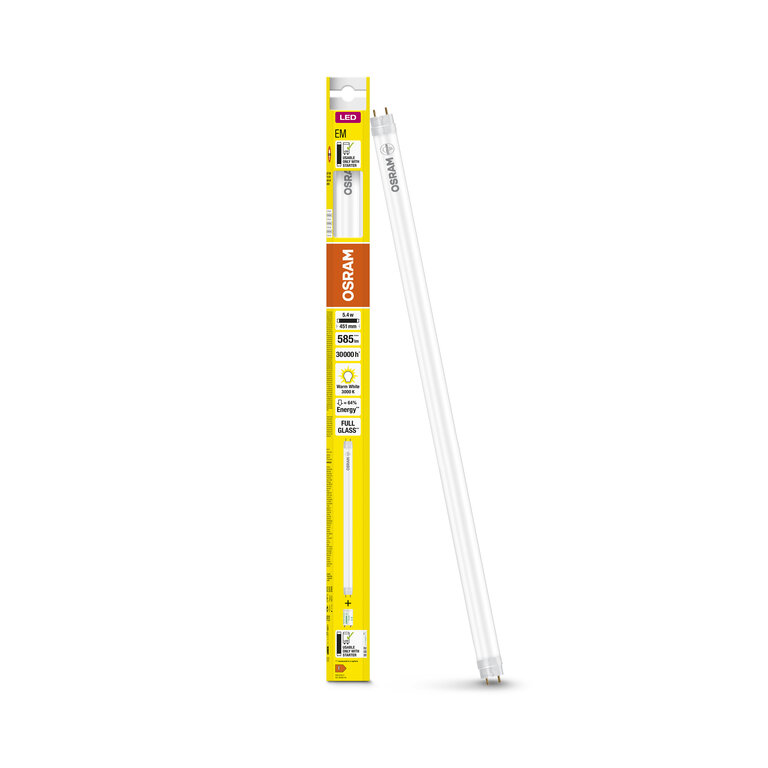

Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T8 15 EM 438 5 .4W 830 G13 MiCh JPG (961.44 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T8 15 EM 438 5 .4W 830 G13 MiCh JPG (1.01 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T8 15 EM 438 5 .4W 830 G13 MiCh JPG (444.63 KB)

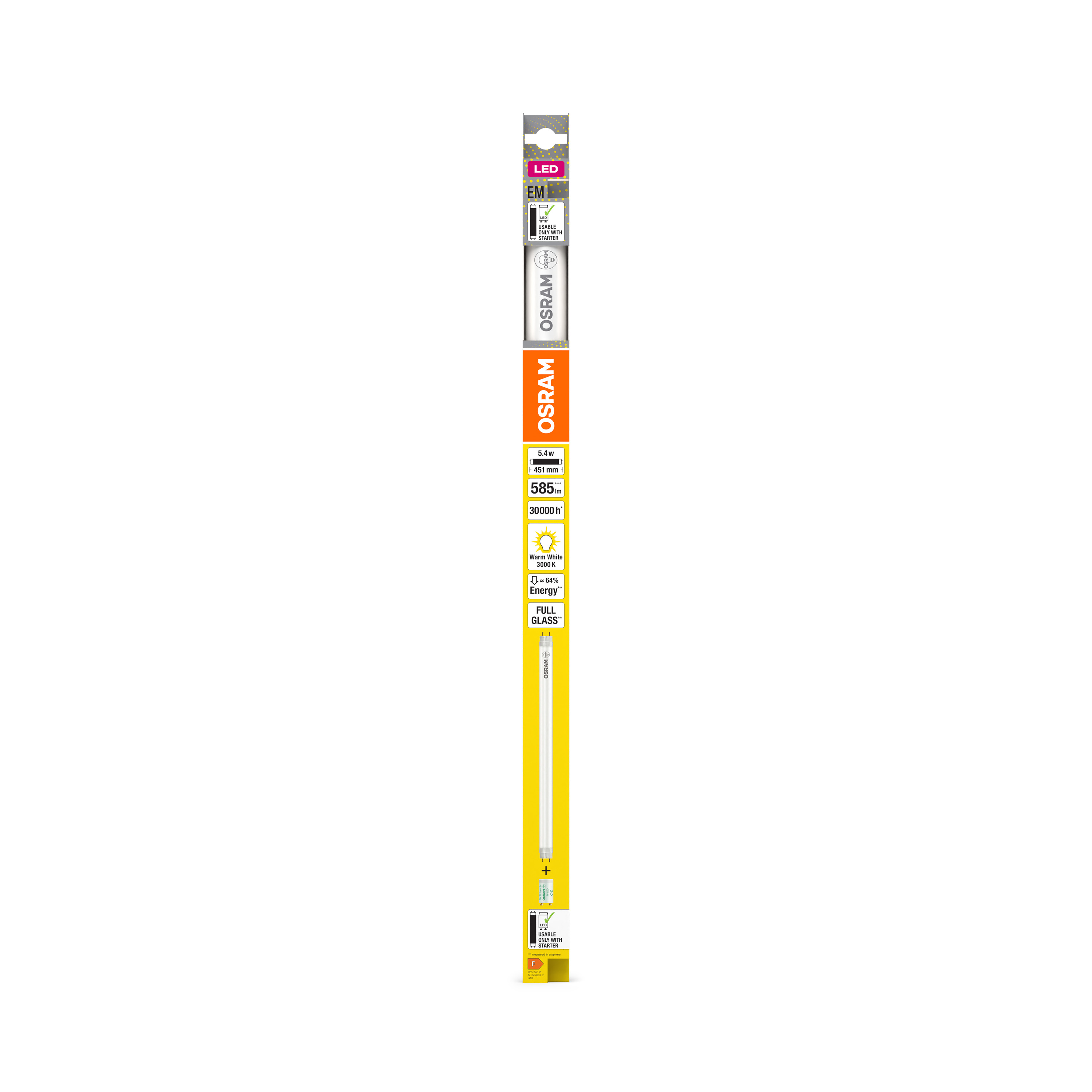

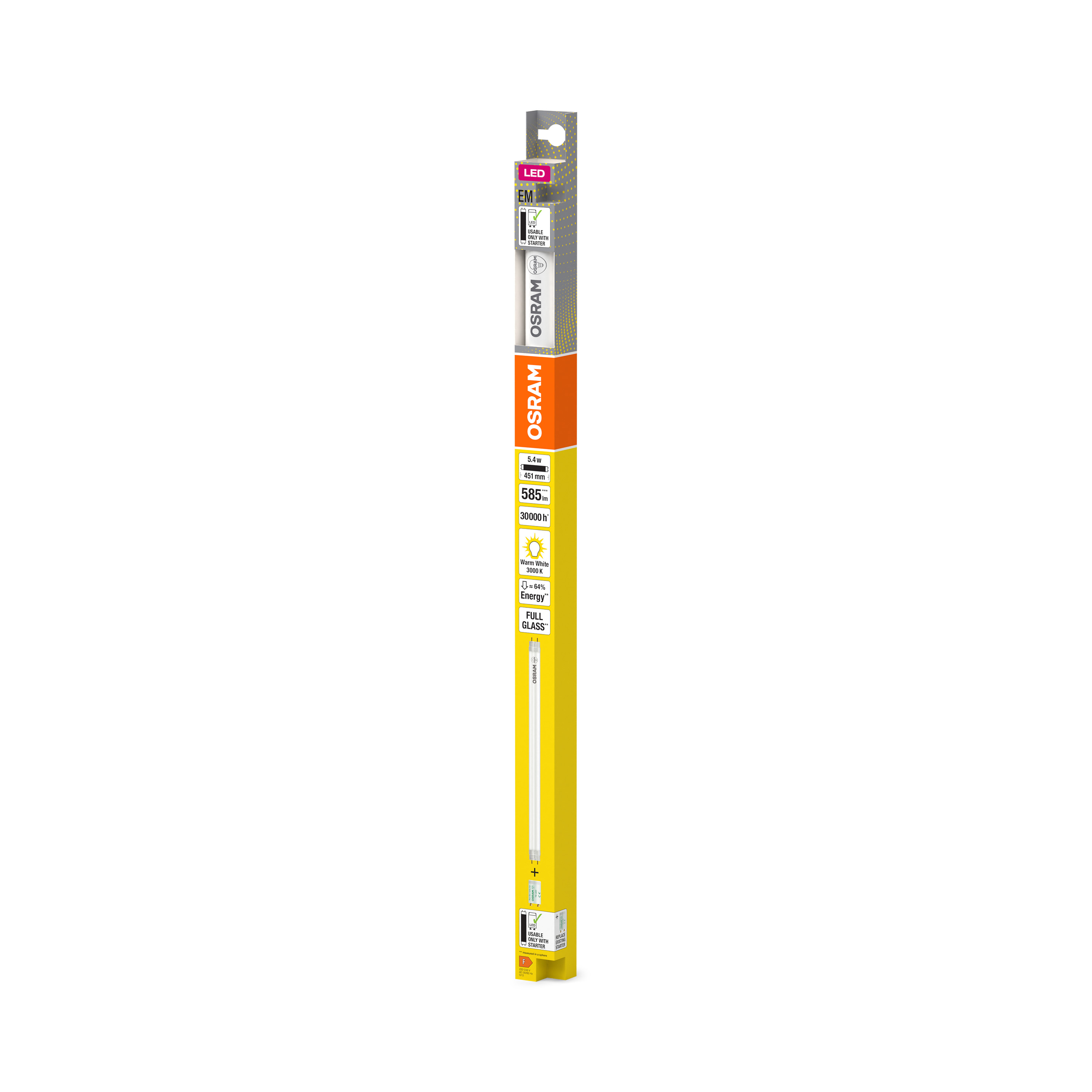

Packaging image, frontal
LEDTUBE T8 15 EM 438 5 .4W 830 G13 MiCh JPG (414.44 KB)

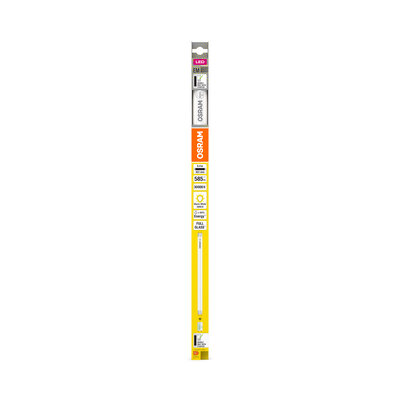

Packaging image, spacial
LEDTUBE T8 15 EM 438 5 .4W 830 G13 MiCh JPG (438.1 KB)
Energy label
EL-4099854038501-AC454 06 PDF (21.49 KB)
Energy label
EL-4099854038501-AC514 18 PDF (21.57 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
IES file (IES)
LEDTUBE T8 15 EM 438 5 .4W 830 OSRAM IES (1.28 KB)
LDT file (Eulumdat)
LEDTUBE T8 15 EM 438 5 .4W 830 OSRAM LDT (1.17 KB)

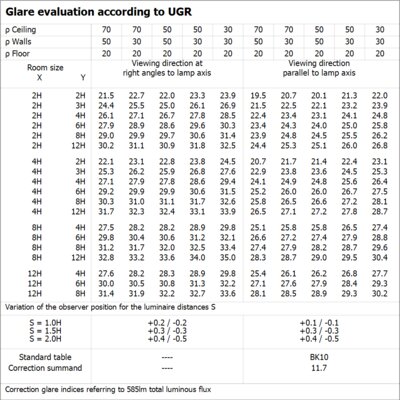

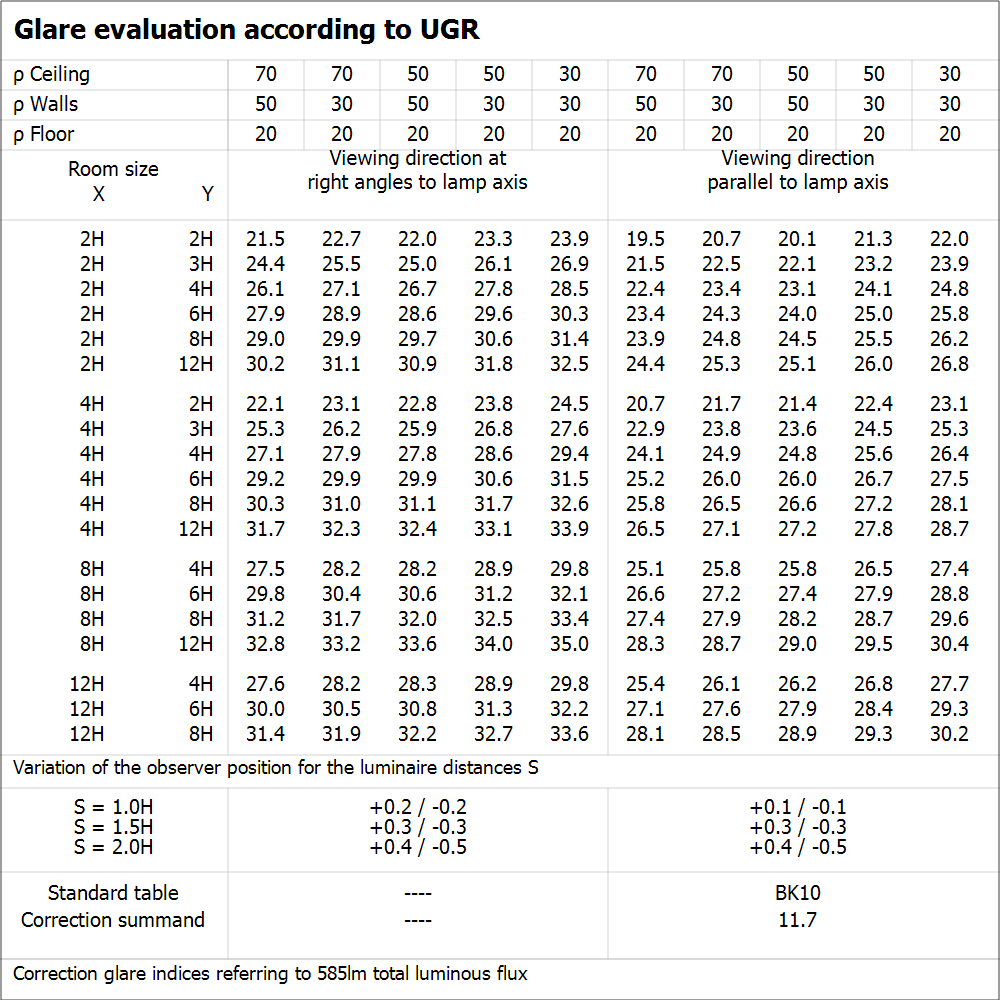

UGR file (UGR table)
LEDTUBE T8 15 EM 438 5 .4W 830 OSRAM PNG (63.12 KB)
Light distribution curve type polar
LEDTUBE T8 15 EM 438 5 .4W 830 OSRAM SVG (19.63 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 3000K PNG (115.07 KB)

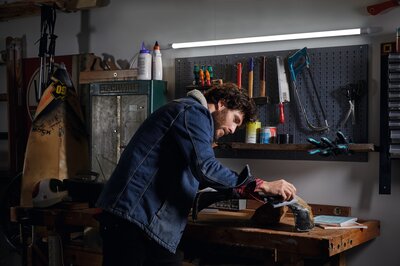

Application pictures
