LED TUBE T8 EM FLUORA

Choose your product version

600 mm 6.6W

900 mm 10W

1200 mm 15W

1500 mm 18.3W

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T8 18 EM FLUORA 600 mm 6.6W G13 6.6 W 220…240 V 30000 h 450 lm 18 W 100 ° No
LED TUBE T8 30 EM FLUORA 900 mm 10W G13 10 W 220…240 V 30000 h 720 lm 30 W 100 ° No
LED TUBE T8 36 EM FLUORA 1200 mm 15W G13 15 W 220…240 V 30000 h 1150 lm 36 W 100 ° No
LED TUBE T8 58 EM FLUORA 1500 mm 18.3W G13 18.3 W 220…240 V 30000 h 1450 lm 58 W 100 ° No


LED TUBE T8 36 EM FLUORA 1200 mm 15W

Product benefits
  • Promotes plant growth
  • High color homogeneity
  • Energy savings of up to 69 % compared to conventional T8 fluorescent lamps
  • Instant flickerfree starting
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15 W
Construction wattage 15.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 76 mA
Type of current AC
Inrush current 4,8 A
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 105
Max. lamp number on MCB B10 A - CCG without compensation 74
Max. lamp number on MCB B10 A - CCG with compensation 28
Max. lamp number on MCB B16 A 156
Max. lamp number on MCB B16 A - CCG without compensation 92
Max. lamp number on MCB B16 A - CCG with compensation 36
Total harmonic distortion < 52 %
Power factor λ 0.90

Photometrical data

Luminous intensity Not relevant
Luminous flux 1150 lm
Luminous efficacy 76 lm/W
Lumen main.fact.at end of nom.life time 0.70
Color temperature 2500 K
Color rendering index Ra 80
Light color 825
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0,4

Light technical data

Beam angle 100 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 1213.00 mm
Length with base excl. base pins/connection 1200.00 mm
Diameter 26.70 mm
Tube diameter 25,8 mm
Maximum diameter 28 mm
Product weight 186.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 80 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Energy consumption 15.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LEDTUBE T8 36 E

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Claim of equivalent power No
Length 1213.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate x 0.485
Chromaticity coordinate y 0.427
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,9
Displacement factor 0,9
LED light source replaces a fluorescent light source No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Promotes plant growth
  • High color homogeneity
  • Energy savings of up to 69 % compared to conventional T8 fluorescent lamps
  • Instant flickerfree starting
Areas of application
  • Wherever there is not enough natural daylight for plants
  • For ambient temperatures from -20…+45 °C
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires
  • T8 LED tube made of glass with G13 base
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Mercury-free and RoHS compliant
  • Single and tandem operation on conventional control gear (≤ 0.9 m versions)
  • Type of protection: IP20
Equipment / Accessories
  • Suitable for operation on magnetic control gear
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The Tc Point is located underneath the product label on the front side of the lamp.
  • Not suitable for emergency lighting.
  • Not suitable for general lighting
  • All electrical connections must be made by a qualified person.
  • Disconnect mains before installation.
References / Links
  • For current information see www.ledvance.com/osram-led-tube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854178177 Sleeve
1		 27 mm x 27 mm x 1,310 mm 264.00 g 0.95 dm³
4099854178184 Shipping box
8		 1,355 mm x 143 mm x 100 mm 2682.00 g 19.38 dm³
User instruction / safety instructions
LEDTUBE T8 EM FLUORA PDF (2.99 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LED TUBES T8 EM PDF (378.15 KB)
Product image: white background, diagonal with OSRAM logo
LEDTUBE T8 EM FLUORA JPG (824.03 KB)
Product image: white background, diagonal
LEDTUBE T8 EM FLUORA JPG (798.85 KB)
Product image: white background, upright, OSRAM logo
LEDTUBE T8 EM FLUORA JPG (679.39 KB)
Product image: white background, upright
LEDTUBE T8 EM FLUORA JPG (672.64 KB)
Product line drawing with letters
LEDTUBE T8 EM SVG (9.49 KB)
Product line drawing with numbers
LEDTUBE T8 EM 1200 SVG (15.42 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)

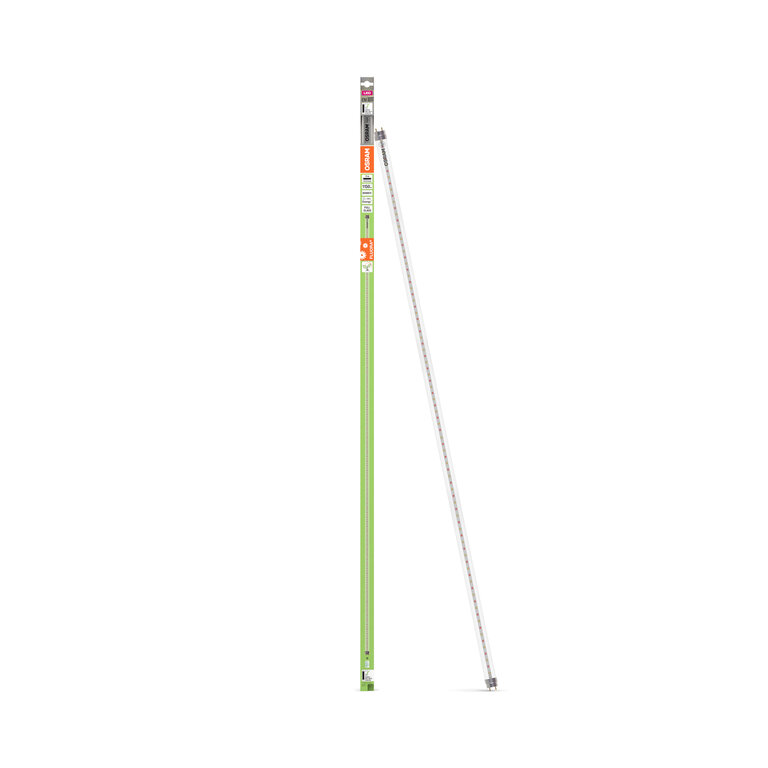

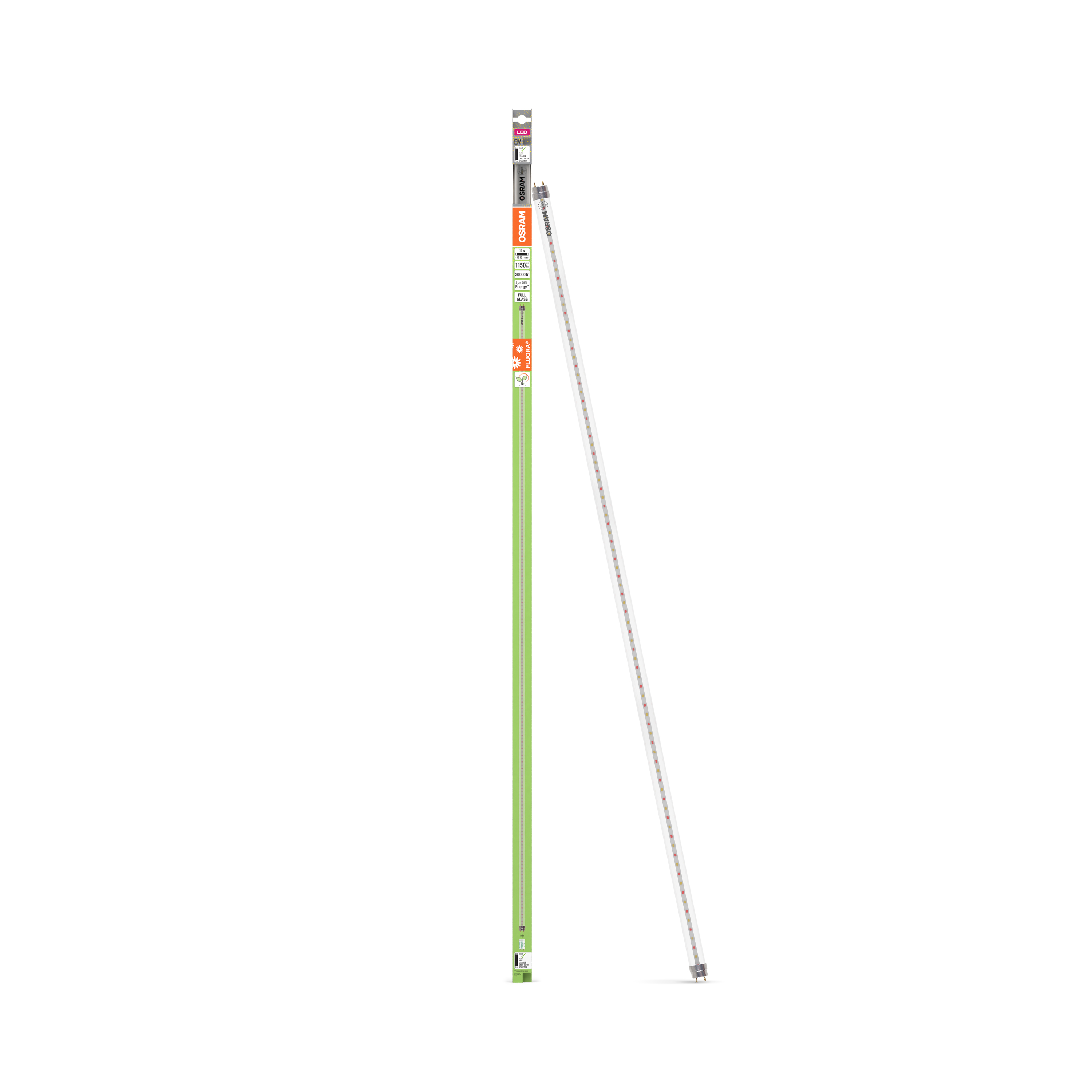

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LEDTUBE T8 36 EM F LUORA 1200 15W 825 G13 MiCh JPG (813.39 KB)

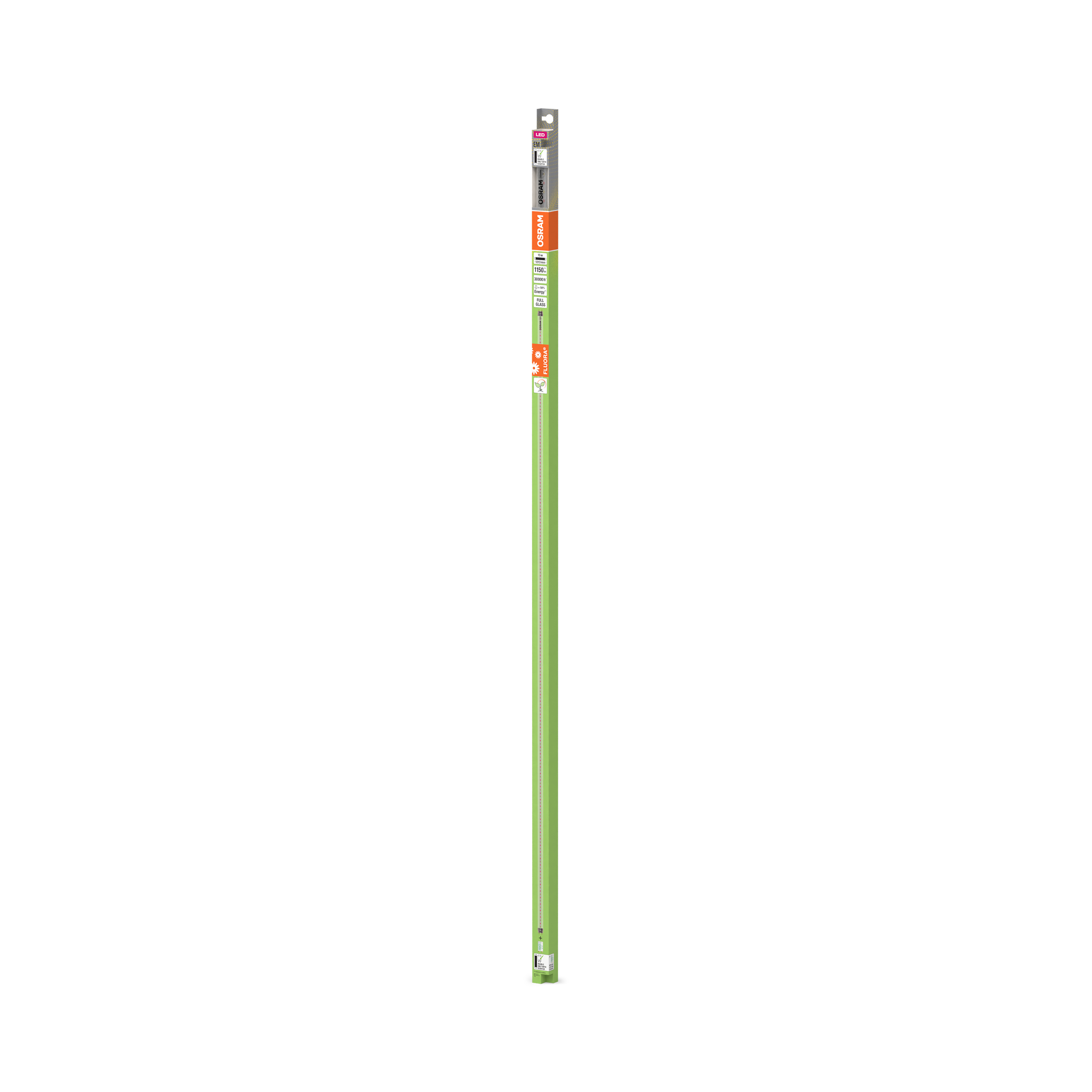

Packaging image, frontal
FC1 LEDTUBE T8 36 EM F LUORA 1200 15W 825 G13 MiCh JPG (746.92 KB)

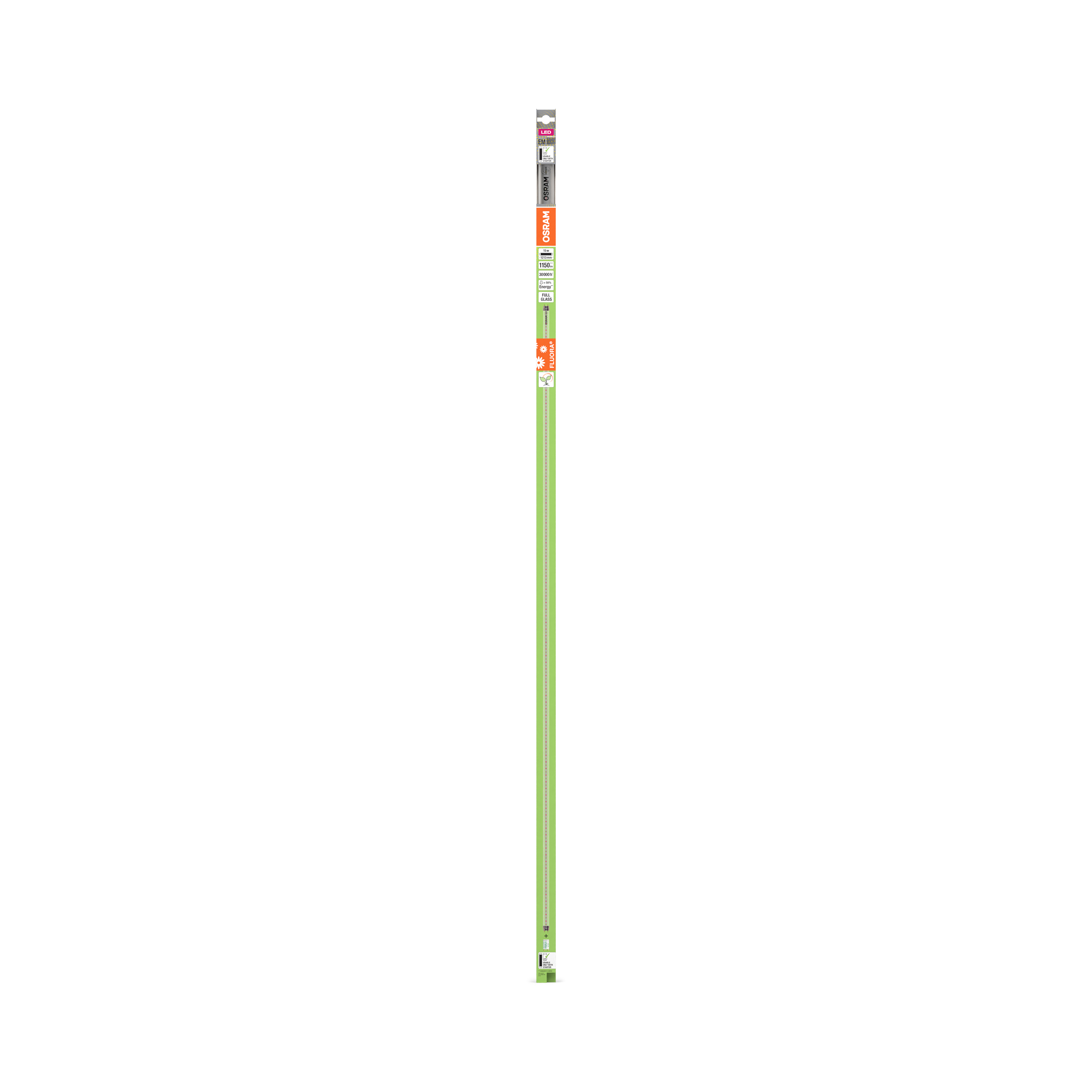

Packaging image, spacial
FC1 LEDTUBE T8 36 EM F LUORA 1200 15W 825 G13 MiCh JPG (775.8 KB)
Spectral power distribution
Spectral diagram T8 EM FLUORA SVG (49.63 KB)
