Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

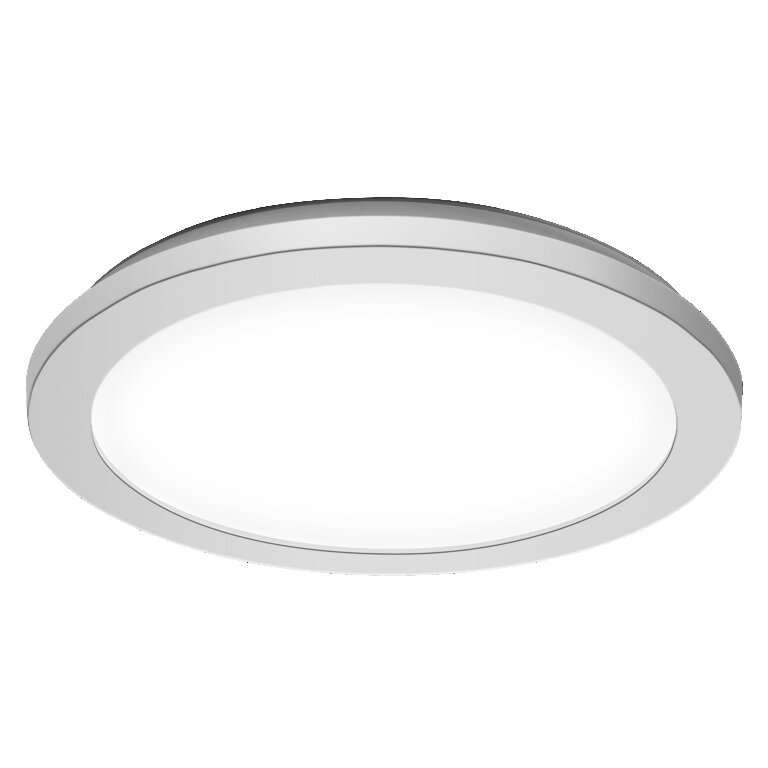

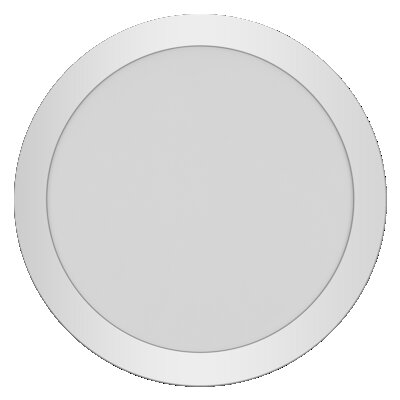

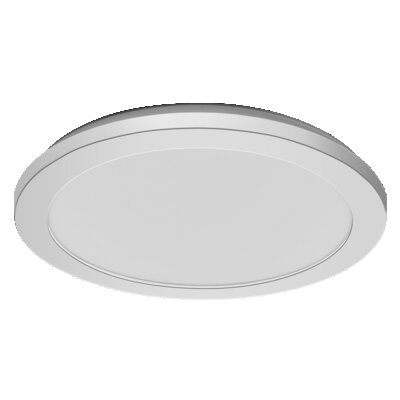

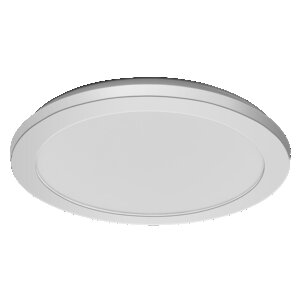

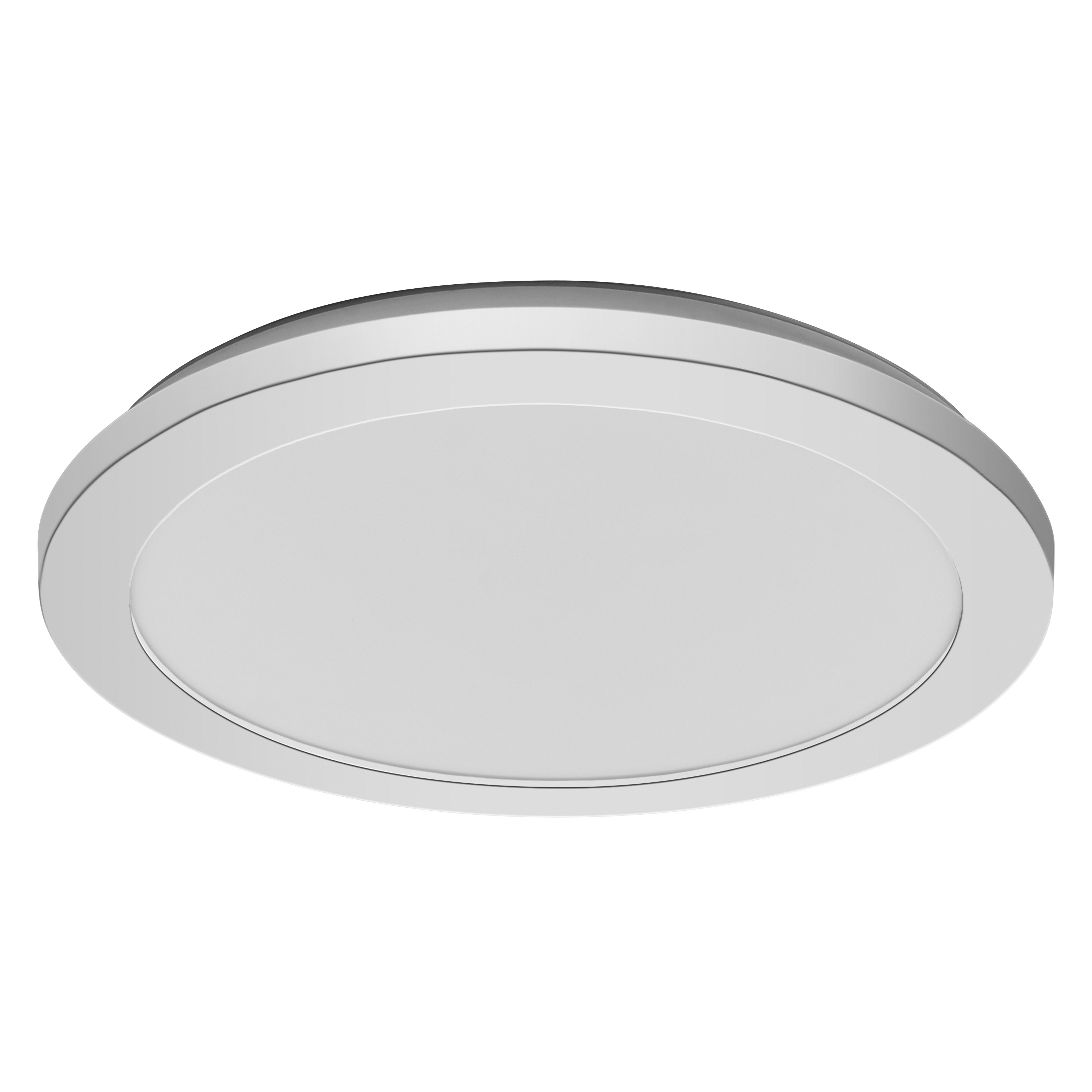

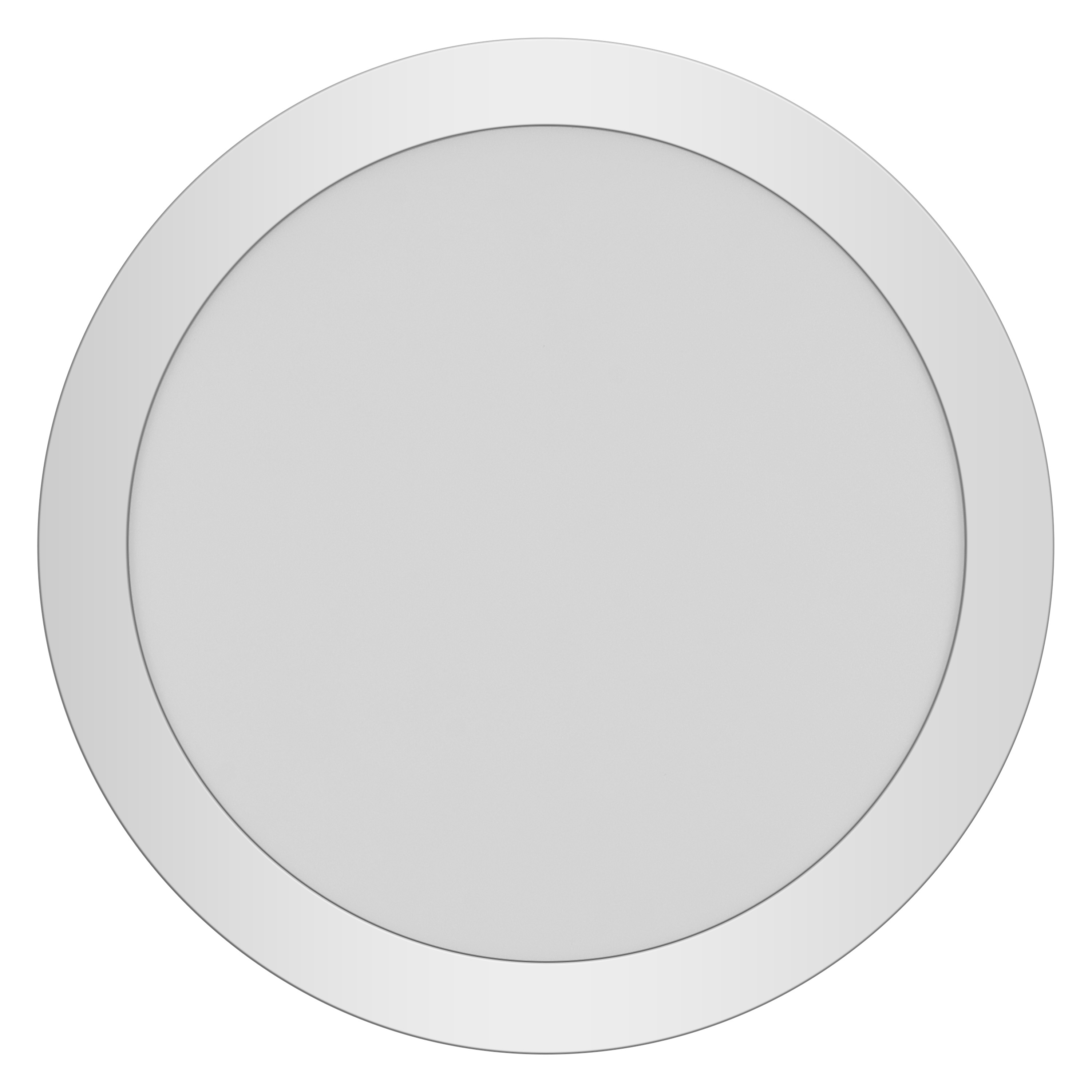

| Orbis Disc 30CM 22W Click CCT IP44 Chrome | 22.00 W | 10000 | 120 ° | 1800 lm | No |

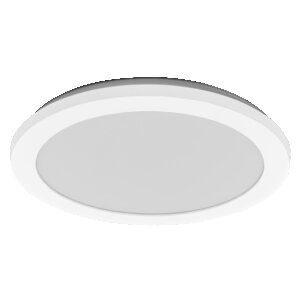

| Orbis Disc 30CM 22W Click CCT IP44 White | 22.00 W | 10000 | 120 ° | 1800 lm | No |

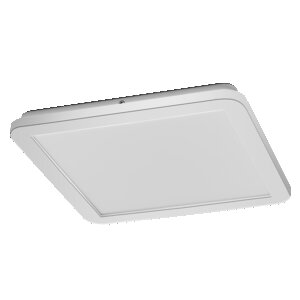

| Orbis Disc 30X30CM 22W Click CCT IP44 Chrome | 22.00 W | 10000 | 120 ° | 1800 lm | No |

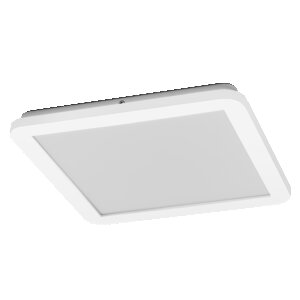

| Orbis Disc 30X30CM 22W Click CCT IP44 White | 22.00 W | 10000 | 120 ° | 1800 lm | No |

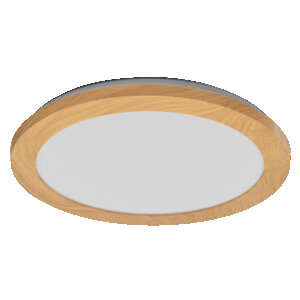

| Orbis Disc 30CM 22W Click CCT IP44 Wood Decor | 22.00 W | 10000 | 120 ° | 1800 lm | No |

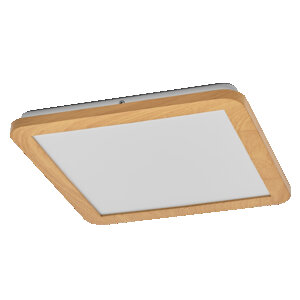

| Orbis Disc 30X30CM 22W Click CCT IP44 Wood Decor | 22.00 W | 10000 | 120 ° | 1800 lm | No |
| Nominal wattage | 22.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 116.000 mA |
| Inrush current | 0.116 A |
| Inrush current time Th50 | 800 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 75 |
| Max. number of luminaires per miniature circuit breaker C10 | 60 |
| Max. number of luminaires per miniature circuit breaker C16 | 96 |
| Power factor λ | > 0.7 |
| Total harmonic distortion | < 80 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 1800 lm |
| Total luminous flux of contained light sources | 3000 lm |
| Luminous efficacy | 81 lm/W |
| Color temperature | 3000 … 4000 K |
| Reference control setting of contained light source (Kelvin) | 3000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
| Diameter | 300.00 mm |
| Height | 30.00 mm |
| Product weight | 890.00 g |
| Product color | Chrome |
| Housing color | Chrome |
| Body material | ABS/Polycarbonate (PC)/Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854279591 | Folding box 1 |
37 mm x 317 mm x 318 mm | 1013.00 g | 3.73 dm³ |
| 4099854279607 | Shipping box 4 |
335 mm x 335 mm x 175 mm | 4605.00 g | 19.64 dm³ |
