Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

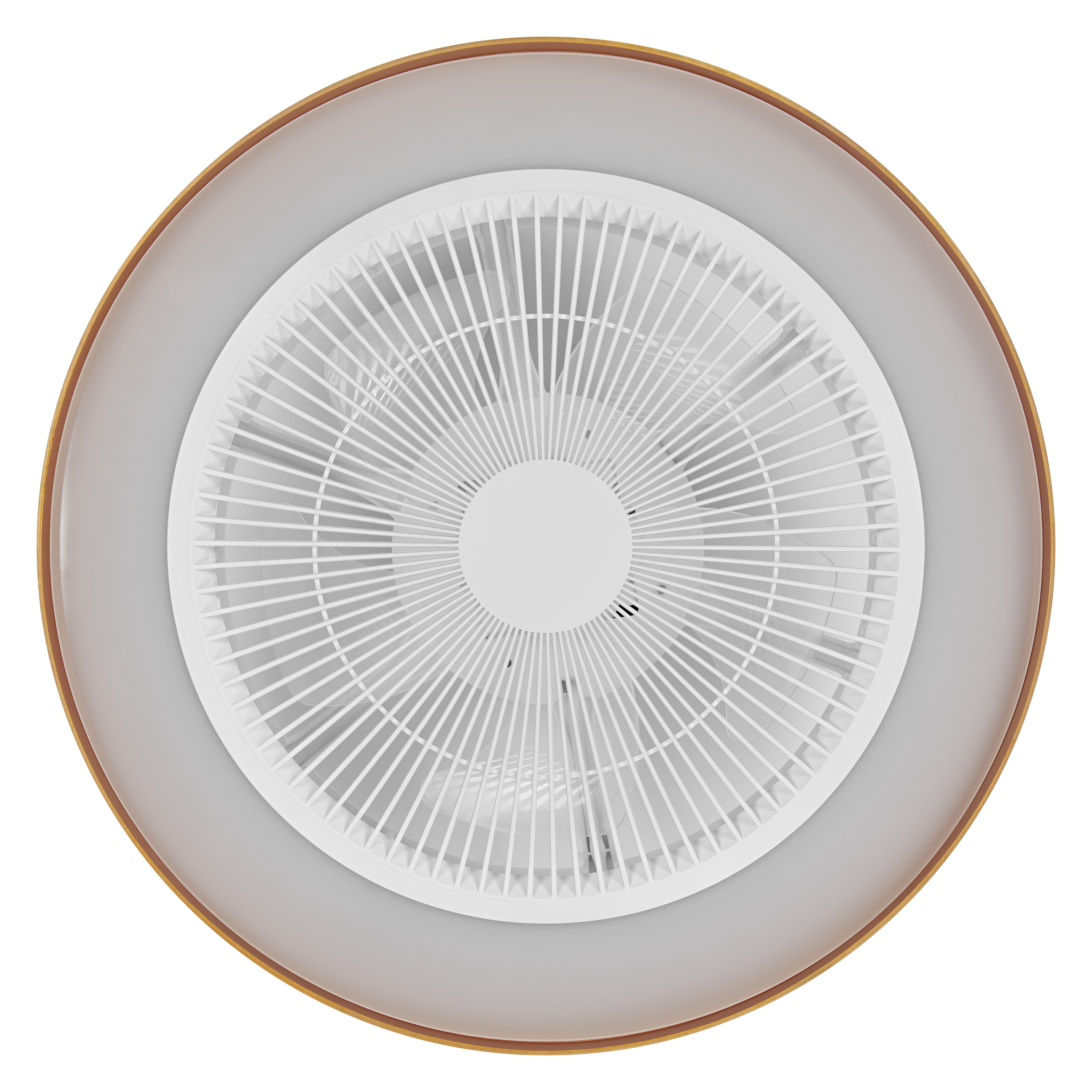

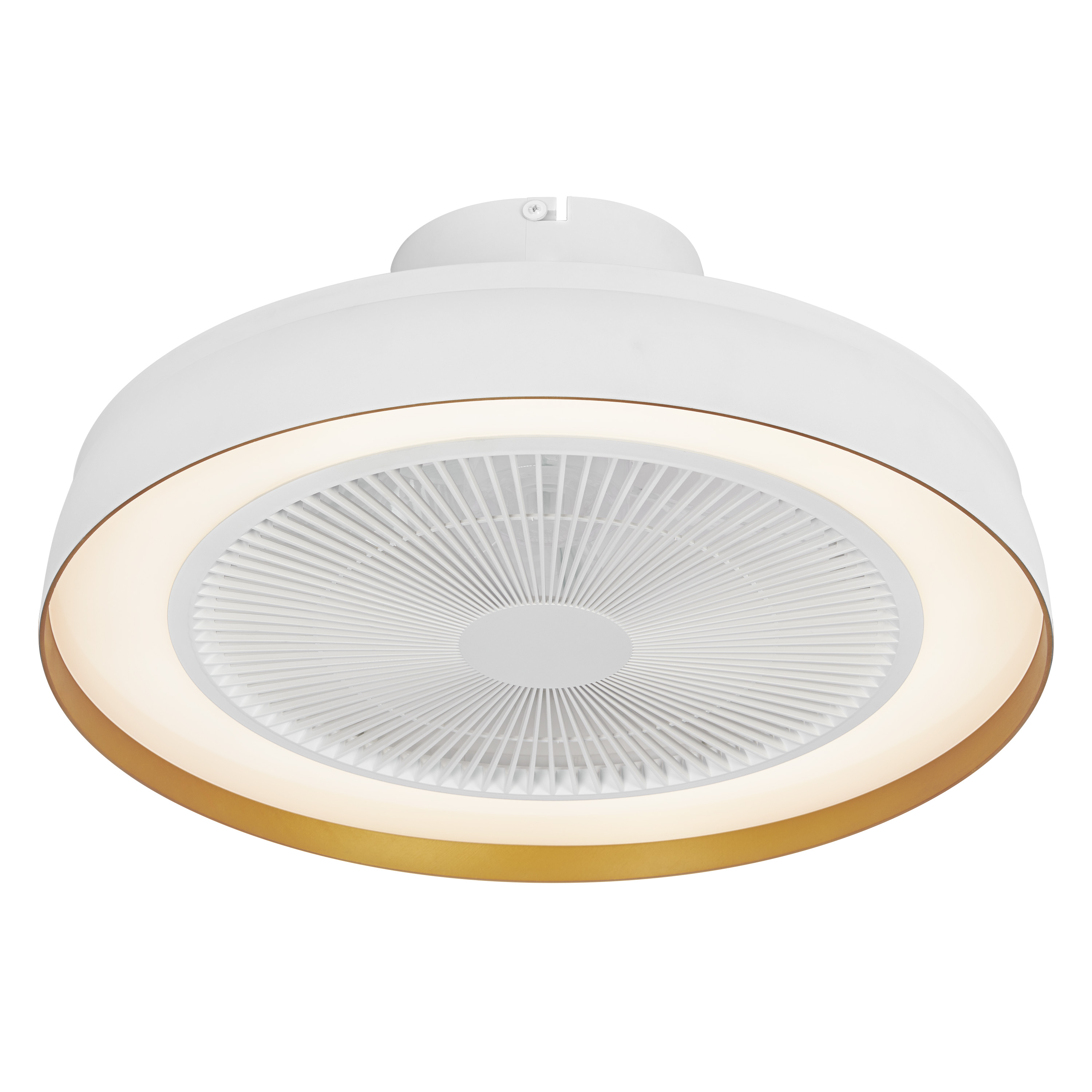

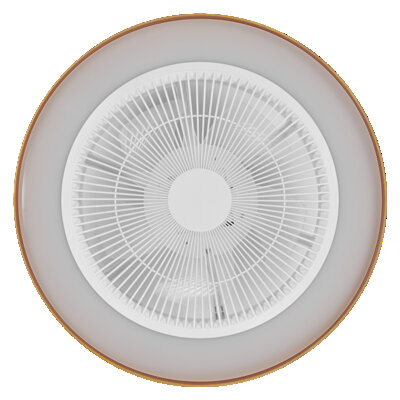

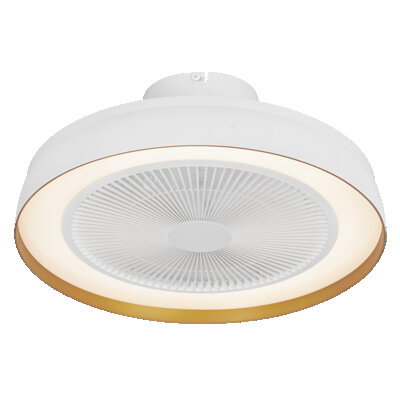

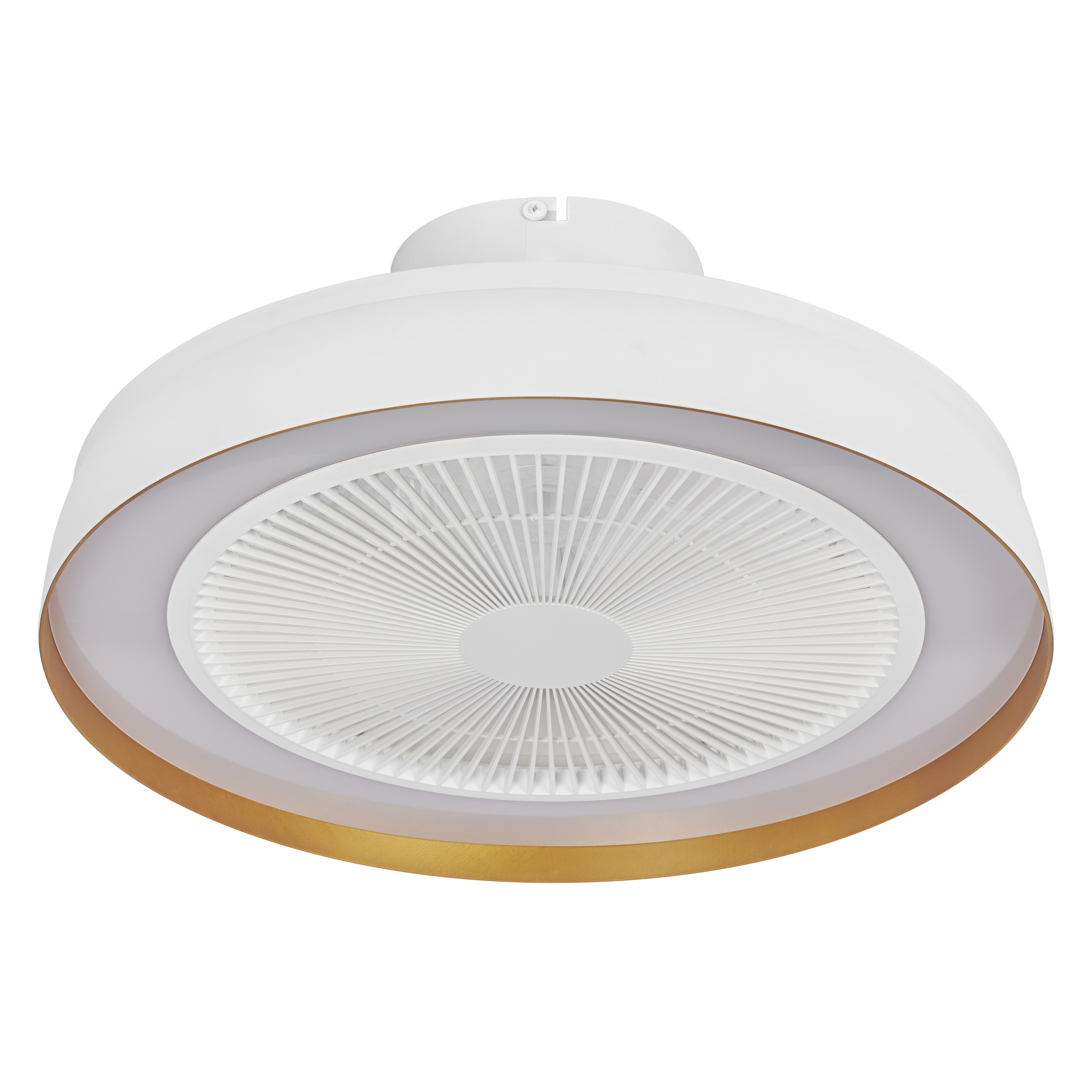

| Ceiling Fan Compact 480 49W White | 49.00 W | 15000 | 120 ° | 1100 lm | Yes |
| Nominal wattage | 49.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 230.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 36 |
| Max. number of luminaires per miniature circuit breaker C10 | 22 |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Power factor λ | ≥ 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 1100 lm |
| Total luminous flux of contained light sources | 3000 lm |
| Luminous efficacy | 40 lm/W |
| Color temperature | 2700…6500 K |
| Light color (designation) | Warm White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1.0 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
| Suitable for room space up to | 20 m² |
| Diameter | 480.00 mm |
| Height | 215.00 mm |
| Product weight | 2700.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polyprophylene (PP) |
| Cover material | Polypropylene (PP) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Dimmable | Yes |
| Mounting type | Surface |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Type of emergency operation test | None |
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Available from June 2025 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

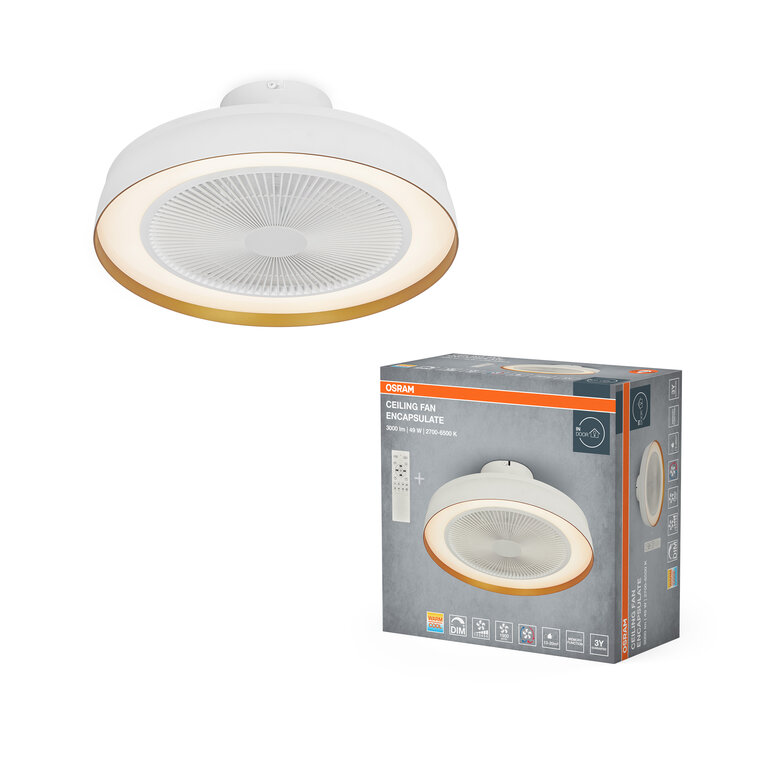

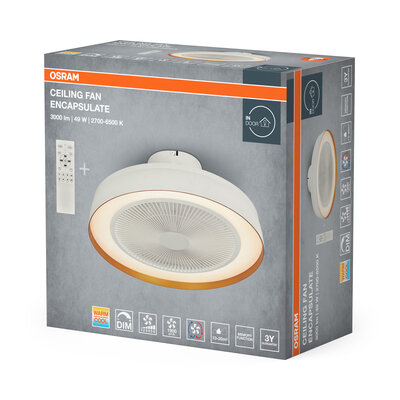

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854497971 | Folding box 1 |
263 mm x 533 mm x 536 mm | 3506.00 g | 75.14 dm³ |
| 4099854497988 | Shipping box 1 |
552 mm x 280 mm x 560 mm | 4629.00 g | 86.55 dm³ |
