Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

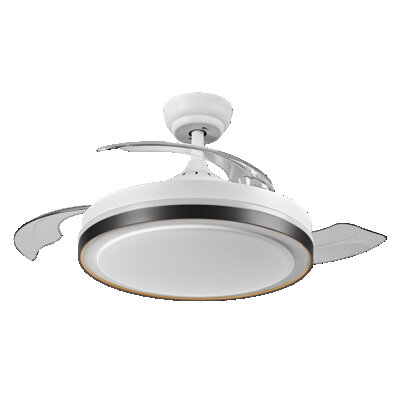

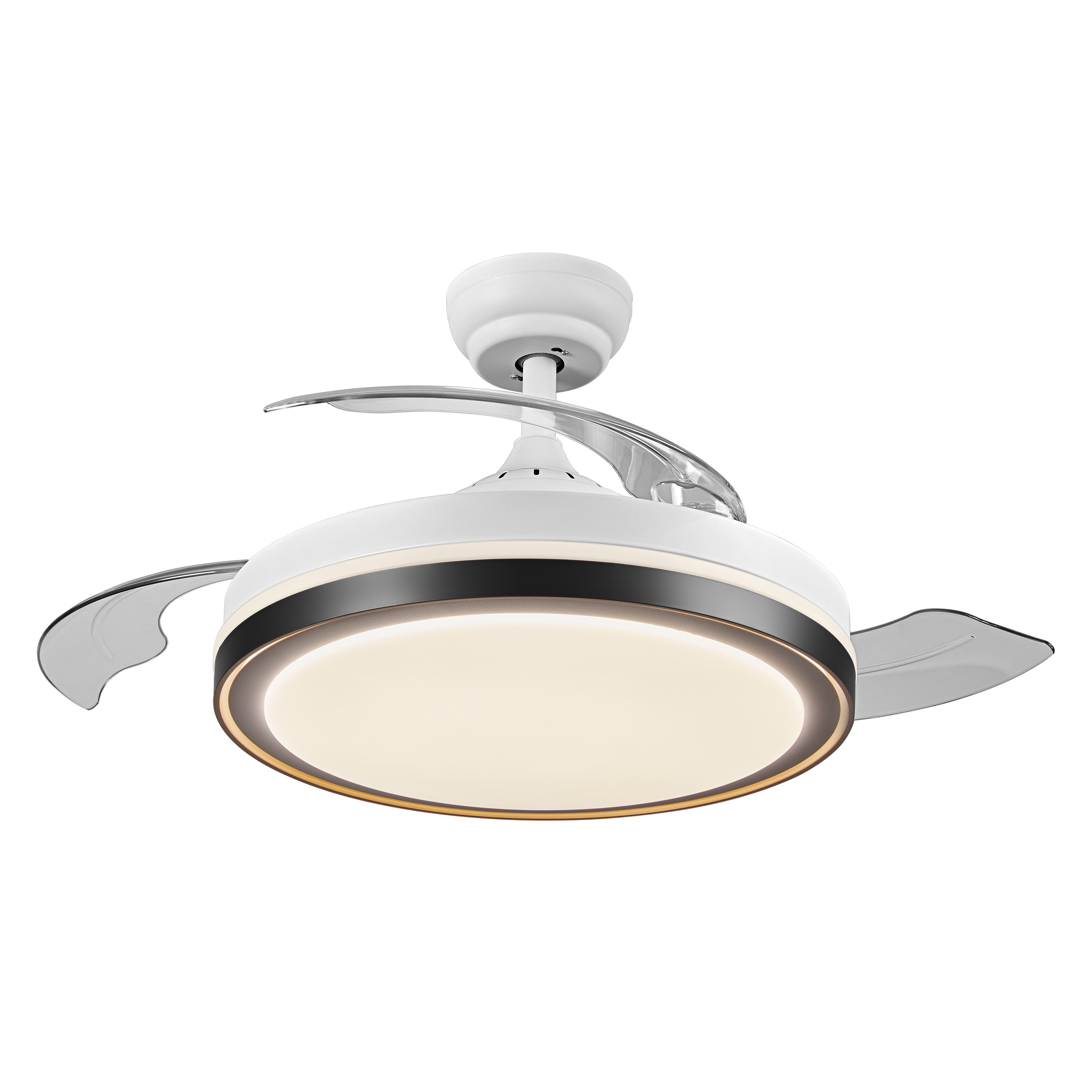

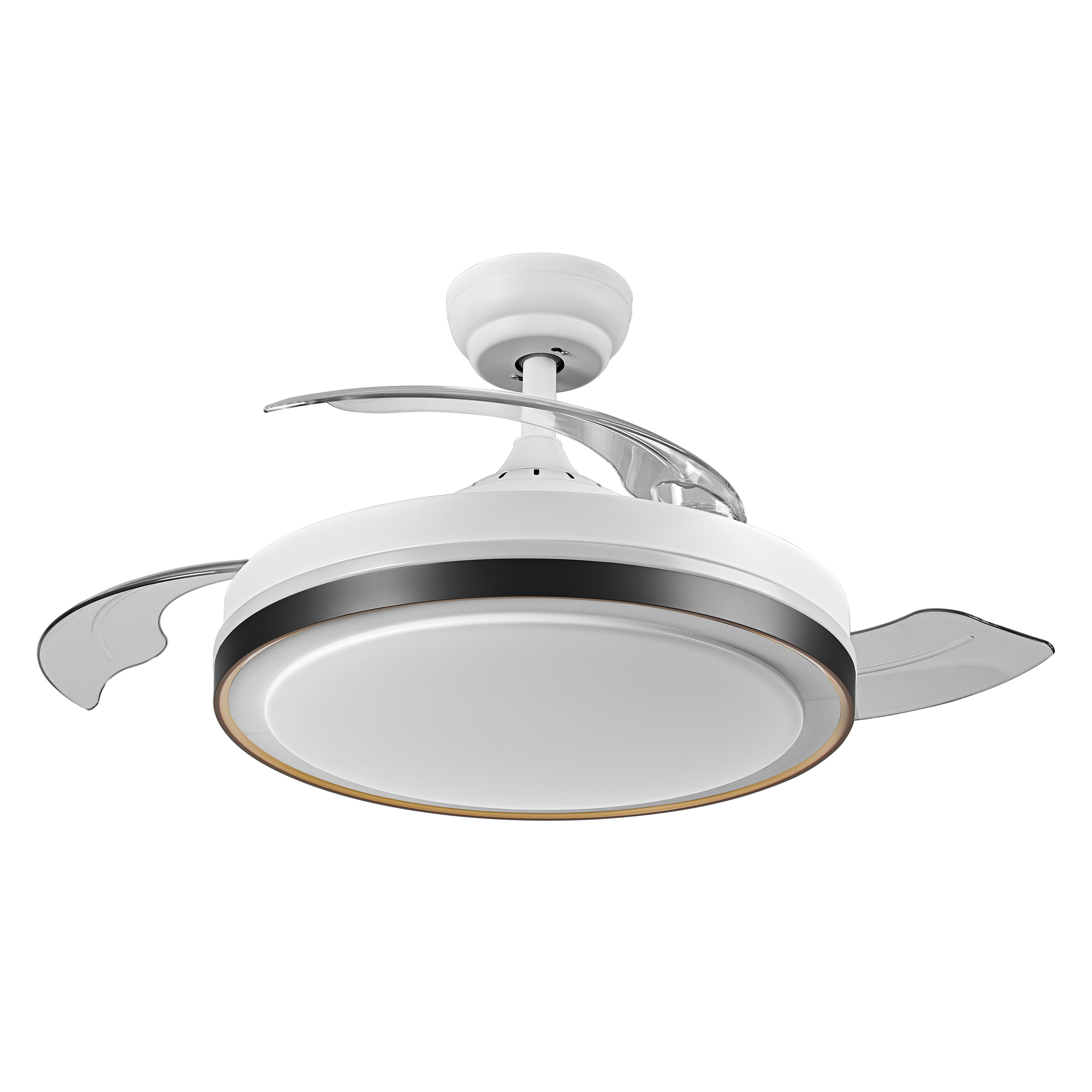

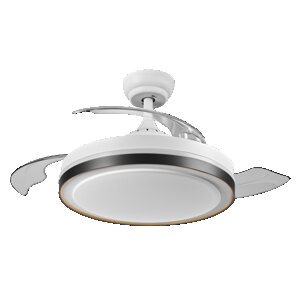

| Ceiling Fan Retractable 1070 66W White | 66.00 W | 20000 | 120 ° | 4200 lm | No |
| Nominal wattage | 66.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 330.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 7 |
| Max. number of luminaires per miniature circuit breaker C10 | 7 |
| Max. number of luminaires per miniature circuit breaker C16 | 13 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 4200 lm |
| Total luminous flux of contained light sources | 4200 lm |
| Luminous efficacy | 50 lm/W |
| Color temperature | 3000 K / 4000 K / 6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
| Suitable for room space up to | 25 m² |
| Diameter | 490.00 mm |
| Height | 385.00 mm |
| Product weight | 6500.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 20000 h 1) |
| Number of switching cycles | 20000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Type of emergency operation test | None |
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Available from April 2025 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), 4,4 - Diaminoduphenylmethane (MDA) 101-77-9, Formaldehyde (25214-70-4) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

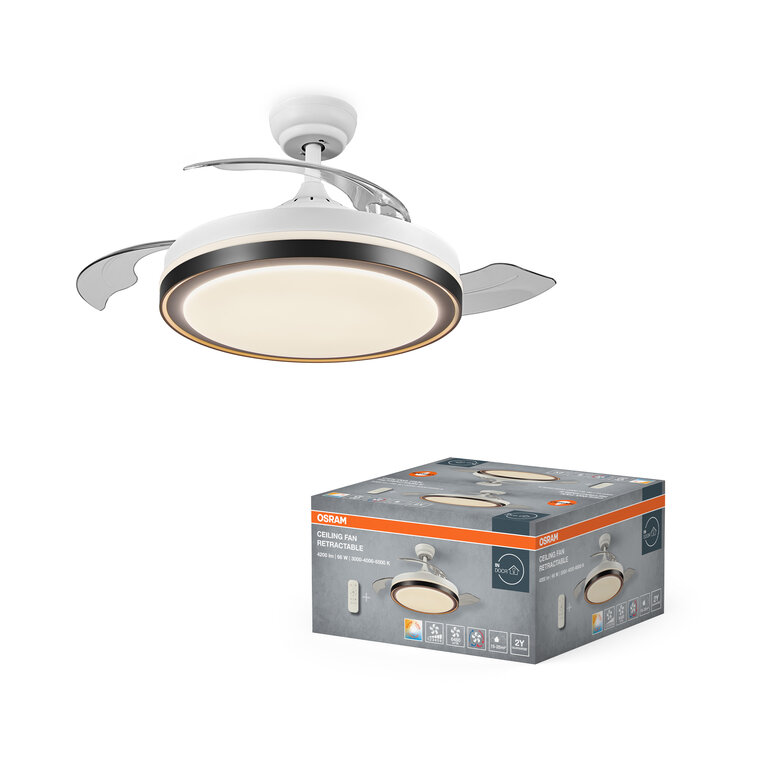

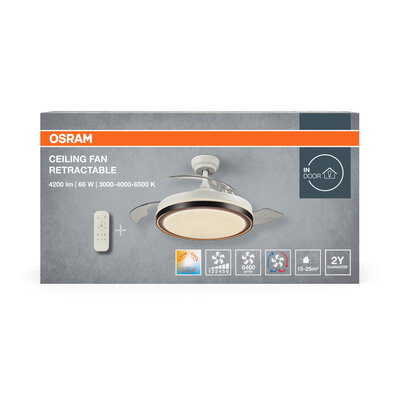

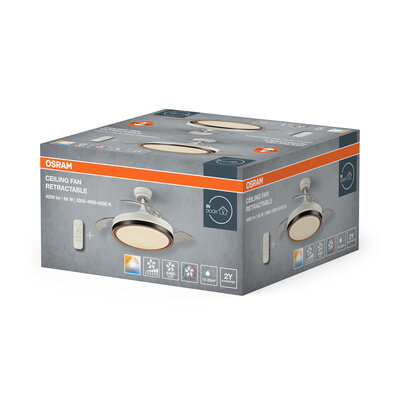

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854506789 | Folding box 1 |
570 mm x 570 mm x 310 mm | 8140.00 g | 100.72 dm³ |
| 4099854506796 | BAG 1 |
570 mm x 570 mm x 310 mm | 8146.00 g | 100.72 dm³ |
