Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

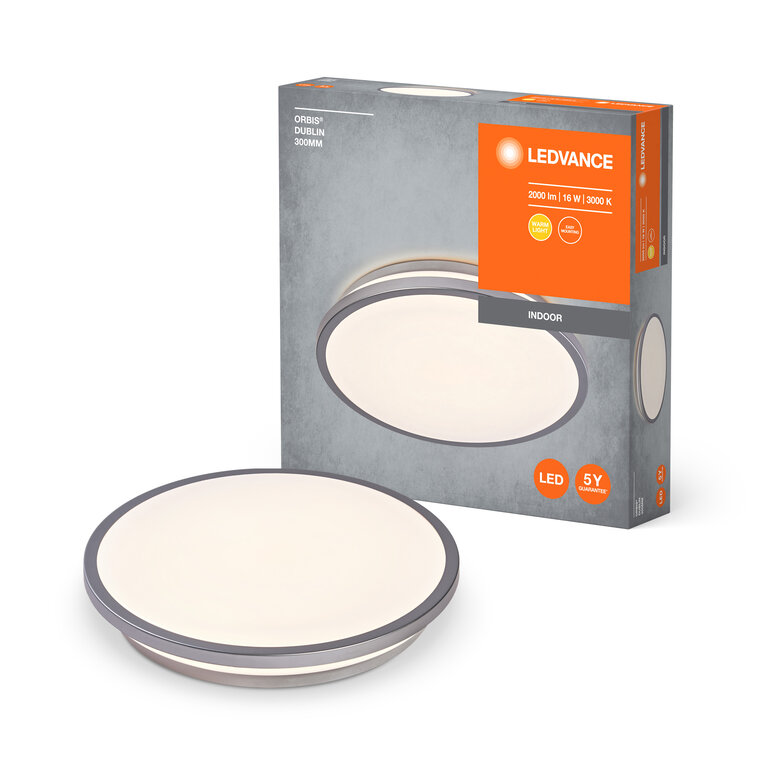

| Orbis Dublin 300 mm 16W 830 SI | 16.00 W | 25000 | 120 ° | 1100 lm | No |
| Orbis Dublin 390 mm 24W 830 SI | 24.00 W | 25000 | 120 ° | 1600 lm | No |
| Orbis Dublin 490 mm 36W 830 SI | 36.00 W | 25000 | 120 ° | 2800 lm | No |
| Nominal wattage | 16.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 125.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 68 |
| Max. number of luminaires per miniature circuit breaker C16 | 92 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 110 % |
| Protection class | I |
| Operating mode | Electronic control gear (ECG) |
| Luminous flux | 1100 lm |
| Total luminous flux of contained light sources | 2000 lm |
| Luminous efficacy | 68 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
| Diameter | 295.00 mm |
| Height | 60.00 mm |
| Product weight | 380.00 g |
| Product color | Silver |
| Housing color | Silver |
| Body material | Metal |
| Cover material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | empty |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075829268 | Folding box 1 |
65 mm x 315 mm x 315 mm | 549.00 g | 6.45 dm³ |
| 4058075829275 | Shipping box 6 |
410 mm x 335 mm x 335 mm | 4066.00 g | 46.01 dm³ |
