LINEAR LED MOBILE RING

Choose your product version

Desktop

Tripod

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
Linear LED Mobile Ring Desktop 5.50 W 120 ° 250 lm Yes
Linear LED Mobile Ring Tripod 6.00 W 120 ° 250 lm Yes


Linear LED Mobile Ring Tripod

Product benefits
  • Adjustable color temperature for a wide range of applications
  • Flexible spot mounting on magnetic rail
  • Adjustable in height
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6.00 W
Nominal voltage 5 V
Nominal current 1200.000 mA
Inrush current 3 A
Power factor λ 1.00
Protection class III

Photometrical data

Luminous flux 250 lm
Luminous efficacy 48 lm/W
Color temperature 3000 … 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Beam angle 120 °

Dimensions & Weight

Diameter 260 mm
Length 635.00 mm
Height 2220.00 mm
Width 635.00 mm
Product weight 950.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection USB
Type of protection IP20
Protection class IK (shock resistance) IK02
Dimmable Yes
Type of dimming Bluetooth
Mounting type Standing
Mounting location All surfaces
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 25000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

BATTERY

Type of Battery Lithium ion
Battery size [GMS] CR2032
Number of included batteries 1
Nominal voltage of battery 3 V
Nominal capacity of battery 210 mAh

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Adjustable color temperature for a wide range of applications
  • Flexible spot mounting on magnetic rail
  • Adjustable in height
Areas of application
  • Meeting and conference rooms
  • Offices
  • Living areas
  • Online meetings
  • For indoor use only
Product features
  • Click-CCT version: color temperature adjustable in three steps by repeated switching
  • Mobile device connection via Bluetooth
Equipment / Accessories
  • Remote control and battery included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075668515 Folding box
1		 70 mm x 340 mm x 680 mm 1281.00 g 16.18 dm³
4058075668522 Shipping box
6		 700 mm x 440 mm x 360 mm 9093.00 g 110.88 dm³
User instruction / safety instructions
UI MOBILE CAMERA LIGHT RING 2100 USB PDF (689.4 KB)
Declarations of conformity
MOBILE CAMERA LIGHT RI NG PDF (304.42 KB)
Product image: white background, upright
LINEARLED MOBILE RING 2100 CCT USB JPG (379.17 KB)
Product image: white background, upright, alternative image
LINEARLED MOBILE RING 2100 CCT USB JPG (361.65 KB)
Product image: white background, upright, switched on
LINEARLED MOBILE RING 2100 CCT USB JPG (384.45 KB)
Product line drawing with letters
LINEARLED MOBILE RING 2100 CCT USB SVG (12.86 KB)
Product line drawing with numbers
LINEARLED MOBILE RING 2100 CCT USB SVG (19.6 KB)
Product line drawing, front, no dimensions
LINEARLED MOBILE RING 2100 CCT USB SVG (11.05 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LED MOBIL RING 2100 USB MiPRC JPG (477.61 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LED MOBIL RING 2100 USB MiPRC JPG (476.53 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LIGHT RING 2100 USB JPG (625.15 KB)
Packaging image, frontal
LUM FC LED MOBIL RING 2100 USB MiPRC JPG (633.95 KB)

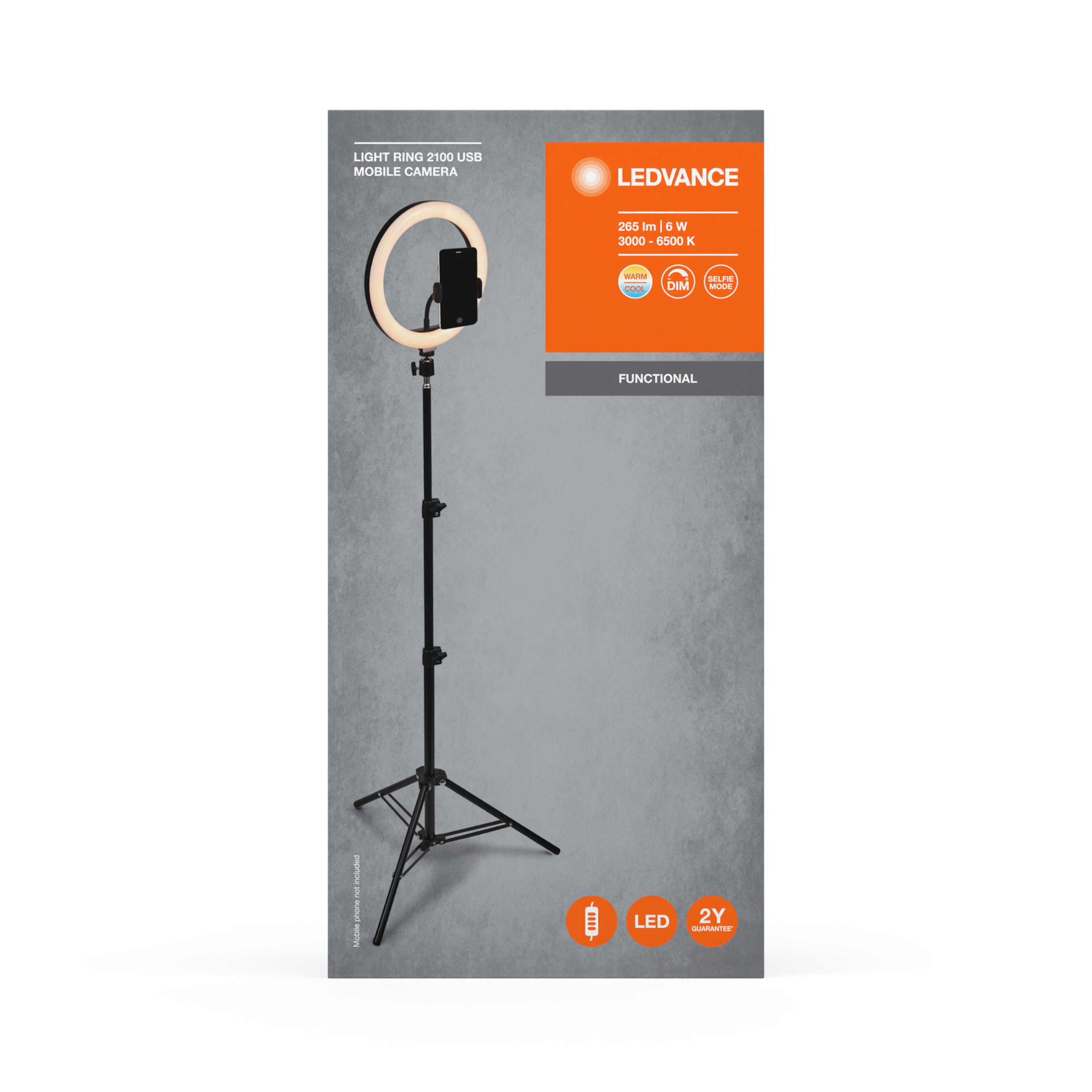

Packaging image, spacial
LUM FC LED MOBIL RING 2100 USB MiPRC JPG (639.82 KB)
Application pictures Getty
LINEARLED MOBILE RING 2100 JPG (10.52 MB)
EAN ELDAS number
4058075668515 941799410
