Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

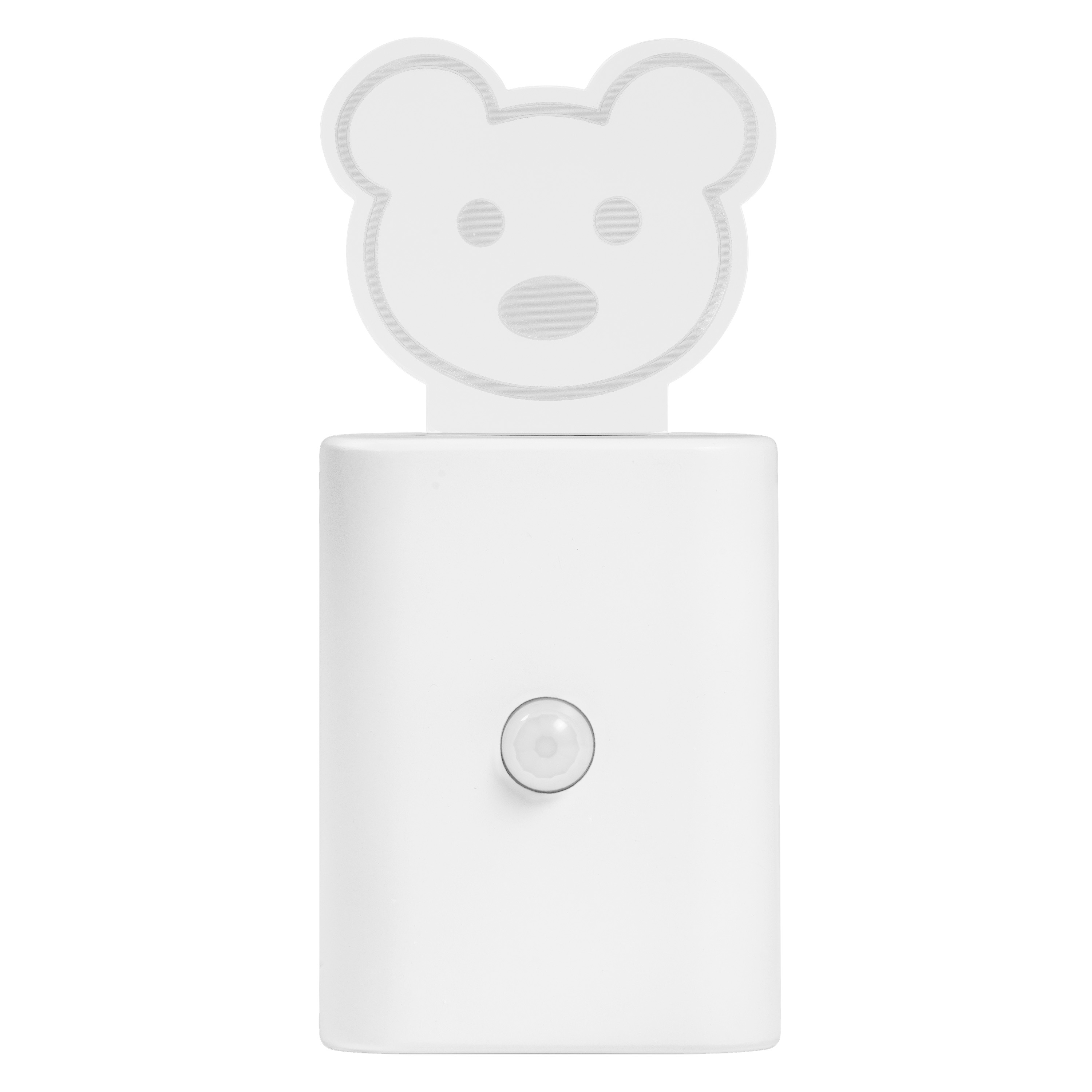

| NIGHTLUX Cartoon Sensor | 0.20 W | 15000 | 120 ° | 10 lm | No |
| Nominal wattage | 0.20 W |
| Nominal voltage | 4,5 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 45.000 mA |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Protection class | III |
| Operating mode | Battery |
| Luminous flux | 10 lm |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 120 ° |
| Length | 60.00 mm |
| Height | 80.00 mm |
| Width | 24.00 mm |
| Product weight | 120.00 g |
| Product color | White |
| Housing color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Type of sensor | Light, Motion |
| Sensor detection angle | 110 ° |
| Sensor controlled switching time | 30 s |
| Detection range of motion sensor | 2.7 m |
| Detection threshold of daylight sensor | 25 lx |
| Type of Battery | Alkaline |
| Battery size [GMS] | AAA |
| Number of included batteries | 3 |
| Nominal voltage of battery | 1,5 V |
| Standards | CE, UKCA |
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075575592 | Blister 1 |
36 mm x 160 mm x 400 mm | 244.00 g | 2.30 dm³ |
| 4058075575608 | Shipping box 6 |
423 mm x 241 mm x 186 mm | 1930.00 g | 18.96 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075575592 | 941797610 |
