Choose your product version
| Product description | Nominal wattage | Luminous flux | Dimmable |
|---|---|---|---|

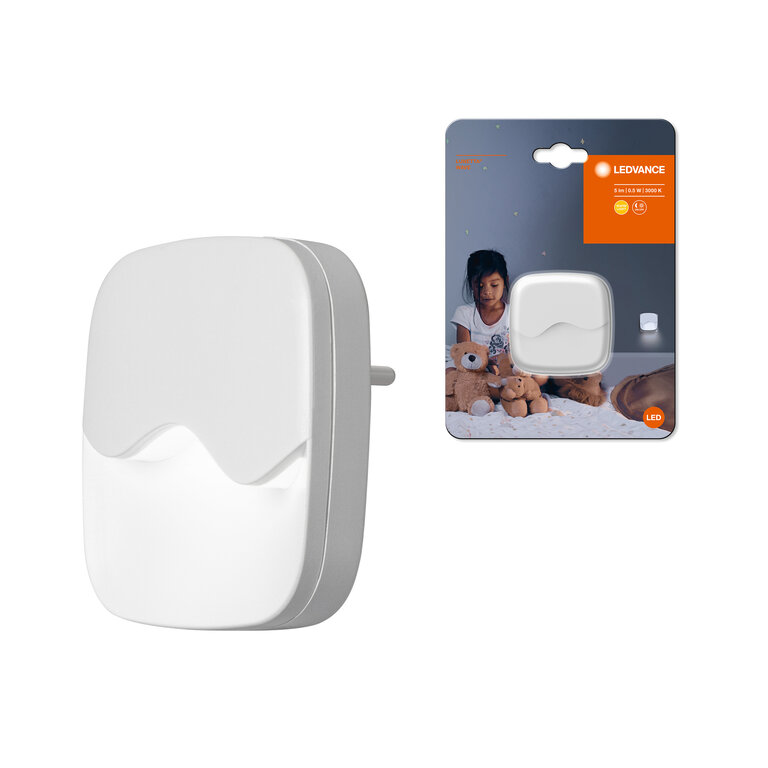

| LUNETTA Wave White | 0.50 W | 5 lm | No |
| Nominal wattage | 0.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 60.000 mA |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 5 lm |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Length | 55.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| Product weight | 30.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS) |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+40 °C |
| Temperature range at storage | -25…+70 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Socket |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, EAC |
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075399662 | Blister 1 |
140 mm x 58 mm x 195 mm | 50.00 g | 1.58 dm³ |
| 4058075399679 | Shipping box 6 |
313 mm x 151 mm x 209 mm | 591.00 g | 9.88 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075399662 | 941700050 |
