Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

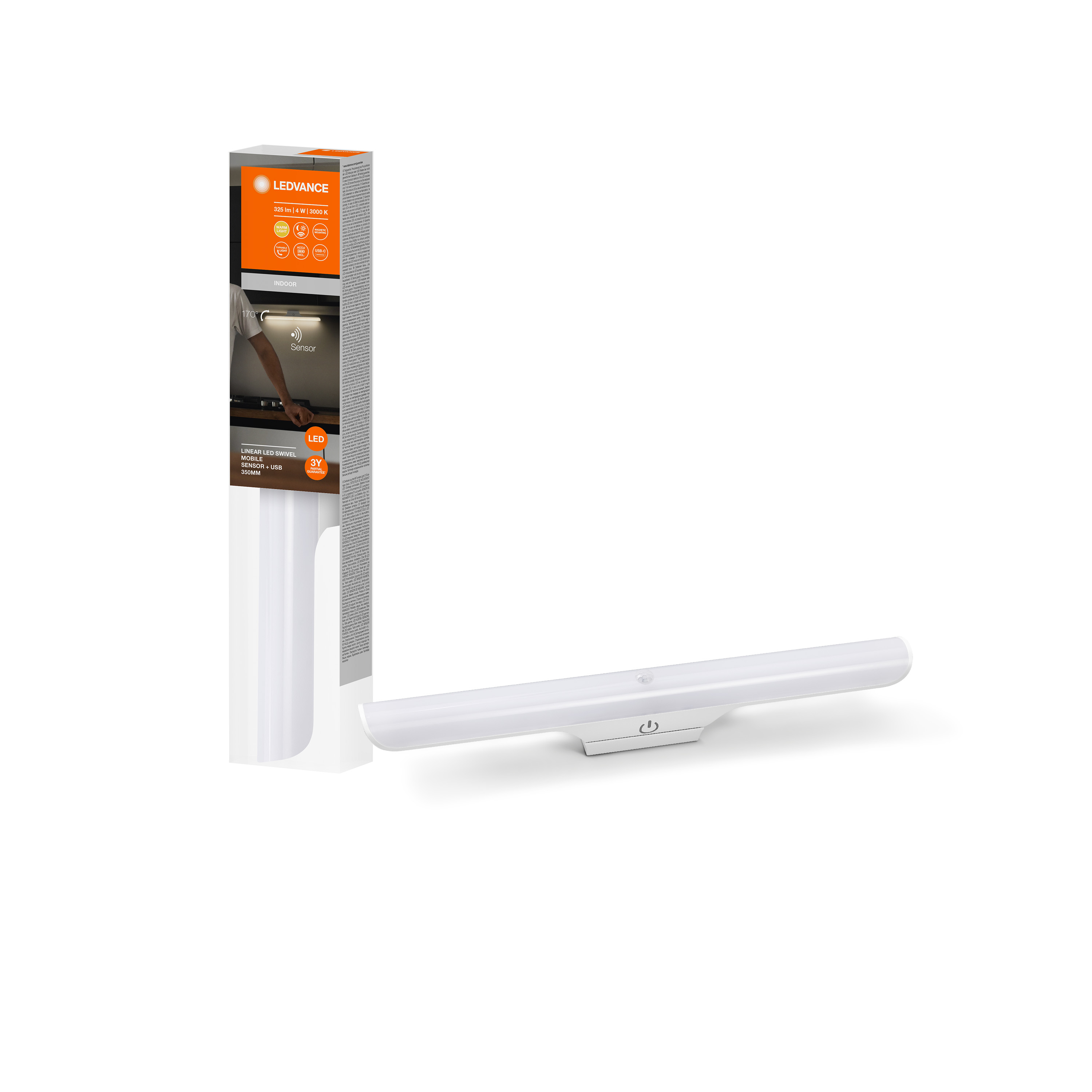

| Linear LED Swivel 5W 3000K | 4.00 W | 15000 | 120 ° | 300 lm | Yes |
| Nominal wattage | 4.00 W |
| Nominal voltage | 5 V |
| Nominal current | 1000.000 mA |
| Power factor λ | 1.00 |
| Protection class | III |
| Luminous flux | 300 lm |
| Total luminous flux of contained light sources | 325 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | ≤ 1 |
| Stroboscope effect metric (SVM) | ≤ 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
| Length | 350.00 mm |
| Height | 36.00 mm |
| Width | 49.20 mm |
| Product weight | 163.00 g |
| Cable length | 500 mm |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+30 °C |
| Temperature range at storage | -20…+80 °C |
| Type of protection | IP20 |
| Dimmable | Yes |
| Mounting type | Surface |
| Mounting location | Wall, Cabinet undersides |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Type of sensor | Motion, Light |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 120 ° |
| Sensor controlled switching time | 20 s |
| Detection range of motion sensor | ≥ 3 m |
| Detection threshold of daylight sensor | 0…30 lx |
| Battery size [GMS] | 18650 |
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | empty |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | N-Methylpyrrolidone (872-50-4) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854096556 | Folding box 1 |
45 mm x 70 mm x 355 mm | 221.00 g | 1.12 dm³ |
| 4099854096563 | Shipping box 8 |
385 mm x 200 mm x 168 mm | 2090.00 g | 12.94 dm³ |
