Battery LED Spotlight Single

Choose your product version

4W 4000K IP54 White

4W 4000K IP54 Black

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
Battery LED Spotlight Sensor 4W 4000K IP54 White 4.00 W 95 ° 260 lm No
Battery LED Spotlight Sensor 4W 4000K IP54 Black 4.00 W 95 ° 260 lm No


Battery LED Spotlight Sensor 4W 4000K IP54 White

Product benefits
  • Demand based lighting and energy saving thanks to motion and daylight sensor
  • Independent of power supply due to battery technology
  • Energy-efficient thanks to LED technology
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.00 W
Nominal voltage 6 V
Mains frequency 0 Hz
Nominal current 750.000 mA
Max. number of luminaires per miniature circuit breaker C10 -
Protection class III
Operating mode Battery

Photometrical data

Luminous flux 260 lm
Luminous efficacy 65 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Flickering metric (Pst LM) no
Stroboscope effect metric (SVM) no
Beam angle 95 °

Dimensions & Weight

Length 127.00 mm
Height 215.00 mm
Width 108.00 mm
Product weight 325.00 g

Materials & Colors

Product color White
Housing color White
Body material Acrylonitrile butadiene styrene (ABS)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+30 °C
Type of protection IP54
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Outdoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 15000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Sensor

Type of sensor Motion, Light

BATTERY

Type of Battery Alkaline
Battery size [GMS] D-Battery
Nominal voltage of battery 1,5 V

Certificates & Standards

Standards CE, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Demand based lighting and energy saving thanks to motion and daylight sensor
  • Independent of power supply due to battery technology
  • Energy-efficient thanks to LED technology
Areas of application
  • Outdoor
  • Areas where no power supply is available
Product features
  • Luminous flux: up to 260 lm
  • Integrated light and motion sensor
  • Battery life in continuous operation: up to 10 h
  • Type of protection: IP54
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075227385 Folding box
1		 127 mm x 142 mm x 200 mm 409.00 g 3.61 dm³
4058075227392 Shipping box
4		 302 mm x 272 mm x 227 mm 2245.00 g 18.65 dm³
Legal information
Legal insert P - Not d immable PDF (2.75 MB)
Declarations of conformity
CE declaration Battery Spotlights PDF (1.06 MB)
Product image: white background, upright
BATTERY LED SPOTLIGHT SINGLE WT OSRAM TIF (10.45 MB)
Product image: white background, upright, alternative image
BATTERY LED SPOTLIGHT SINGLE WT OSRAM TIF (8.61 MB)
Product image: white background, upright, switched on
BATTERY LED SPOTLIGHT SINGLE WT OSRAM TIF (10.31 MB)
Product line drawing with letters
BATTERY LED SPOTLIGHT SINGLE WT OSRAM SVG (31.44 KB)
Product line drawing with numbers
BATTERY LED SPOTLIGHT SINGLE WT OSRAM SVG (31.56 KB)
Product line drawing, front, no dimensions
BATTERY LED SPOTLIGHT SINGLE WT OSRAM SVG (27.06 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC BATTERY SL SING LE WT MiPRC JPG (1.13 MB)

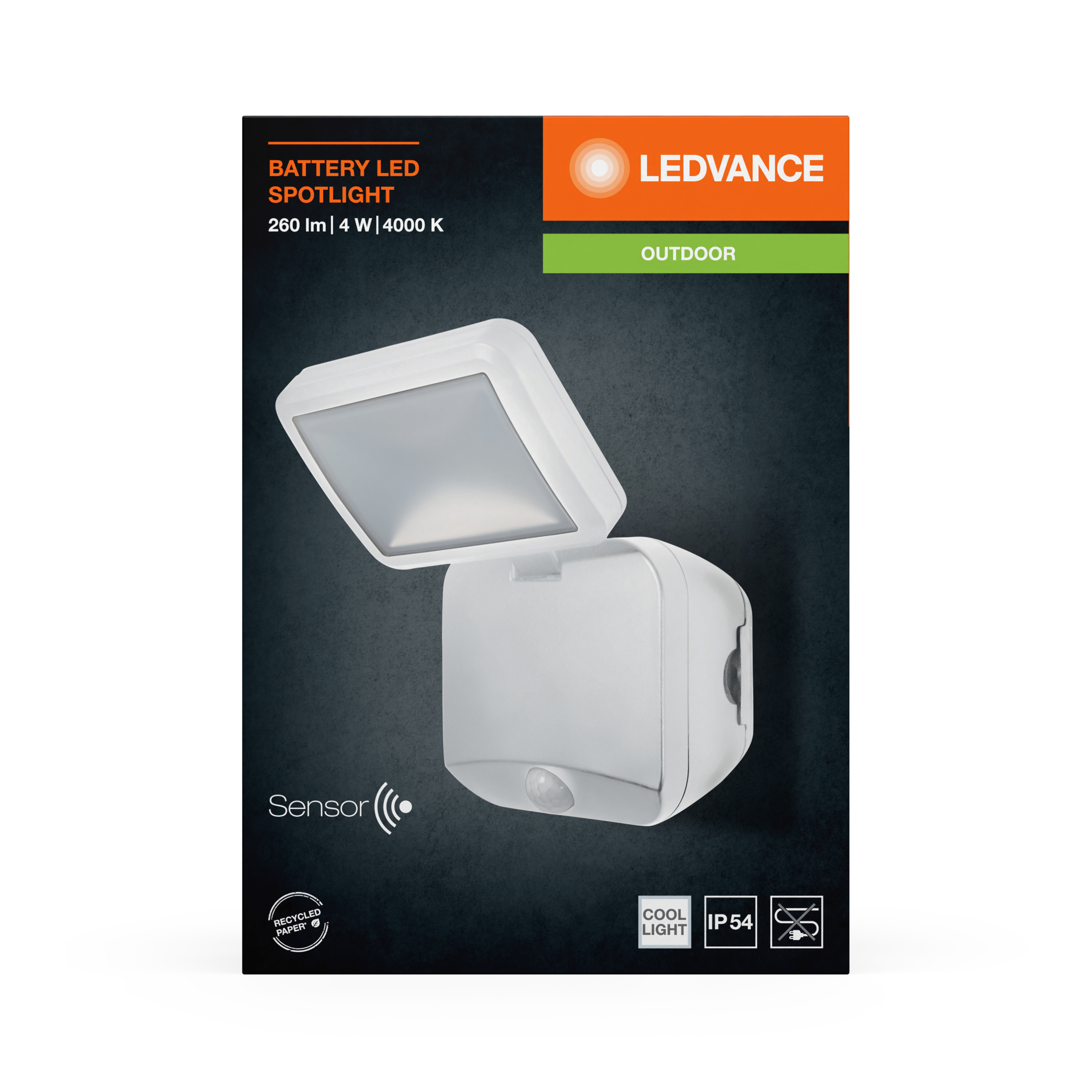

Packaging image, frontal
LUM FC SL Battery Sing le WT MICH LDV Front JPG (1.17 MB)
Packaging image, spacial
LUM FC SL Battery Sing le WT MICH LDV Side JPG (1.33 MB)
Application pictures
BATTERY LED SPOTLIGHT SINGLE WT JPG (1.69 MB)
EAN ELDAS number
4058075227385 941001310
