Choose your product version
| Product description | Nominal wattage | Luminous flux | Dimmable |
|---|---|---|---|

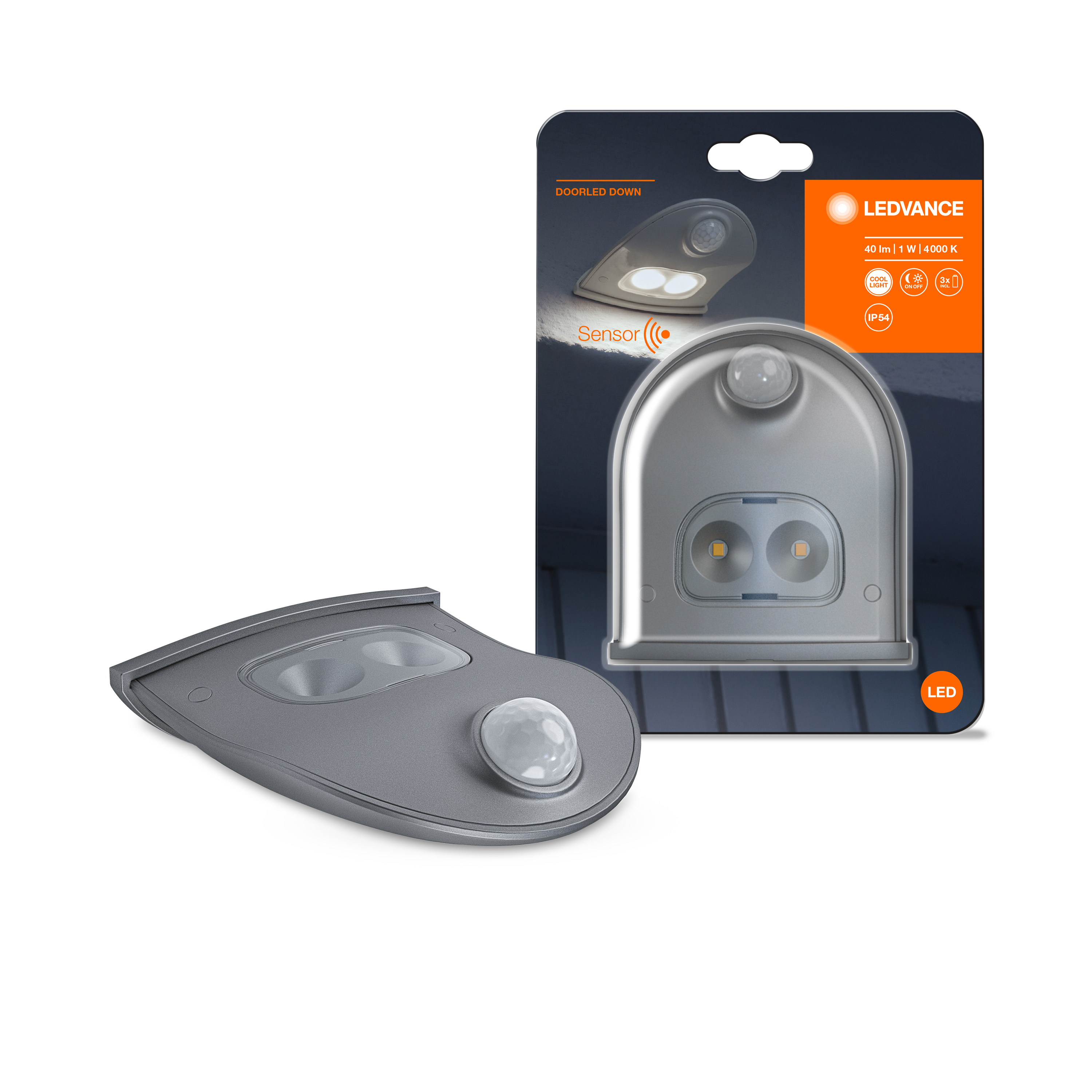

| DoorLED Down Sensor 4000K Silver | 0.95 W | 40 lm | No |
| DoorLED Down Sensor 4000K White | 0.95 W | 40 lm | No |
| Nominal wattage | 0.95 W |
| Nominal voltage | 4,5 V |
| Mains frequency | 0 Hz |
| Nominal current | 210.000 mA |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Protection class | III |
| Operating mode | Battery |
| Luminous flux | 40 lm |
| Luminous efficacy | 42 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | no |
| Stroboscope effect metric (SVM) | no |
| Length | 102.50 mm |
| Height | 36.50 mm |
| Width | 92.40 mm |
| Product weight | 154.00 g |
| Product color | Silver |
| Housing color | Silver |
| Body material | Polycarbonate (PC) |
| Cover material | Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+40 °C |
| Temperature range at storage | -20…+50 °C |
| Type of protection | IP54 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Type of sensor | Light, Motion |
| Sensor technology | Passive infrared (PIR) |
| Detection range of motion sensor | 5000 mm |
| Type of Battery | Alkaline |
| Battery size [GMS] | AA |
| Number of included batteries | 3 |
| Nominal voltage of battery | 1,5 V |
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075267824 | Blister 1 |
39 mm x 140 mm x 195 mm | 178.00 g | 1.06 dm³ |
| 4058075267831 | Shipping box 6 |
247 mm x 154 mm x 210 mm | 1202.00 g | 7.99 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075267824 | 941001320 |
