Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| Floodlight Essential 10W 3000K | 10.00 W | 25000 | 100 ° | 750 lm | No |
| Floodlight Essential 10W 4000K | 10.00 W | 25000 | 100 ° | 900 lm | No |
| Floodlight Essential 10W 6500K | 10.00 W | 25000 | 100 ° | 900 lm | No |
| Floodlight Essential 20W 3000K | 20.00 W | 25000 | 100 ° | 1600 lm | No |
| Floodlight Essential 20W 4000K | 20.00 W | 25000 | 100 ° | 1800 lm | No |
| Floodlight Essential 20W 6500K | 20.00 W | 25000 | 100 ° | 1800 lm | No |
| Floodlight Essential 30W 3000K | 30.00 W | 25000 | 100 ° | 2550 lm | No |
| Floodlight Essential 30W 4000K | 30.00 W | 25000 | 100 ° | 2700 lm | No |
| Floodlight Essential 30W 6500K | 30.00 W | 25000 | 100 ° | 2700 lm | No |
| Floodlight Essential 50W 3000K | 50.00 W | 25000 | 100 ° | 4250 lm | No |
| Floodlight Essential 50W 4000K | 50.00 W | 25000 | 100 ° | 4500 lm | No |
| Floodlight Essential 50W 6500K | 50.00 W | 25000 | 100 ° | 4500 lm | No |
| Floodlight Essential 100W 4000K | 100.00 W | 12500 | 110 ° | 10000 lm | No |
| Floodlight Essential 150W 4000K | 150.00 W | 12500 | 110 ° | 15000 lm | No |
| Floodlight Essential 200W 4000K | 200.00 W | 12500 | 110 ° | 20000 lm | No |
| Nominal wattage | 150.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 675.000 mA |
| Inrush current | 1.50 A |
| Inrush current time Th50 | 136 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Max. number of luminaires per miniature circuit breaker C16 | 16 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 15000 lm |
| Total luminous flux of contained light sources | 17000 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Luminous intensity | 6000 cd |
| Flickering metric (Pst LM) | <1 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |

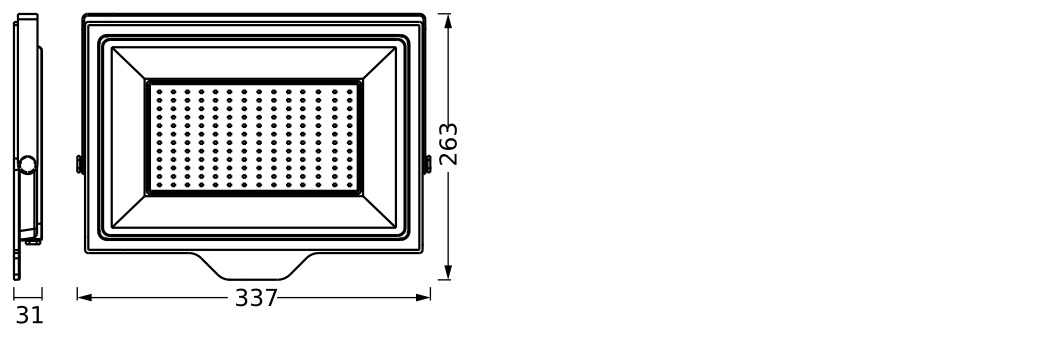

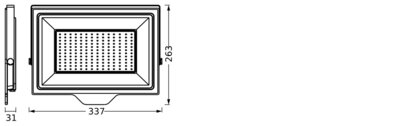

| Length | 337.00 mm |
| Height | 263.00 mm |
| Width | 31.00 mm |
| Product weight | 1540.00 g |
| Cable length | 250 mm |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -25…+80 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 12500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

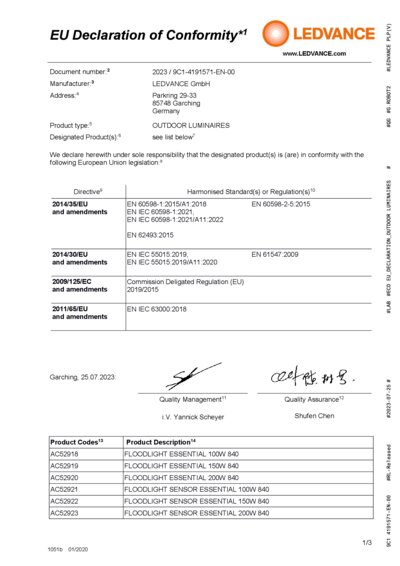

| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | empty |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075831490 | Folding box 1 |
42 mm x 347 mm x 268 mm | 1660.00 g | 3.91 dm³ |
| 4058075831506 | Shipping box 4 |
367 mm x 187 mm x 300 mm | 7069.00 g | 20.59 dm³ |
