Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
ENDURA Flood Sensor 10 W 3000 K WT	10.00 W	15000	120 °	800 lm	No
ENDURA Flood Sensor 10 W 3000 K DG	10.00 W	15000	120 °	800 lm	No
ENDURA Flood Sensor 20 W 3000 K WT	20.00 W	15000	120 °	1700 lm	No
ENDURA Flood Sensor 20 W 3000 K DG	20.00 W	15000	120 °	1700 lm	No
ENDURA Flood Sensor 30 W 3000 K WT	30.00 W	15000	120 °	2700 lm	No
ENDURA Flood Sensor 30 W 3000 K DG	30.00 W	15000	120 °	2700 lm	No
ENDURA Flood Sensor 50 W 3000 K WT	50.00 W	15000	120 °	4500 lm	No
ENDURA Flood Sensor 50 W 3000 K DG	50.00 W	15000	120 °	4500 lm	No

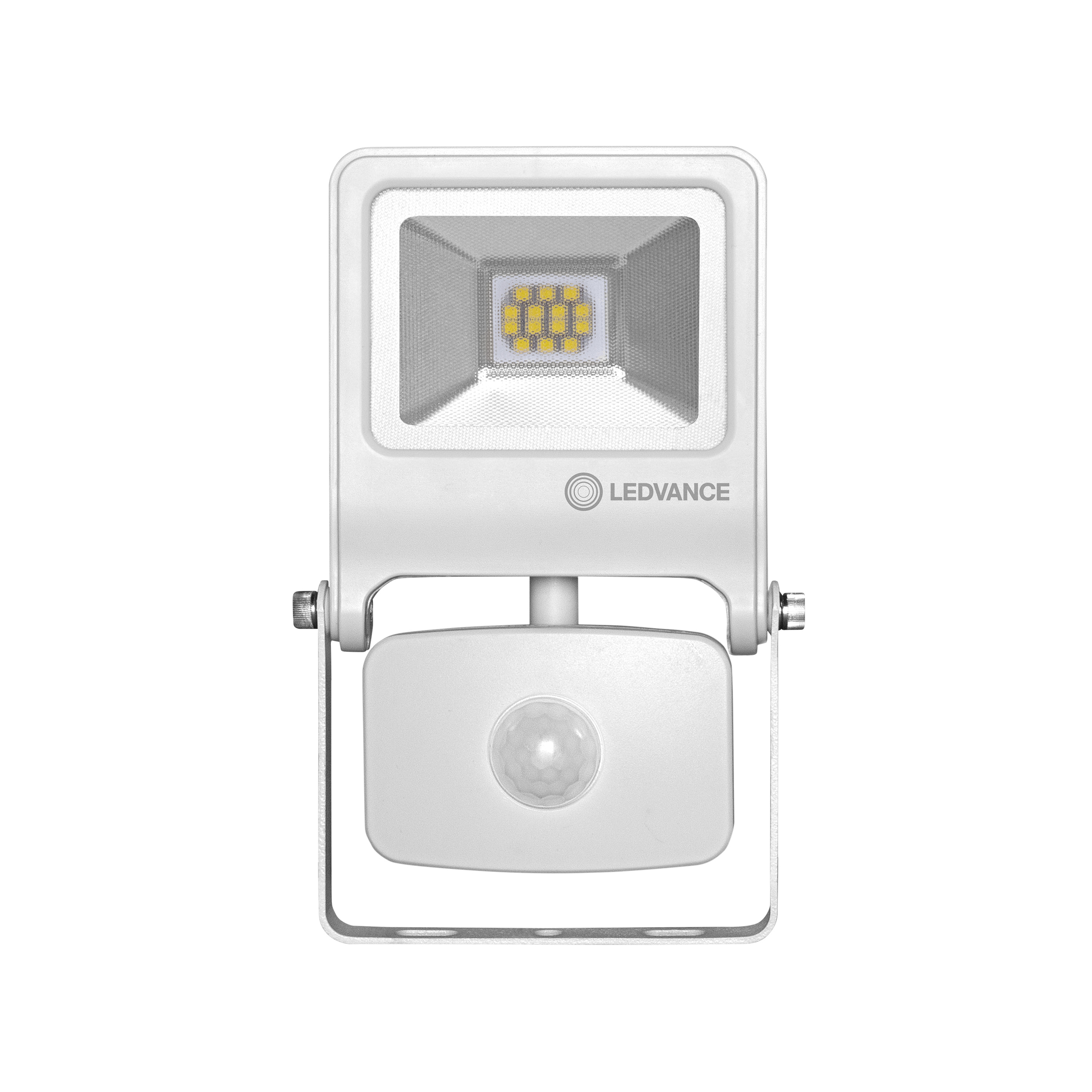

ENDURA Flood Sensor 10 W 3000 K WT

Nominal wattage	10.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	46.000 mA
Max. number of luminaires per miniature circuit breaker B16	278
Max. number of luminaires per miniature circuit breaker C16	200
Power factor λ	> 0.70
Protection class	I
Operating mode	Mains voltage

Luminous flux	800 lm
Luminous efficacy	80 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	≥80
Standard deviation of color matching	6 sdcm
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Photobiological safety group acc. to EN62778	RG1
Beam angle	120 °

Ambient temperature range	-10…+40 °C
Temperature range at storage	-30…+70 °C
Type of connection	Cable, 3-pole
Type of protection	IP44
Protection class IK (shock resistance)	IK06
Dimmable	No
Mounting type	Surface
Mounting location	Wall
Application environment	Outdoor
With light source	Yes

Number of switching cycles

15000

Type of sensor	Light, Motion
Sensor technology	Passive infrared (PIR)
Sensor detection angle	120 °
Sensor controlled switching time	10 s…10 min
Detection range of motion sensor	2…9 m
Detection threshold of daylight sensor	20…2000 lx

Standards	CE, EAC, UKCA
Luminaire with limited surface temperature, "D sign"	No
Replaceable light source (EPREL)	Not replaceable

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Areas of application

Product features

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
