ENDURA GARDEN SPOT

Choose your product version

OVERVIEW

Product description Nominal wattage Luminous flux Dimmable
ENDURA Garden Solar Spot Wall + Spike RGB + W 0.50 W 55 lm No

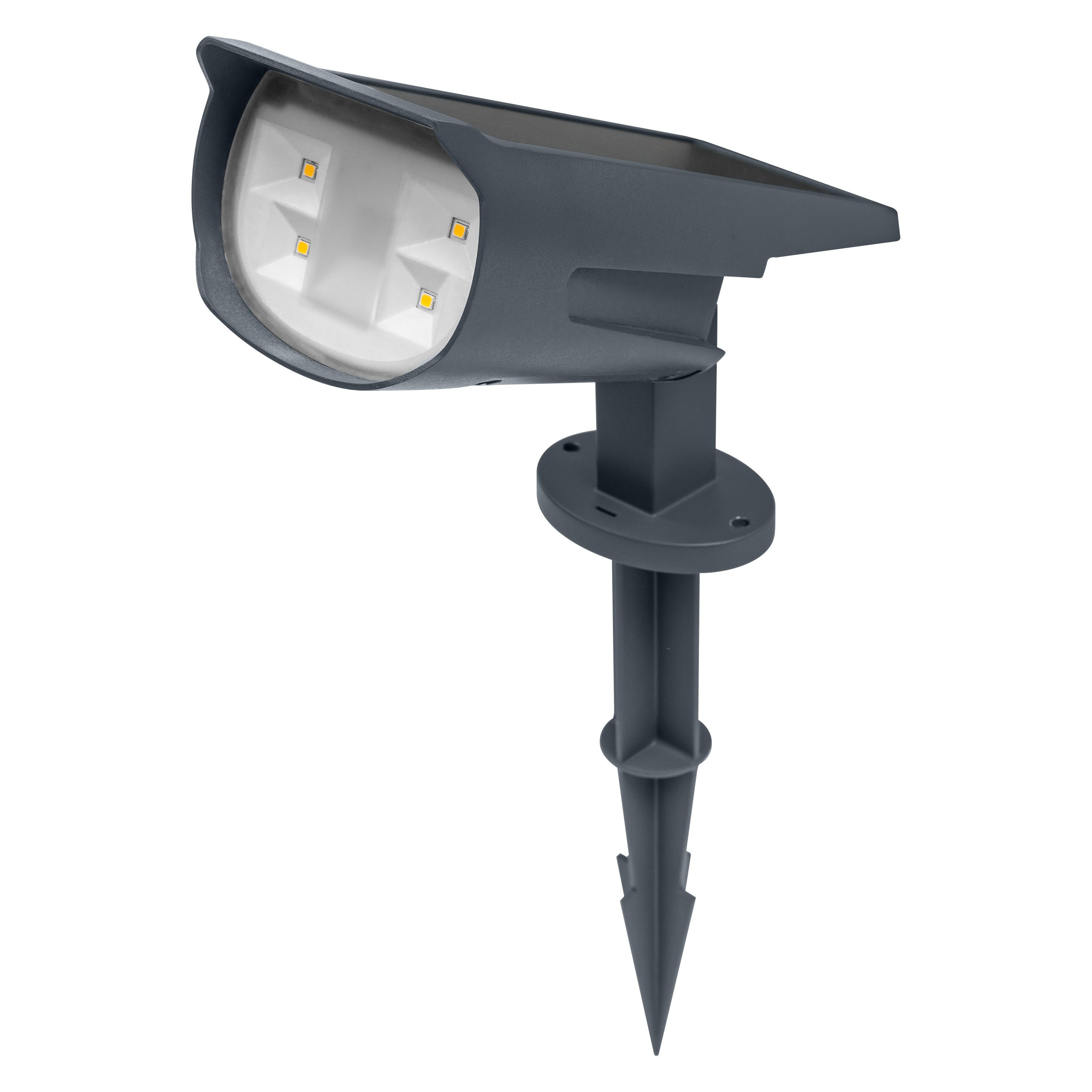

ENDURA Garden Solar Spot Wall + Spike RGB + W

Product benefits
  • Energy-efficient thanks to LED technology
  • Easy and quick installation
  • Easy adjustment of lightcolor via push switch
  • Demand based lighting and energy saving thanks to daylight sensor

PRODUCT DETAILS

Electrical data

Nominal wattage 0.50 W
Nominal voltage 3,6 V
Mains frequency 50…60 Hz
Nominal current 120.000 mA
Max. number of luminaires per miniature circuit breaker C16 N/A
Protection class III
Operating mode Battery

Photometrical data

Luminous flux 55 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1 %
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0

Dimensions & Weight

Length 175.00 mm
Height 295.00 mm
Width 92.00 mm
Product weight 377.00 g

Materials & Colors

Product color Dark gray
Housing color Dark gray
Body material Plastic
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Wall, Ground
Application environment Outdoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 25000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Sensor

Type of sensor Light

BATTERY

Type of Battery Ni-MH
Battery size [GMS] AA
Number of included batteries 3
Nominal voltage of battery 1.2 V
Battery charging time 7 h

Emergency lighting

Type of emergency light operation Non-maintained
Luminous flux in maintained operation mode -
Luminous flux in emergency operation mode -

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy-efficient thanks to LED technology
  • Easy and quick installation
  • Easy adjustment of lightcolor via push switch
  • Demand based lighting and energy saving thanks to daylight sensor
Areas of application
  • Outdoor use (IP44)
  • Areas where no power supply is available
Product features
  • Solar powered outdoor LED luminaire
  • 3 operating modes selectable
  • Battery charging via solar panel
  • Battery technology: NiMH
  • Stainless steel housing
  • Daylight sensor
  • Operating mode 1: On 55 lm warm white continuous light (long press button in back 2 seconds)
  • Operating mode 2: RGB alternating mode (short press button)
  • Operating mode 3: Freeze RGB color mode (double click button when in mode 2 and color of choice is on)
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075564169 Folding box
1
122 mm x 72 mm x 212 mm 505.00 g 1.86 dm³
4058075564176 Shipping box
4
260 mm x 160 mm x 240 mm 2242.00 g 9.98 dm³
EAN ELDAS number
4058075564169 941507820
