Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| LED WORKLIGHT VALUE 360° WITH SOCKET 30W 865 | 30.00 W | 15000 | 360 ° | 3700 lm | No |
| Nominal wattage | 30.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 130.000 mA |
| Inrush current | 17.80 A |
| Inrush current time Th50 | 1.6 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 42 |
| Max. number of luminaires per miniature circuit breaker C16 | 53 |
| Power factor λ | ≥ 0.90 |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 3700 lm |
| Total luminous flux of contained light sources | 4400 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 360 ° |

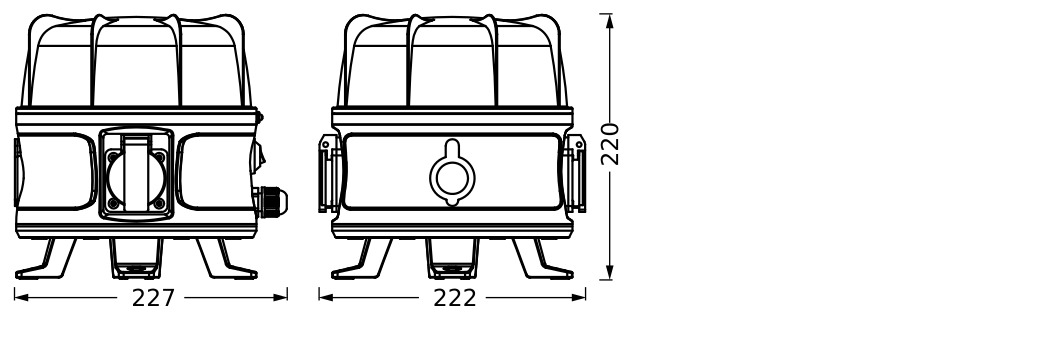

| Length | 222.00 mm |
| Height | 220.00 mm |
| Width | 227.00 mm |
| Product weight | 1650.00 g |
| Cable length | 1500 mm |
| Product color | Black/Gray |
| Housing color | Black/Gray |
| Body material | Plastic |
| Cover material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type F |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Standing |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075834040 | Folding box 1 |
210 mm x 240 mm x 230 mm | 1834.00 g | 11.59 dm³ |
| 4058075834057 | Shipping box 4 |
500 mm x 440 mm x 255 mm | 8362.00 g | 56.10 dm³ |
