Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

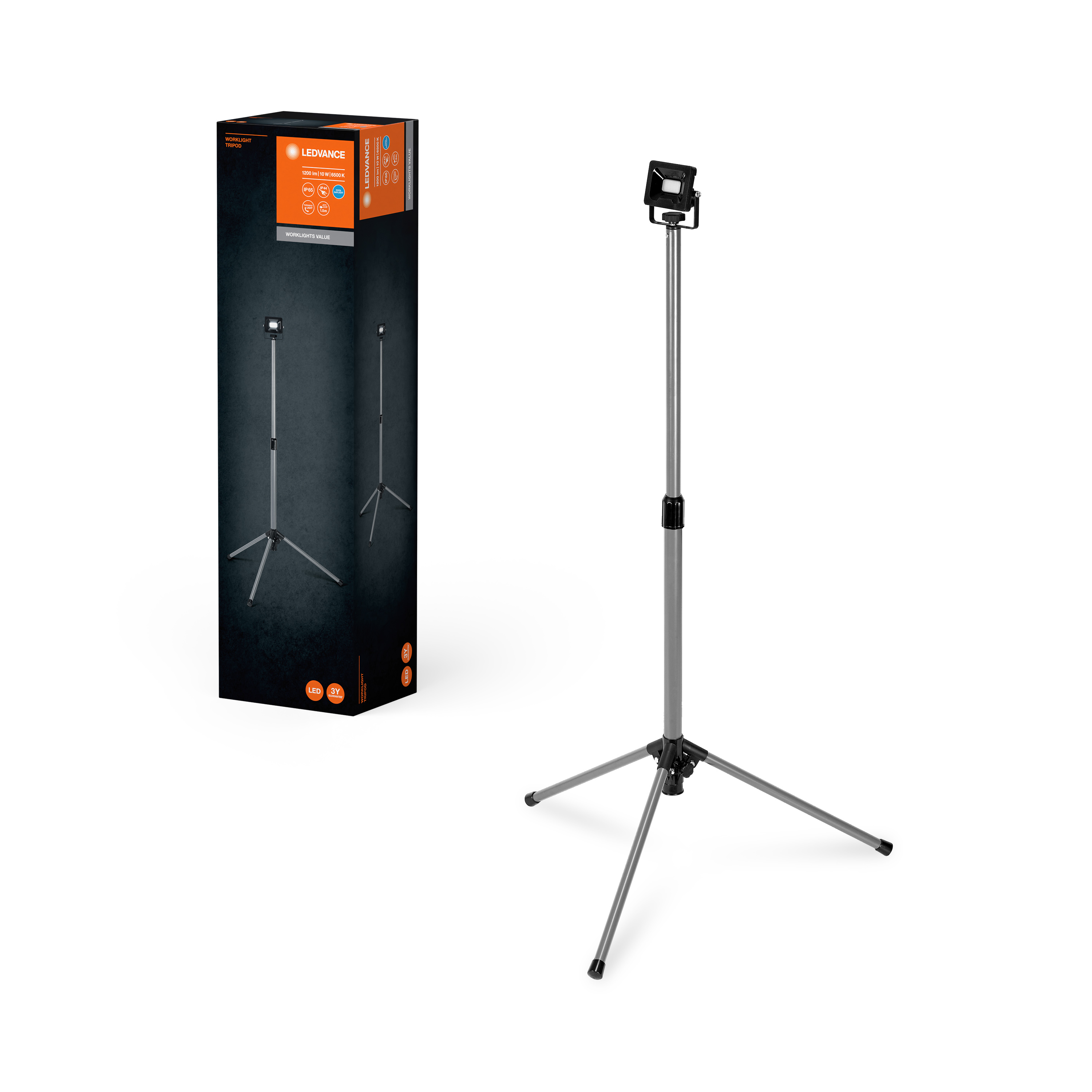

| LED WORKLIGHT VALUE TRIPOD 1x10W 865 | 10.00 W | 15000 | 110 ° | 900 lm | No |
| LED WORKLIGHT VALUE TRIPOD 1x20W 865 | 20.00 W | 15000 | 110 ° | 1800 lm | No |
| LED WORKLIGHT VALUE TRIPOD 2x10W 865 | 20.00 W | 15000 | 115 ° | 2000 lm | No |
| LED WORKLIGHT VALUE TRIPOD 1x30W 865 | 30.00 W | 15000 | 115 ° | 3000 lm | No |
| LED WORKLIGHT VALUE TRIPOD 2x20W 865 | 40.00 W | 15000 | 115 ° | 4000 lm | No |
| LED WORKLIGHT VALUE TRIPOD 2x30W 865 | 60.00 W | 15000 | 115 ° | 6000 lm | No |
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 60.000 mA |
| Inrush current | 4,4 A |
| Inrush current time Th50 | 1 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 170 |
| Max. number of luminaires per miniature circuit breaker C16 | 218 |
| Power factor λ | ≥0.7 |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 900 lm |
| Total luminous flux of contained light sources | 1200 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | 400 cd |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
| Length | 730.00 mm |
| Height | 1296.00 mm |
| Width | 630.00 mm |
| Product weight | 1600.00 g |
| Cable length | 1500 mm |
| Product color | Black/Gray |
| Housing color | Black/Gray |
| Body material | Aluminum |
| Cover material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type F |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Standing |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075831315 | Folding box 1 |
128 mm x 163 mm x 598 mm | 1802.00 g | 12.48 dm³ |
| 4058075831322 | Shipping box 4 |
613 mm x 272 mm x 351 mm | 8080.00 g | 58.52 dm³ |
