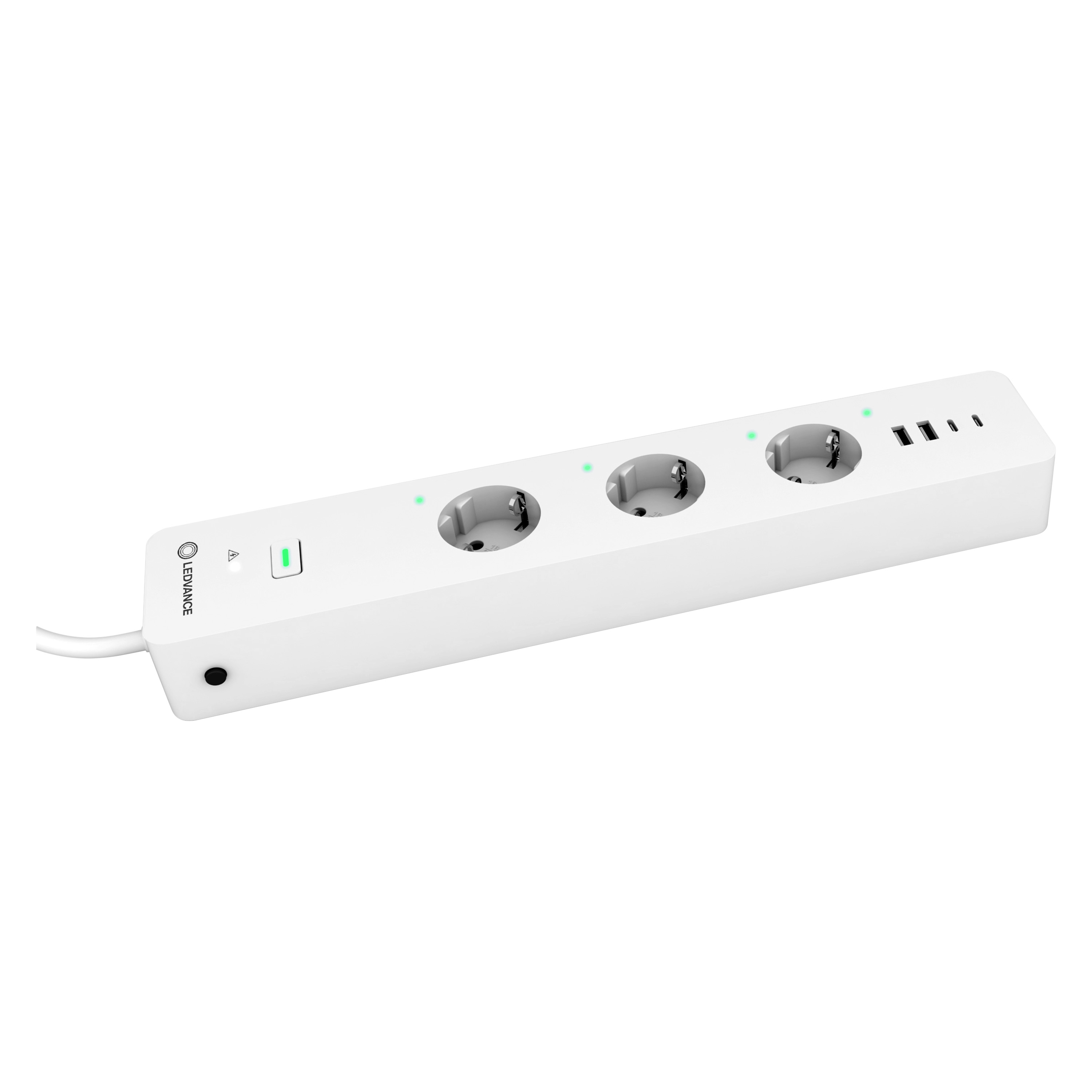

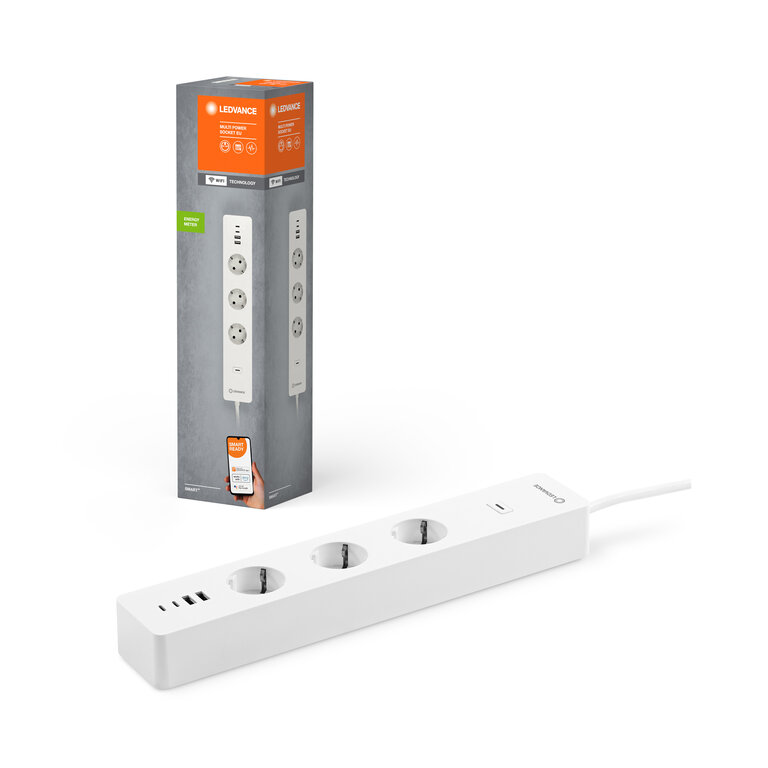

SMART+ MULTI POWER SOCKET EU

Choose your product version

OVERVIEW



SMART+ WIFI MULTI POWER SOCKET EU

Product benefits
  • Smart Multi power socket: Simple connection of electric devices via smart sockets and smart USB ports
  • High standard of safety: Overload protection, Surge protection
  • Energy meter: Monitors energy usage of connected devices and tracks the energy consumption
  • Integrates conventional electric equipment into compatible smart home systems
  • Enables switching of conventional light sources and other electric devices

PRODUCT DETAILS

Electrical data

Nominal voltage 230 V
Nominal current 16 A
Mains frequency 50 Hz

Dimensions & Weight

Product weight 570.00 g
Length 350 mm
Width 65 mm
Height 40 mm

Lifespan

Number of switching cycles 100000

Colors & materials

Product color White
Body material Plastic

Temperatures & operating conditions

Ambient temperature range -10…+35 °C

Capabilities

Compatible smart home technology Amazon Alexa, Google Assistant

Certificates & Standards

Standards CE
Protection class I
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Smart Multi power socket: Simple connection of electric devices via smart sockets and smart USB ports
  • High standard of safety: Overload protection, Surge protection
  • Energy meter: Monitors energy usage of connected devices and tracks the energy consumption
  • Integrates conventional electric equipment into compatible smart home systems
  • Enables switching of conventional light sources and other electric devices
Areas of application
  • Wherever non-smart devices need to be integrated into compatible smart home systems
  • USB ports available for power supply
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via LEDVANCE SMART+ WiFi Remote Controller
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Smart 3 standard sockets and smart 4 USB ports for charging (2 ports each Type A and C)
  • Power sockets can be controlled individually and USB ports are controlled as one group
  • USB charging currents of up to 5V/3A (15W) distributed across the 4 USB ports
  • Energy meter
  • Scheduling
  • 1.5 m power cable for flexible installation
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Disconnect devices which generate heat from the mains, i.e. from the SMART+ Multi Power Socket, after use in order to avoid them being accidentally switched on.
  • Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
  • Do not use the SMART+ Multi Power Socket in conjunction with medical equipment.
  • To be connected to an automatic circuit breaker (max. 16 A).
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075594784 Folding box
1
87 mm x 94 mm x 378 mm 669.00 g 3.09 dm³
4058075594791 Shipping box
4
387 mm x 196 mm x 190 mm 2960.00 g 14.41 dm³
EAN SEG number STK number EFO number
4058075594784 7985449 2405709 1407945
