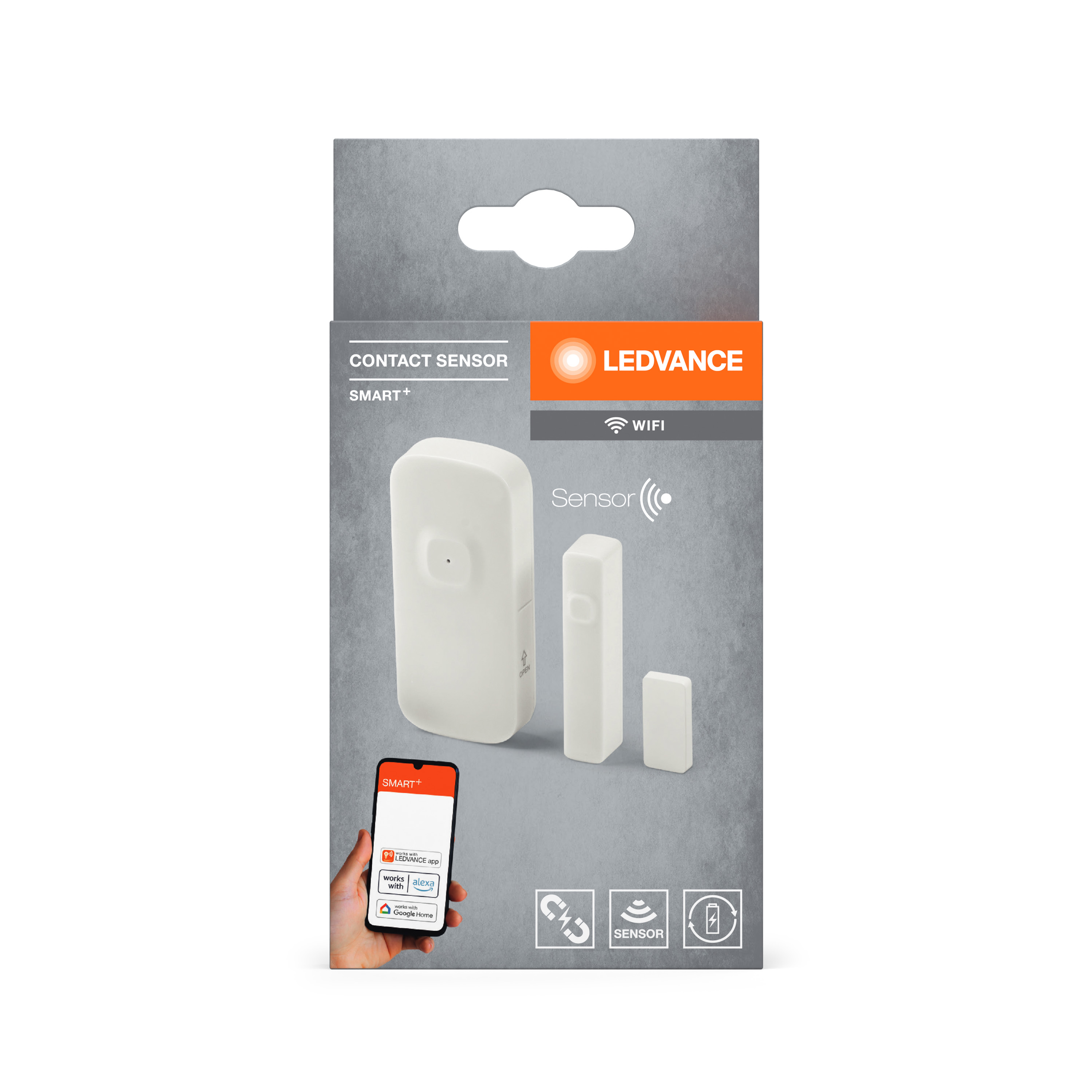

SMART+ WIFI CONTACT SENSOR

Choose your product version

OVERVIEW



SMART+ WIFI CONTACT SENSOR White

Product benefits
  • Easy control and automation of compatible SMART+ WiFi products based on contact status
  • Notification of contact status change
  • Monitors the history of contact status

PRODUCT DETAILS

Electrical data

Nominal voltage 5 V
Operating mode Battery

Dimensions & Weight

Product weight 46.8 g
Length 72.00 mm
Width 31.00 mm
Height 15.50 mm

Colors & materials

Product color White
Body material Plastic

Temperatures & operating conditions

Ambient temperature range -10…+50 °C

Capabilities

Dimmable No
Compatible smart home technology Amazon Alexa, Google Assistant

Certificates & Standards

Standards CE, UKCA
Protection class III
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy control and automation of compatible SMART+ WiFi products based on contact status
  • Notification of contact status change
  • Monitors the history of contact status
Areas of application
  • Smart home indoors
  • Wherever smart control and automation are to be implemented in compatible smart home systems
Product features
  • Compatible with Amazon Alexa and Google Home
  • Wireless smart contact sensor for status of windows and doors (open/close)

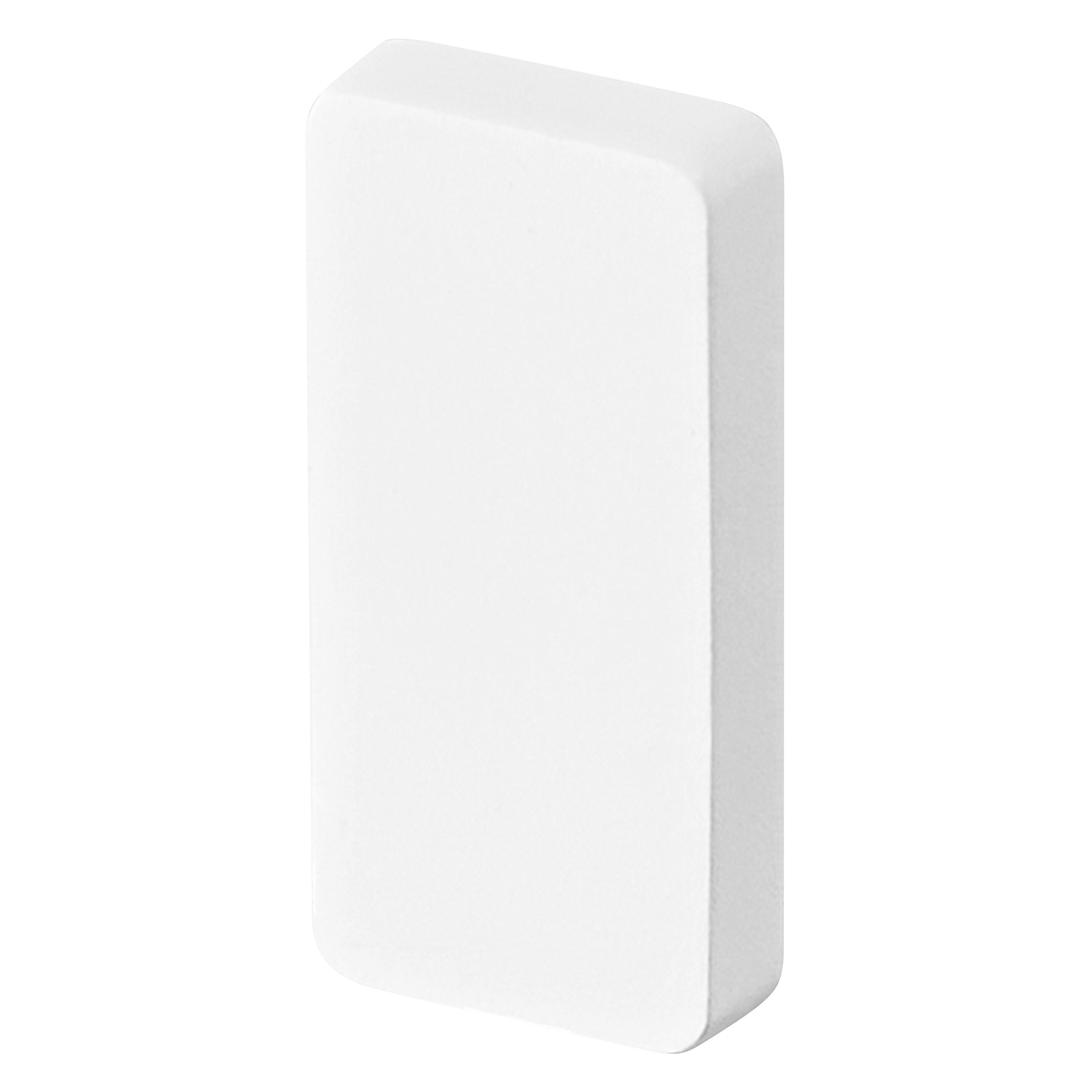

  • Simple and flexible mounting with adhesive tape and a choice of two magnet shapes depending on the application
  • Rechargeable battery and improved battery life (20 months operating time per charge with 5 detections per day)
  • Network protocol: WiFi (2.4 GHz)
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Check the battery level by SMART+ WiFi APP
Equipment / Accessories
  • Rechargeable battery integrated and easy charging via USB-C
  • Charging cable and installation kit included
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854333132 Folding box
1
23 mm x 78 mm x 149 mm 64.00 g 0.27 dm³
4099854333149 Shipping box
8
166 mm x 102 mm x 165 mm 592.00 g 2.79 dm³
EAN SEG number
4099854333132 1302017
