SMART+ NIightlight plug

Choose your product version

OVERVIEW

Product description

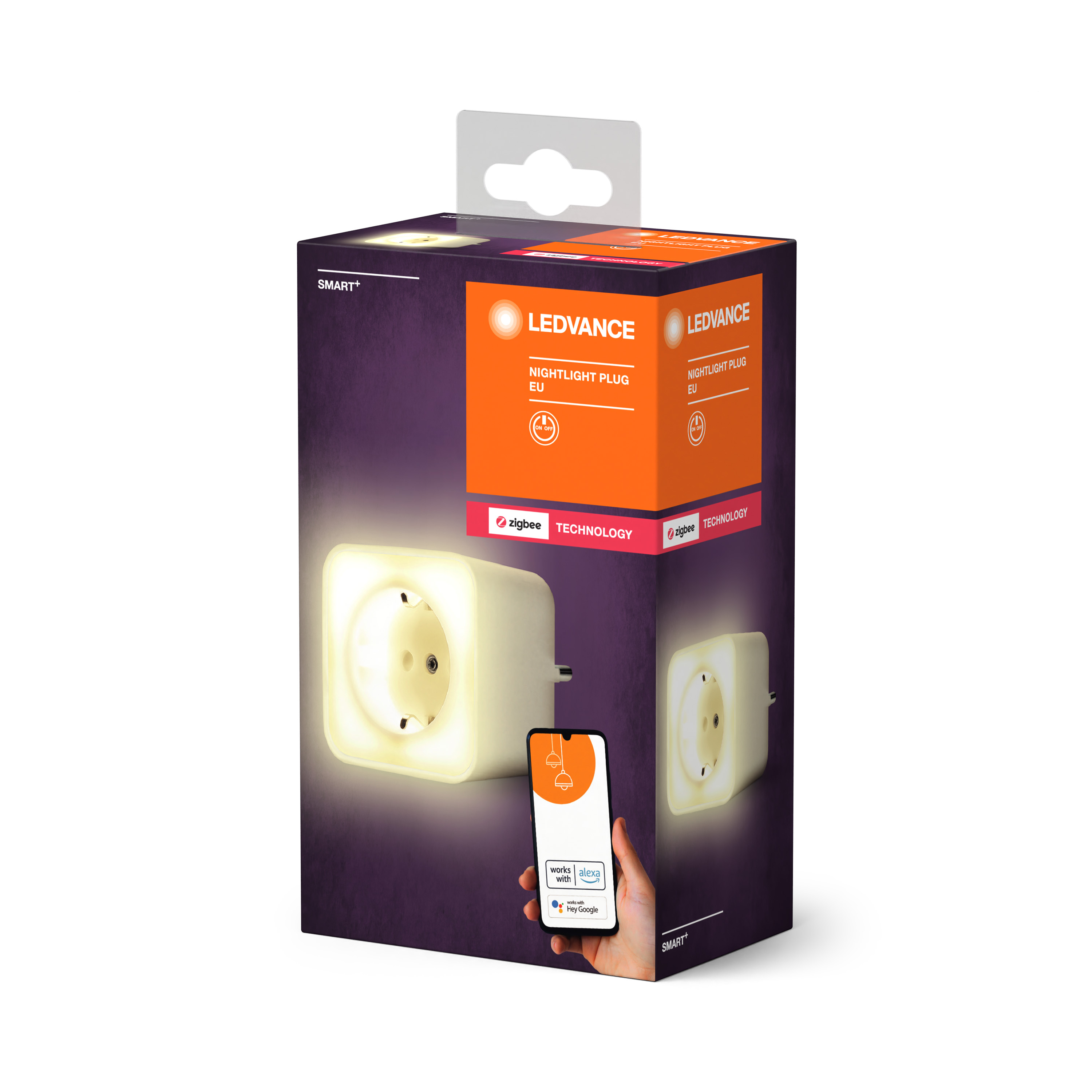

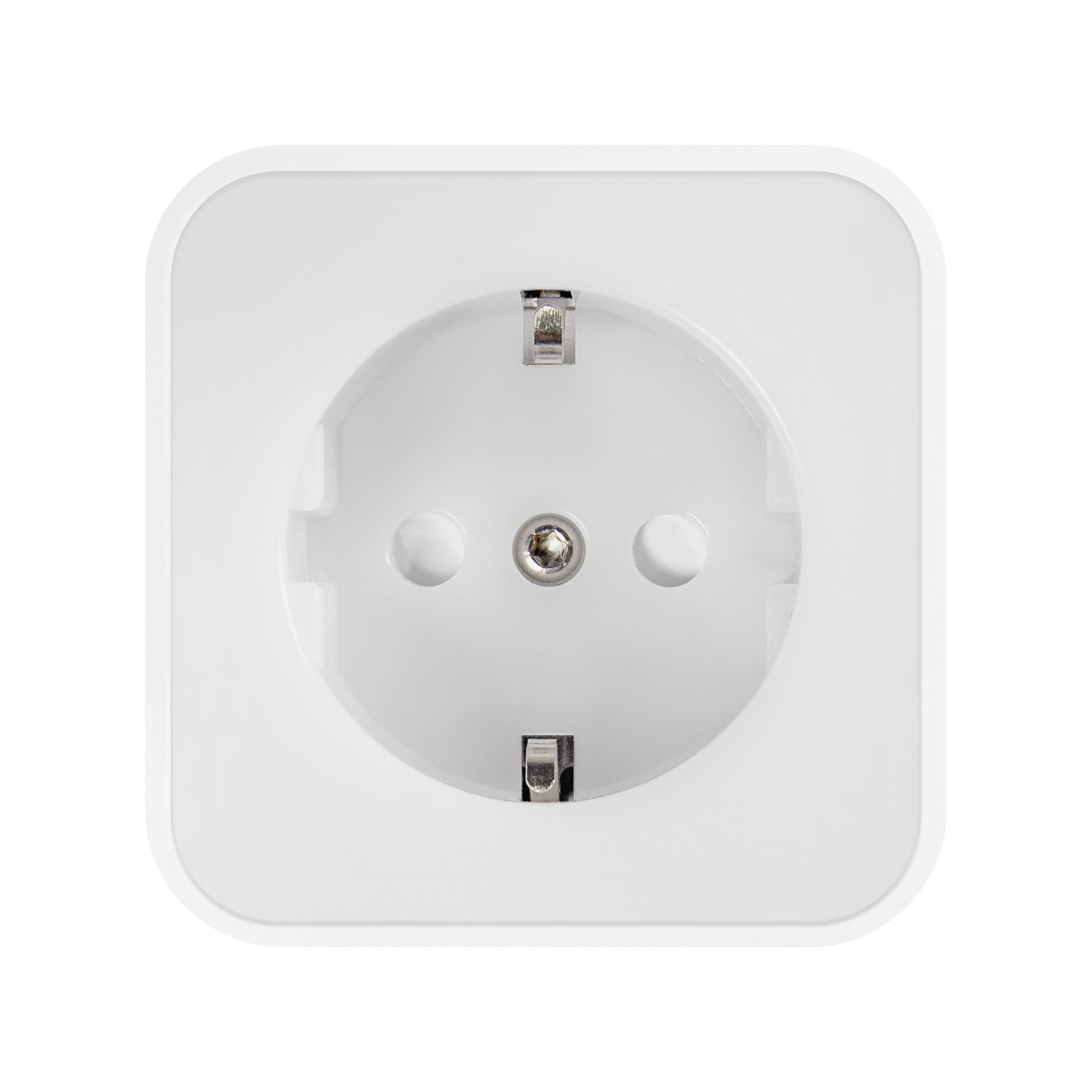

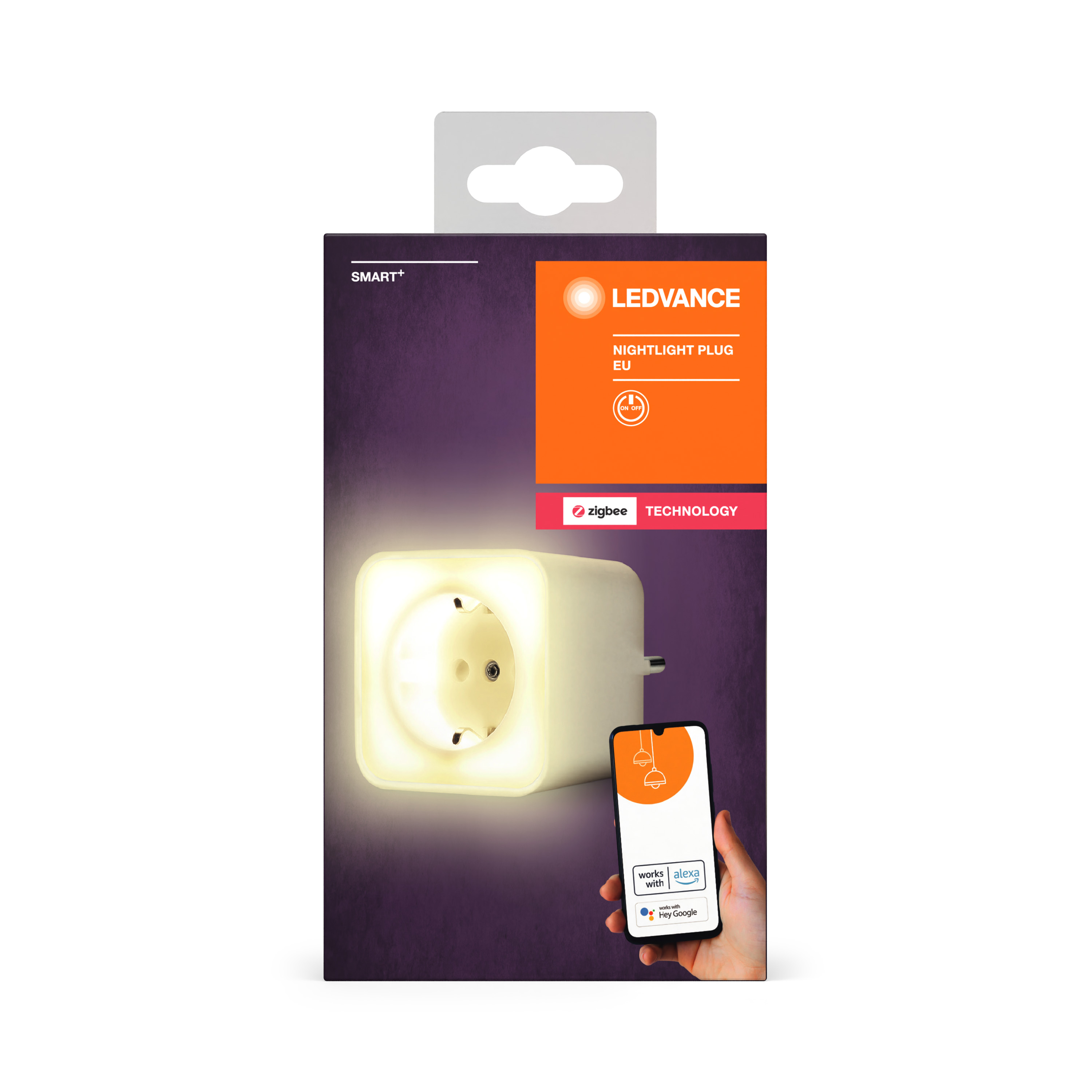

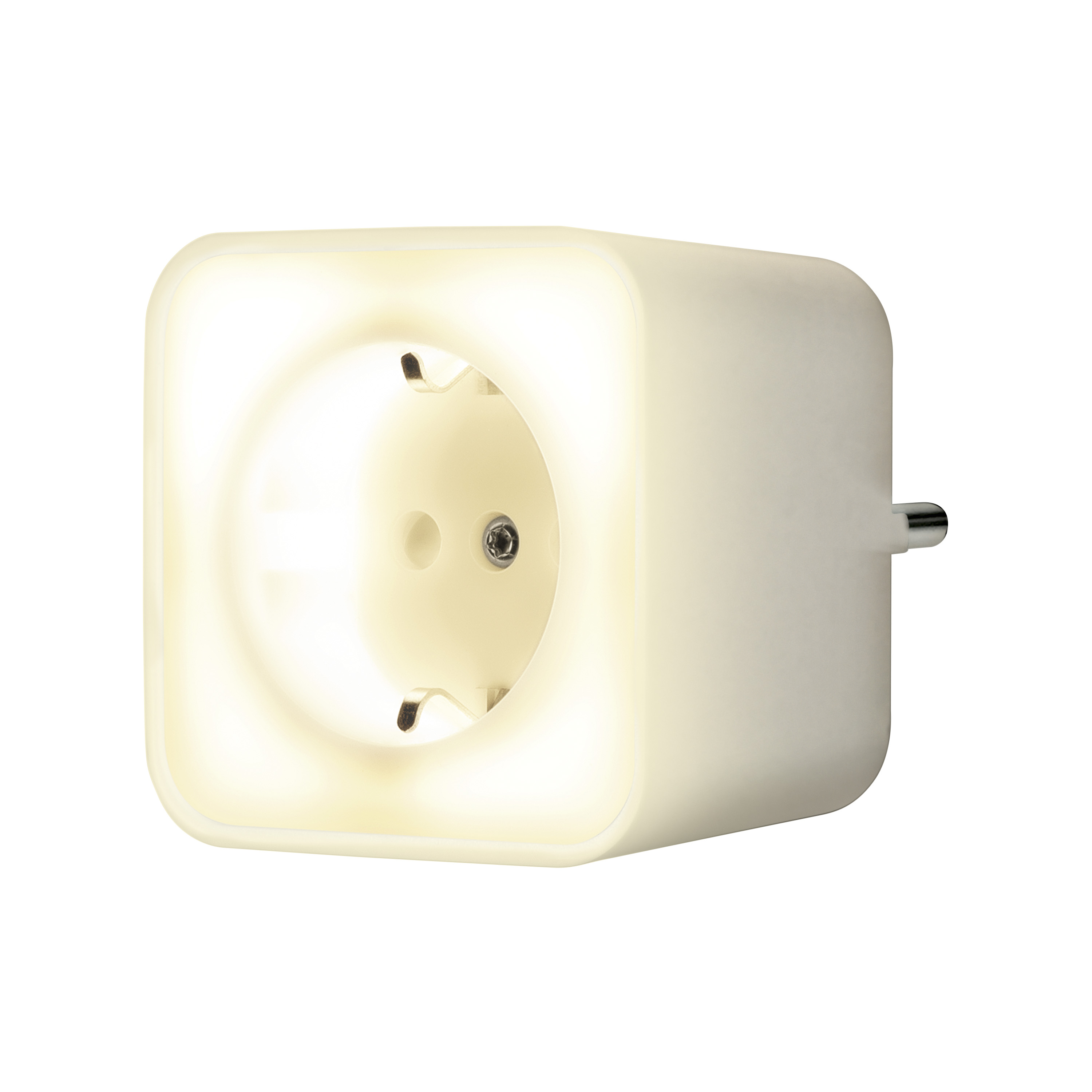

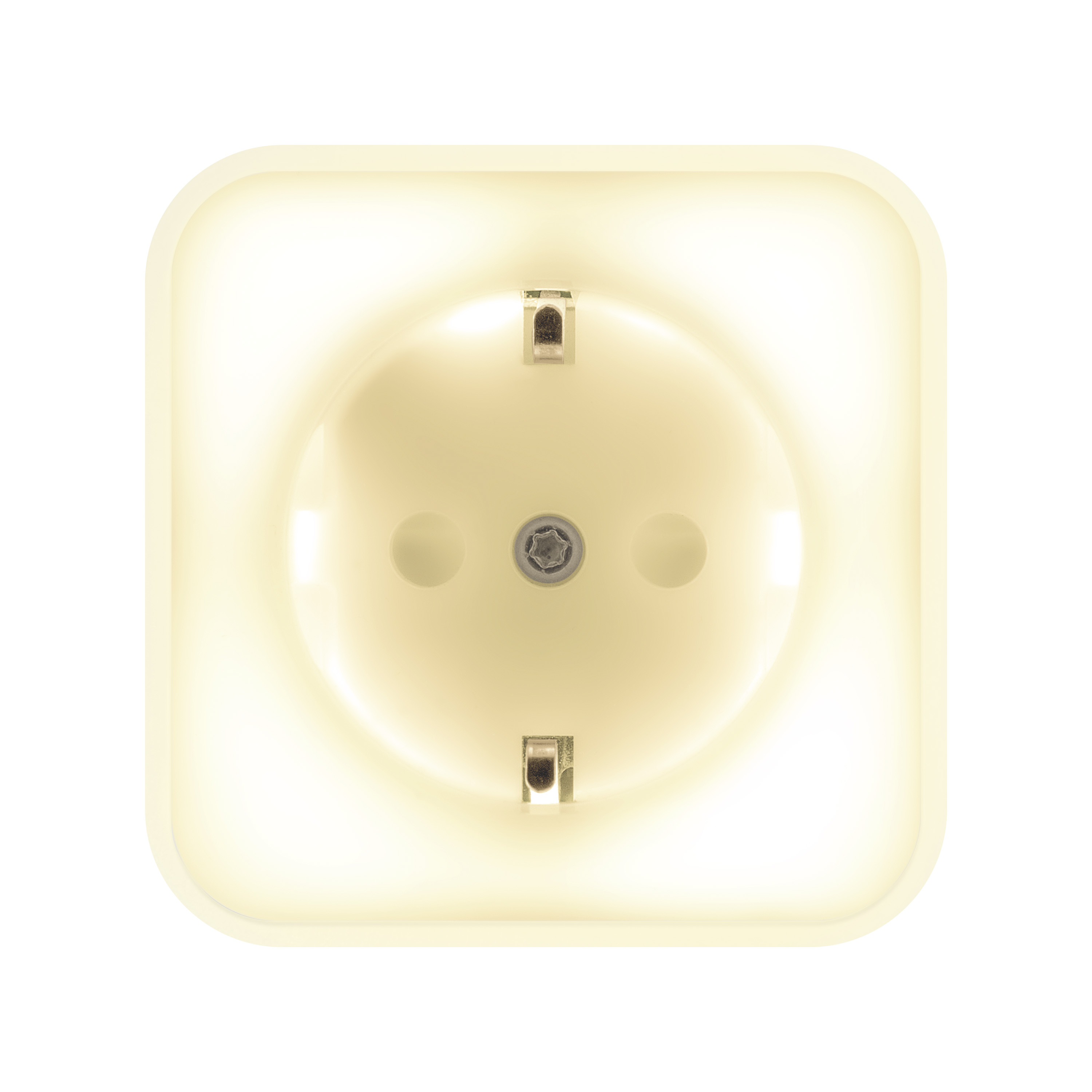

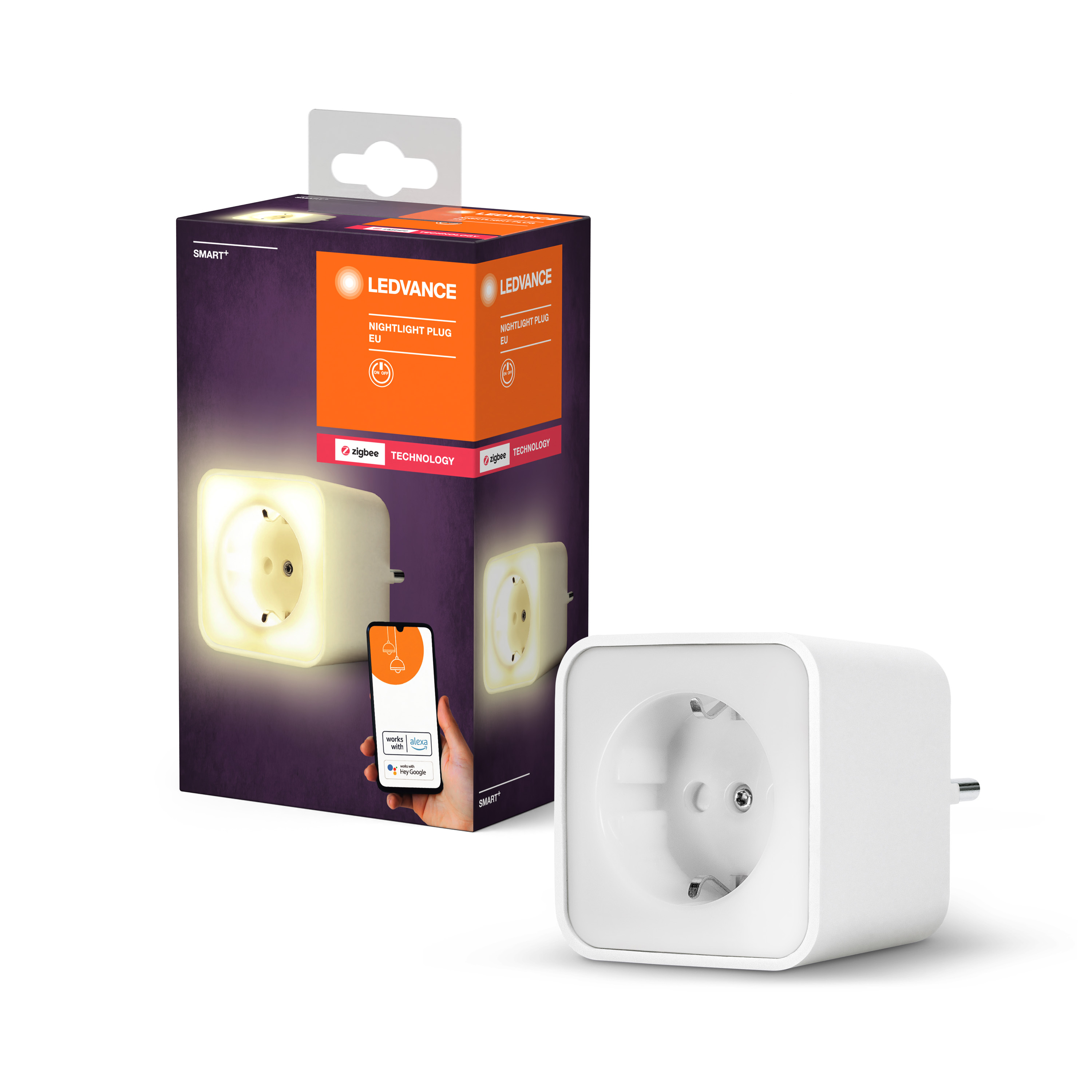

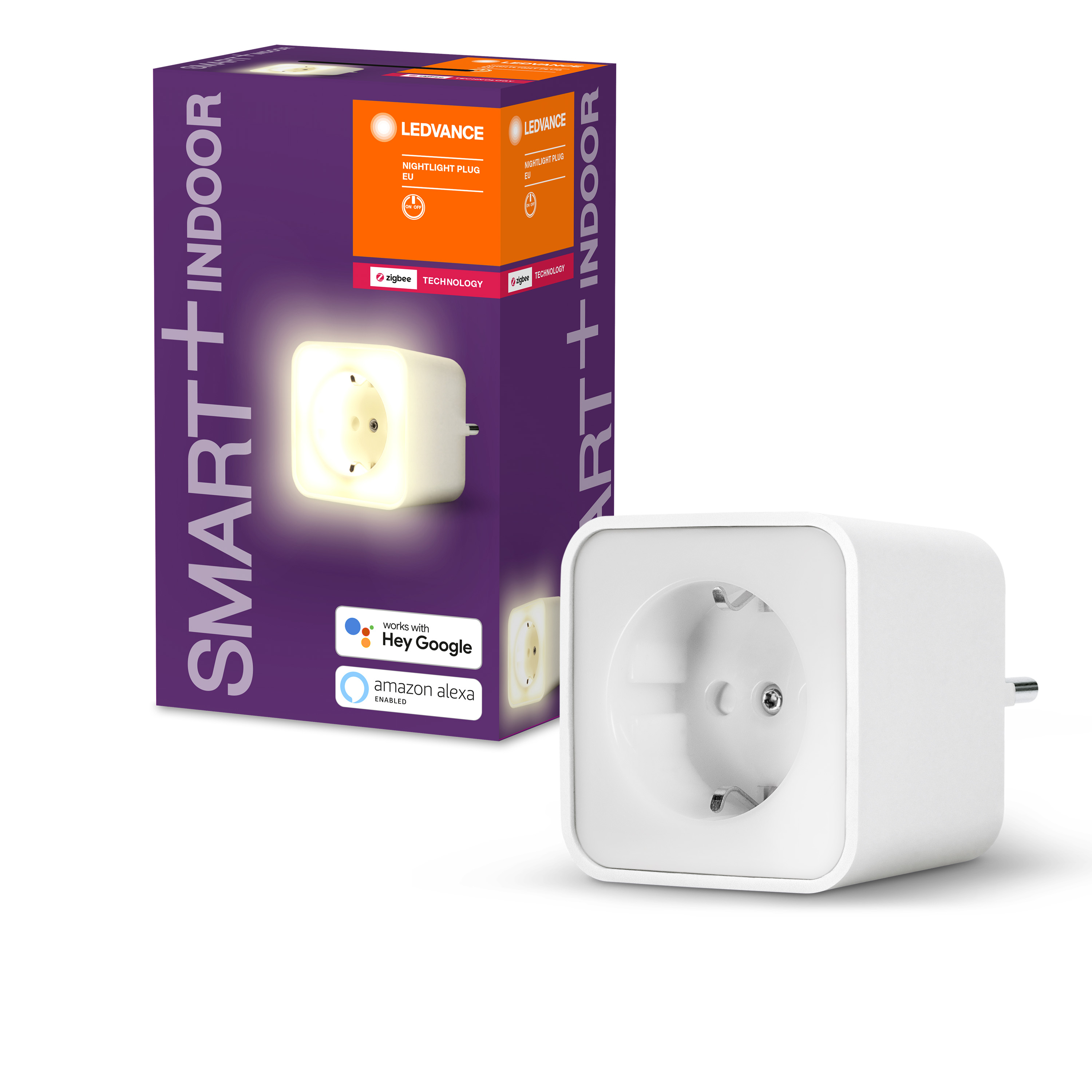

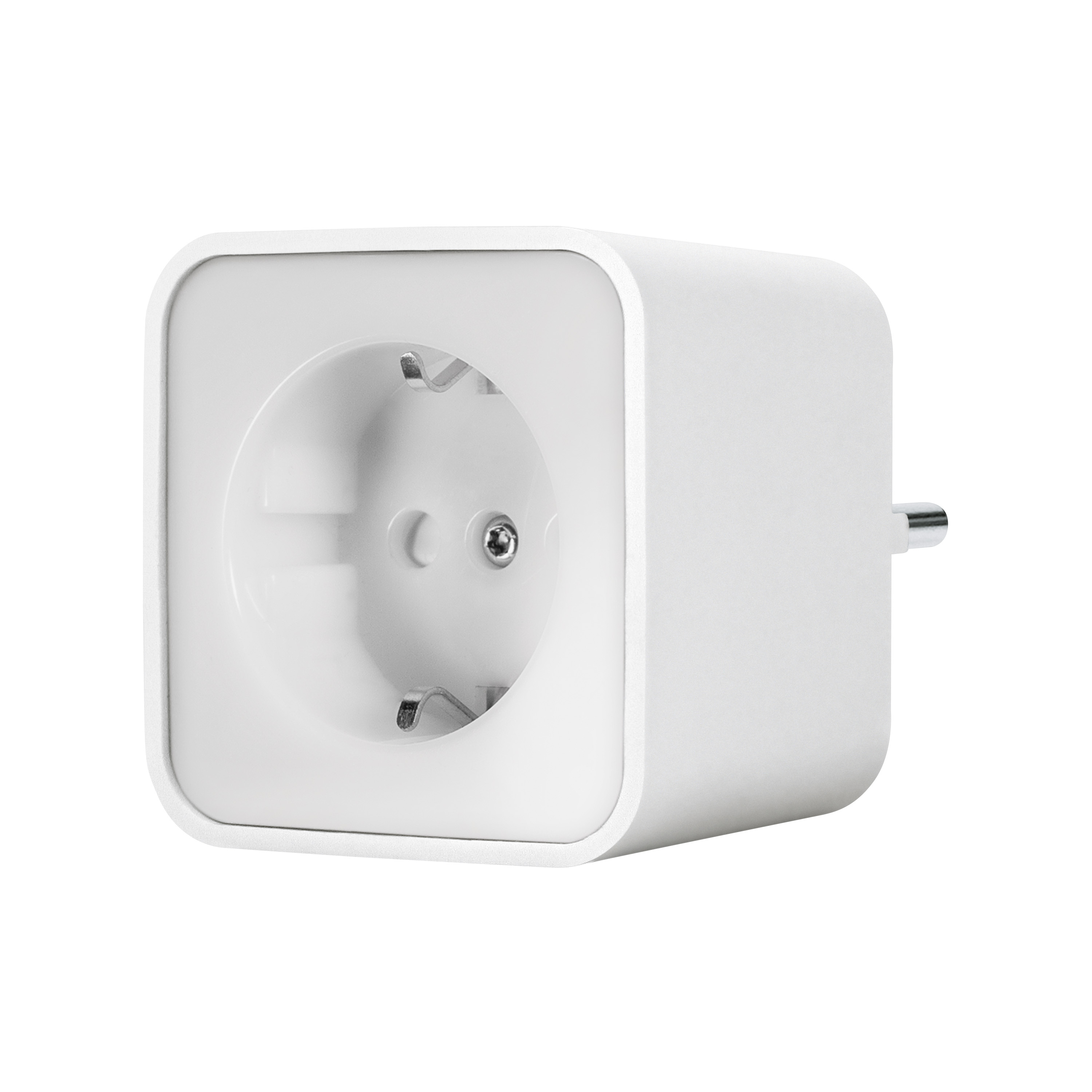

SMART+ ZB NIGHTLIGHT PLUG EU


SMART+ ZB NIGHTLIGHT PLUG EU

Product benefits
  • Integrates conventional electric equipment into compatible smart home systems
  • Nightlight as an orientation light or safety light at night or in dark area
  • Simple connection of electric devices via standard socket
  • Enables switching of conventional light sources and other electric devices

PRODUCT DETAILS

Electrical data

Nominal voltage 230 V
Mains frequency 50 Hz

Dimensions & Weight

Product weight 120.00 g
Length 60 mm
Width 60 mm
Height 84 mm

Lifespan

Number of switching cycles 100000

Colors & materials

Product color White
Body material Plastic

Temperatures & operating conditions

Ambient temperature range -10…+35 °C

Capabilities

Compatible smart home technology Philips Hue, Amazon Alexa, Google Assistant

Certificates & Standards

Protection class I
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Integrates conventional electric equipment into compatible smart home systems
  • Nightlight as an orientation light or safety light at night or in dark area
  • Simple connection of electric devices via standard socket
  • Enables switching of conventional light sources and other electric devices
Areas of application
  • Wherever non-smart devices need to be integrated into compatible smart home systems
  • Nightlight as an orientation light or safety light for children's rooms, stairs, or bedrooms
Product features
  • Control via compatible smart home system, or on/off button on the device
  • Control via voice control available: Google Assistant or Amazon Alexa, depending on the smart home system in use
  • Functionality depends on used type of control
  • High switching power: up to 3,680 W / 16 A
  • Network protocol: ZigBee 3.0
  • Nightlight integrated with warm white, not dimmable
  • Scheduling
Equipment / Accessories
  • Control via app requires a compatible Smart home system
Safety advice
  • Disconnect devices which generate heat from the mains, i.e. from the SMART+ Plug, after use in order to avoid them being accidentally switched on.
  • Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
  • Do not use the SMART+ Plug in conjunction with medical equipment.
  • To be connected to an automatic circuit breaker (max. 16 A).
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

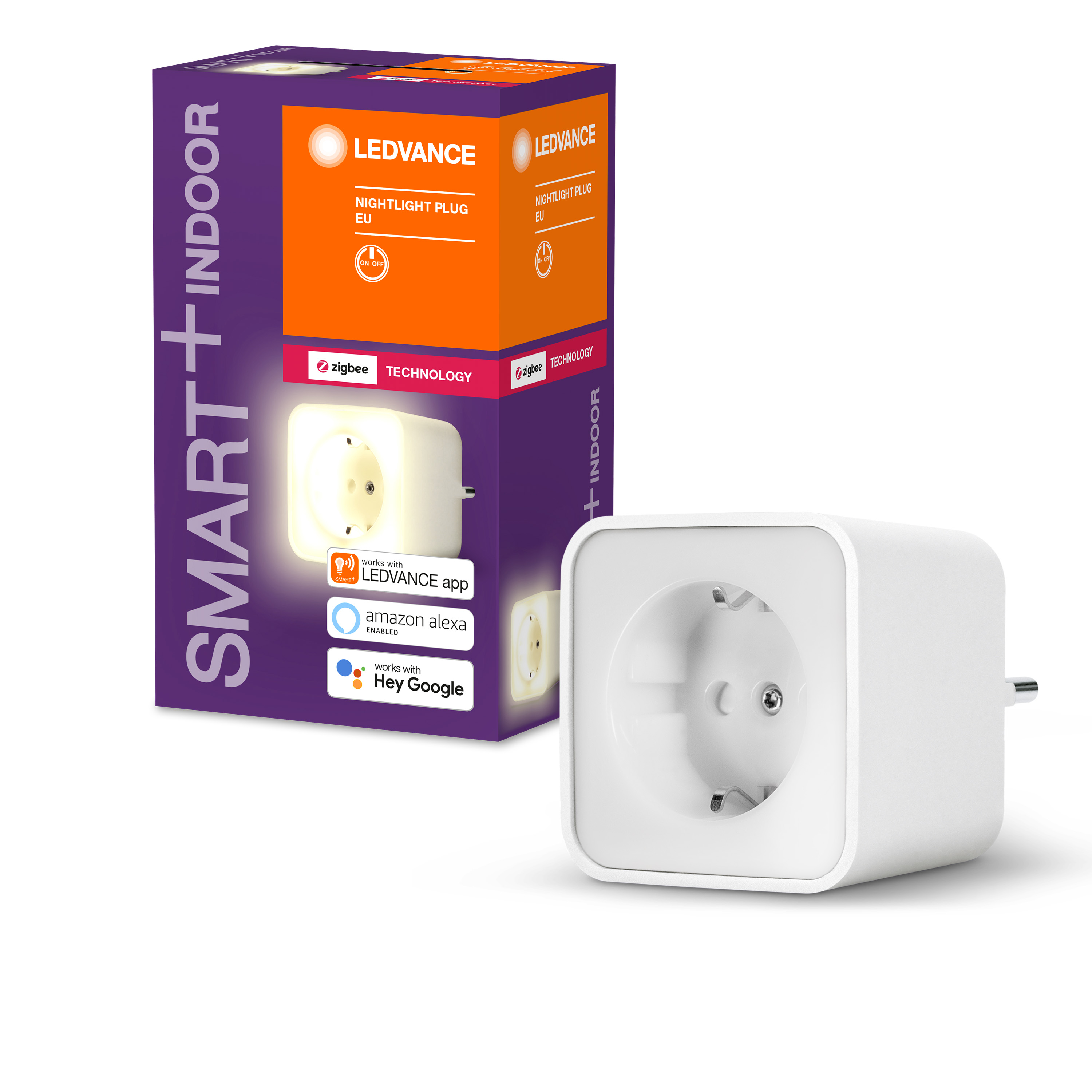

4058075570955 Folding box
1
61 mm x 96 mm x 154 mm 188.00 g 0.90 dm³
4058075570962 Shipping box
4
211 mm x 167 mm x 141 mm 883.00 g 4.97 dm³
