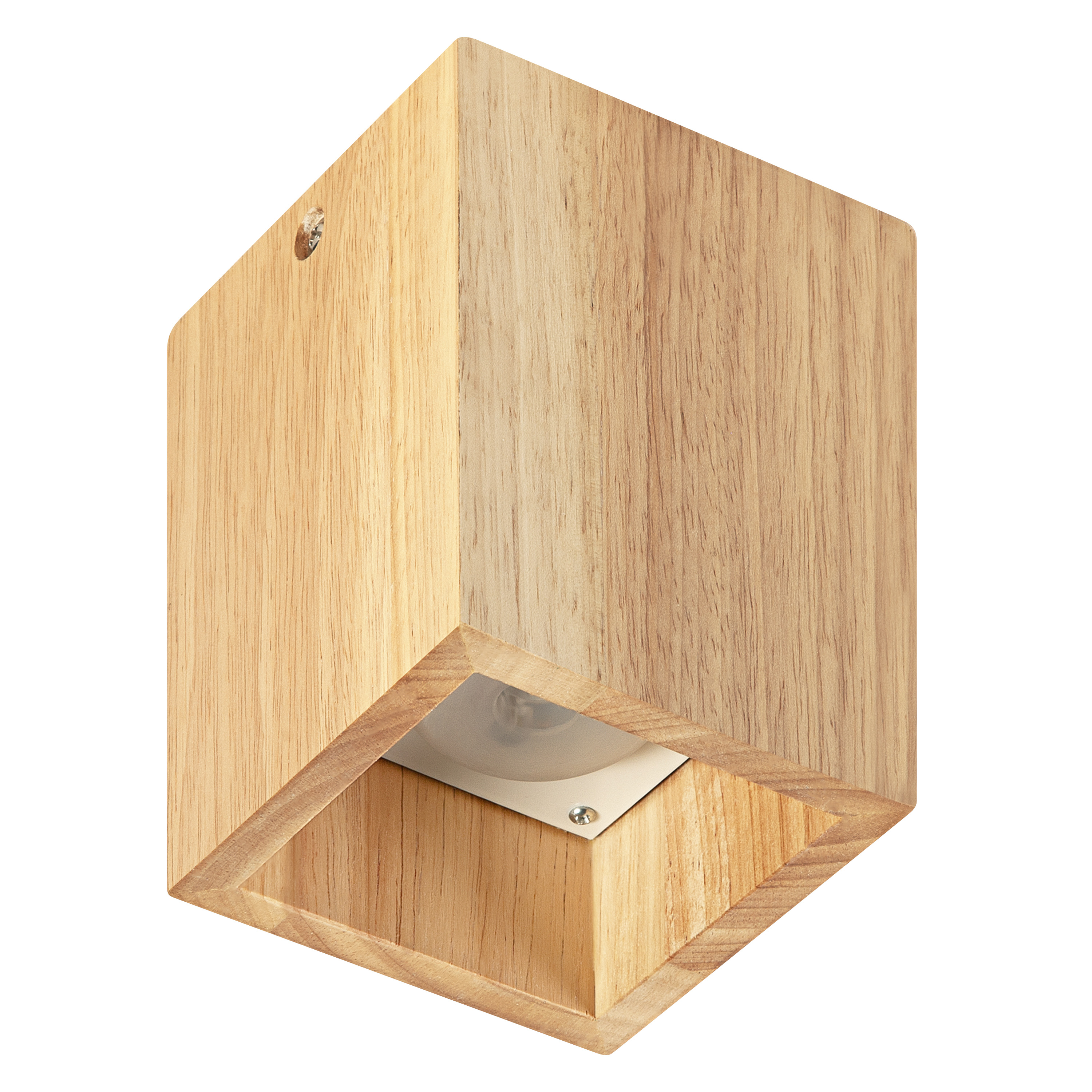

SMART+ Wifi Decor Wood Ceiling TW

Product benefits
  • Elegant design

PRODUCT DETAILS

Electrical data

Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 43.000 mA
Power factor λ ≥0.5
Total harmonic distortion < 20 %
Protection class II

Photometrical data

Luminous flux 300 lm
Total luminous flux of contained light sources 640 lm
Luminous efficacy 37 lm/W
Color temperature 3000…6500 K
Reference control setting of contained light source (Kelvin) 3000 K 1)
Light color (designation) Tunable White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0

1) Performing a reset will restore the default values set by the manufacturer

Dimensions & Weight

Length 100.00 mm
Height 130.00 mm
Width 100.00 mm
Product weight 450.00 g

Materials & Colors

Product color Wood decor
Housing color Wood decor
Body material Wood
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Terminal, 2-Pole (L, N)
Type of protection IP20
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Application environment Indoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Elegant design
Areas of application
  • Entrance areas
  • Living rooms
  • Bedrooms
  • Offices
Product features
  • Adjustable color temperature via Tunable White: 3,000…6,500 K
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Decorative Luminaire
  • Housing material: metal and wood
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075757660 Folding box
1
122 mm x 122 mm x 153 mm 505.00 g 2.28 dm³
4058075757677 Shipping box
4
265 mm x 265 mm x 178 mm 2430.00 g 12.50 dm³
EAN ELDAS number
4058075757660 941320830
