Choose your product version
| Product description |
|---|

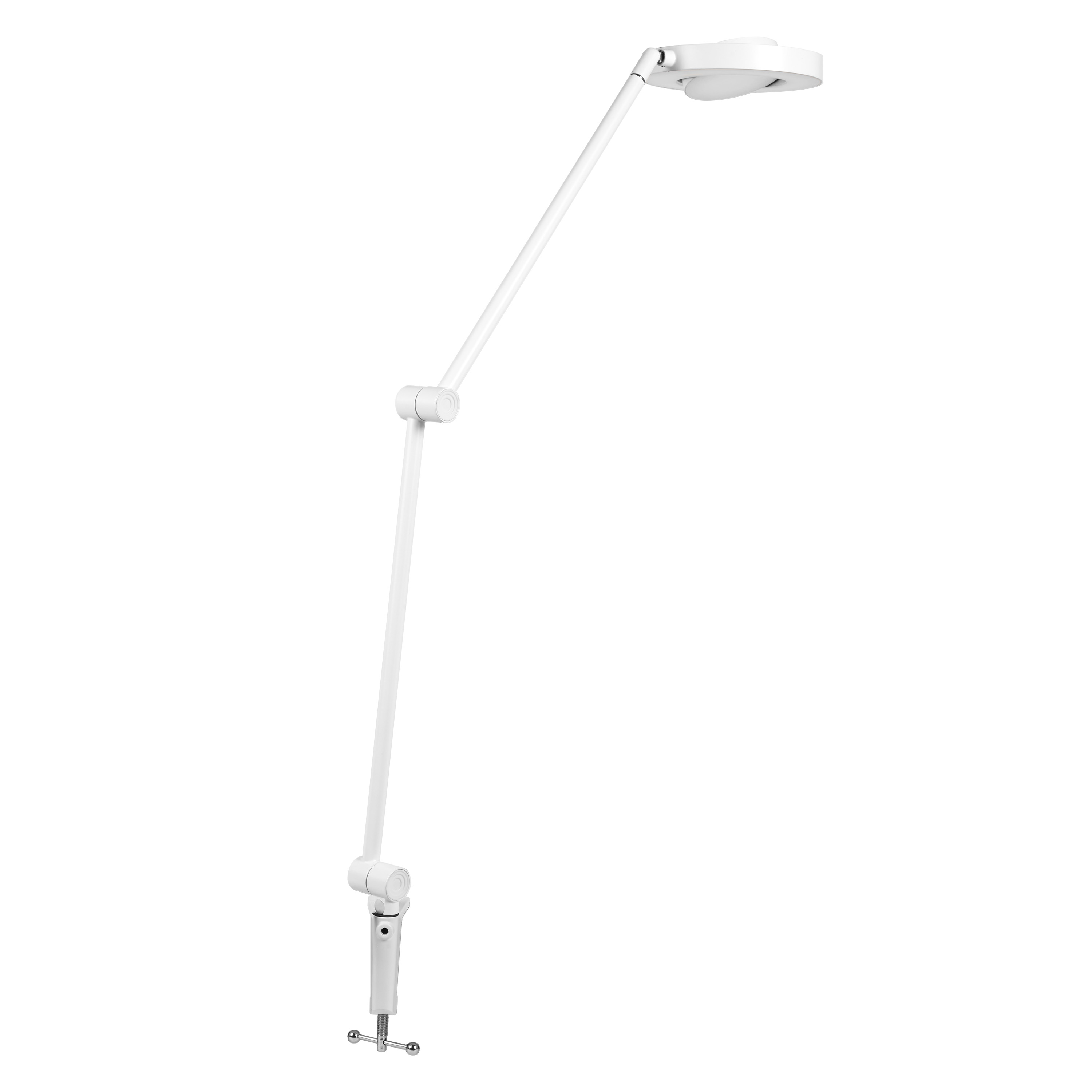

| Sun@Home Panan Desk Disc Clip Black |
| Sun@Home Panan Desk Disc Clip White |
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 75 mA |
| Inrush current | 3.20 A |
| Inrush current time Th50 | 3,4 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 142 |
| Max. number of luminaires per miniature circuit breaker C10 | 133 |
| Max. number of luminaires per miniature circuit breaker C16 | 213 |
| Power factor λ | > 0.70 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 600 lm |
| Total luminous flux of contained light sources | 1200 lm |
| Luminous efficacy | 45 lm/W |
| Color temperature | 2200…5000 K |
| Reference control setting of contained light source (Kelvin) | 2700 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 95 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | ≤ 1 % |
| Stroboscope effect metric (SVM) | ≤ 0.4 % |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
| Length | 147.00 mm |
| Height | 565.00 mm |
| Width | 535.00 mm |
| Product weight | 866.00 g |
| Cable length | 1800 mm |
| Product color | White |
| Housing color | White |
| Body material | Plastic|METAL |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Standing |
| Mounting location | Table |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
| Standards | CE, EAC |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Number of illuminants | empty |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854109584 | Folding box 1 |
92 mm x 613 mm x 212 mm | 1092.00 g | 11.96 dm³ |
| 4099854109591 | Shipping box 4 |
382 mm x 230 mm x 640 mm | 5444.00 g | 56.23 dm³ |
