Choose your product version
| Product description |
|---|
| SMART+ Wifi Planon Plus Hole Backlight 450x450mm RGB + TW |
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 100.000 mA |
| Inrush current | 16.1 A |
| Inrush current time Th50 | 125 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 37 |
| Max. number of luminaires per miniature circuit breaker C16 | 47 |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 30 % |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 1550 lm |
| Total luminous flux of contained light sources | 2500 lm |
| Luminous efficacy | 64 lm/W |
| Color temperature | 2700…6500 K |
| Light color (designation) | Tunable White, RGB |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
| UGR | < 25 |

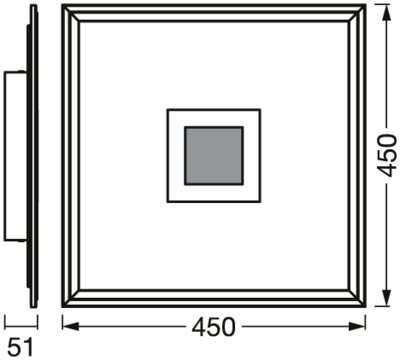

| Length | 450.00 mm |
| Height | 51.00 mm |
| Width | 450.00 mm |
| Product weight | 2100.00 g |
| Product color | White |
| Housing color | White |
| Body material | Metal |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 25000 |
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) N,N-Dimethylformamide (68-12-2) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075752665 | Folding box 1 |
72 mm x 497 mm x 487 mm | 2361.00 g | 17.43 dm³ |
| 4058075752672 | Shipping box 2 |
522 mm x 162 mm x 517 mm | 5348.00 g | 43.72 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075752665 | 941302340 |
