| Product description |
|---|

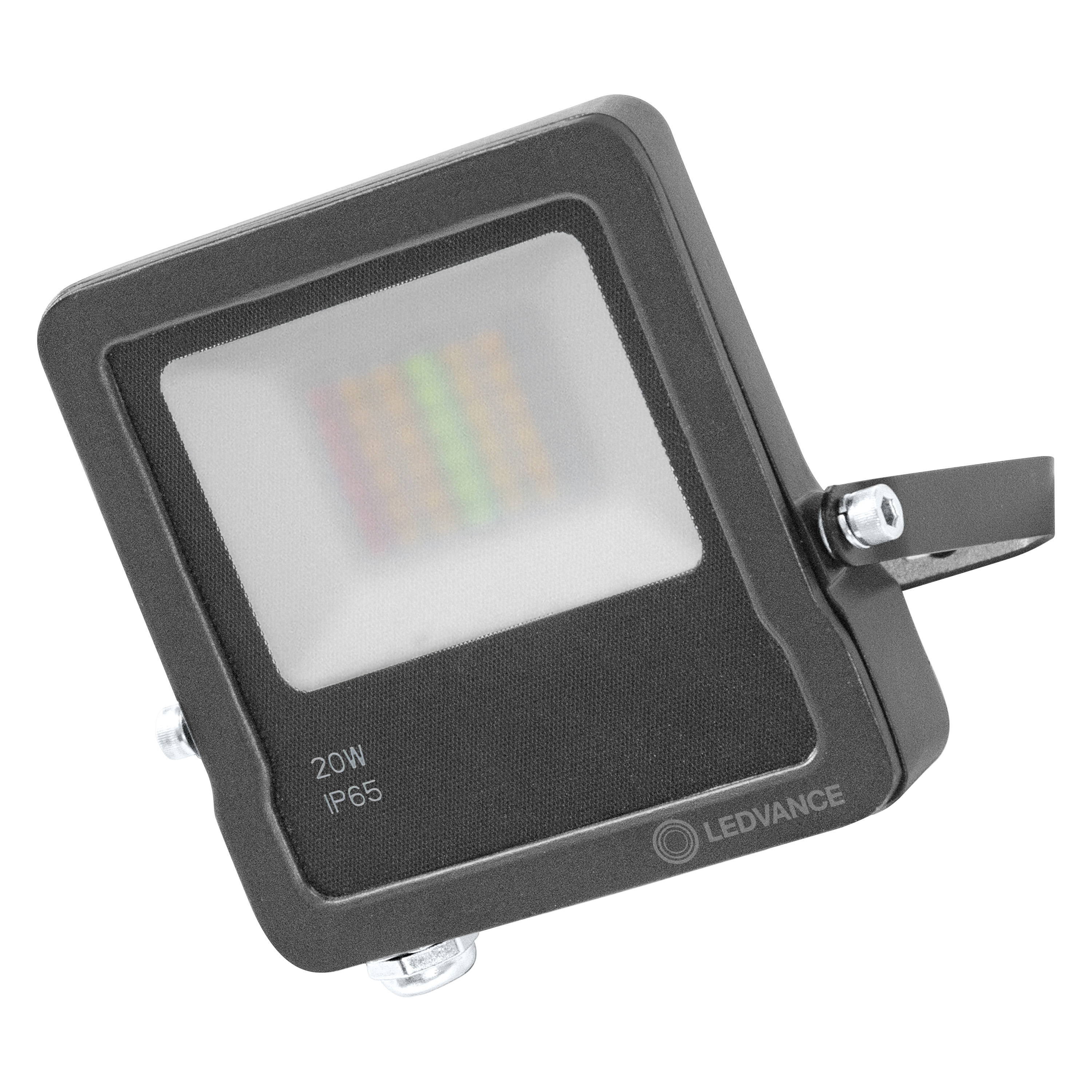

| SMART+ Wifi Floodlight 20W RGB + W + RC |
| Nominal wattage | 20.0 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 90.000 mA |
| Inrush current | 15 A |
| Max. number of luminaires per miniature circuit breaker C10 | 15 |
| Power factor λ | > 0.90 |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 1600 lm |
| Luminous efficacy | 63 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1 % |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 100 ° |
| Length | 152.00 mm |
| Height | 28.00 mm |
| Width | 125.00 mm |
| Product weight | 419.00 g |
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK05 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 30000 |
| Type of emergency light operation | Non-maintained |
| Type of emergency operation test | None |
| Luminous flux in maintained operation mode | - |
| Luminous flux in emergency operation mode | - |
| Integrated test switch | No |
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Dodecamethylcyclohexasiloxane [D6] (540-97-6) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075576674 | Folding box 1 |
204 mm x 40 mm x 164 mm | 621.00 g | 1.34 dm³ |
| 4058075576681 | Shipping box 6 |
264 mm x 229 mm x 208 mm | 4176.00 g | 12.57 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075576674 | 941506290 |
