Choose your product version
| Product description |
|---|

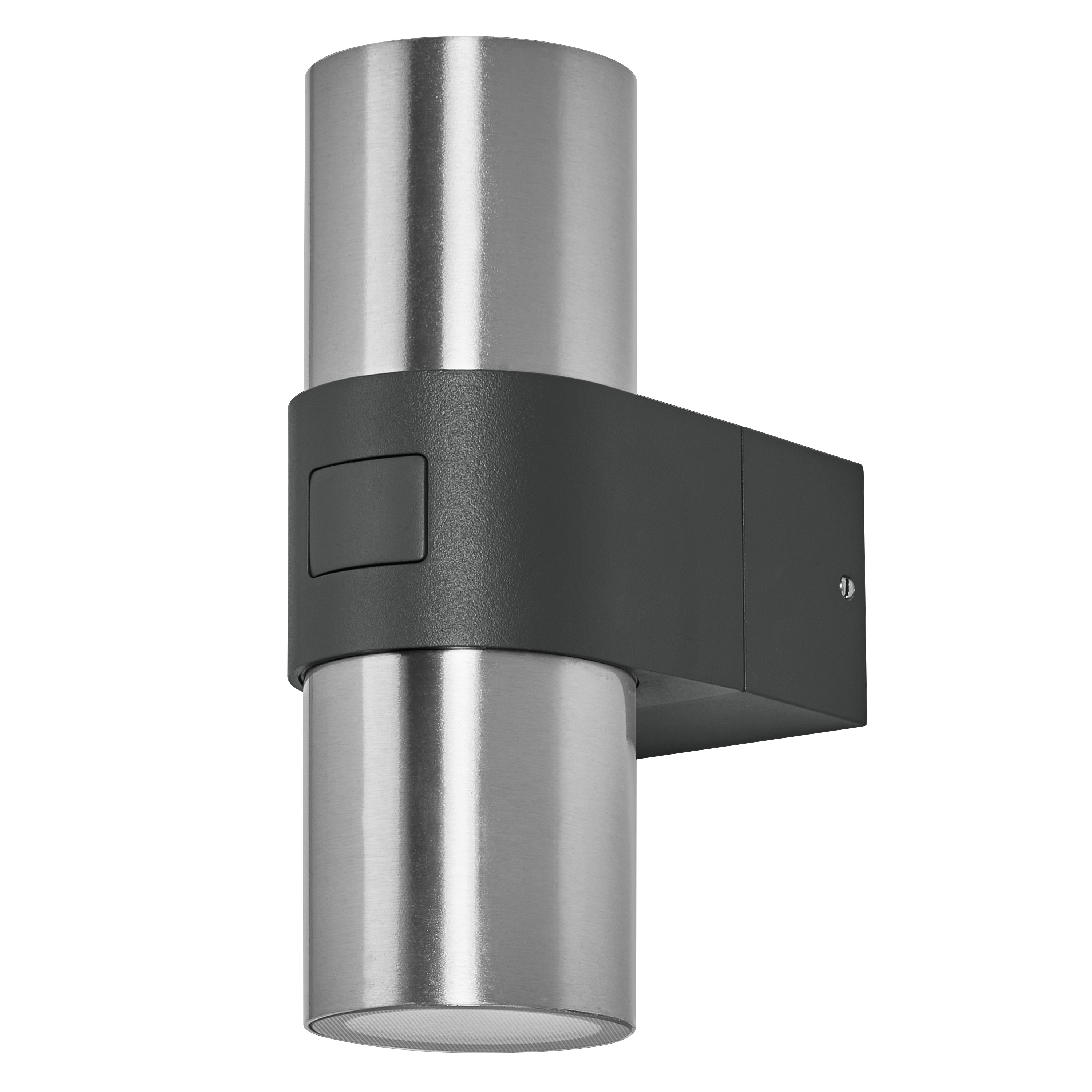

| SMART+ Wifi Rotary Updown RGB + W |
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 80.000 mA |
| Power factor λ | > 0.5 |
| Protection class | I |
| Luminous flux | 520 lm |
| Total luminous flux of contained light sources | 800 lm |
| Luminous efficacy | 52 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White, RGB |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 285.00 ° |
| Diameter | 60.00 mm |
| Length | 69.00 mm |
| Height | 175.00 mm |
| Width | 112.00 mm |
| Product weight | 800.00 g |
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum|Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075763265 | Folding box 1 |
75 mm x 120 mm x 180 mm | 851.00 g | 1.62 dm³ |
| 4058075763272 | Shipping box 4 |
260 mm x 170 mm x 200 mm | 3641.00 g | 8.84 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075763265 | 941322790 |
