DAMP PROOF DALI

Choose your product version

1200 18W 840 IP65 GY

1200 18W 865 IP65 GY

1500 26W 840 IP65 GY

1500 26W 865 IP65 GY

1200 32W 830 IP65 GY

1200 32W 840 IP65 GY

1200 32W 865 IP65 GY

1500 46W 830 IP65 GY

1500 46W 840 IP65 GY

1500 46W 865 IP65 GY

1500 58W 840 IP65 GY

1500 58W 865 IP65 GY

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP DALI 1200 18W 840 IP65 GY  18.00 W 100000 110 ° 2400 lm Yes
DP DALI 1200 18W 865 IP65 GY        18.00 W 100000 110 ° 2400 lm Yes
DP DALI 1500 26W 840 IP65 GY 26.00 W 100000 110 ° 3500 lm Yes
DP DALI 1500 26W 865 IP65 GY 26.00 W 100000 110 ° 3500 lm Yes
DP DALI 1200 32W 830 IP65 GY 32.00 W 100000 110 ° 4000 lm Yes
DP DALI 1200 32W 840 IP65 GY 32.00 W 100000 110 ° 4400 lm Yes
DP DALI 1200 32W 865 IP65 GY 32.00 W 100000 110 ° 4400 lm Yes
DP DALI 1500 46W 830 IP65 GY 46.00 W 100000 110 ° 5750 lm Yes
DP DALI 1500 46W 840 IP65 GY 46.00 W 100000 110 ° 6400 lm Yes
DP DALI 1500 46W 865 IP65 GY 46.00 W 100000 110 ° 6400 lm Yes
DP DALI 1500 58W 840 IP65 GY 58.00 W 100000 110 ° 8000 lm Yes
DP DALI 1500 58W 865 IP65 GY 58.00 W 100000 110 ° 8000 lm Yes


DP DALI 1200 18W 840 IP65 GY

Product benefits
  • High compatibility thanks to DALI-2 certification
  • Premium driver with up to 100,000 h lifetime
  • Driver suitable for Emergency escape lighting systems acc. to EN 50172
  • Driver configuration and dimming possible via mains
  • Low flicker ≤ 3 %
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 100 mA
Inrush current 29 A
Inrush current time Th50 180 µs
Max. number of luminaires per miniature circuit breaker B16 13
Max. number of luminaires per miniature circuit breaker C10 21
Max. number of luminaires per miniature circuit breaker C16 36
Power factor λ > 0.87
Total harmonic distortion < 23 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2400 lm
Luminous efficacy 133 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 4 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

Dimensions & Weight

Length 1200.00 mm
Height 68.00 mm
Width 82.00 mm
Product weight 1430.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+40 °C
Temperature range at storage -25…+80 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DALI
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 33000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output voltage 90 V
Output current 180 mA

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High compatibility thanks to DALI-2 certification
  • Premium driver with up to 100,000 h lifetime
  • Driver suitable for Emergency escape lighting systems acc. to EN 50172
  • Driver configuration and dimming possible via mains
  • Low flicker ≤ 3 %
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • DALI installations
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 139 lm/W
  • Type of protection: IP65
  • Beam angle: 110°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075541641 Folding box
1		 1,210 mm x 87 mm x 74 mm 1465.00 g 7.79 dm³
4058075541658 Shipping box
6		 1,232 mm x 191 mm x 245 mm 9810.00 g 57.65 dm³
User instruction / safety instructions

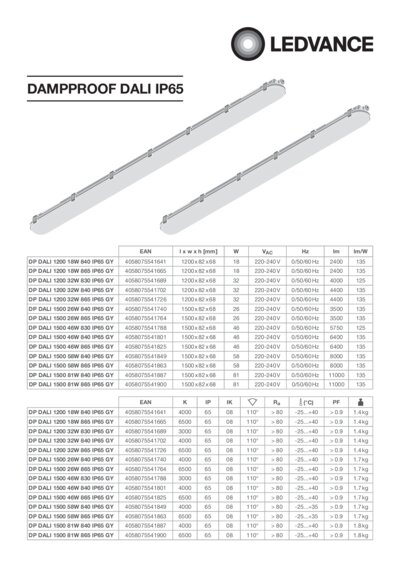

DP DALI IP65 PDF (3.91 MB)
Legal information

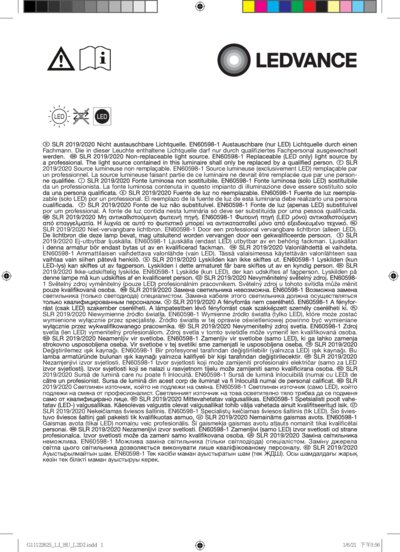

Legal Insert DP DALI I P65 PDF (6.28 MB)
Legal information

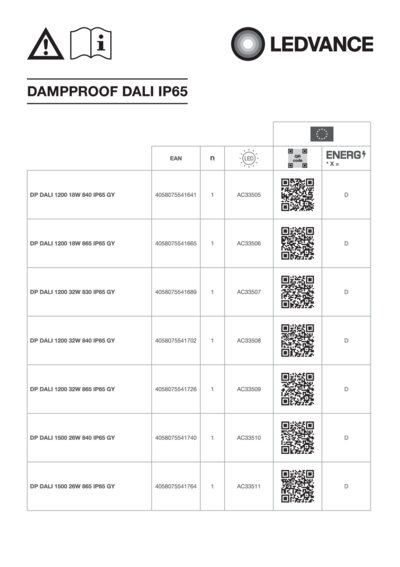

LSI DP DALI IP65 PDF (3.65 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

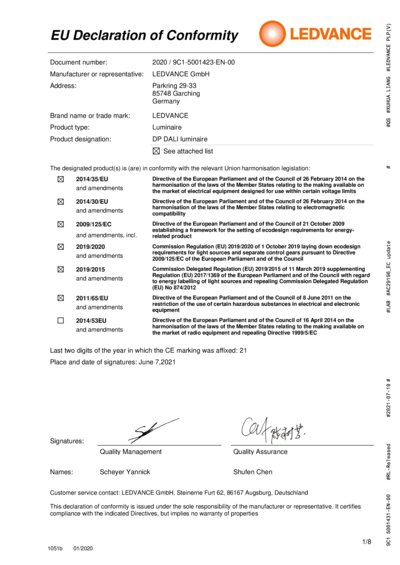

CE Declaration_DP DALI PDF (294.14 KB)
Declarations of conformity

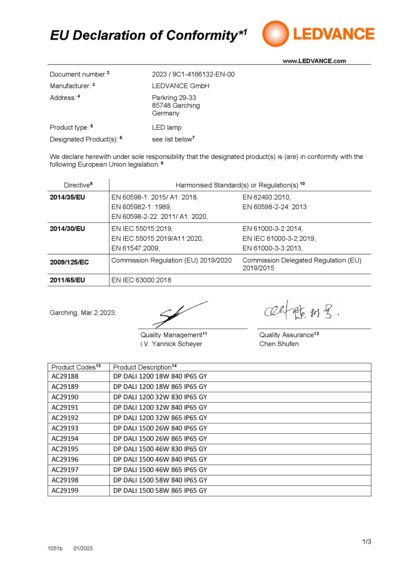

CE Declaration DP DALI IP65 GY PDF (259.85 KB)

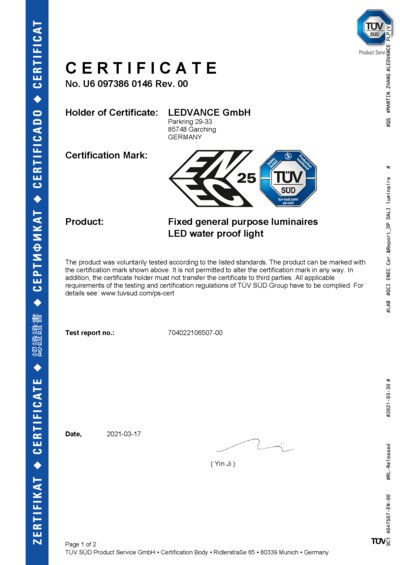

Certificates
DP DALI PDF (423.51 KB)

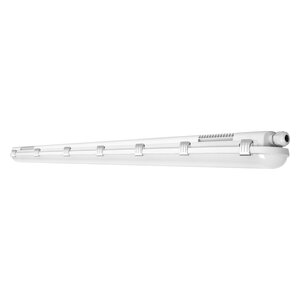

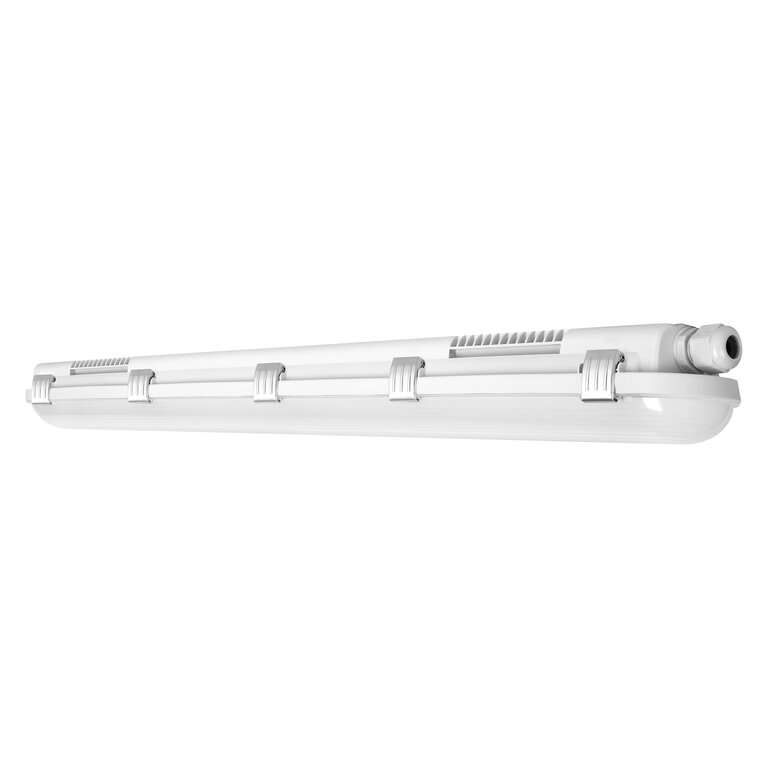

Product image: white background, spacial
DAMP PROOF 1200, DALI, EMERGENCY,SENSOR JPG (1.01 MB)

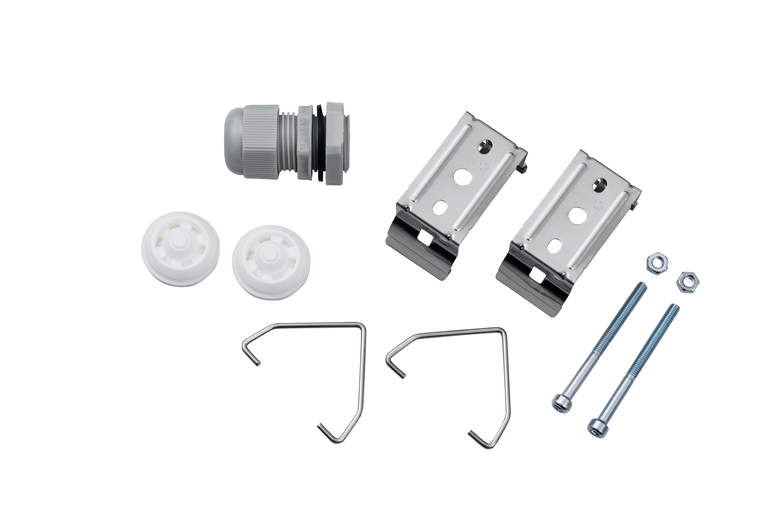

Product image: white background, with accessory, alternative image
Damp proof Gen 2 mount ing clips TIF (407.86 MB)
Product line drawing with letters
DP S 1200 32W 840 IP65 GY SVG (26.11 KB)
Product line drawing with numbers
DP S 1200 32W 840 IP65 GY SVG (33.25 KB)
Product line drawing, front, no dimensions
DP S 1200 32W 840 IP65 GY SVG (21.37 KB)

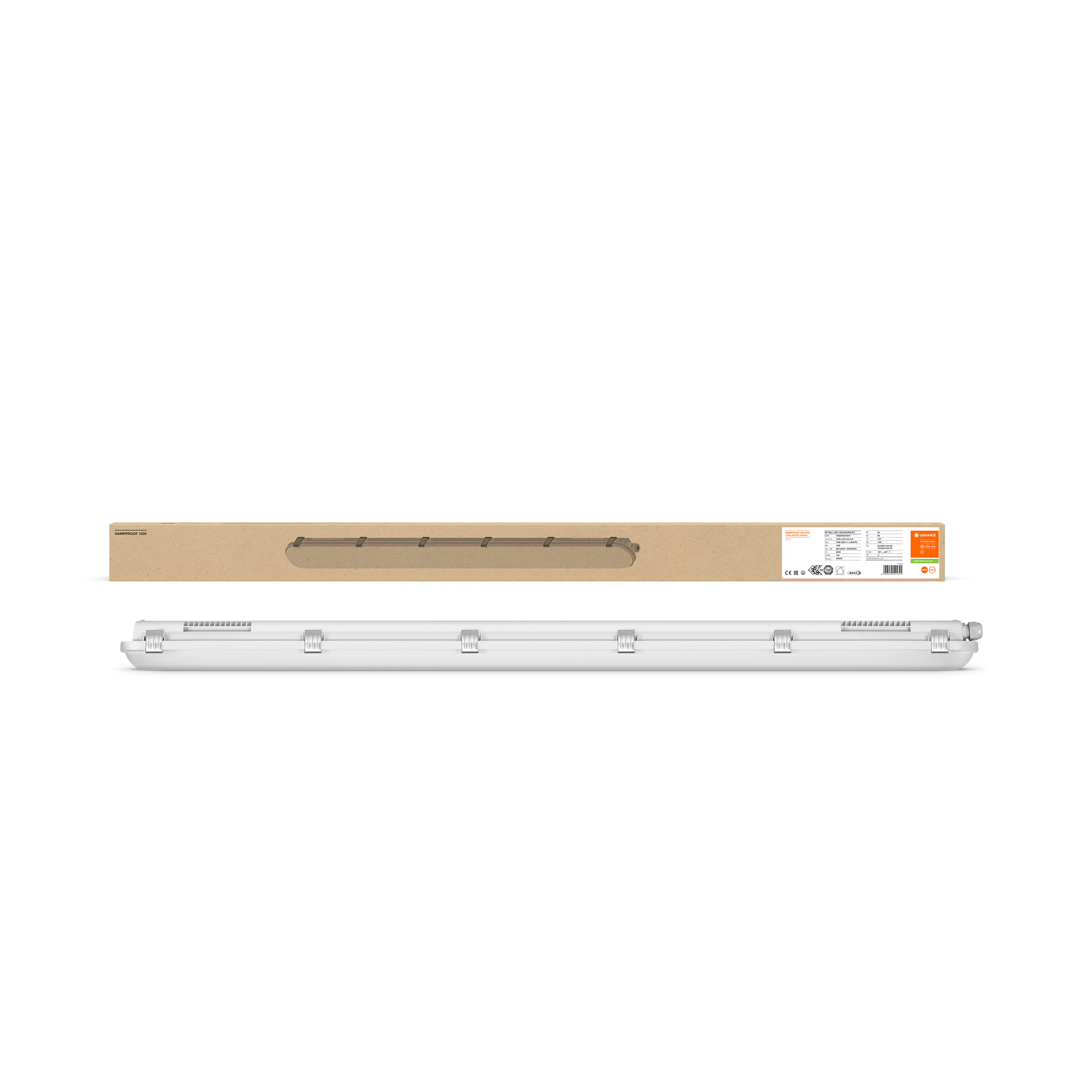

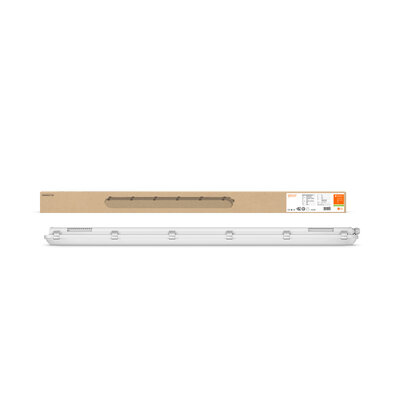

Combo Shot = Product Beauty Shot + Packaging Image
DP DALI 1200 18W 840 I P65 GY JPG (746.1 KB)

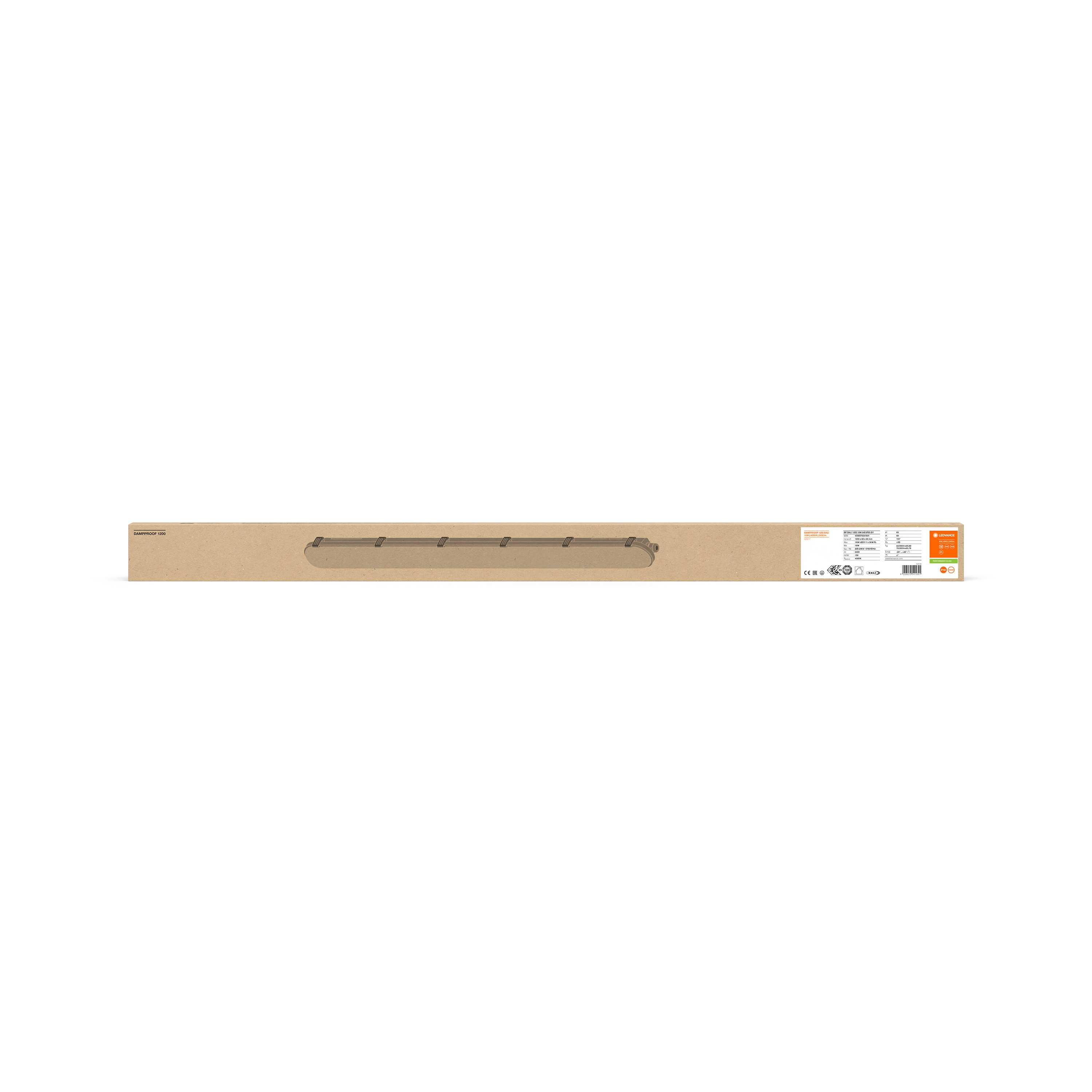

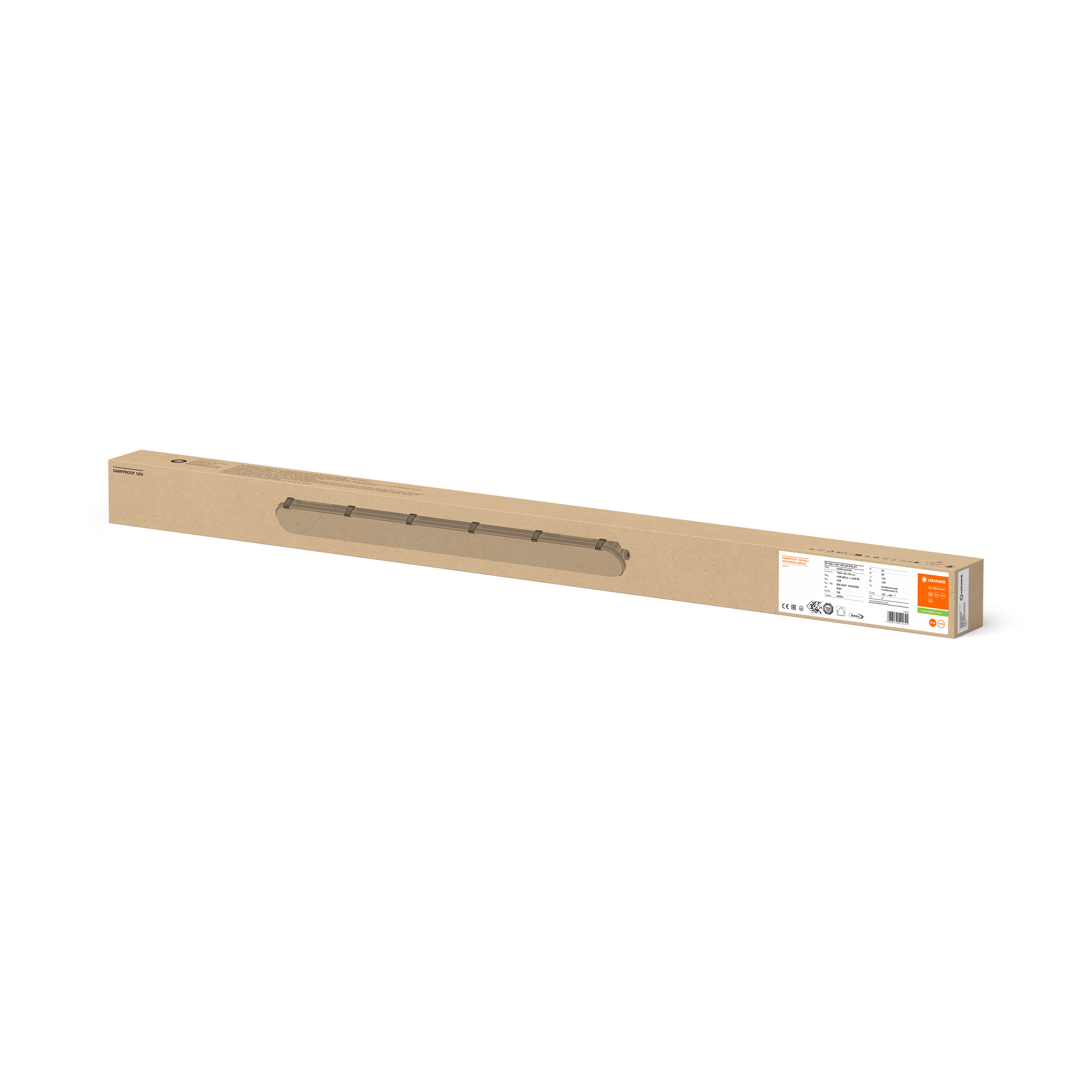

Packaging image, frontal
DP DALI 1200 18W 840 I P65 GY JPG (686.91 KB)
Packaging image, spacial
DP DALI 1200 18W 840 I P65 GY JPG (754.51 KB)
IES file (IES)
DP DALI 1200 18W 840 I P65 GY IES (14.42 KB)
LDT file (Eulumdat)
DP DALI 1200 18W 840 I P65 GY LDT (10.61 KB)
ULD file (DIALux)
DP DALI 1200 18W 840 I P65 ULD (407.04 KB)
ROLF file (RELUX)
DP DALI 1200 18W 840 ROLF (327.75 KB)

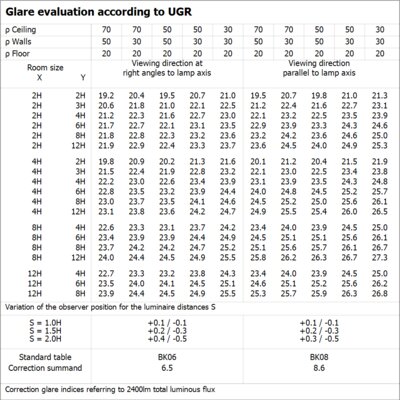

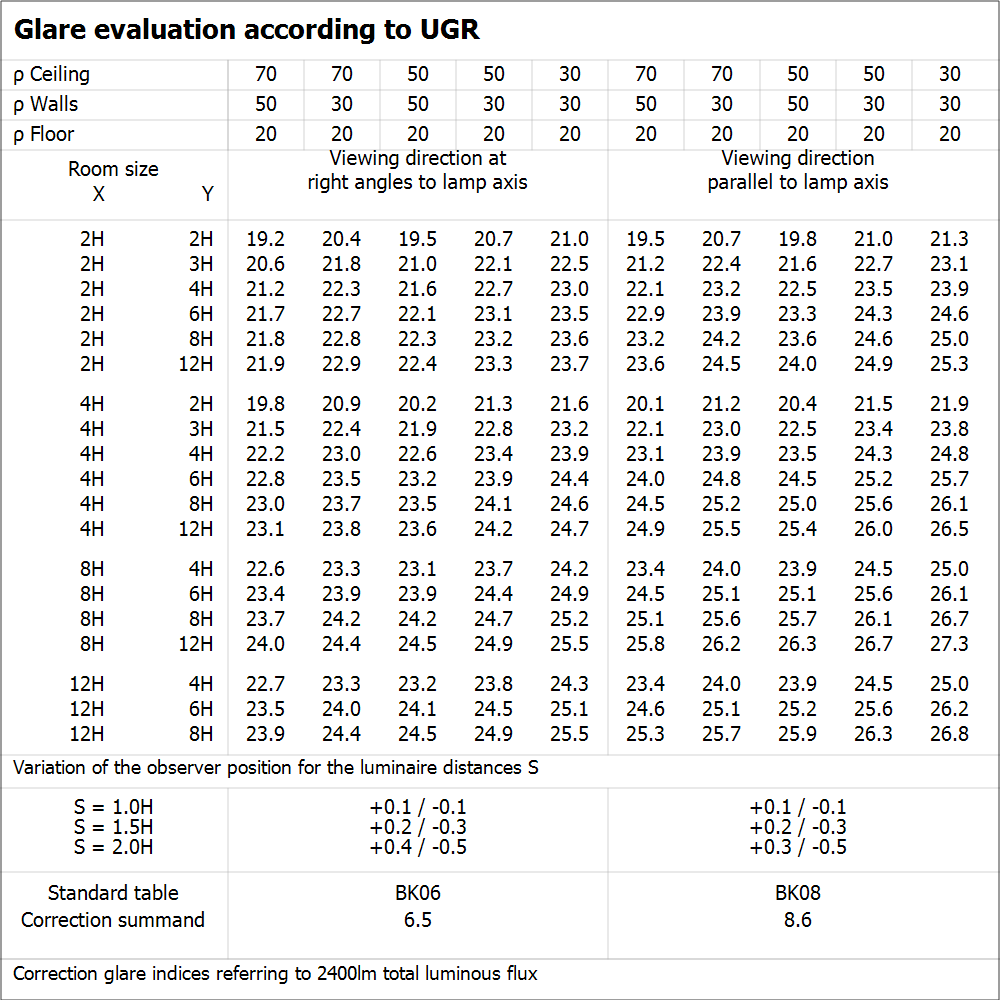

UGR file (UGR table)
DP DALI 1200 18W 840 I P65 GY PNG (61.38 KB)
Light distribution curve type cone
DP DALI 1200 18W 840 I P65 GY SVG (16.76 KB)
Light distribution curve type polar
DP DALI 1200 18W 840 I P65 GY SVG (17.4 KB)
BIM Revit 3D
Damp Proof G2 ZIP (11.46 MB)
CAD STEP 3D
DP Gen2 1200 STEP (491.58 KB)
Application pictures

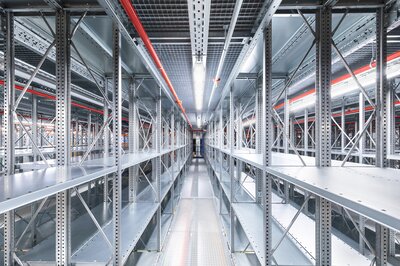

Inter Cars JPG (15.64 MB)
Application pictures

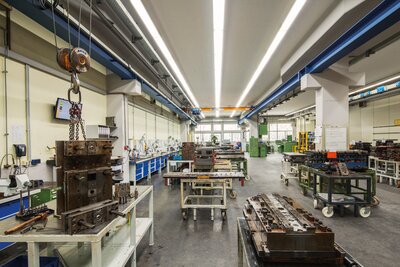

Tente Rollen Wermelski rchen RET Dampproof JPG (24.42 MB)
Application pictures

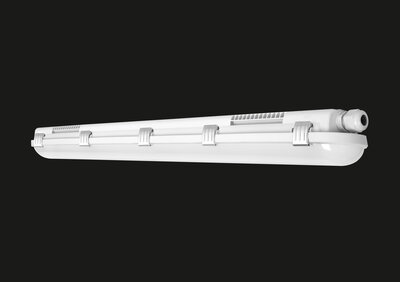

DAMPPROOF GEN2 KeyVisu al JPG (3.07 MB)
EAN SEG number STK number EFO number ELDAS number
4058075541641 7216226 4315662 3304052 941001860
