HALOSTAR PRO

Choose your product version

7 W 12 V G4

15 W 12 V G4

25 W 12 V GY6.35

37 W 12 V GY6.35

50 W 12 V GY6.35

60 W 12 V GY6.35

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Dimmable
HALOSTAR PRO 7 W 12 V G4 G4 7 W 12 V 4000 h 95 lm 10 W Yes
HALOSTAR PRO 15 W 12 V G4 G4 15 W 12 V 4000 h 220 lm 20 W Yes
HALOSTAR PRO 25 W 12 V GY6.35 GY6.35 25 W 12 V 4000 h 440 lm 35 W Yes
HALOSTAR PRO 37 W 12 V GY6.35 GY6.35 37 W 12 V 4000 h 800 lm 50 W Yes
HALOSTAR PRO 50 W 12 V GY6.35 GY6.35 50 W 12 V 4000 h 1050 lm 75 W Yes
HALOSTAR PRO 60 W 12 V GY6.35 GY6.35 60 W 12 V 4000 h 1560 lm 90 W Yes


HALOSTAR PRO 7 W 12 V G4

Product benefits
  • Brilliant accent lighting
  • Significantly lower CO2 emissions compared to standard version
  • High luminous efficacy compared with standard lamps
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • UV filter
  • Contains no mercury
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 10 W

Photometrical data

Luminous flux 95 lm
Luminous efficacy 13 lm/W
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028
UV protection Yes

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 33.00 mm
Light center length (LCL) 22,0 mm
Diameter 10,0 mm
Product weight 1.1 g

Additional product data

Base (standard designation) G4
Mercury-free Yes

Capabilities

Dimmable Yes
Burning position Any

Certificates & Standards

Energy efficiency class G
Energy consumption 7.00 kWh/1000h

Country-specific categorizations

ILCOS HSGST/UB-7-12-G4-10/22
Order reference 64417 ECO

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G4
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 33.00 mm
Height 10,0 mm
Width 10,0 mm
Chromaticity coordinate x 0.452
Chromaticity coordinate y 0.409
Beam angle correspondence SPHERE_360
EPREL ID 714441
Model number AC35314

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Brilliant accent lighting
  • Significantly lower CO2 emissions compared to standard version
  • High luminous efficacy compared with standard lamps
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • UV filter
  • Contains no mercury
Areas of application
  • General illumination
  • Kitchen lighting
  • Lighting for reading
  • Entrance lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Outdoor applications only in suitable luminaires
Product features
  • Average life: 4,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
  • IRC technology
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321963192 Folding box
1		 70 mm x 23 mm x 25 mm 3.10 g 0.04 dm³
4008321963215 Shipping box
40		 144 mm x 107 mm x 121 mm 165.00 g 1.86 dm³
Declarations of conformity

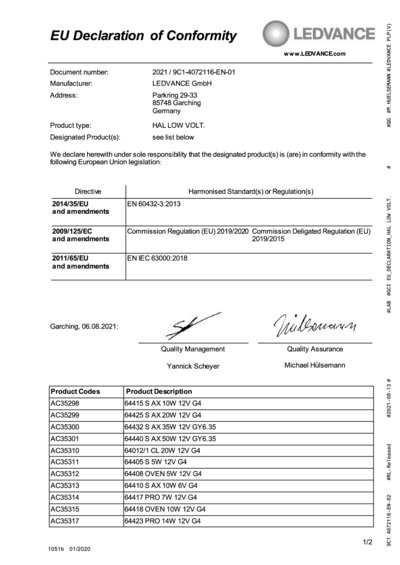

CE Declaration HAL LOW VOLT PDF (286.41 KB)

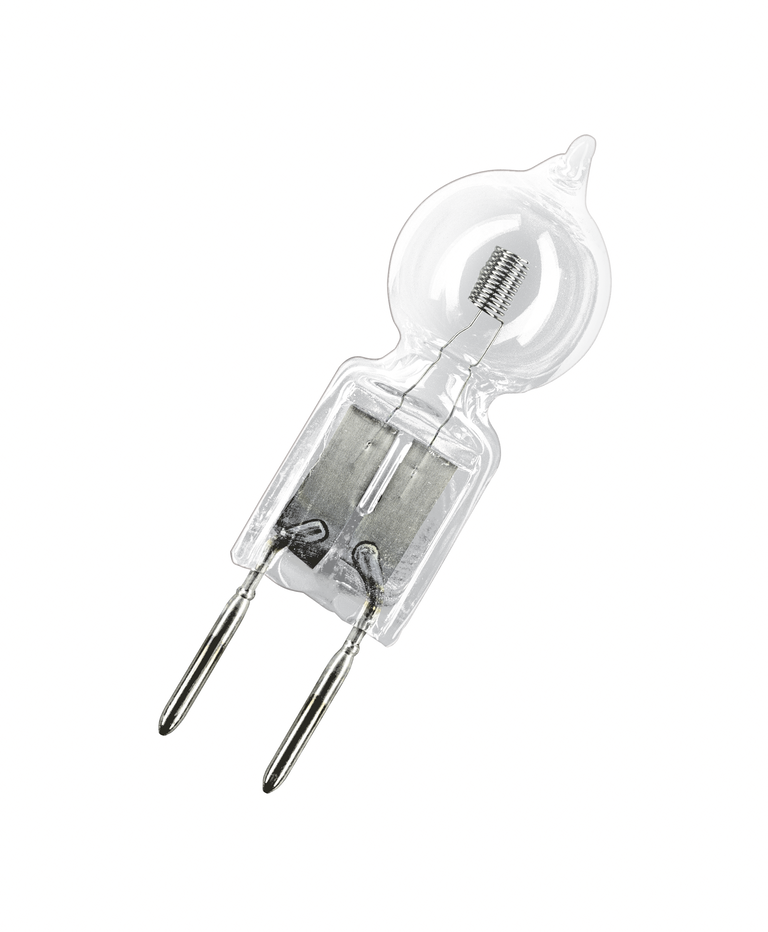

Product image: white background, diagonal
324597_HALOSTAR IRC TIF (4.94 MB)
Product line drawing with letters
25564_HALOSTAR ENERGY SAVER SVG (9.63 KB)
Product line drawing, front, no dimensions
325081_HALOSTAR SVG (4.89 KB)
Energy label
EL-4008321963192-AC353 14 PDF (21.48 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)

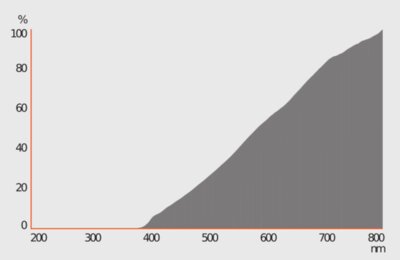

Spectral power distribution
349619_HAL_IRC PNG (102.54 KB)
EAN SEG number STK number EFO number ELDAS number
4008321963192 8326501 4739800 3720115 940332010
