HALOSTAR STARLITE 2000

Choose your product version

5 W 12 V G4

10 W 6 V G4

20 W 12 V G4

20 W 12 V GY6.35

35 W 12 V GY6.35

50 W 12 V GY6.35

75 W 12 V GY6.35

90 W 12 V GY6.35

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
HALOSTAR STARLITE 5 W 12 V G4 G4 5 W 12 V 2000 h 55 lm Yes
HALOSTAR STARLITE 10 W 6 V G4 G4 10 W 6 V 2000 h 130 lm Yes
HALOSTAR STARLITE 20 W 12 V G4 G4 20 W 12 V 2000 h 300 lm Yes
HALOSTAR STARLITE 20 W 12 V GY6.35 GY6.35 20 W 12 V 2000 h 300 lm Yes
HALOSTAR STARLITE 35 W 12 V GY6.35 GY6.35 35 W 12 V 2000 h 580 lm Yes
HALOSTAR STARLITE 50 W 12 V GY6.35 GY6.35 50 W 12 V 2000 h 910 lm Yes
HALOSTAR STARLITE 75 W 12 V GY6.35 GY6.35 75 W 12 V 2000 h 1450 lm Yes
HALOSTAR STARLITE 90 W 12 V GY6.35 GY6.35 90 W 12 V 2000 h 1800 lm Yes


HALOSTAR STARLITE 5 W 12 V G4

Product benefits
  • Brilliant accent light
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • Axial filament for optimum directional light
  • Special pins for corrosion protection
  • UV filter
  • Contains no mercury
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 12 V

Photometrical data

Luminous flux 55 lm
Luminous efficacy 11 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 100
Light color 1027
UV protection Yes

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 33.00 mm
Light center length (LCL) 22,0 mm
Diameter 10,0 mm
Product weight 1.1 g

Additional product data

Base (standard designation) G4
Mercury-free Yes

Capabilities

Dimmable Yes
Burning position Any

Certificates & Standards

Energy efficiency class G
Energy consumption 5.00 kWh/1000h

Country-specific categorizations

ILCOS HSGST/C/UB-5-12-G4-10/22
Order reference 64405 S

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G4
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 33.00 mm
Height 10,0 mm
Width 10,0 mm
Chromaticity coordinate x 0.460
Chromaticity coordinate y 0.411
Beam angle correspondence SPHERE_360
EPREL ID 714469

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Brilliant accent light
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • Axial filament for optimum directional light
  • Special pins for corrosion protection
  • UV filter
  • Contains no mercury
Areas of application
  • General illumination
  • Entrance lighting
  • Accent lighting
  • Lighting for reading
  • Garden lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Outdoor applications only in suitable luminaires
Product features
  • Average life: 2,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075094154 Folding box
1		 25 mm x 23 mm x 70 mm 3.10 g 0.04 dm³
4058075103610 Unpacked
1		 25 mm x 23 mm x 70 mm 1.00 g 0.04 dm³
4058075103627 Shipping box
5,000		 410 mm x 310 mm x 435 mm 7875.00 g 55.29 dm³
4058075094161 Shipping box
40		 144 mm x 107 mm x 121 mm 165.00 g 1.86 dm³
Declarations of conformity
CE Declaration HAL LOW VOLT PDF (286.41 KB)

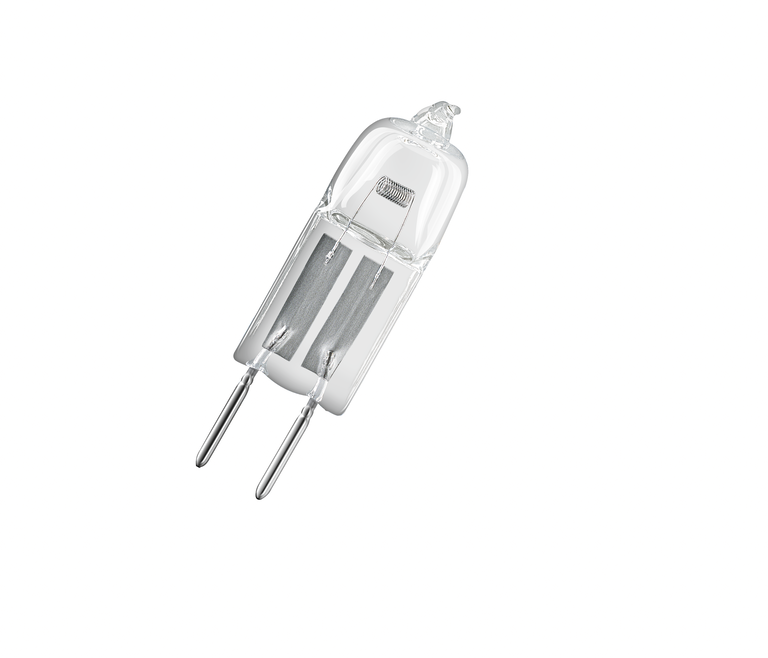

Product image: white background, diagonal
323678_Halostar Starli te TIF (18.31 MB)

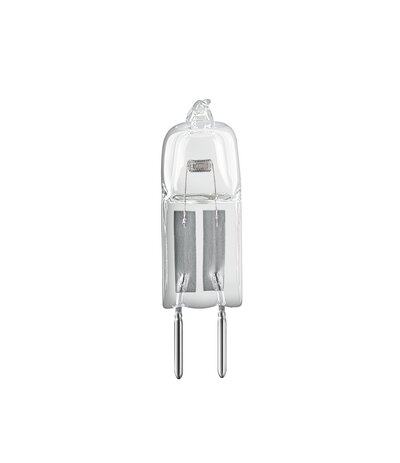

Product image: white background, upright
323678_Halostar Starli te TIF (16.69 MB)
Product line drawing with letters
625_HALOSTAR STANDARD SVG (8.97 KB)
Product line drawing, front, no dimensions
325082_HALOSTAR STANDA RD SVG (4.23 KB)
Energy label
EL-4058075094154-AC353 11 PDF (21.53 KB)
Energy label
EL-4058075103610-AC353 11 PDF (21.53 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349642_HAL_NV_UVS PNG (103.22 KB)
EAN SEG number STK number EFO number ELDAS number
4058075094154 8326524 4739620 3720389 940330111
