NAV LED FILAMENT V

Choose your product version

3600LM 21W 727 E27

4000LM 21W 740 E27

5400LM 35W 727 E27

6000LM 35W 740 E27

7000LM 41W 727 E40

7500LM 41W 740 E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
NAV 50 LED FILAMENT V 3600LM 21W 727 E27 E27 21 W 220…240 V 25000 h 3600 lm 50 W 360 ° No
NAV 50 LED FILAMENT V 4000LM 21W 740 E27 E27 21 W 220…240 V 25000 h 4000 lm 50 W 360 ° No

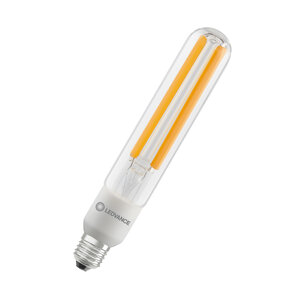

NAV 70 LED FILAMENT V 5400LM 35W 727 E27 E27 35 W 220…240 V 25000 h 5400 lm 70 W 360 ° No
NAV 70 LED FILAMENT V 6000LM 35W 740 E27 E27 35 W 220…240 V 25000 h 6000 lm 70 W 360 ° No

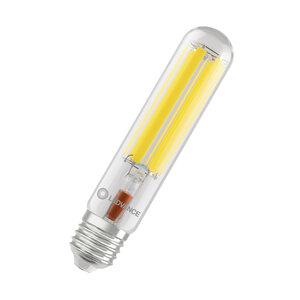

NAV 100 LED FILAMENT V 7000LM 41W 727 E40 E40 41 W 220…240 V 25000 h 7000 lm 100 W 360 ° No
NAV 100 LED FILAMENT V 7500LM 41W 740 E40 E40 41 W 220…240 V 25000 h 7500 lm 100 W 360 ° No


NAV 50 LED FILAMENT V 3600LM 21W 727 E27

Product benefits
  • Same design as traditional NAV lamps with clear, tubular full glass bulb
  • Full use of reflector of existing luminaire thanks to 360 degree beam angle
  • Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
  • Instant 100 % light, no warm-up time
  • Similar light distribution as traditional NAV lamps
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 21 W
Construction wattage 21.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Claimed equiv. conventional lamp power 50 W
Nominal current 90 mA
Type of current AC
Inrush current 6,3 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 22
Max. lamp number on MCB B10 A - CCG without compensation 27
Max. lamp number on MCB B10 A - CCG with compensation 8
Max. lamp number on MCB B16 A 27
Max. lamp number on MCB B16 A - CCG without compensation 34
Max. lamp number on MCB B16 A - CCG with compensation 13
Total harmonic distortion 15 %
Power factor λ > 0.90
Surge capability (L-N) 2 kV

Photometrical data

Luminous intensity Not relevant
Luminous flux 3600 lm
Nominal useful luminous flux 90° 3600 lm
Luminous efficacy 171 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 70
Light color 727
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0,4

Light technical data

Beam angle 360 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 170.00 mm
Diameter 38.00 mm
Maximum diameter 38 mm
Product weight 80.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 80 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class C 1)
Energy consumption 21.00 kWh/1000h
Type of protection IP65
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference NAV 50 LED FIL

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 170.00 mm
Height 38.00 mm
Width 38.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.41
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1371175
Model number AC46360,AC46360,AC46360

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Same design as traditional NAV lamps with clear, tubular full glass bulb
  • Full use of reflector of existing luminaire thanks to 360 degree beam angle
  • Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
  • Instant 100 % light, no warm-up time
  • Similar light distribution as traditional NAV lamps
Areas of application
  • Streets
  • Area lighting
  • Pedestrian zones
  • Parks
  • Outdoor applications only in suitable luminaires
Product features
  • Suitable for operation with conventional control gear (CCG) or 230 V AC mains
  • Very high efficiency of up to 190 lm/W
  • Power factor: 0.9
  • Type of protection: IP65
  • Surge protection: up to 2 kV (L-N)
Safety advice
  • Not suitable for operation with ignitors.
  • Operation on the capacitor can lead to a reduction of the power factor of the system.
  • When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
  • Use in tight luminaires and luminaires with tight reflectors not recommended.
  • Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854071973 Folding box
1		 44 mm x 44 mm x 256 mm 123.00 g 0.50 dm³
4099854071980 Shipping box
6		 274 mm x 152 mm x 117 mm 860.00 g 4.87 dm³
User instruction / safety instructions
NAV LED FILAMENT V PDF (3.2 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

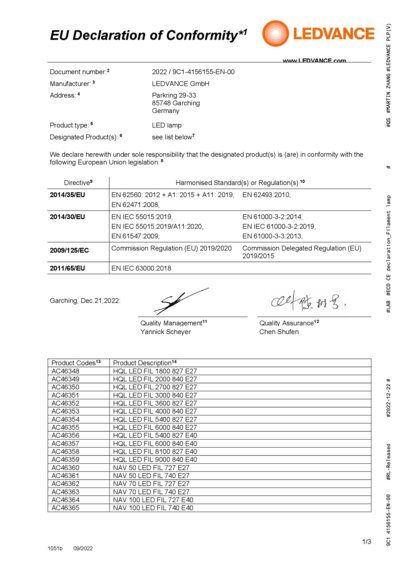

Declarations of conformity
HID LED FILAMENT PDF (239.33 KB)

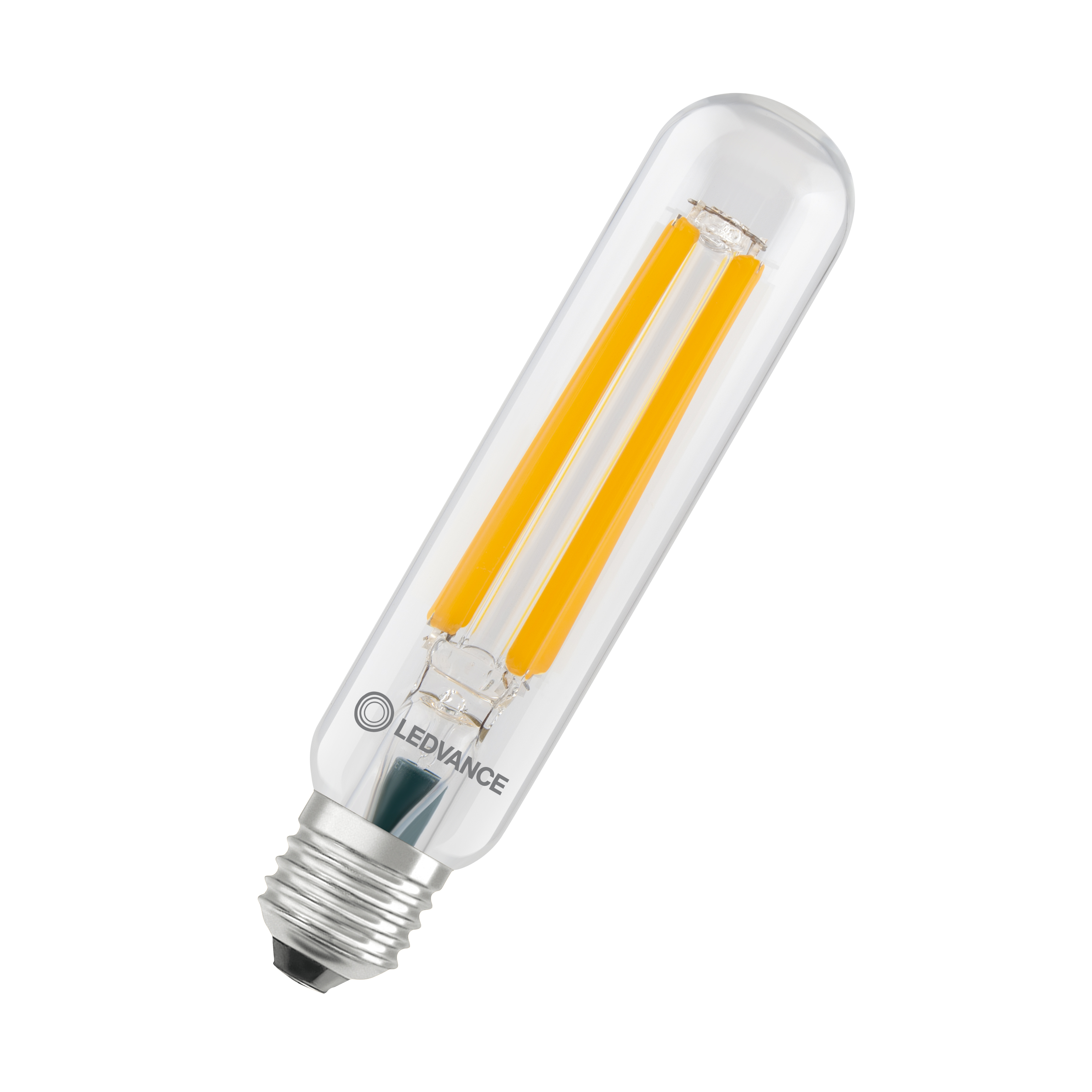

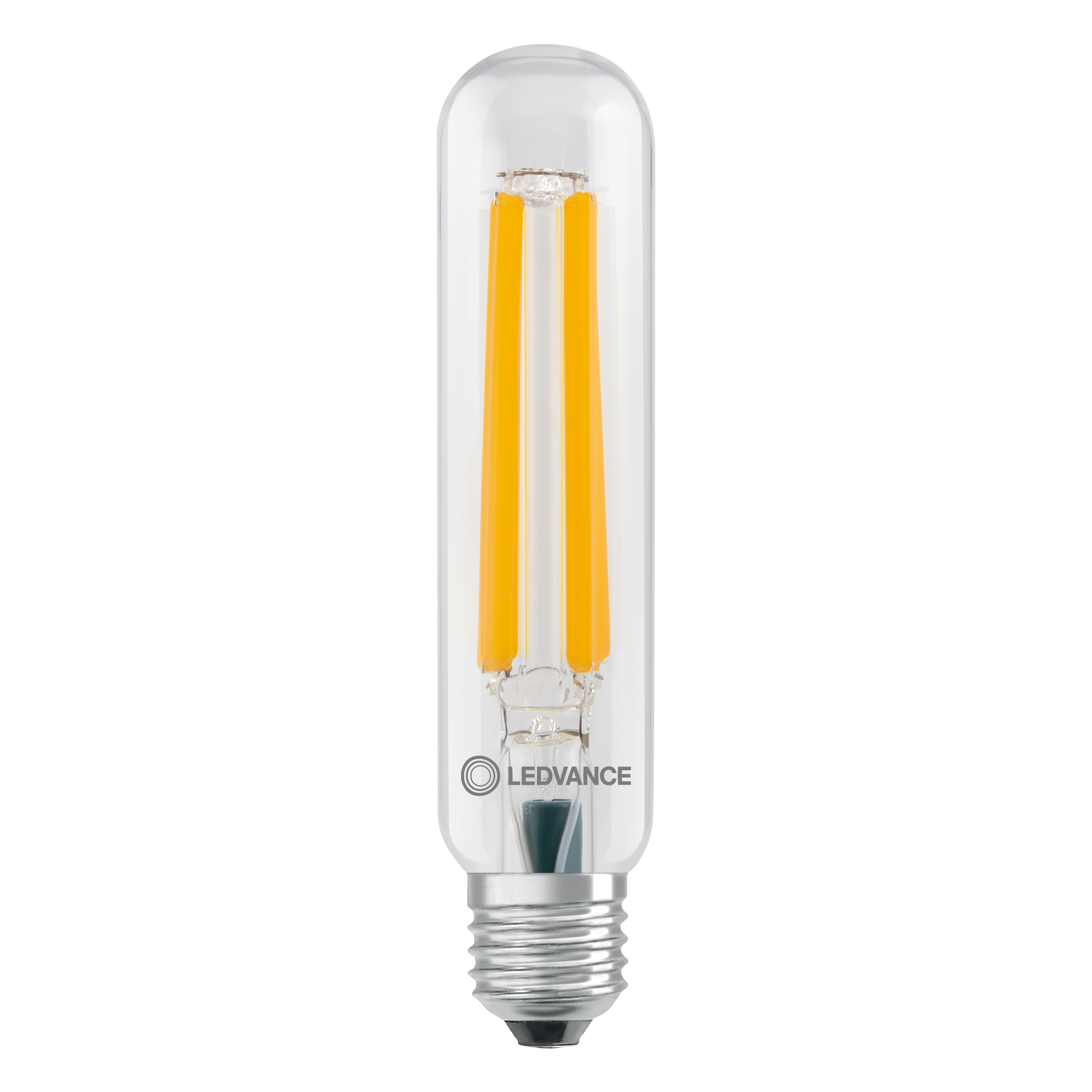

Product image: white background, diagonal with LEDVANCE logo
NAV 50 LED FIL 21W JPG (1.18 MB)

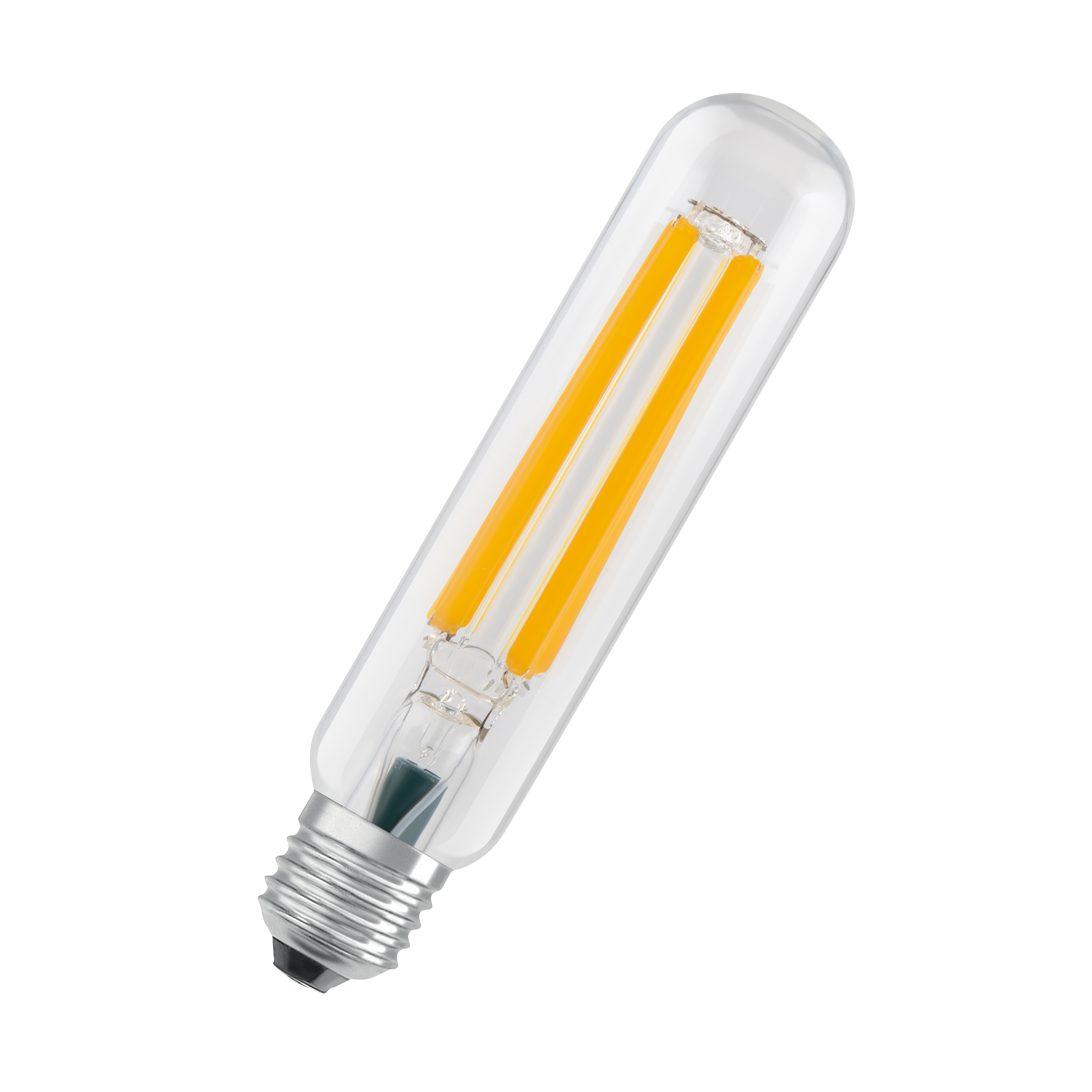

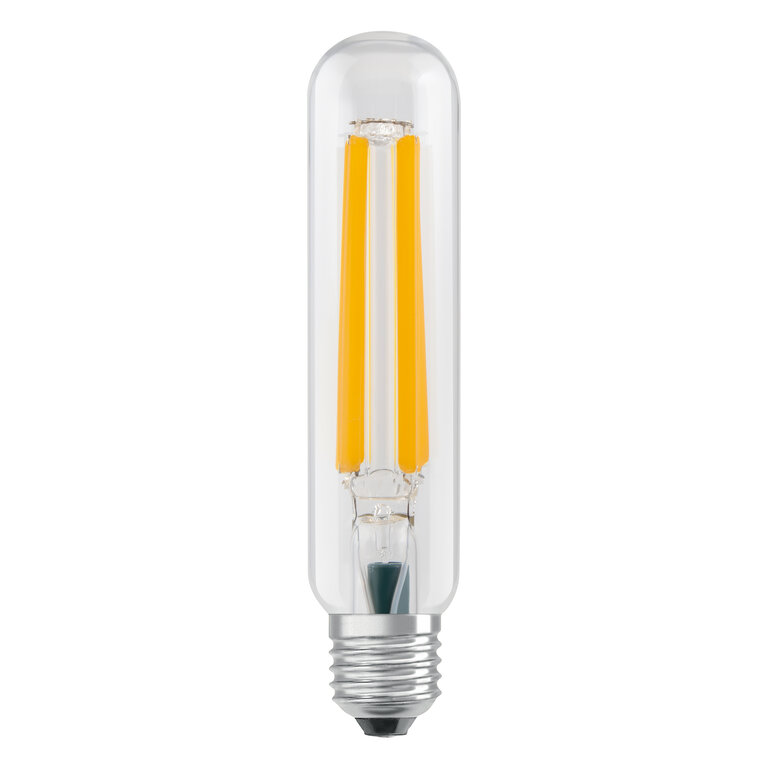

Product image: white background, diagonal
NAV 50 LED FIL V 21W JPG (1.17 MB)
Product image: white background, upright LEDVANCE logo
NAV 50 LED FIL 21W JPG (1.11 MB)

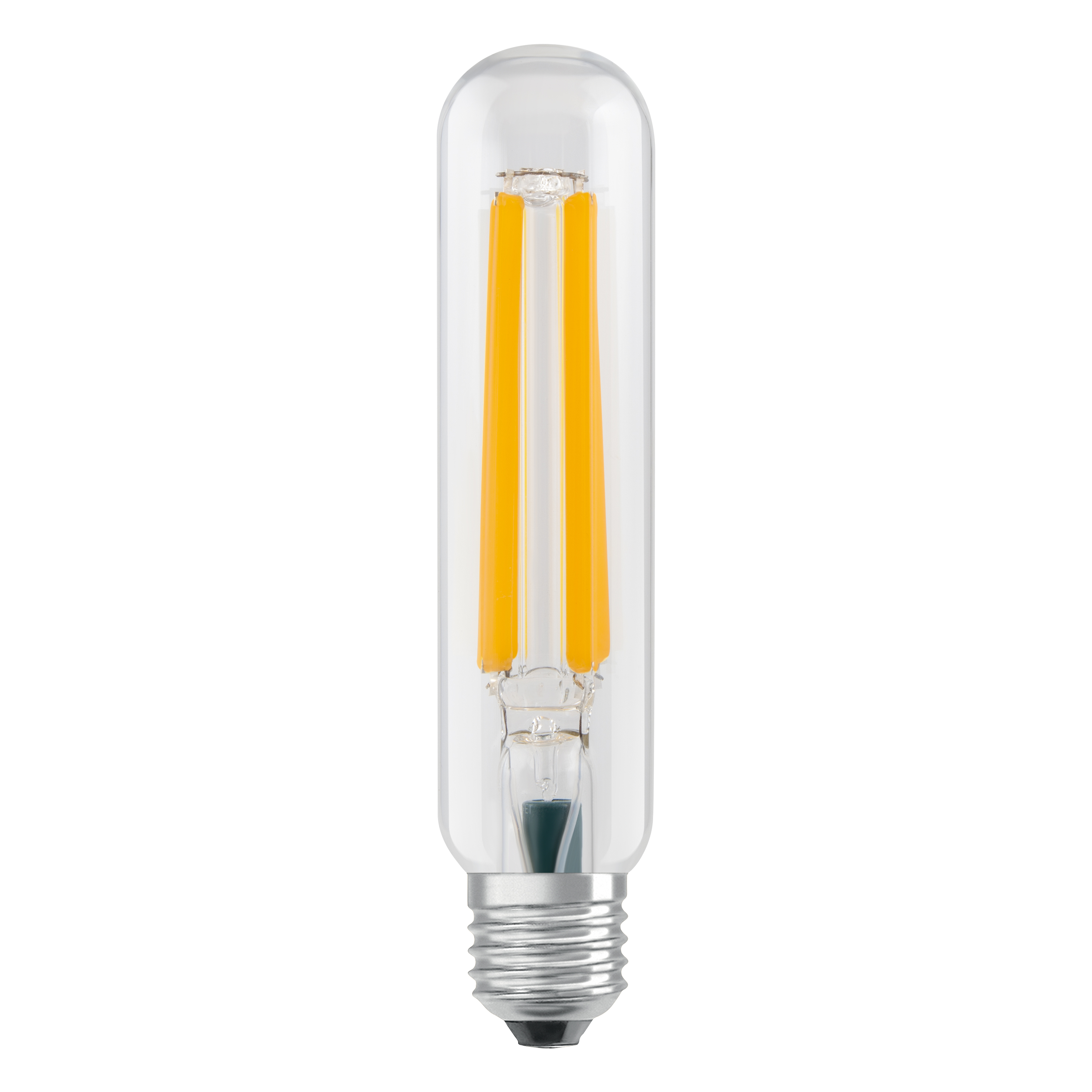

Product image: white background, upright
NAV 50 LED FIL V 21W JPG (1.1 MB)
Product line drawing with letters
NAV 50 LED FIL V 21W SVG (13.73 KB)
Product line drawing with numbers
NAV 50 LED FIL V 21W SVG (19.57 KB)

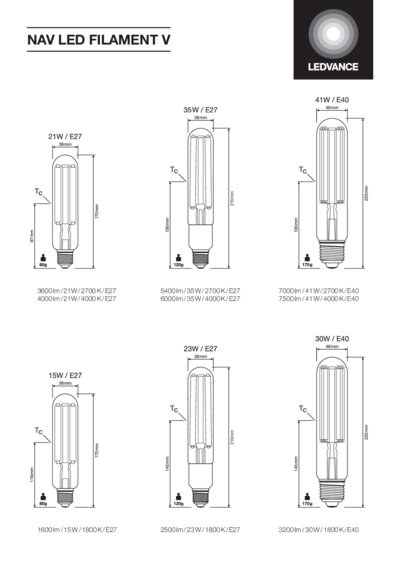

Product line drawing - technical
NAV 50 LED FIL V 21W SVG (9.68 KB)

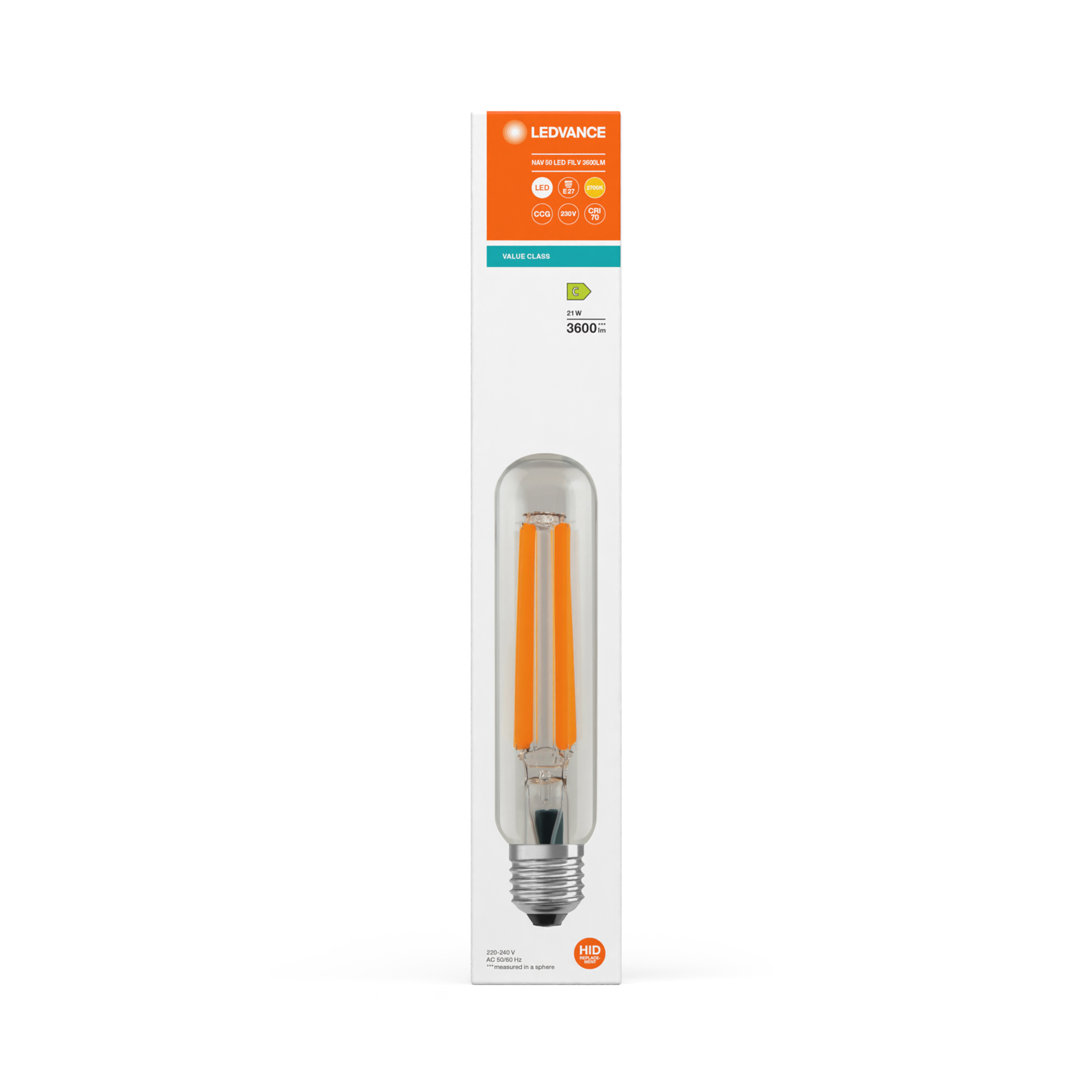

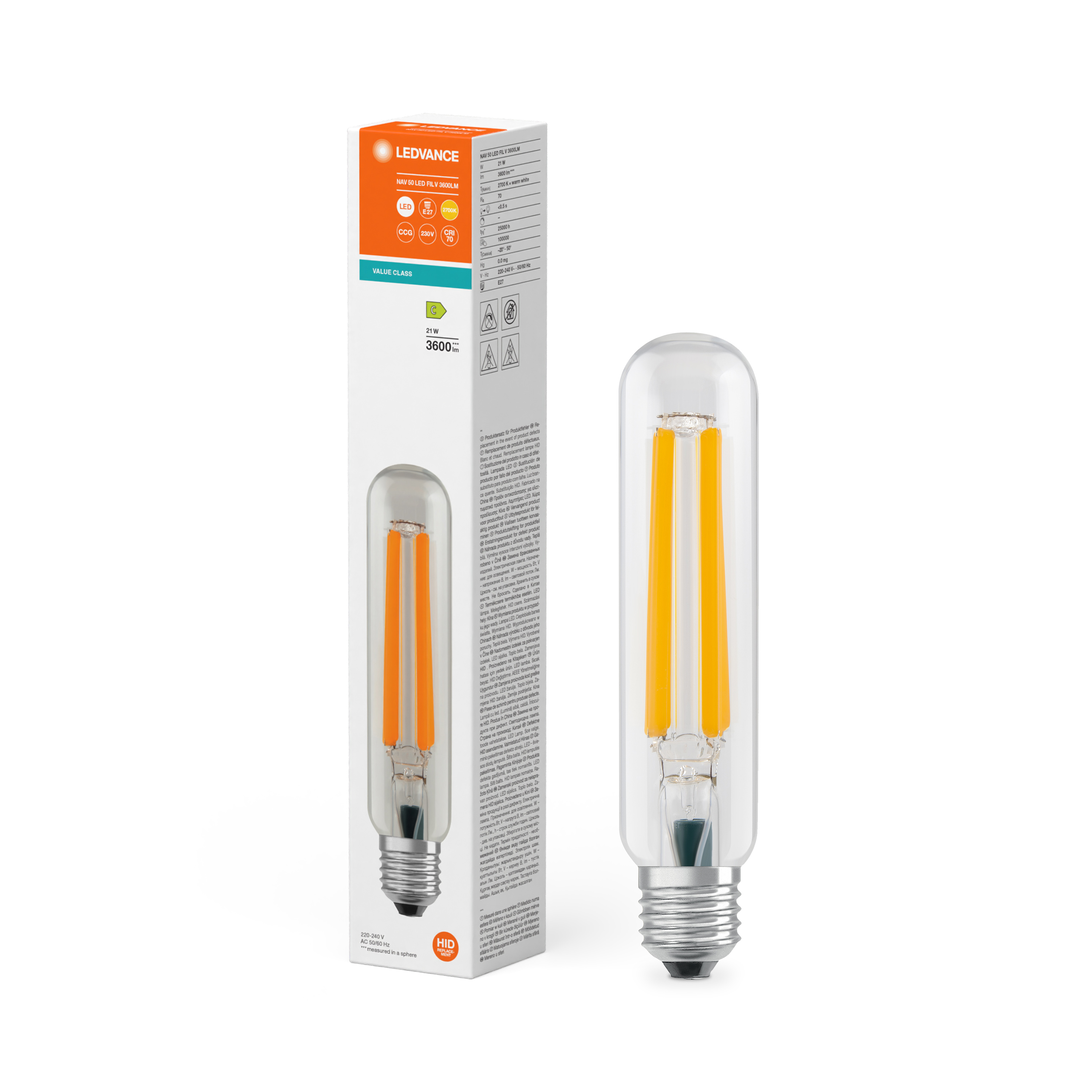

Combo Shot = Product Beauty Shot + Packaging Image
FC1 NAV 50 LED V 3600L M 21W 727 FIL E27 JPG (958.04 KB)

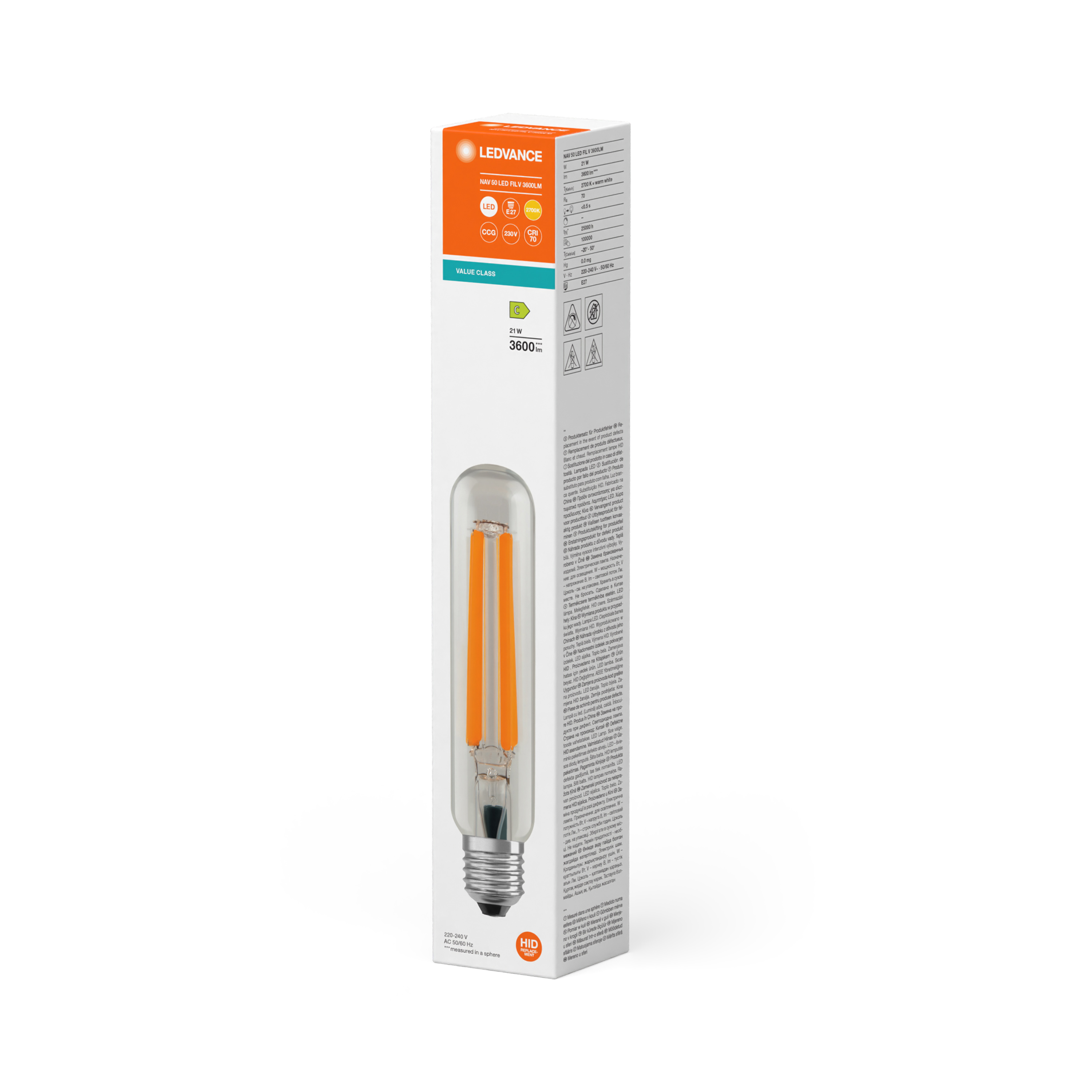

Packaging image, frontal
FC1 NAV 50 LED V 3600L M 21W 727 FIL E27 JPG (690.12 KB)
Packaging image, spacial
FC1 NAV 50 LED V 3600L M 21W 727 FIL E27 JPG (829.09 KB)
Energy label
EL-4099854071973-AC463 60 PDF (21.53 KB)
Logos and pictos
C left SVG (2.36 KB)
Logos and pictos
C left BW SVG (1.07 KB)
Logos and pictos
C right SVG (2.35 KB)
Logos and pictos
C right BW SVG (1.06 KB)
IES file (IES)
NAV 50 LED FIL V 3600L M 21W 727 E27LEDV IES (1.29 KB)
LDT file (Eulumdat)
NAV 50 LED FIL V 3600L M 21W 727 E27LEDV LDT (977 B)

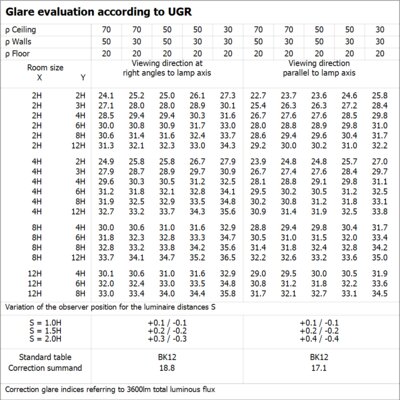

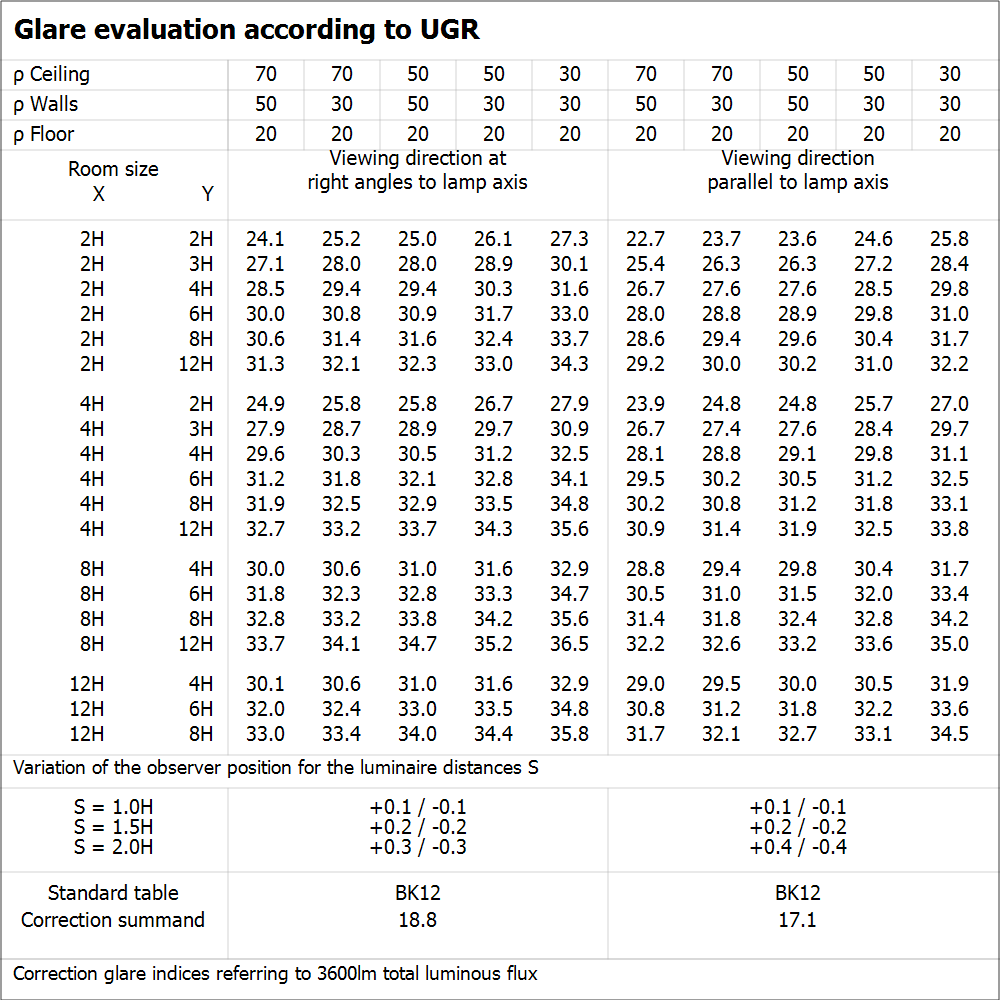

UGR file (UGR table)
NAV 50 LED FIL V 3600L M 21W 727 E27LEDV PNG (62.78 KB)
Light distribution curve type polar
NAV 50 LED FIL V 3600L M 21W 727 E27LEDV SVG (19.63 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number EFO number ELDAS number AU model number
4099854071973 8298679 4803027 3768090 941820460 NAV5021W727E27
