Vintage 1906 LED CLASSIC A,B,P SLIM FILAMENT DIMMABLE

Choose your product version

4.8W 827 Clear E14

3.4W 822 Gold E14

3.4W 822 Gold E14

4.8W 827 Clear E14

4.8W 822 Gold E27

4.8W 827 Clear E27

3.5W 922 Gold E14

3.1W 927 Clear E14

4.9W 922 Gold E14

4.6W 922 Clear E27

4.6W 927 Clear E14

4.9W 927 Gold E27

8W 922 Clear E27

8W 922 Gold E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
Vintage 1906 Classic B 40 Filament DIM 4.8W 827 Clear E14 E14 4.8 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes

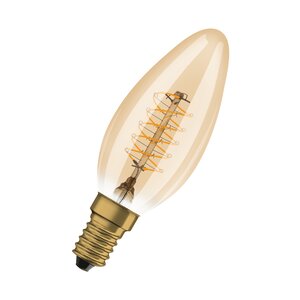

Vintage 1906 Classic B 25 Filament DIM 3.4W 822 Gold E14 E14 3.4 W 220…240 V 15000 h 250 lm 25 W 320 ° Yes

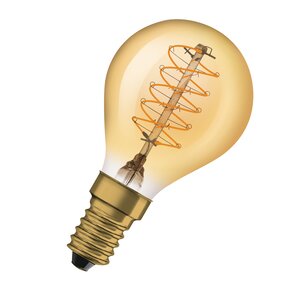

Vintage 1906 Classic P 25 Filament DIM 3.4W 822 Gold E14 E14 3.4 W 220…240 V 15000 h 250 lm 25 W 320 ° Yes

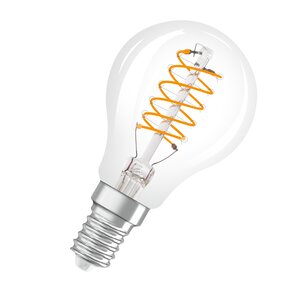

Vintage 1906 Classic P 40 Filament DIM 4.8W 827 Clear E14 E14 4.8 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes
Vintage 1906 Classic A 35 Filament DIM 4.8W 822 Gold E27 E27 4.8 W 220…240 V 15000 h 400 lm 35 W 320 ° Yes

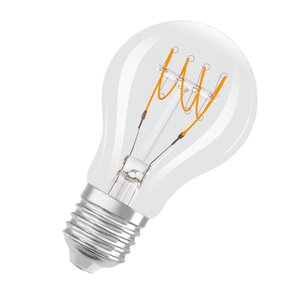

Vintage 1906 Classic A 40 Filament DIM 4.8W 827 Clear E27 E27 4.8 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes

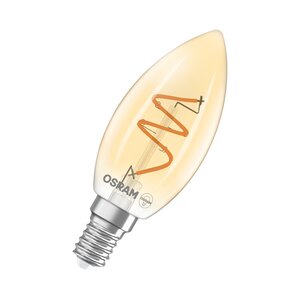

Vintage 1906 Classic B 28 Spiral Filament DIM 3.5W 922 Gold E14 E14 3.5 W 220…240 V 15000 h 300 lm 28 W 300 ° Yes

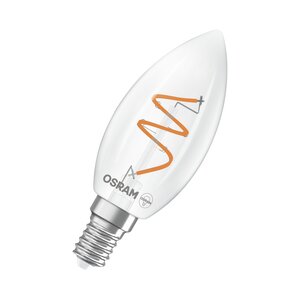

Vintage 1906 Classic B 28 Spiral Filament DIM 3.1W 927 Clear E14 E14 3.1 W 220…240 V 15000 h 300 lm 28 W 300 ° Yes

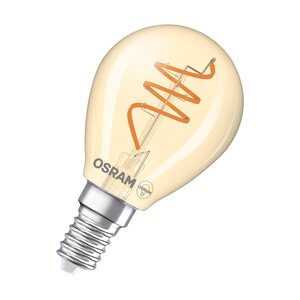

Vintage 1906 Classic P 40 Spiral Filament DIM 4.9W 922 Gold E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes

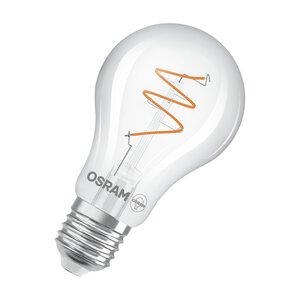

Vintage 1906 Classic A 40 Spiral Filament DIM 4.6W 922 Clear E27 E27 4.6 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes

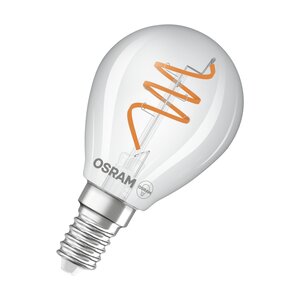

Vintage 1906 Classic P 40 Spiral Filament DIM 4.6W 927 Clear E14 E14 4.6 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes

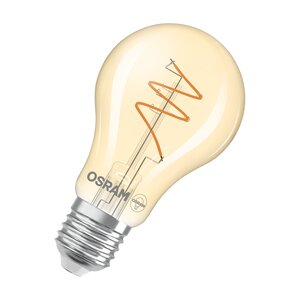

Vintage 1906 Classic A 40 Spiral Filament DIM 4.9W 927 Gold E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 300 ° Yes

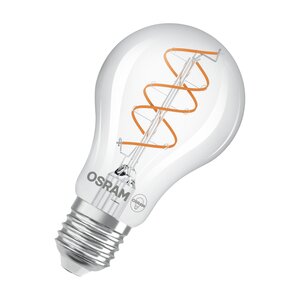

Vintage 1906 Classic A 60 Spiral Filament DIM 8W 922 Clear E27 E27 8 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes

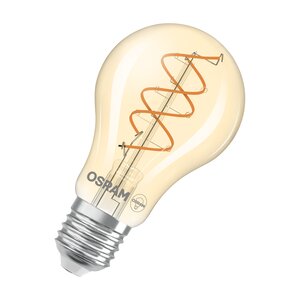

Vintage 1906 Classic A 60 Spiral Filament DIM 8W 922 Gold E27 E27 8 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes


Vintage 1906 Classic B 40 Filament DIM 4.8W 827 Clear E14

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.8 W
Construction wattage 4.80 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 40 W
Nominal current 30 mA
Type of current AC
Inrush current 0.1 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 266
Max. lamp number on MCB B16 A 426
Power factor λ ≥ 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 98 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm white
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 97.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 13.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 65 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference 1906LCLB40D 4,8

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power Yes
Length 97.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 1397880
Model number AC45585,AC45585

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Can be used directly as luminaire
  • Thinner filament, better decorative effect
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854075728 Folding box
1		 36 mm x 47 mm x 133 mm 25.00 g 0.23 dm³
4099854075735 Shipping box
6		 120 mm x 112 mm x 147 mm 215.00 g 1.98 dm³

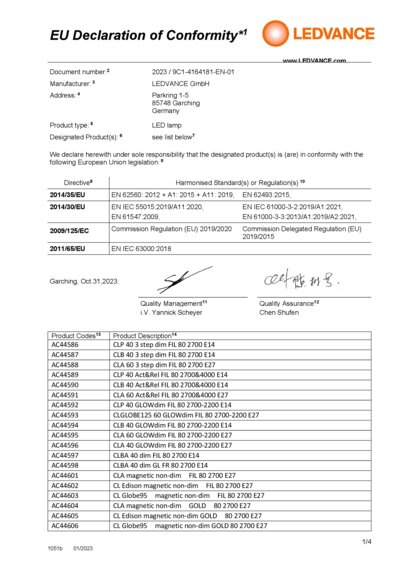

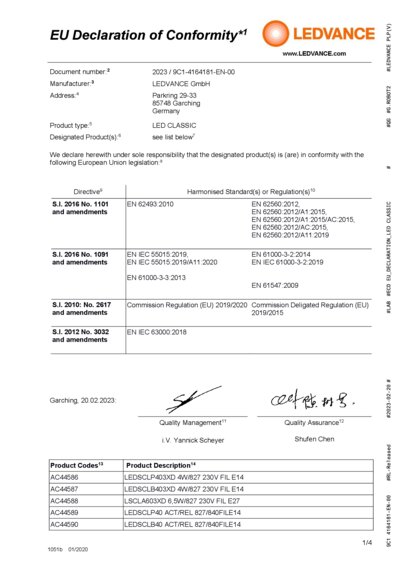

Declarations of conformity
LED CLASSIC PDF (382.25 KB)
Declarations of conformity
LED CLASSIC MAGNETIC PDF (271.04 KB)

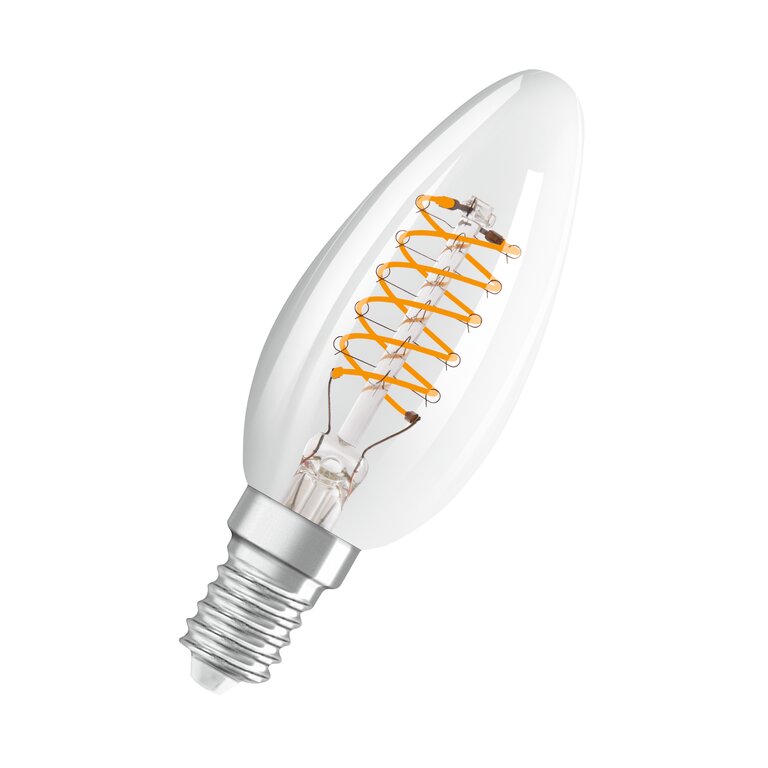

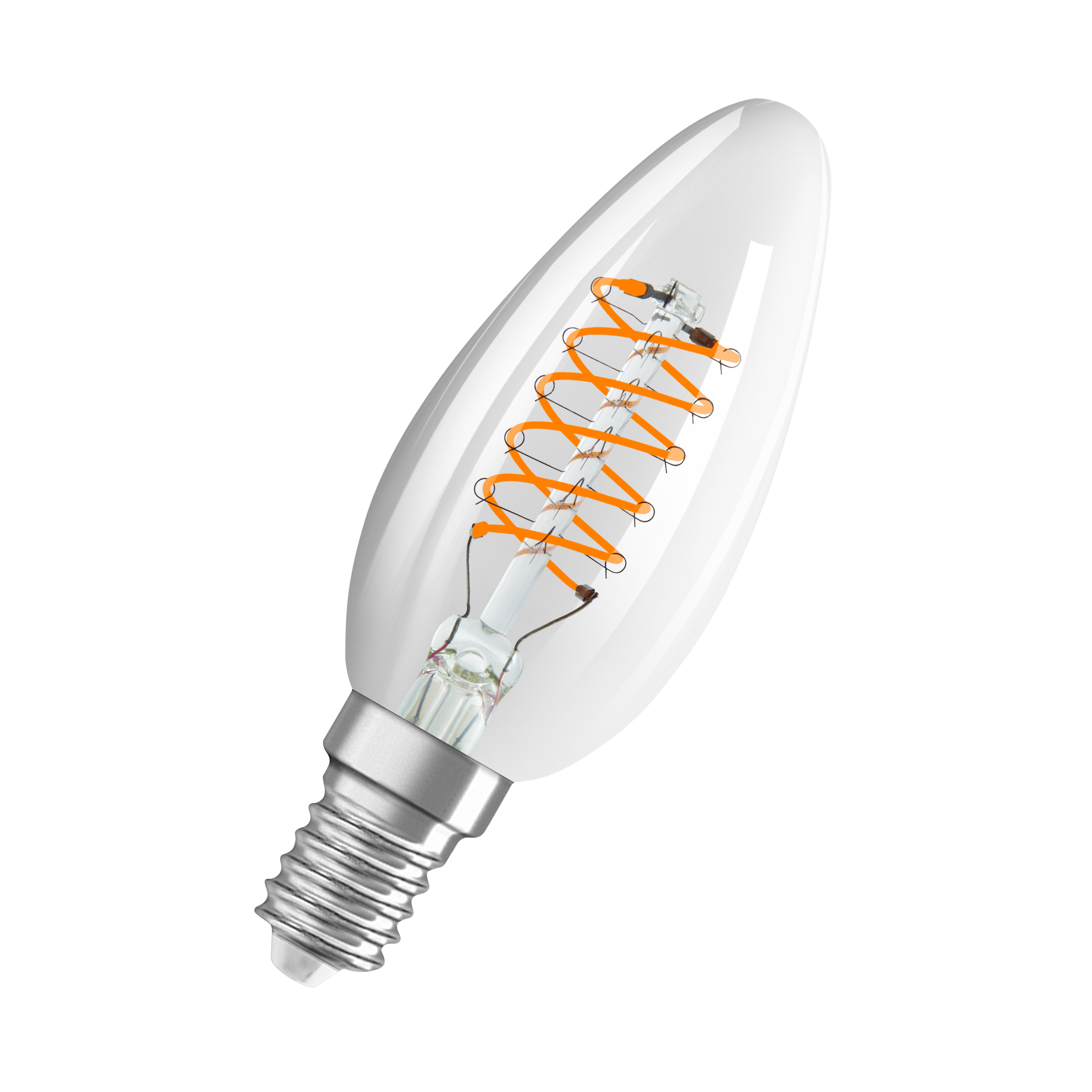

Product image: white background, diagonal
1906LCLB40D 4,8W/827 2 30VSFILE14 JPG (1.5 MB)

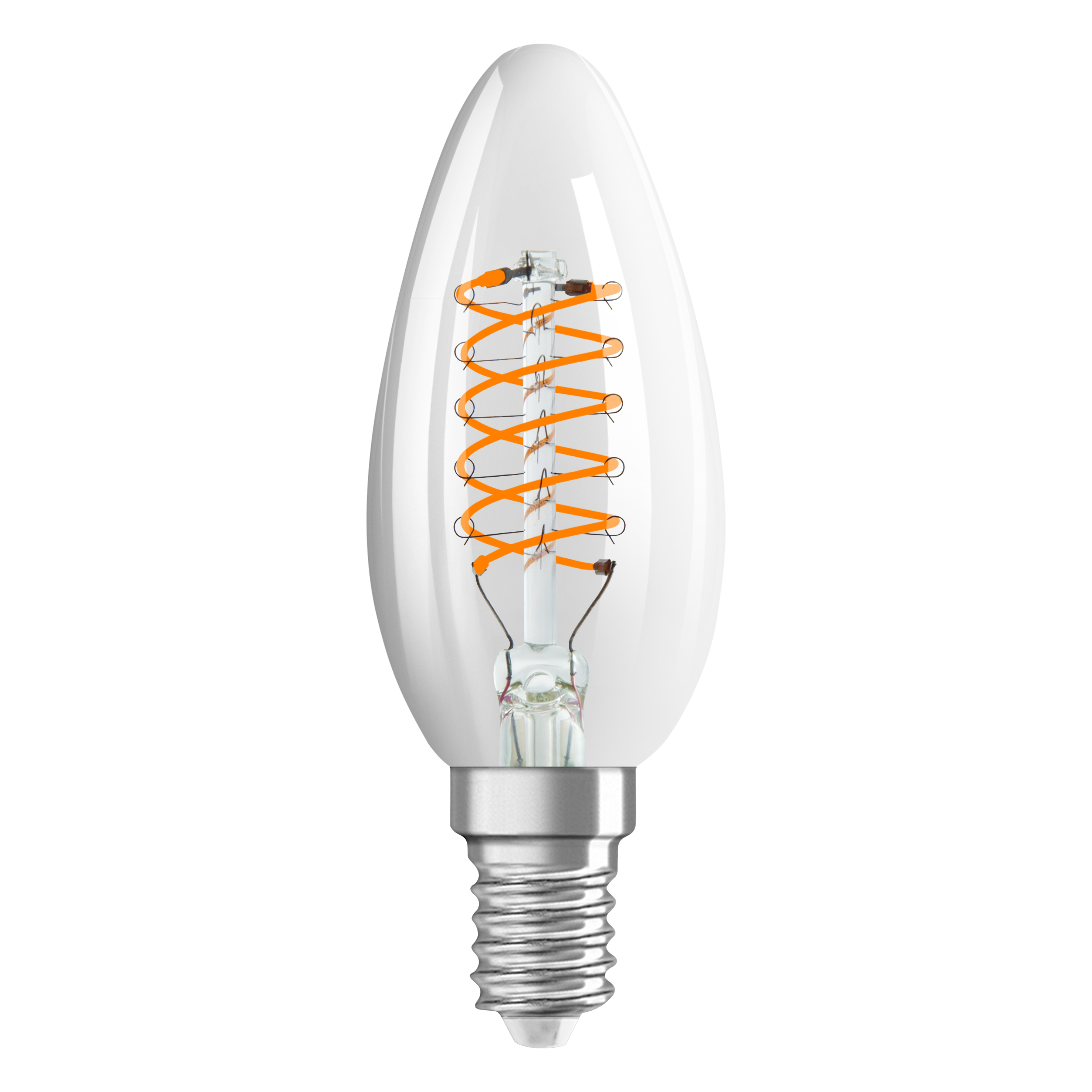

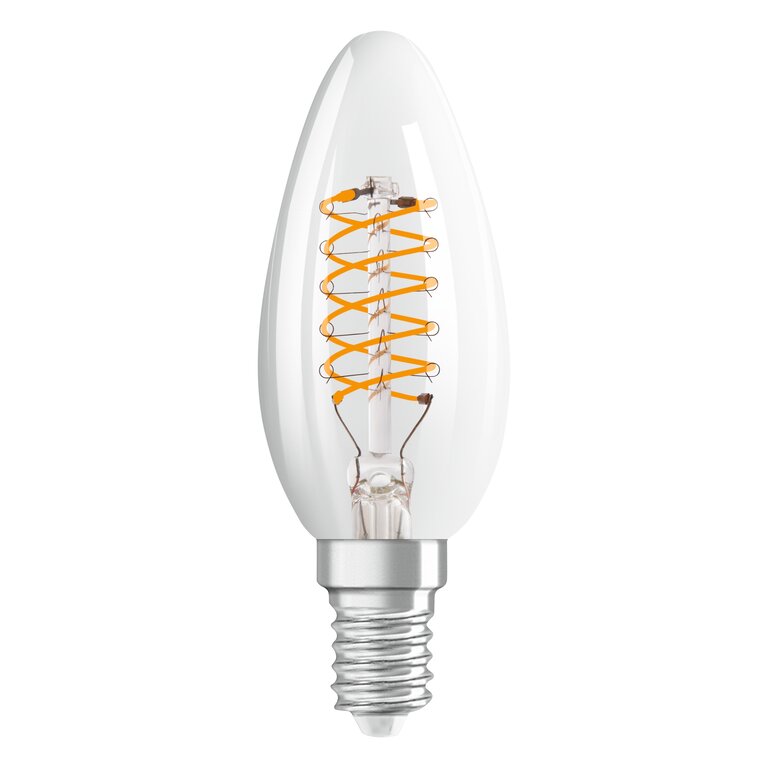

Product image: white background, upright
1906LCLB40D 4,8W/827 2 30VSFILE14 JPG (1.44 MB)
Product line drawing with letters
1906LCLB40D 4,8W/827 2 30VSFILE14 SVG (11.57 KB)
Product line drawing with numbers
1906LCLB40D 4,8W/827 2 30VSFILE14 SVG (13.13 KB)
Product line drawing - technical
1906LCLB40D 4,8W/827 2 30VSFILE14 SVG (7.72 KB)

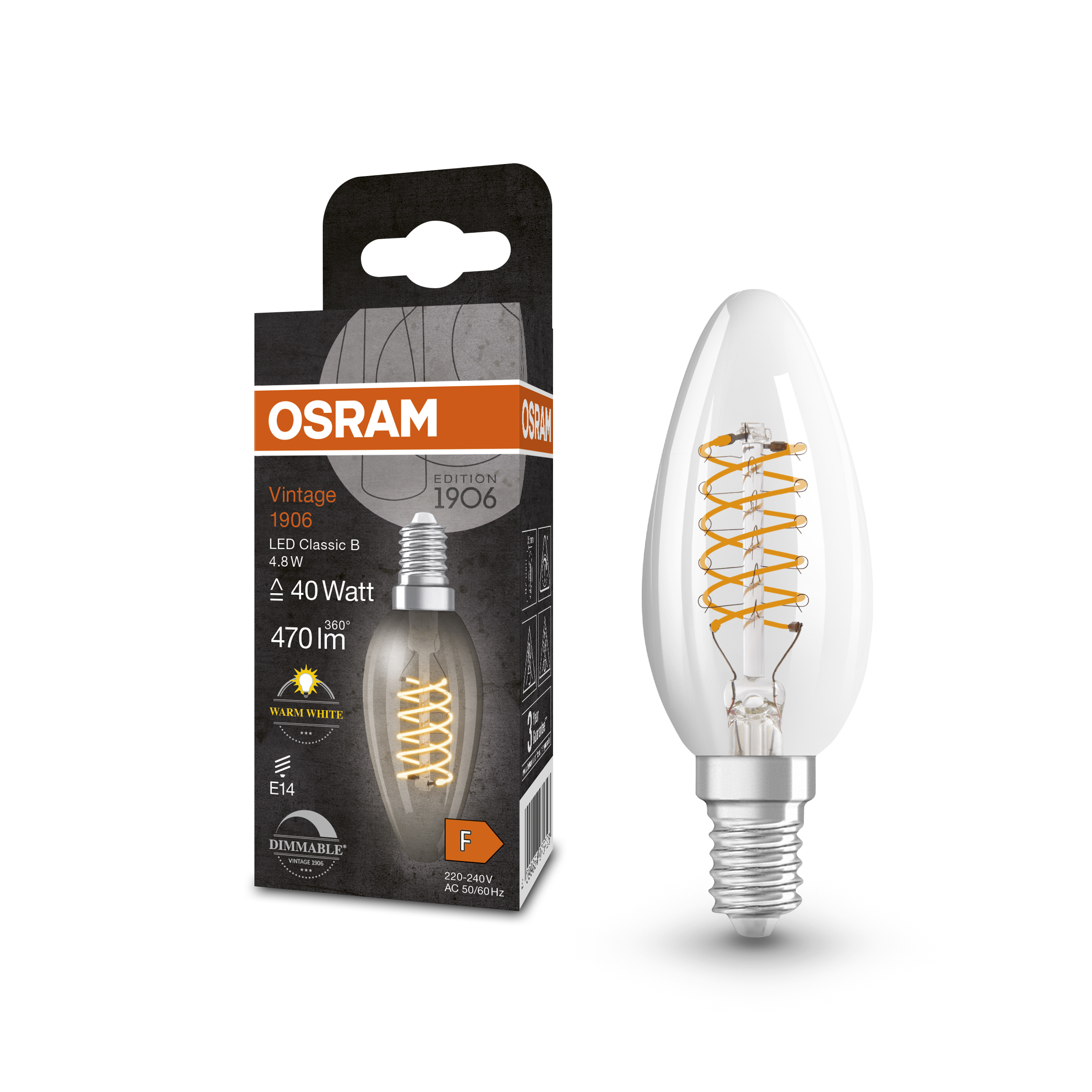

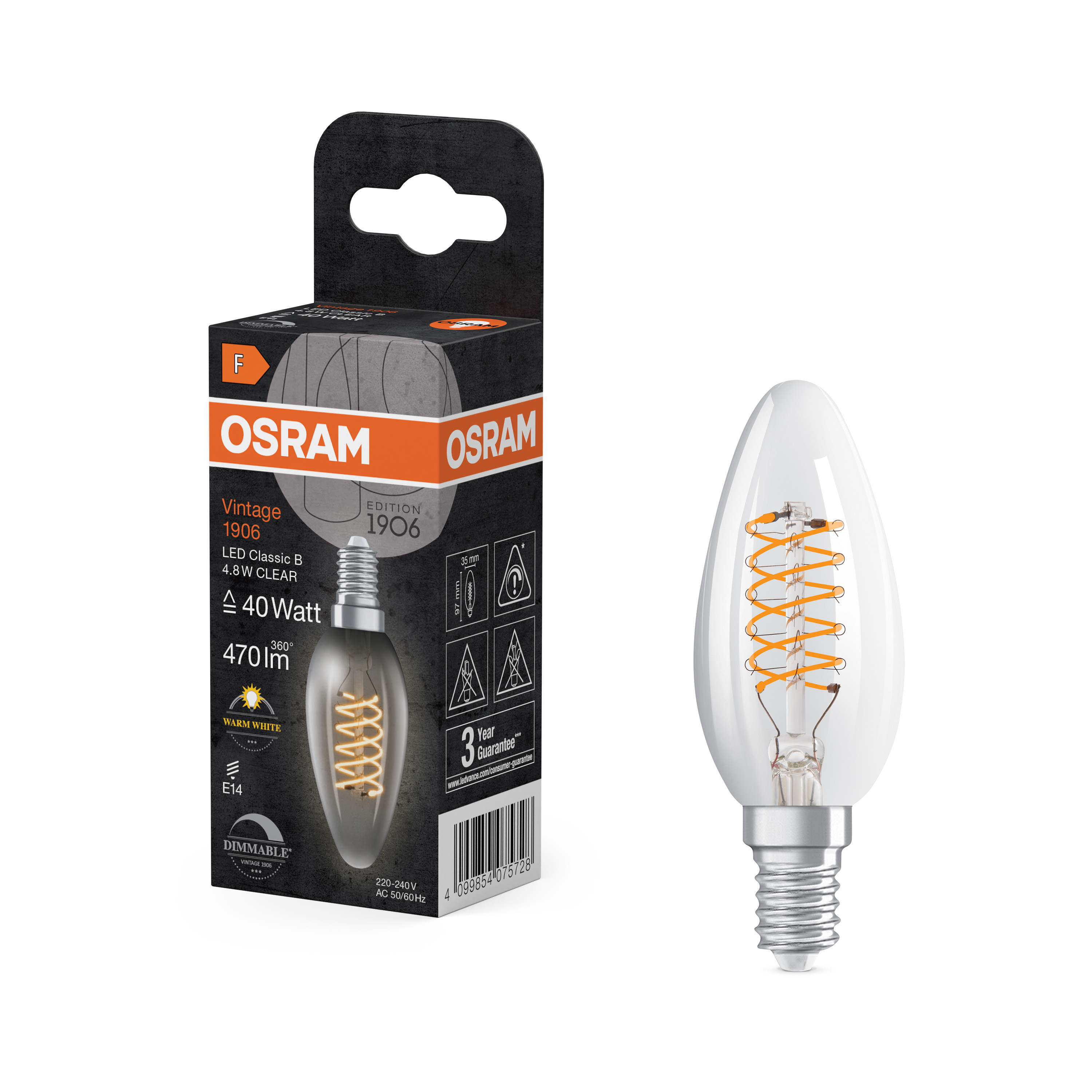

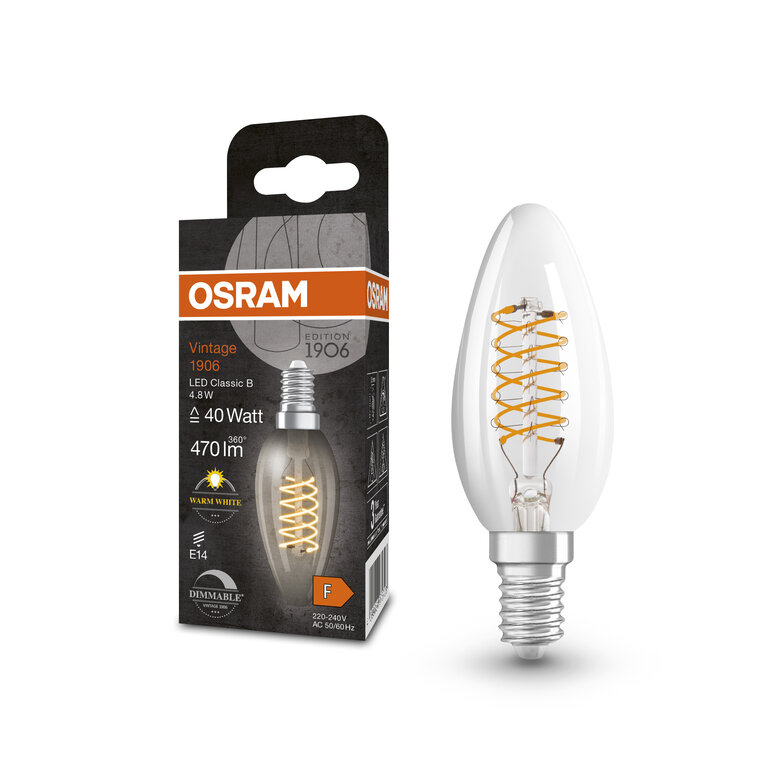

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 CLB 40 DIM 4 .8W 827 FIL CLEAR E14 MiCh JPG (1.53 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 CLB 40 DIM 4 .8W 827 FIL CLEAR E14 MiCh JPG (849.88 KB)

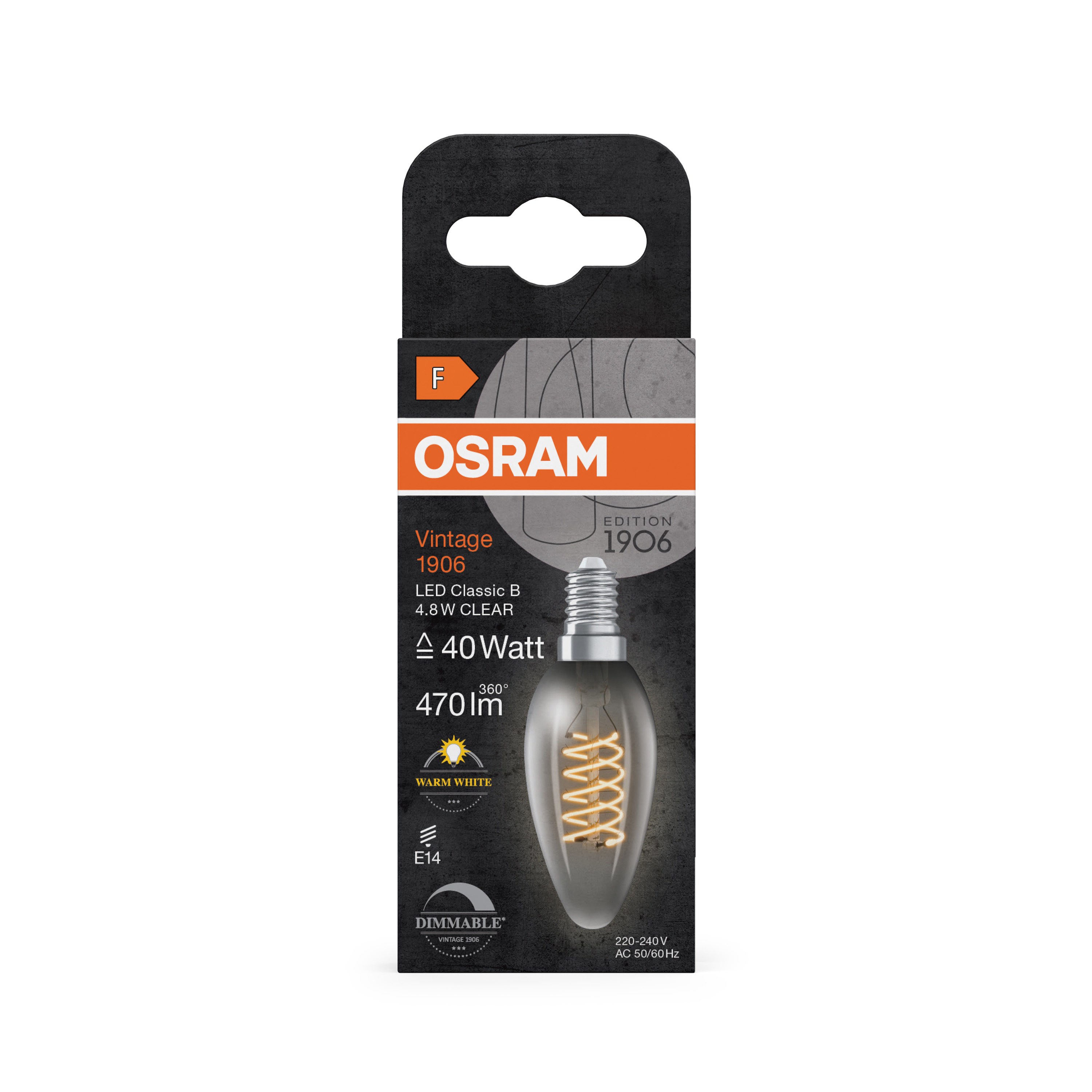

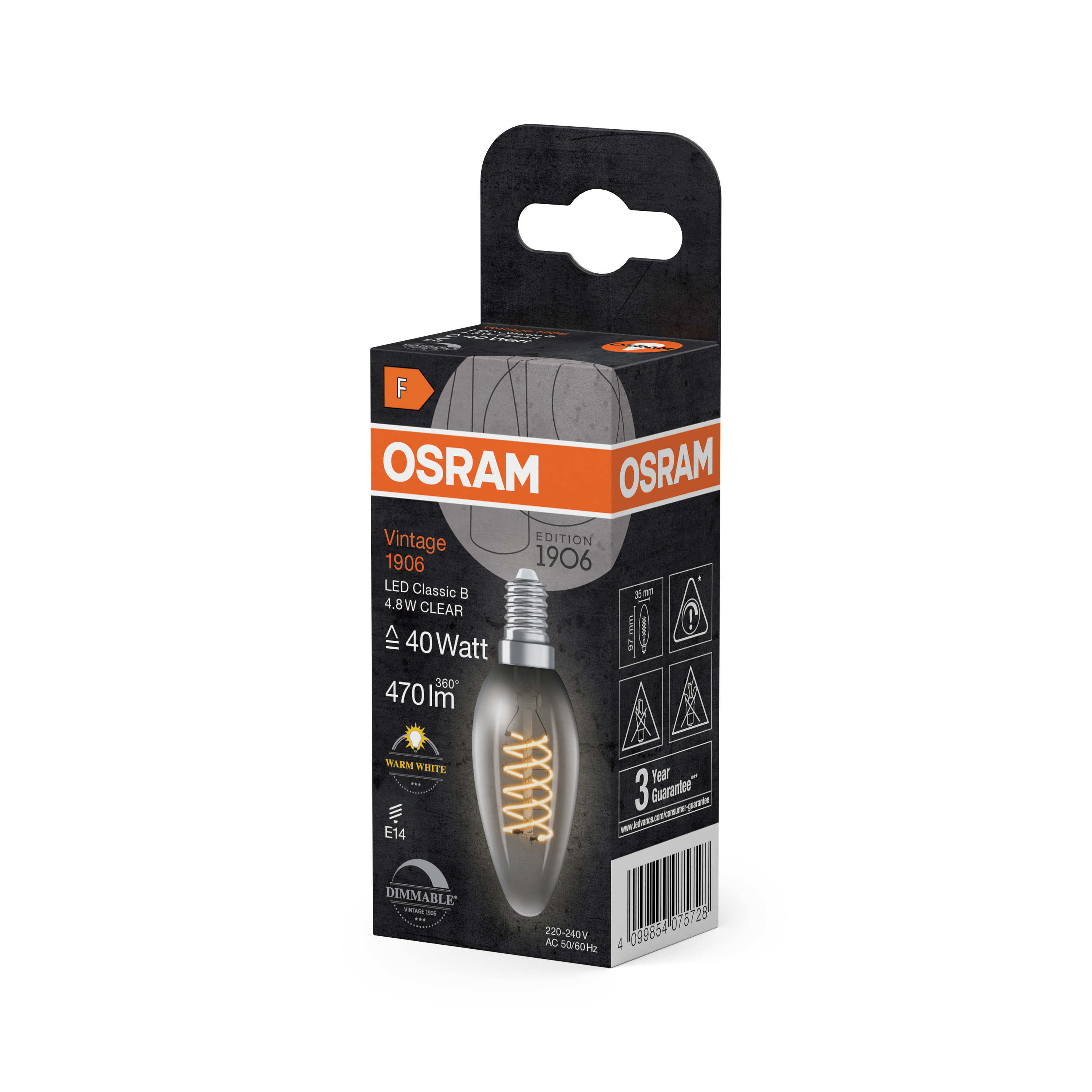

Packaging image, frontal
LED V1906 CLB 40 DIM 4 .8W 827 FIL CLEAR E14 MiCh JPG (668.86 KB)

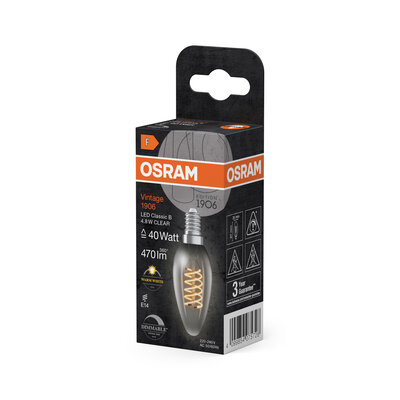

Packaging image, spacial
LED V1906 CLB 40 DIM 4 .8W 827 FIL CLEAR E14 MiCh JPG (769.98 KB)
Energy label
EL-4099854075728-AC455 85 PDF (21.55 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number EFO number ELDAS number
4099854075728 8298892 3758088 941903310
