Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|

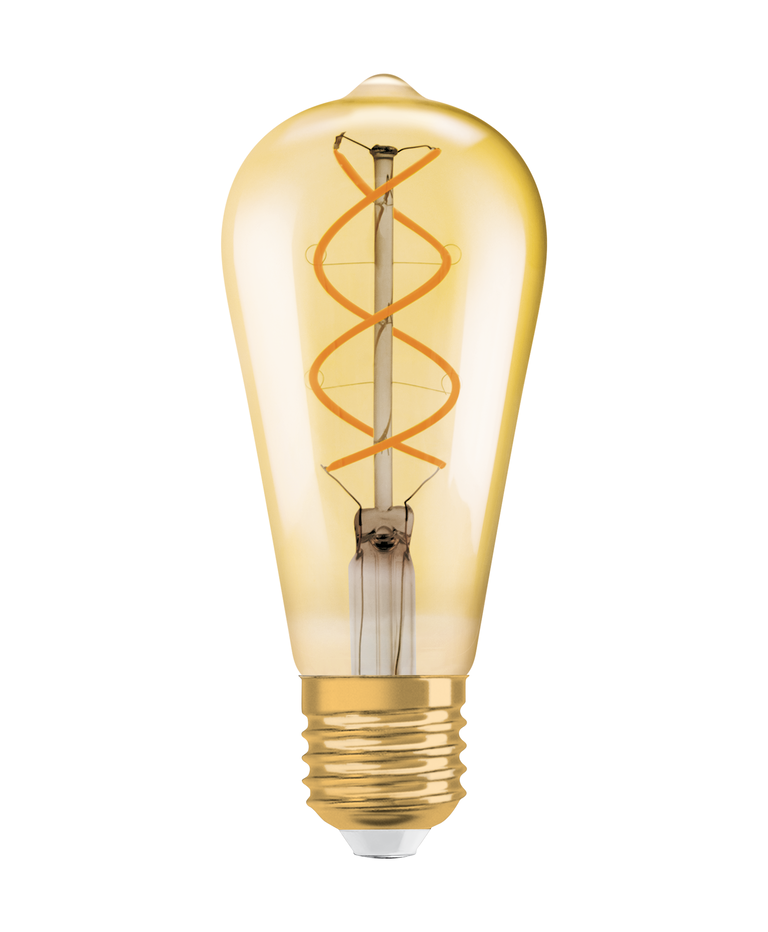

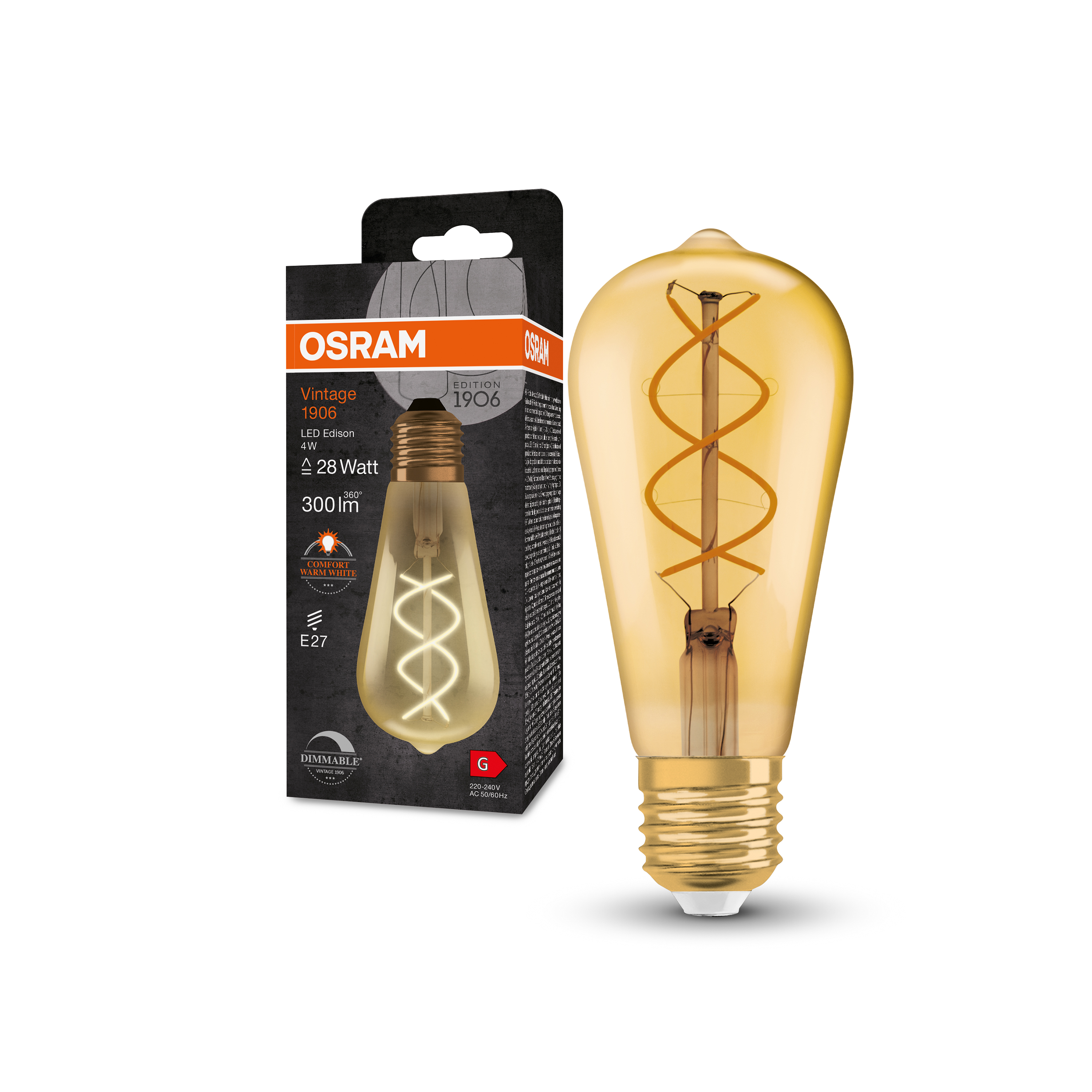

| Vintage 1906 Edison 28 Filament DIM 4W 820 Gold E27 | E27 | 4 W | 220…240 V | 15000 h | 300 lm | 28 W | 300 ° | Yes |
| Vintage 1906 Edison 55 Filament DIM 6.5W 824 Gold E27 | E27 | 6.5 W | 220…240 V | 15000 h | 725 lm | 55 W | 300 ° | Yes |

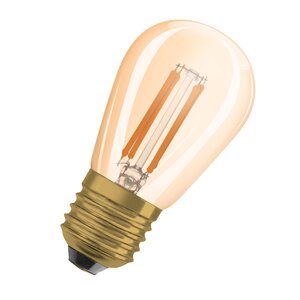

| Vintage 1906 Mini Edison ST 45 33 Filament DIM 4.8W 822 Gold E27 | E27 | 4.8 W | 220…240 V | 15000 h | 360 lm | 33 W | 320 ° | Yes |

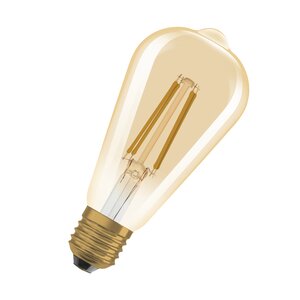

| Vintage 1906 Edison 60 Filament DIM 7.2W 824 Gold E27 | E27 | 7.2 W | 220…240 V | 15000 h | 806 lm | 60 W | 300 ° | Yes |
| Vintage 1906 Edison 60 Filament DIM 8.8W 824 Gold E27 | E27 | 8.8 W | 220…240 V | 15000 h | 806 lm | 60 W | 300 ° | Yes |
| Vintage 1906 Edison 40 Heart Filament DIM 4.9W 922 Gold E27 | E27 | 4.9 W | 220…240 V | 15000 h | 470 lm | 40 W | 300 ° | Yes |

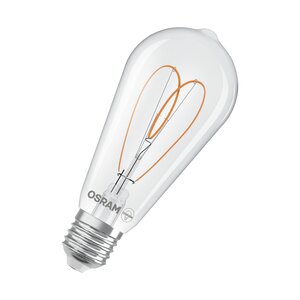

| Vintage 1906 Edison 60 Heart Filament DIM 7.2W 927 Clear E27 | E27 | 7.2 W | 220…240 V | 15000 h | 806 lm | 60 W | 300 ° | Yes |

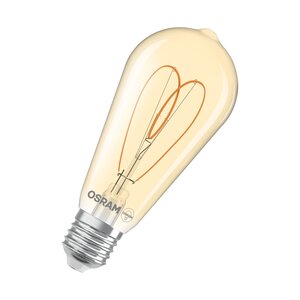

| Vintage 1906 Edison 60 Heart Filament DIM 8W 922 Gold E27 | E27 | 8 W | 220…240 V | 15000 h | 806 lm | 60 W | 300 ° | Yes |
| Nominal wattage | 4 W |
| Construction wattage | 4.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 28 W |
| Nominal current | 25 mA |
| Type of current | AC |
| Inrush current | 0.22 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 2045 |
| Max. lamp number on MCB B16 A | 3272 |
| Total harmonic distortion | 84.2 % |
| Power factor λ | ≥ 0.40 |
| Luminous flux | 300 lm |
| Luminous efficacy | 75 lm/W |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Light color (designation) | Comfort warm white |
| Color temperature | 2000 K |
| Color rendering index Ra | 80 |
| Light color | 820 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | ≤1.0 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
| Overall length | 143.00 mm |
| Diameter | 64.00 mm |
| Maximum diameter | 64 mm |
| Product weight | 46.00 g |
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 65 °C |
| Lifespan L70/B50 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.93 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Dimmable | Yes 1) |
1) Check dimmer compatibility at ledvance.com/compatibility
| Energy efficiency class | G 1) |
| Energy consumption | 4.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, UKCA |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
| Order reference | 1906LEDISOND 4W |
| Temperature range at storage | -20…+80 °C |
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | not applicable |
| Networked standby power for CLS | not applicable |
| Claim of equivalent power | Yes |
| Length | 143.00 mm |
| Height | 64.00 mm |
| Width | 64.00 mm |
| Chromaticity coordinate x | 0.527 |
| Chromaticity coordinate y | 0.413 |
| R9 Colour rendering index | 1 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | ≥0.4 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1421164 |
| Model number | AC45233,AC45233 |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854090103 | Folding box 1 |
65 mm x 65 mm x 179 mm | 65.00 g | 0.76 dm³ |
| 4099854090110 | Shipping box 4 |
148 mm x 142 mm x 191 mm | 351.00 g | 4.01 dm³ |
| EAN | SEG number | EFO number | ELDAS number |
|---|---|---|---|
| 4099854090103 | 8299181 | 3719037 | 941004720 |
