Vintage 1906 LED Special Shapes Dimmable

Choose your product version

4W 818 Smoke E27

4W 820 Gold E27

4.5W 816 Smoke E27

4.8W 822 Gold E27

4.5W 816 Green E27

4.5W 816 Blue E27

4.5W 816 Pink E27

4.8W 827 Clear E27

4.5W 817 Smoke E27

4W 818 Smoke E27

4W 818 Smoke E27

4W 818 Smoke E27

4.8W 818 Smoke E27

4.8W 822 Gold E27

7.3W 827 Frosted E27

7.3W 827 Frosted E27

7.3W 827 Frosted E27

7.3W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
Vintage 1906 Edison 15 Filament Big Grape DIM 4W 818 Smoke E27 E27 4 W 220…240 V 15000 h 140 lm 15 W 340 ° Yes
Vintage 1906 Edison 28 Filament Big Grape DIM 4W 820 Gold E27 E27 4 W 220…240 V 15000 h 300 lm 28 W 300 ° Yes

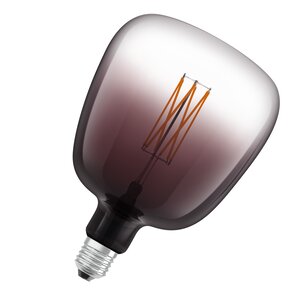

Vintage 1906 Globe 140 15 Filament DIM 4.5W 816 Smoke E27 E27 4.5 W 220…240 V 15000 h 150 lm 15 W 220 ° Yes

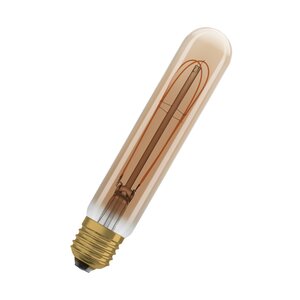

Vintage 1906 Tubular 40 Filament DIM 4.8W 822 Gold E27 E27 4.8 W 220…240 V 15000 h 470 lm 40 W 320 ° Yes
Vintage 1906 Globe ET 124 18 Filament DIM 4.5W 816 Green E27 E27 4.5 W 220…240 V 15000 h 180 lm 18 W 360 ° Yes

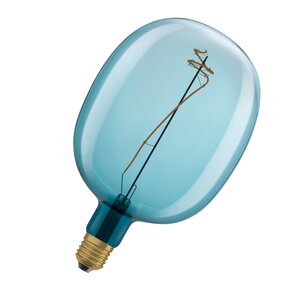

Vintage 1906 Ballon 10 Filament DIM 4.5W 816 Blue E27 E27 4.5 W 220…240 V 15000 h 100 lm 10 W 320 ° Yes

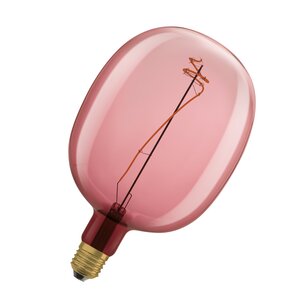

Vintage 1906 Ballon 15 Filament DIM 4.5W 816 Pink E27 E27 4.5 W 220…240 V 15000 h 220 lm 15 W 320 ° Yes
Vintage 1906 Ballon 30 Filament DIM 4.8W 827 Clear E27 E27 4.8 W 220…240 V 15000 h 400 lm 30 W 320 ° Yes

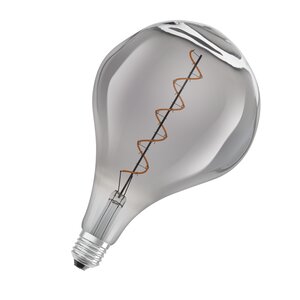

Vintage 1906 Globe ET 165 15 Filament DIM 4.5W 817 Smoke E27 E27 4.5 W 220…240 V 15000 h 150 lm 15 W 320 ° Yes

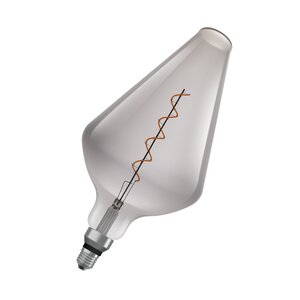

Vintage 1906 AW 15 Filament DIM 4W 818 Smoke E27 E27 4 W 220…240 V 15000 h 140 lm 15 W 300 ° Yes

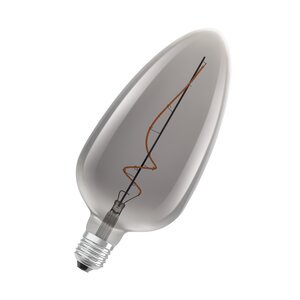

Vintage 1906 Classic C 125 15 Filament DIM 4W 818 Smoke E27 E27 4 W 220…240 V 15000 h 140 lm 15 W 300 ° Yes
Vintage 1906 Classic A 125 15 Filament DIM 4W 818 Smoke E27 E27 4 W 220…240 V 15000 h 140 lm 15 W 300 ° Yes
Vintage 1906 NEST 10 Filament DIM 4.8W 818 Smoke E27 E27 4.8 W 220…240 V 15000 h 100 lm 10 W 320 ° Yes

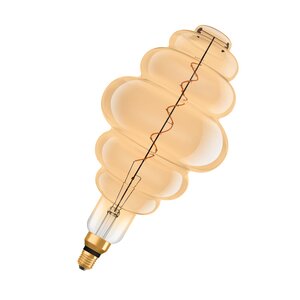

Vintage 1906 NEST 33 Filament DIM 4.8W 822 Gold E27 E27 4.8 W 220…240 V 15000 h 360 lm 33 W 320 ° Yes
Vintage 1906 Big Apple 60 DIM 7.3W 827 Frosted E27 E27 7.3 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes
Vintage 1906 Ballon 60 DIM 7.3W 827 Frosted E27 E27 7.3 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes

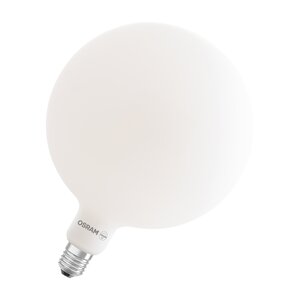

Vintage 1906 Big Globe 200 60 DIM 7.3W 827 Frosted E27 E27 7.3 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes

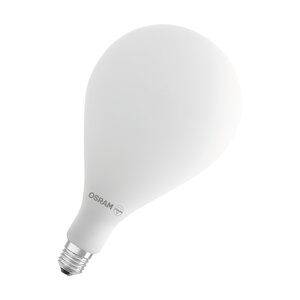

Vintage 1906 Big Grape 60 DIM 7.3W 827 Frosted E27 E27 7.3 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes

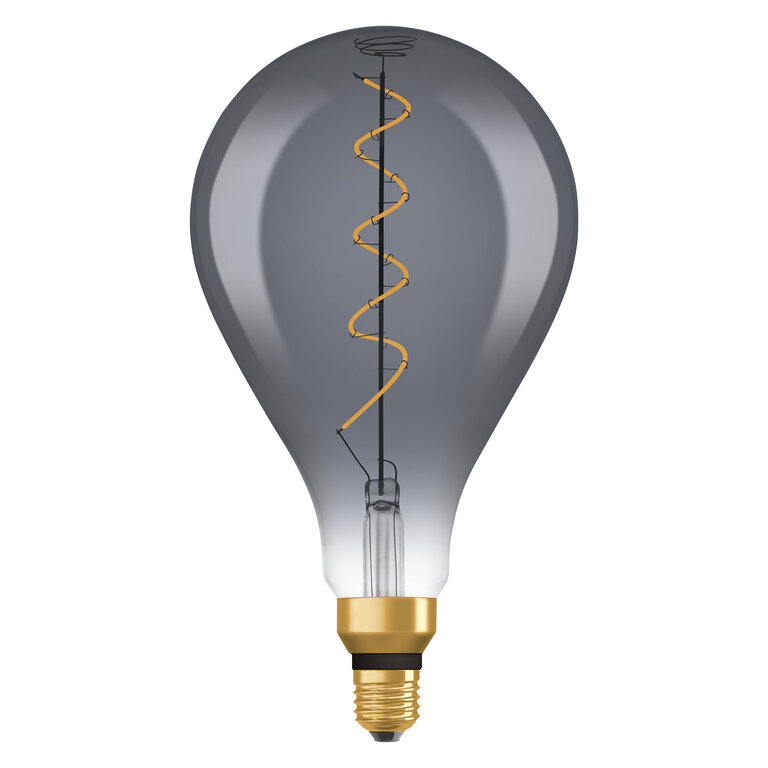

Vintage 1906 Edison 15 Filament Big Grape DIM 4W 818 Smoke E27

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Available in various bulb shapes and diameters
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 15 W
Nominal current 32 mA
Type of current AC
Inrush current 0.22 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 2045
Max. lamp number on MCB B16 A 3273
Power factor λ > 0.70

Photometrical data

Luminous flux 140 lm
Nominal useful luminous flux 90° 140 lm
Luminous efficacy 35 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm Comfort Light
Color temperature 1800 K
Color rendering index Ra 80
Light color 818
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 340 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 290.00 mm
Diameter 160.00 mm
Maximum diameter 160 mm
Product weight 255.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 65 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class G 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference 1906LEDBGRPD 4W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 290.00 mm
Height 160.00 mm
Width 160.00 mm
Chromaticity coordinate x 0.549
Chromaticity coordinate y 0.408
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.40
LED light source replaces a fluorescent light source No
EPREL ID 523255
Model number AC32343,AC32343

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Available in various bulb shapes and diameters
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Can be used directly as luminaire
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075270022 Folding box
1		 185 mm x 185 mm x 356 mm 413.00 g 12.18 dm³
4058075270039 Shipping box
4		 394 mm x 394 mm x 388 mm 2415.00 g 60.23 dm³
Declarations of conformity

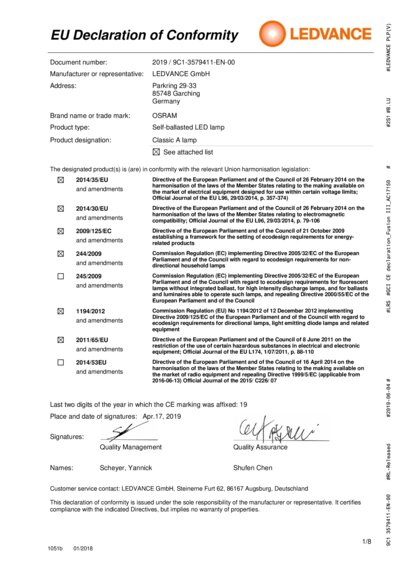

EC Declaration of Conf ormity LED Classic A l amp PDF (474.98 KB)

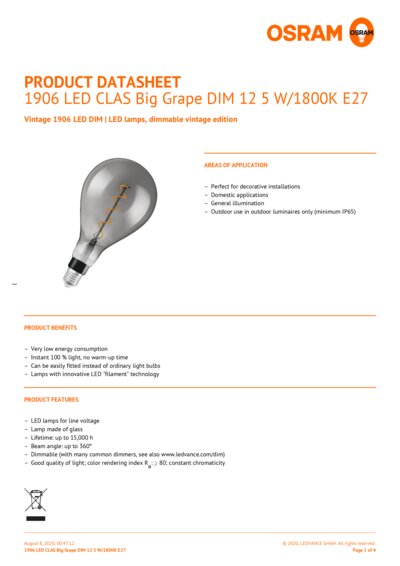

PRODUCT DATASHEET
1906 LED CLAS Big Grap e DIM 12 5 W 1800K E27 PDF (241.63 KB)

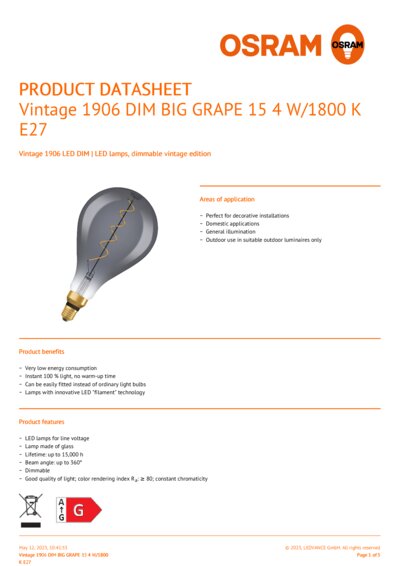

PRODUCT DATASHEET
Vintage1906DIMBIGGRAPE 154W1800KE27en PDF (365.62 KB)

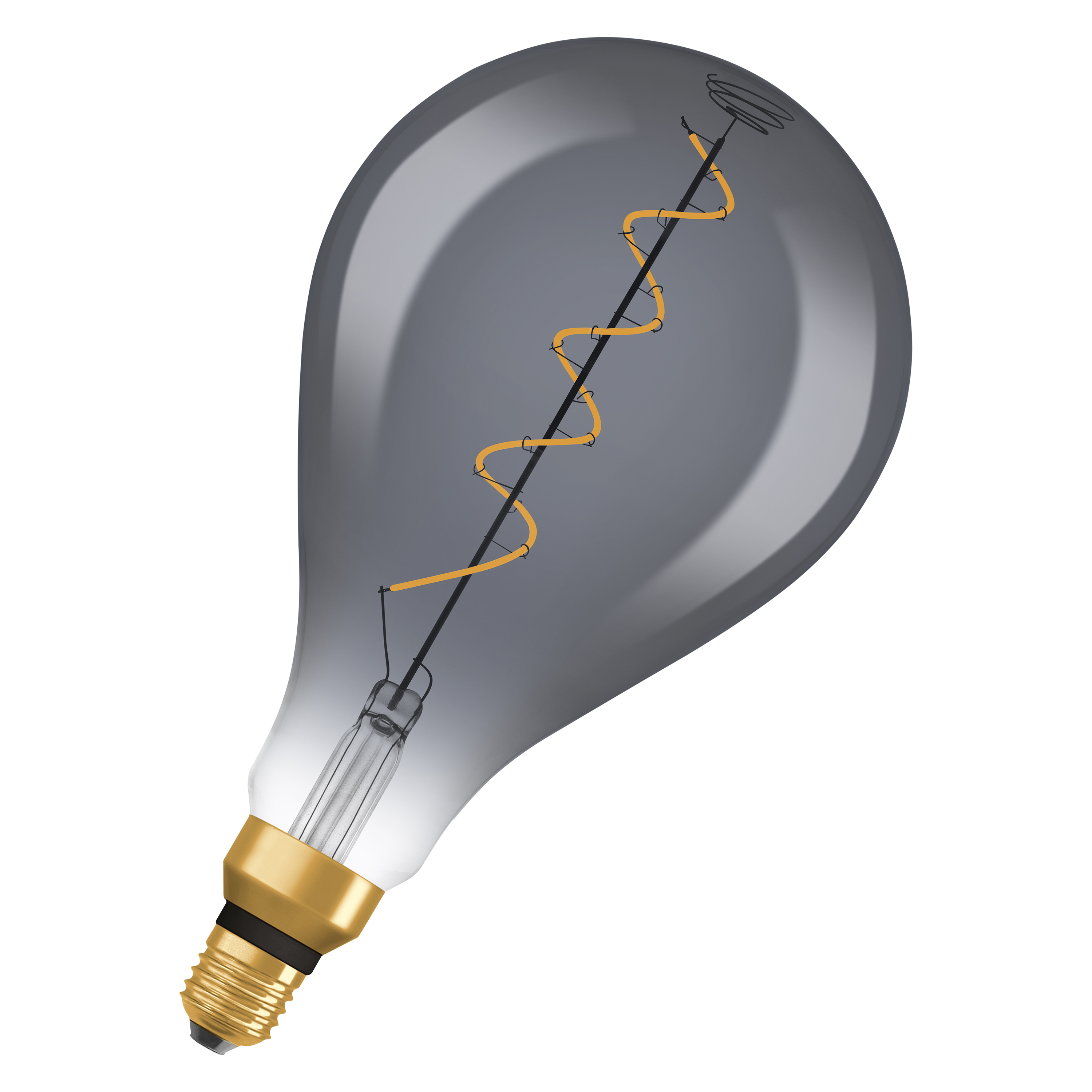

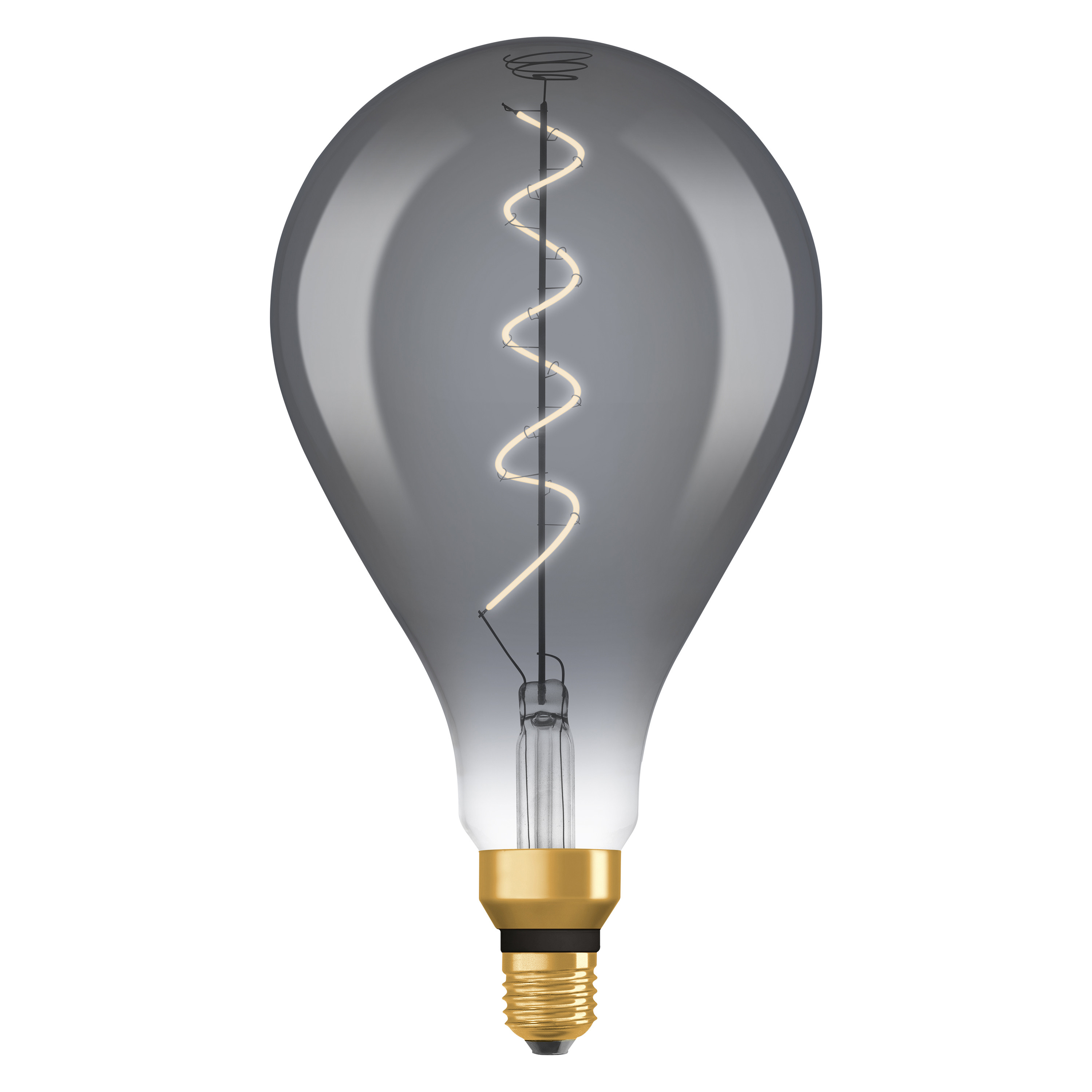

Product image: white background, diagonal
1906LEDBGRPD 4W/818 23 0VSFIL E27 4X1OSRAM JPG (945.05 KB)

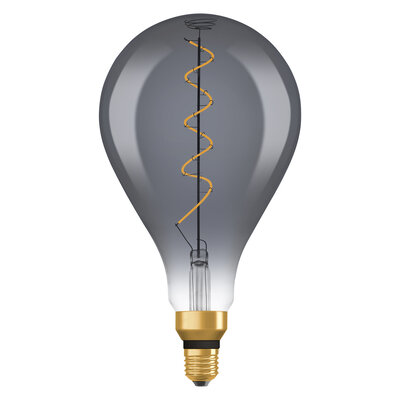

Product image: white background, upright
1906LEDBGRPD 4W/818 23 0VSFIL E27 4X1OSRAM JPG (774.16 KB)

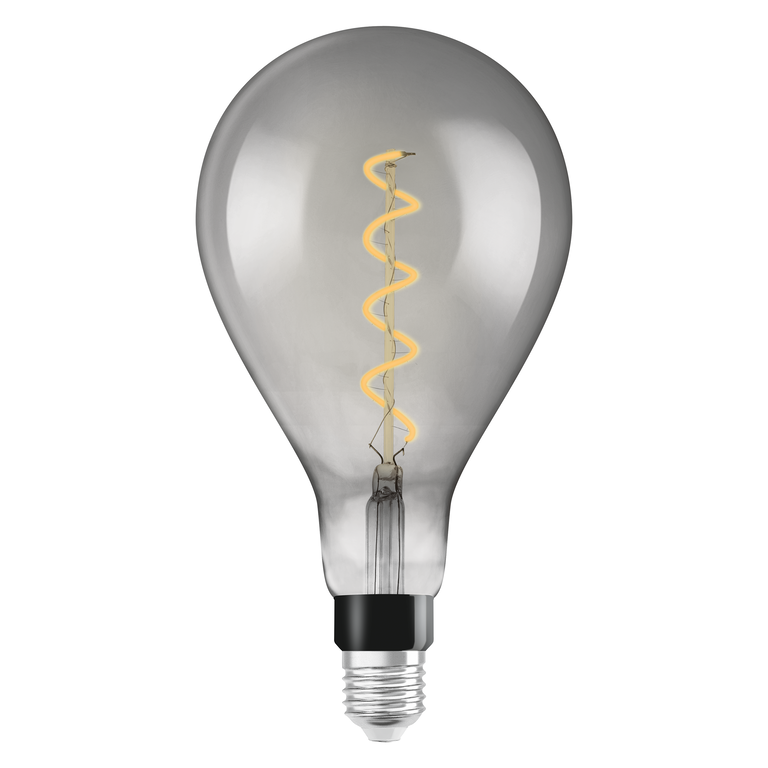

Product image: white background, upright, switched on
Vintage 1906 LED CL A1 60 FIL SMOKE 12 non-d im TIF (27.02 MB)
Product image: white background, upright, switched on
1906LEDBGRPD 4W/818 23 0VSFIL E27 4X1OSRAM JPG (758.22 KB)
Product line drawing with letters
1906LEDBGRPD 4W/818 23 0VSFIL E27 4X1OSRAM SVG (5.81 KB)
Product line drawing with numbers
Vintage 1906 LED CL A1 60 FIL GOLD 28 non-di m E27 EPS (1.01 MB)
Product line drawing - technical
1906LEDBGRPD 4W/818 23 0VSFIL E27 4X1OSRAM SVG (4.24 KB)

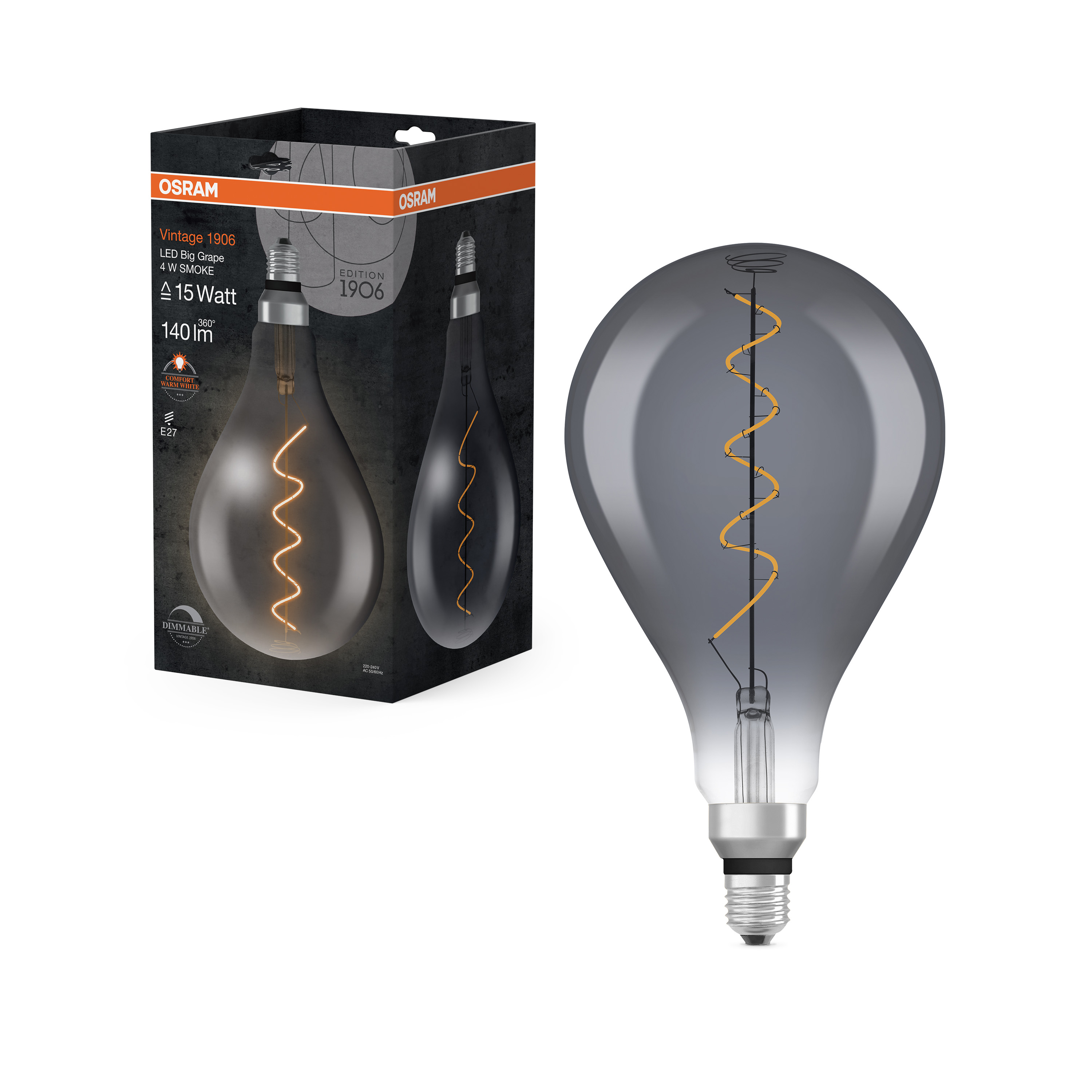

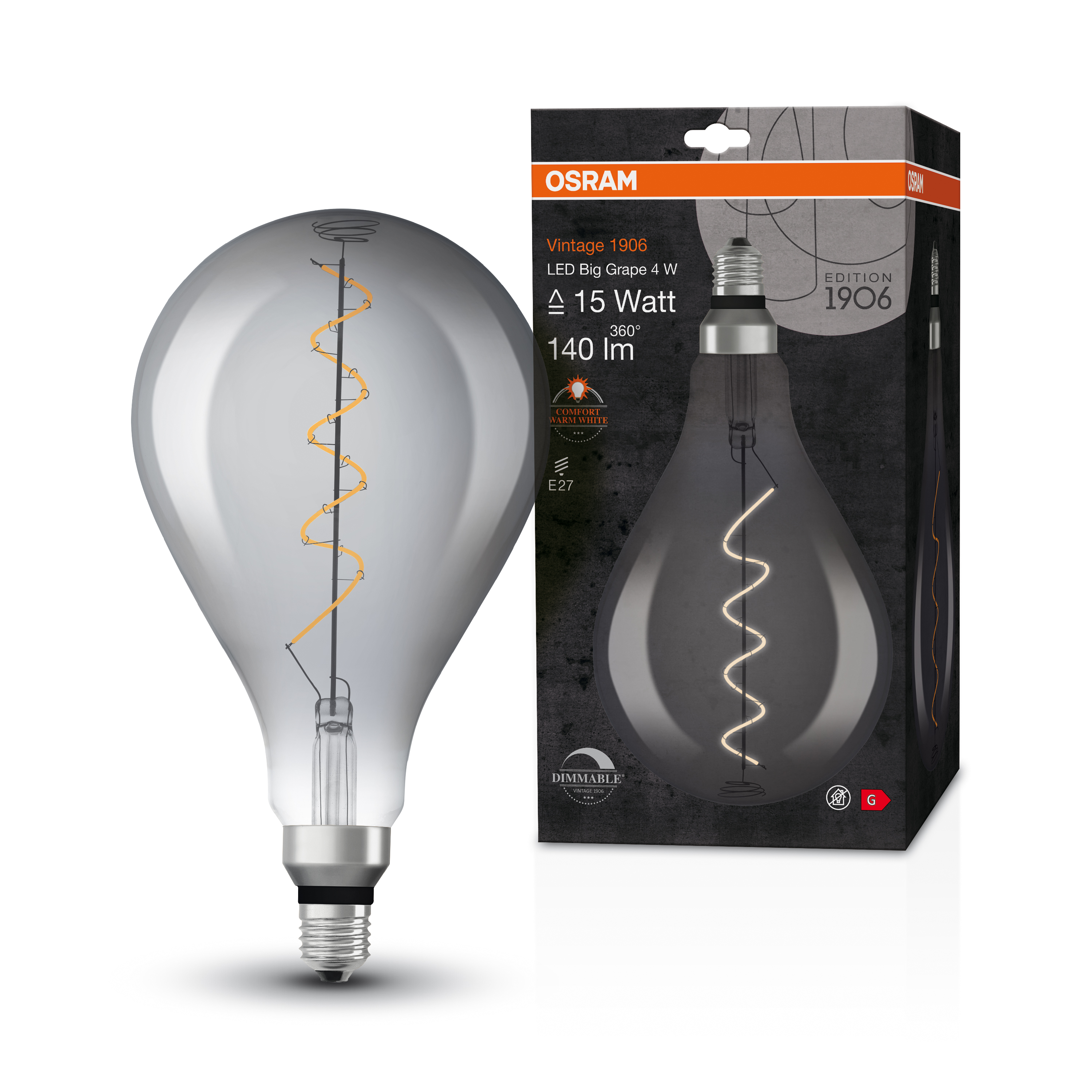

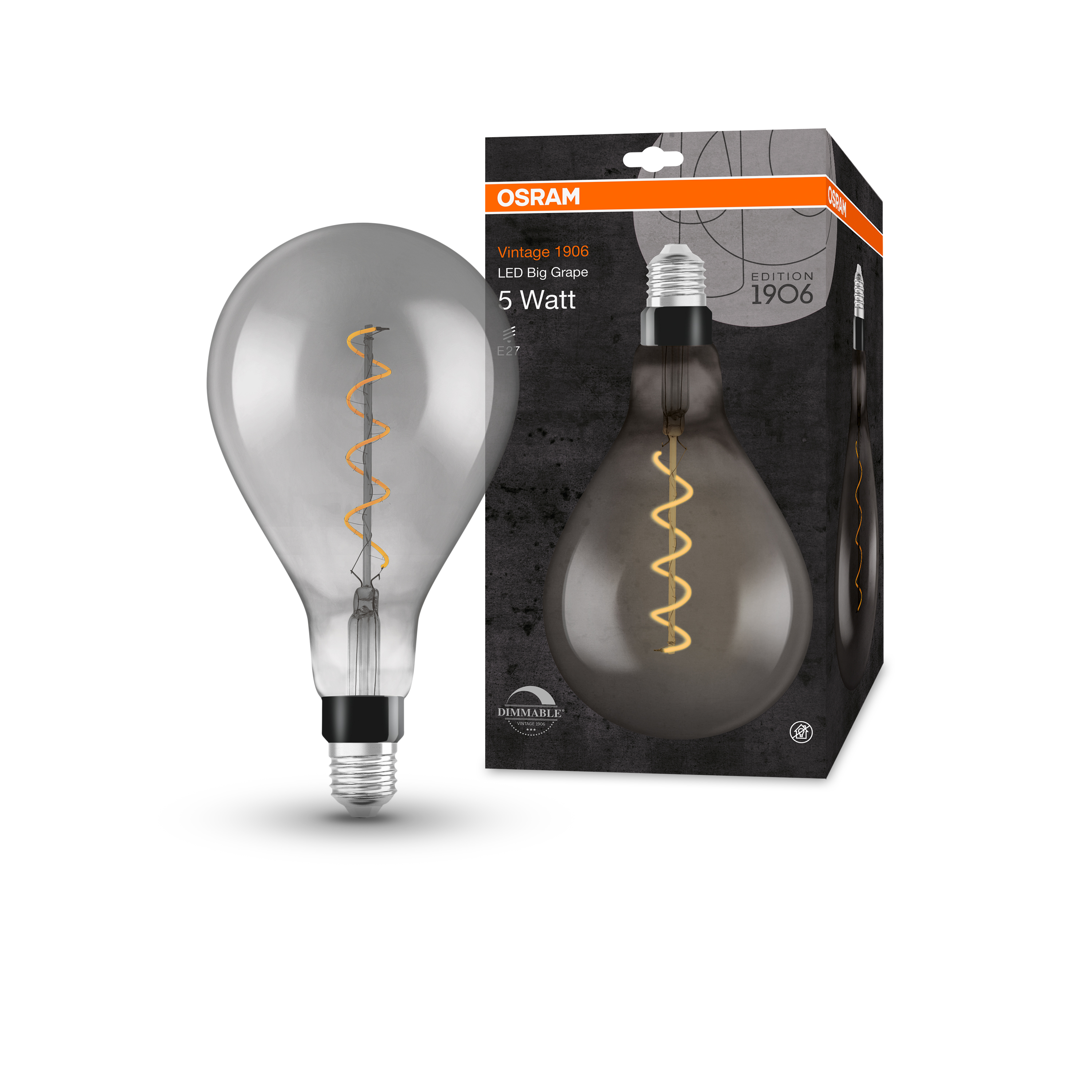

Combo Shot = Product Beauty Shot + Packaging Image
1906LEDBGRPD 5W-818 23 0VFILSME274X1 JPG (1.83 MB)

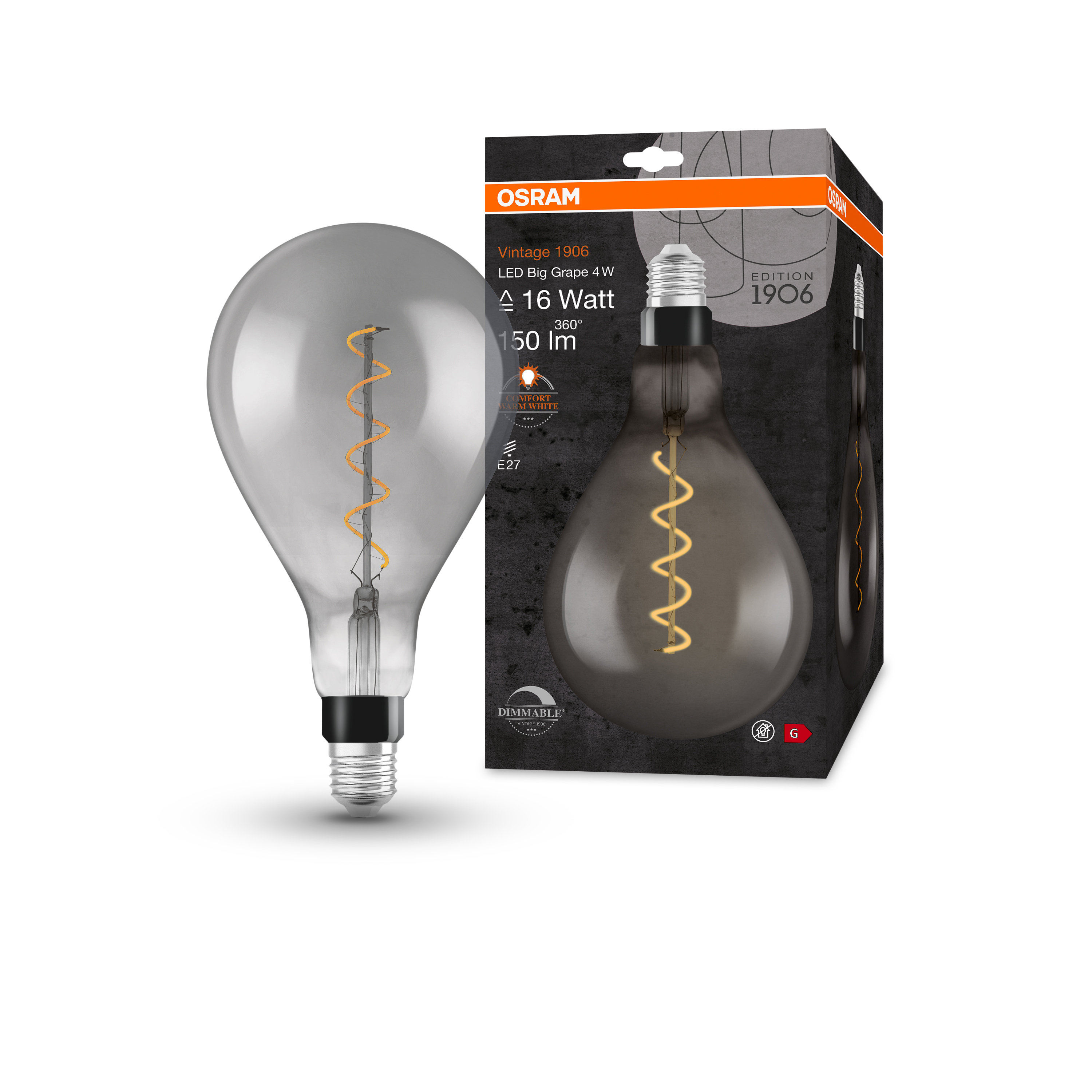

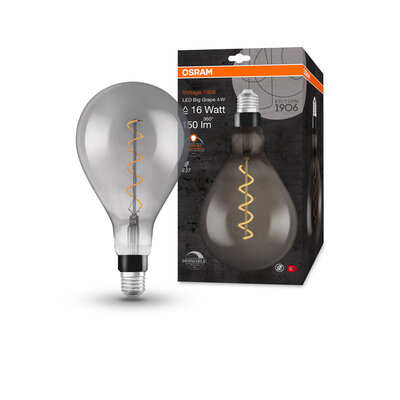

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 BIG GRAPE DI M 4W 818 FIL SMOKE E27 MiCh JPG (1.87 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 BIG GRAPE DI M 4W 818 FILSM E27 MiC h JPG (2.17 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 BIG GRAPE DI M 4W 818 FIL SMOKE E27 MiCh JPG (751.6 KB)

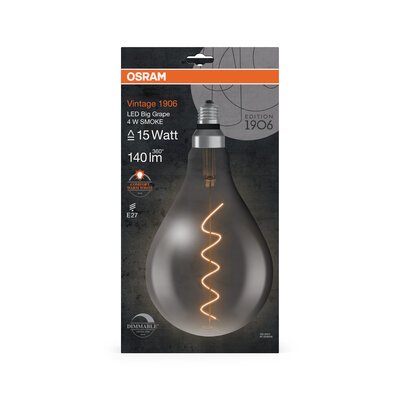

Packaging image, frontal
LED V1906 BIG GRAPE DI M 5W 818 FIL SMOKE E27 _MiCh Front TIF (723.9 KB)
Packaging image, spacial
LED V1906 BIG GRAPE DI M 5W 818 FIL SMOKE E27 _MiCh Side TIF (822.58 KB)

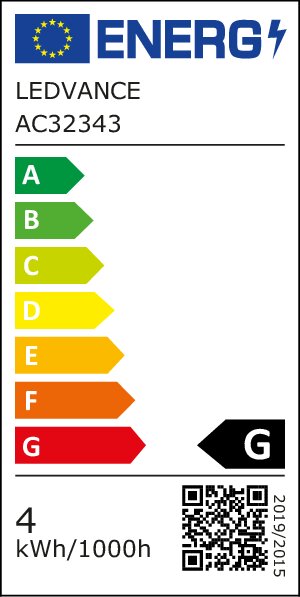

Energy label
EL-4058075270022-AC323 43 PDF (21.41 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
Everlight 67-23ST RKE 2700K PNG (114.33 KB)

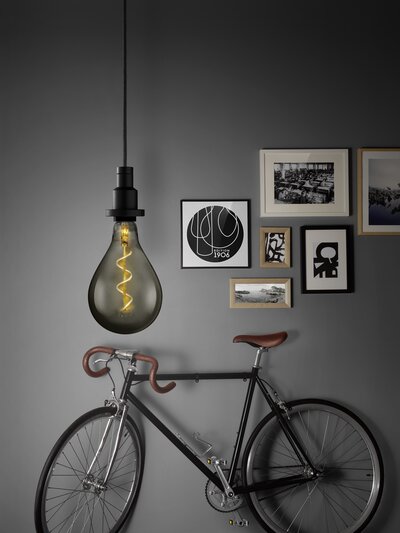

Application pictures
