OSRAM DULUX LED L HF & AC MAINS

Choose your product version

8W 830 2G11

8W 840 2G11

12W 830 2G11

12W 840 2G11

18W 830 2G11

18W 840 2G11

Phase out

25 W/3000 K

Phase out

25 W/4000 K

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
DULUX LED L18 HF & AC MAINS 8W 830 2G11 2G11 8 W 220…240 V 30000 h 900 lm 18 W 140 ° No
DULUX LED L18 HF & AC MAINS 8W 840 2G11 2G11 8 W 220…240 V 30000 h 1000 lm 18 W 140 ° No
DULUX LED L24 HF & AC MAINS 12W 830 2G11 2G11 12 W 220…240 V 30000 h 1350 lm 24 W 140 ° No
DULUX LED L24 HF & AC MAINS 12W 840 2G11 2G11 12 W 220…240 V 30000 h 1500 lm 24 W 140 ° No
DULUX LED L36 HF & AC MAINS 18W 830 2G11 2G11 18 W 220…240 V 30000 h 2070 lm 36 W 140 ° No
DULUX LED L36 HF & AC MAINS 18W 840 2G11 2G11 18 W 220…240 V 30000 h 2300 lm 36 W 140 ° No
DULUX L LED HF & AC Mains 25 W/3000 K 2G11 25 W 220…240 V 30000 h 2950 lm 55 W 140 ° No
DULUX L LED HF & AC Mains 25 W/4000 K 2G11 25 W 220…240 V 30000 h 3250 lm 55 W 140 ° No
Phase out


DULUX L LED HF & AC Mains 25 W/3000 K

Product benefits
  • Easy installation
  • Low energy consumption
  • Not suitable for operation with conventional control gear
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 25 W
Construction wattage 25.00 W
Nominal voltage 220…240 V
Operating mode ECG, AC Mains
Claimed equiv. conventional lamp power 55 W
Nominal current 110 mA
Type of current AC
Inrush current 25 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 80
Max. lamp number on MCB B16 A 130
Total harmonic distortion ≤ 30 %
Power factor λ > 0.90

Photometrical data

Luminous flux 2950 lm
Nominal useful luminous flux 90° 2950 lm
Luminous efficacy 118 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 140 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 537.00 mm
Diameter 44.00 mm
Maximum diameter 44 mm
Product weight 210.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) 2G11
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 25.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference DULUX L55LED 25

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) 2G11
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 537.00 mm
Height 44.00 mm
Width 44.00 mm
Chromaticity coordinate x 0.433
Chromaticity coordinate y 0.403
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 604666
Model number AC35200

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Not suitable for operation with conventional control gear
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Offices, public buildings
  • Shops
  • Hotels, restaurants
  • Industry
Product features
  • LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
  • Lifetime up to 30,000 h
  • Single-ended four-pin plug-in 2G11 base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
  • Not suitable for operation with conventional control gear.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075559257 Folding box
1		 27 mm x 47 mm x 588 mm 280.00 g 0.75 dm³
4058075559264 Shipping box
10		 604 mm x 251 mm x 79 mm 2975.00 g 11.98 dm³
User instruction / safety instructions
OSRAM DULUX L LED PDF (4.18 MB)
Declarations of conformity
DULUX lamp PDF (206.46 KB)
Product image: white background, diagonal with OSRAM logo
DULUX L 55 LED 26W 230 V HF OSRAM JPG (829.08 KB)
Product image: white background, diagonal
DULUX L 55 LED 26W 230 V HF OSRAM JPG (829.96 KB)

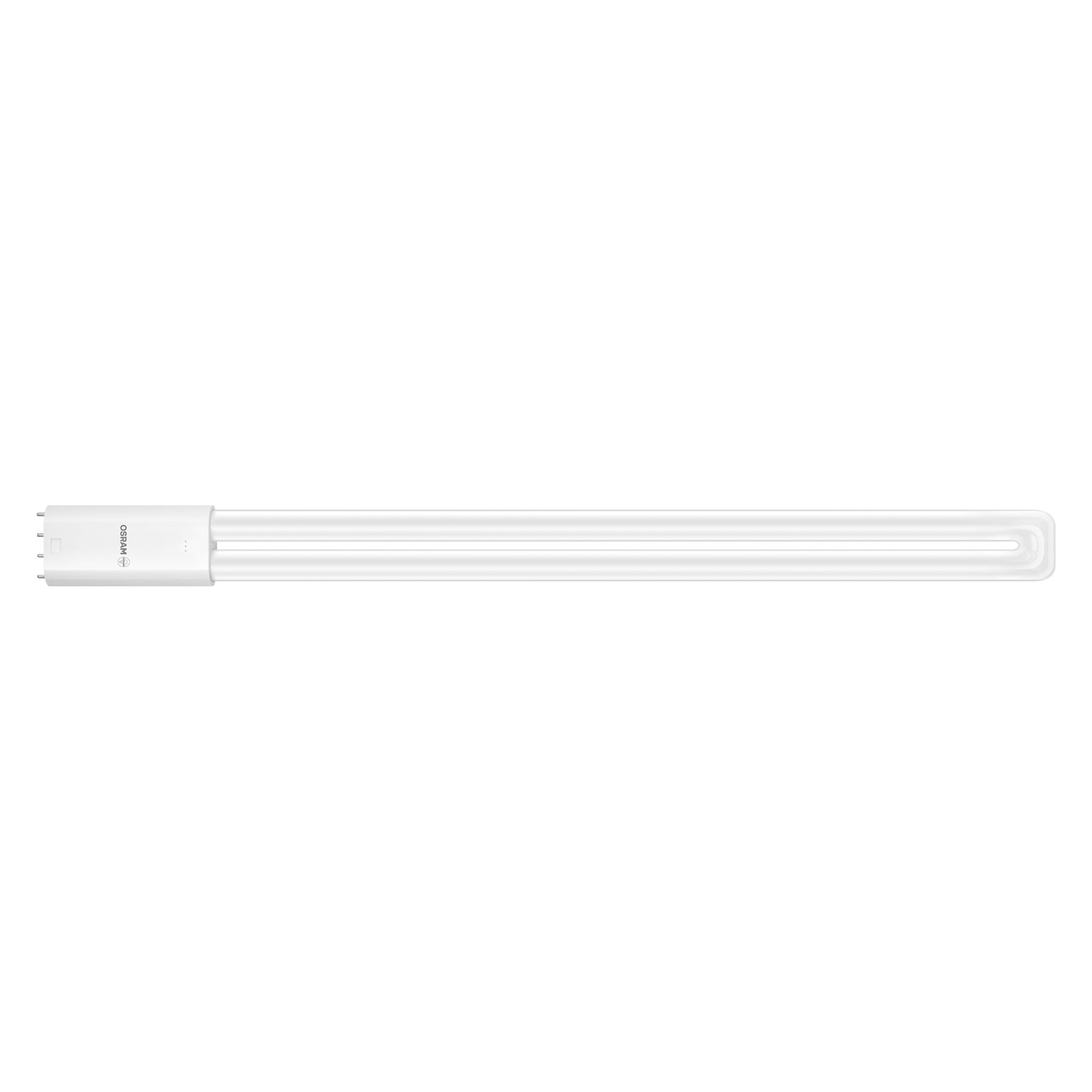

Product image: white background, horizontal, OSRAM logo
DULUX L 55 LED 26W 230 V HF OSRAM JPG (731.46 KB)
Product image: white background, horizontal
DULUX L 55 LED 26W 230 V HF OSRAM JPG (735.89 KB)

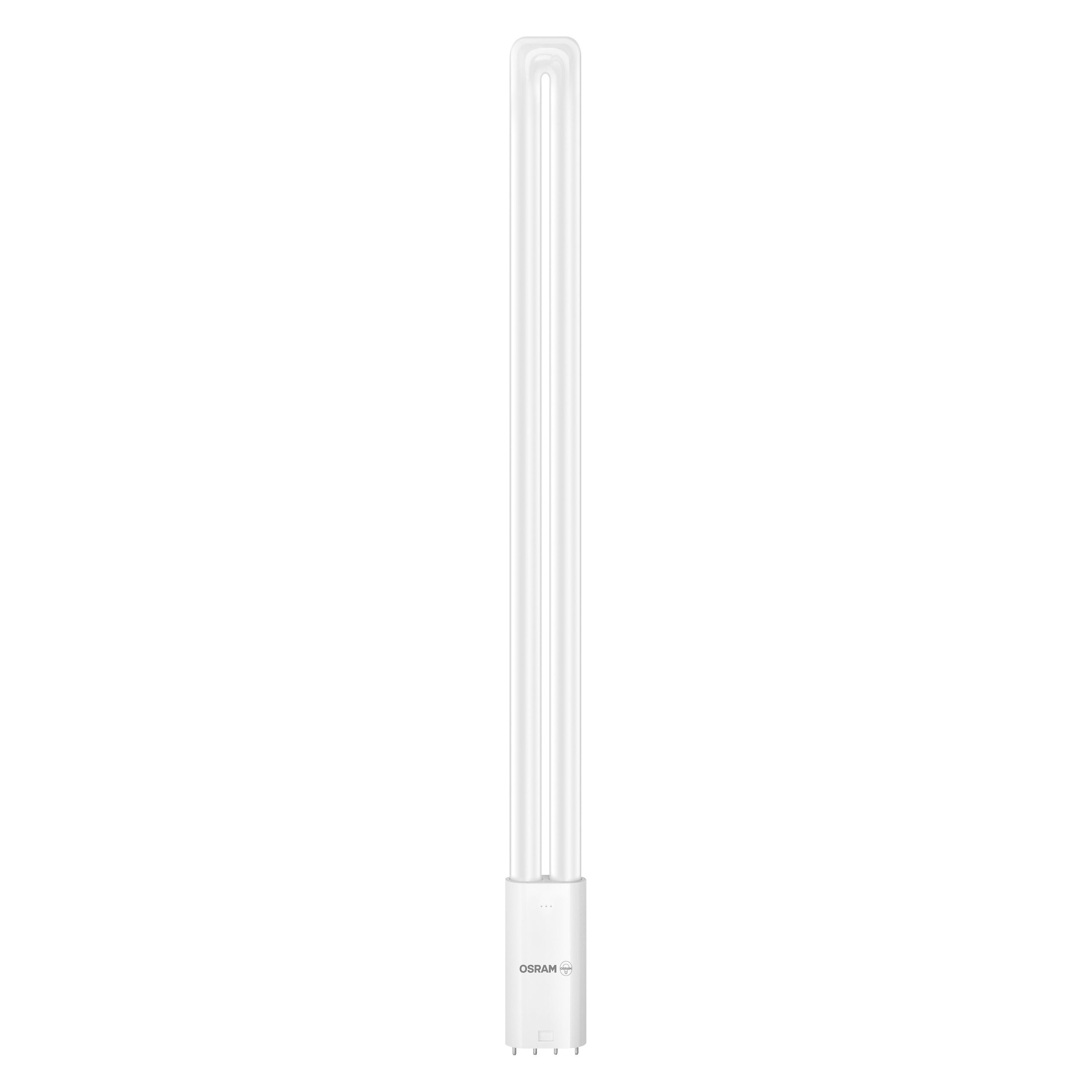

Product image: white background, upright, OSRAM logo
DULUX L 55 LED 26W 230 V HF OSRAM JPG (734.73 KB)
Product image: white background, upright
DULUX L 55 LED 26W 230 V HF OSRAM JPG (737.86 KB)
Product line drawing with letters
DULUX L 55 LED 26W 230 V HF OSRAM SVG (11 KB)
Product line drawing with numbers
DULUX L 55 LED 26W 230 V HF OSRAM SVG (18.27 KB)
Product line drawing - technical
DULUX LED L55 HF 25W SVG (7.73 KB)
Energy label
EL-4058075559257-AC352 00 PDF (21.46 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
DULUX L55LED 25W830 2 30VHF2G11 IES (41.98 KB)
LDT file (Eulumdat)
DULUX L55LED 25W830 2 30VHF2G11 LDT (35.98 KB)
Light distribution curve type polar
DULUX L55LED 25W830 2 30VHF2G11 SVG (19.63 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 3000K PNG (115.07 KB)
EAN SEG number STK number EFO number ELDAS number
4058075559257 8296253 4930482 3766243 941807340
