LED TUBE T8 ENTRY AC

Choose your product version

8 W/3000 K 600 mm

8 W/4000 K 600 mm

8 W/6500 K 600 mm

16 W/3000 K 1200 mm

16 W/4000 K 1200 mm

16 W/6500 K 1200 mm

20 W/3000 K 1500 mm

20 W/4000 K 1500 mm

20 W/6500 K 1500 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux
ST8E-AC 8 W/3000 K 600 mm G13 8 W 220…240 V 30000 h 810 lm 18 W 360 ° No
ST8E-AC 8 W/4000 K 600 mm G13 8 W 220…240 V 30000 h 900 lm
ST8E-AC 8 W/6500 K 600 mm G13 8 W 220…240 V 30000 h 900 lm
ST8E-AC 16 W/3000 K 1200 mm G13 16 W 220…240 V 30000 h 1620 lm 36 W 360 ° No
ST8E-AC 16 W/4000 K 1200 mm G13 16 W 220…240 V 30000 h 1800 lm
ST8E-AC 16 W/6500 K 1200 mm G13 16 W 220…240 V 30000 h 1800 lm
ST8E-AC 20 W/3000 K 1500 mm G13 20 W 220…240 V 30000 h 2070 lm 58 W 360 ° No
ST8E-AC 20 W/4000 K 1500 mm G13 20 W 220…240 V 30000 h 2300 lm
ST8E-AC 20 W/6500 K 1500 mm G13 20 W 220…240 V 30000 h 2300 lm


ST8E-AC 20 W/4000 K 1500 mm

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 65 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 20 W
Construction wattage 20.00 W
Nominal voltage 220…240 V
Nominal current 150 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Total harmonic distortion < 150 %

Photometrical data

Luminous flux 2300 lm
Luminous efficacy 115 lm/W
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Dimensions & Weight

Overall length 1513.00 mm
Diameter 26.90 mm
Product weight 230.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Lifespan L70/B50 at 25 °C 30000 h

Additional product data

Base (standard designation) G13
Mercury-free Yes
Design / version Frosted

Certificates & Standards

Type of protection IP20
Standards CE, CB
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference ST8E-1.5M 20W/8

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 1513.00 mm
Height 26.90 mm
Width 26.90 mm
Chromaticity coordinate x 0.3818
Chromaticity coordinate y 0.3797
R9 Colour rendering index >=0.00
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor >=0.7
LED light source replaces a fluorescent light source Yes
EPREL ID 686643,2076154
Model number AC32682,AC32682,AC66714

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 65 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Product features
  • T8 LED tube made of glass with G13 base
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854075209 Sleeve
1		 1,555 mm x 28 mm x 28 mm 249.00 g 1.22 dm³
4099854075216 Shipping box
25		 1,570 mm x 155 mm x 165 mm 7189.00 g 40.15 dm³
Declarations of conformity
LED tube PDF (263.18 KB)
Product image: white background, diagonal with LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (862.17 KB)
Product image: white background, diagonal
LED TUBE T8 EM JPG (769.9 KB)
Product line drawing with letters
638398_Technical drawi ng TC point SubstiTube SVG (27.62 KB)
Product line drawing, front, no dimensions
338275_SubstiTUBE Basi c ST8-HB SVG (3.88 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)

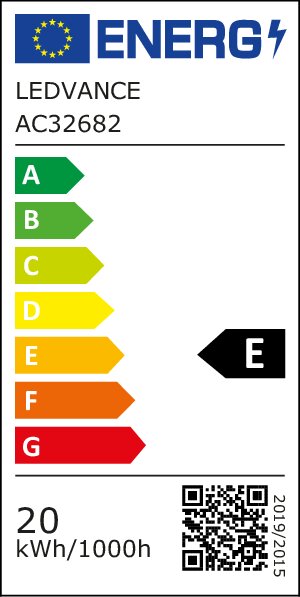

Energy label
EL-4058075817890-AC326 82 PDF (21.81 KB)
Energy label
EL-4099854075209-AC326 82 PDF (21.81 KB)

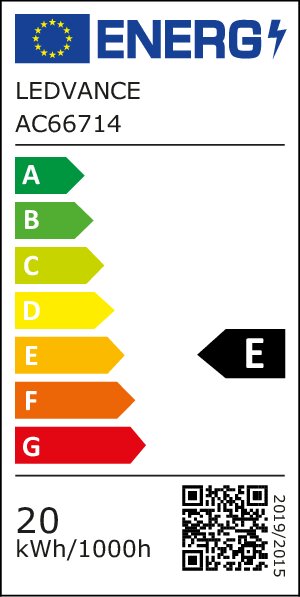

Energy label
EL-4099854075209-AC667 14 PDF (21.55 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 4000K PNG (116.83 KB)
