LED TUBE T5 AC MAINS P

Choose your product version

LAUNCH JUNE

549 mm 7W 830

549 mm 7W 830

LAUNCH JUNE

549 mm 7W 840

549 mm 7W 840

LAUNCH JUNE

549 mm 7W 865

549 mm 7W 865

LAUNCH JUNE

849 mm 11W 830

849 mm 10W 830

LAUNCH JUNE

849 mm 11W 840

849 mm 10W 840

LAUNCH JUNE

849 mm 11W 865

849 mm 10W 865

LAUNCH JUNE

549 mm 11W 830

549 mm 10W 830

LAUNCH JUNE

549 mm 11W 840

549 mm 10W 840

LAUNCH JUNE

549 mm 11W 865

549 mm 10W 865

1149 mm 16W 830

1149 mm 16W 840

1149 mm 16W 865

1449 mm 18W 830

1449 mm 18W 840

1449 mm 18W 865

LAUNCH JUNE

849 mm 18W 830

849 mm 16W 830

LAUNCH JUNE

849 mm 18W 840

849 mm 16W 840

LAUNCH JUNE

849 mm 18W 865

849 mm 16W 865

1449 mm 26W 830

1449 mm 26W 840

1449 mm 26W 865

1149 mm 26W 830

1149 mm 26W 840

1149 mm 26W 865

1449 mm 36W 830

1449 mm 36W 840

1449 mm 36W 865

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T5 AC HE14 P 549 mm 7W 830 G5 7 W 220…240 V 50000 h 1000 lm 14 W 190 ° No
LED TUBE T5 AC HE14 P 549 mm 7W 830 G5 7 W 220…240 V 50000 h 900 lm 14 W 190 ° No
LED TUBE T5 AC HE14 P 549 mm 7W 840 G5 7 W 220…240 V 50000 h 1100 lm 14 W 190 ° No
LED TUBE T5 AC HE14 P 549 mm 7W 840 G5 7 W 220…240 V 50000 h 1000 lm 14 W 190 ° No
LED TUBE T5 AC HE14 P 549 mm 7W 865 G5 7 W 220…240 V 50000 h 1100 lm 14 W 190 ° No
LED TUBE T5 AC HE14 P 549 mm 7W 865 G5 7 W 220…240 V 50000 h 1000 lm 14 W 190 ° No
LED TUBE T5 AC HE21 P 849 mm 11W 830 G5 11 W 220…240 V 50000 h 1550 lm 21 W 190 ° No
LED TUBE T5 AC HE21 P 849 mm 10W 830 G5 10 W 220…240 V 50000 h 1350 lm 21 W 190 ° No
LED TUBE T5 AC HE21 P 849 mm 11W 840 G5 11 W 220…240 V 50000 h 1700 lm 21 W 190 ° No
LED TUBE T5 AC HE21 P 849 mm 10W 840 G5 10 W 220…240 V 50000 h 1500 lm 21 W 190 ° No
LED TUBE T5 AC HE21 P 849 mm 11W 865 G5 11 W 220…240 V 50000 h 1700 lm 21 W 190 ° No
LED TUBE T5 AC HE21 P 849 mm 10W 865 G5 10 W 220…240 V 50000 h 1500 lm 21 W 190 ° No
LED TUBE T5 AC HO24 P 549 mm 11W 830 G5 11 W 220…240 V 50000 h 1550 lm 24 W 190 ° No
LED TUBE T5 AC HO24 P 549 mm 10W 830 G5 10 W 220…240 V 50000 h 1350 lm 24 W 190 ° No
LED TUBE T5 AC HO24 P 549 mm 11W 840 G5 11 W 220…240 V 50000 h 1700 lm 24 W 190 ° No
LED TUBE T5 AC HO24 P 549 mm 10W 840 G5 10 W 220…240 V 50000 h 1500 lm 24 W 190 ° No
LED TUBE T5 AC HO24 P 549 mm 11W 865 G5 11 W 220…240 V 50000 h 1700 lm 24 W 190 ° No
LED TUBE T5 AC HO24 P 549 mm 10W 865 G5 10 W 220…240 V 50000 h 1500 lm 24 W 190 ° No
LED TUBE T5 AC HE28 P 1149 mm 16W 830 G5 16 W 220…240 V 50000 h 2150 lm 28 W 190 ° No
LED TUBE T5 AC HE28 P 1149 mm 16W 840 G5 16 W 220…240 V 50000 h 2400 lm
LED TUBE T5 AC HE28 P 1149 mm 16W 865 G5 16 W 220…240 V 50000 h 2400 lm 28 W 190 ° No
LED TUBE T5 AC HE35 P 1449 mm 18W 830 G5 18 W 220…240 V 50000 h 2550 lm 35 W 190 ° No
LED TUBE T5 AC HE35 P 1449 mm 18W 840 G5 18 W 220…240 V 50000 h 2800 lm
LED TUBE T5 AC HE35 P 1449 mm 18W 865 G5 18 W 220…240 V 50000 h 2800 lm 35 W 190 ° No
LED TUBE T5 AC HO39 P 849 mm 18W 830 G5 18 W 220…240 V 50000 h 2550 lm 39 W 190 ° No
LED TUBE T5 AC HO39 P 849 mm 16W 830 G5 16 W 220…240 V 50000 h 2160 lm 39 W 190 ° No
LED TUBE T5 AC HO39 P 849 mm 18W 840 G5 18 W 220…240 V 50000 h 2800 lm 39 W 190 ° No
LED TUBE T5 AC HO39 P 849 mm 16W 840 G5 16 W 220…240 V 50000 h 2400 lm 39 W 190 ° No
LED TUBE T5 AC HO39 P 849 mm 18W 865 G5 18 W 220…240 V 50000 h 2800 lm 39 W 190 ° No
LED TUBE T5 AC HO39 P 849 mm 16W 865 G5 16 W 220…240 V 50000 h 2400 lm 39 W 190 ° No
LED TUBE T5 AC HO49 P 1449 mm 26W 830 G5 26 W 220…240 V 50000 h 3600 lm 49 W 190 ° No
LED TUBE T5 AC HO49 P 1449 mm 26W 840 G5 26 W 220…240 V 50000 h 4000 lm 49 W 190 ° No
LED TUBE T5 AC HO49 P 1449 mm 26W 865 G5 26 W 220…240 V 50000 h 4000 lm 49 W 190 ° No
LED TUBE T5 AC HO54 P 1149 mm 26W 830 G5 26 W 220…240 V 50000 h 3600 lm 54 W 190 ° No
LED TUBE T5 AC HO54 P 1149 mm 26W 840 G5 26 W 220…240 V 50000 h 4000 lm 54 W 190 ° No
LED TUBE T5 AC HO54 P 1149 mm 26W 865 G5 26 W 220…240 V 50000 h 4000 lm 54 W 190 ° No
LED TUBE T5 AC HO80 P 1449 mm 36W 830 G5 36 W 220…240 V 50000 h 5050 lm
LED TUBE T5 AC HO80 P 1449 mm 36W 840 G5 36 W 220…240 V 50000 h 5600 lm 80 W 190 ° No
LED TUBE T5 AC HO80 P 1449 mm 36W 865 G5 36 W 220…240 V 50000 h 5600 lm 80 W 190 ° No


LED TUBE T5 AC HO49 P 1449 mm 26W 830

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
View all details
Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 26 W
Construction wattage 26.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 116 mA
Type of current AC
Inrush current 16 A
Suitable for DC input Yes
Input voltage DC 186…260 V 1)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 20
Max. lamp number on MCB B16 A 26
Total harmonic distortion 20 %
Power factor λ > 0.90

1) Permitted voltage range

Photometrical data

Luminous flux 3600 lm
Luminous efficacy 138 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 2.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 1463.00 mm
Length with base excl. base pins/connection 1449.00 mm
Diameter 19.00 mm
Tube diameter 16 mm
Maximum diameter 19 mm
Product weight 200.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 72 °C
Performance temp. acc. to IEC 62717 62 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Lifespan L80/B50 at 25 °C 50000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 26.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T5 AC H

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power No
Length 1463.00 mm
Height 19.00 mm
Width 19.00 mm
Chromaticity coordinate x 0.434
Chromaticity coordinate y 0.403
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 1408609,2209909
Model number AC46709,AC71257

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Offices, public buildings
  • Supermarkets and department stores
  • Industry
Product features
  • LED replacement for T5 fluorescent lamps with G5 base on AC mains
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • High color consistency: ≤ 5 sdcm
  • Lifetime up to 50,000 h
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Type of protection: IP20
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • After rewiring of a luminaire the installer will be responsible for all technical and safety consequences.
  • All electrical connections must be made by a qualified person.
  • Disconnect mains before installation.
  • Lamp not suitable for emergency operation.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075824171 Sleeve
1		 1,465 mm x 20 mm x 24 mm 226.00 g 0.70 dm³
4058075824188 Shipping box
10		 1,545 mm x 140 mm x 85 mm 2840.00 g 18.39 dm³
User instruction / safety instructions
LED TUBE T5 AC MAINS PDF (3.23 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LED TUBE T5 AC PDF (391.19 KB)
Declarations of conformity
LEDTUBE PDF (268.71 KB)
EPD
ENVIRONMENTAL PRODUCT DECLARATION LED TUBE T 5 AC MAINS P PDF (649.79 KB)
EPD
ENVIRONMENTAL PRODUCT DECLARATION HIGH BAY C OMPACT PDF (617.95 KB)
Product image: white background, diagonal with LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (906.84 KB)
Product image: white background, diagonal
LED TUBE T5 AC HF JPG (877.8 KB)
Product image: white background, horizontal, LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (684.83 KB)
Product image: white background, horizontal
LED TUBE T5 AC HF JPG (653.78 KB)
Product image: white background, upright LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (685.13 KB)
Product image: white background, upright
LED TUBE T5 AC HF JPG (654.05 KB)
Product line drawing with letters
LED TUBE T5 AC HF SVG (13.26 KB)
Product line drawing with numbers
LEDTUBET5 AC P SVG (12.98 KB)
Product line drawing - technical
LEDTUBE T5 HF_AC SVG (7.5 KB)
Catalog info 6
LEDTUBE T5 AC HO49 SVG (40.12 KB)
Energy label
EL-4058075824171-AC467 09 PDF (21.51 KB)
Energy label
EL-4058075824171-AC712 57 PDF (21.33 KB)
Logos and pictos
D left SVG (1.8 KB)
Logos and pictos
D left BW SVG (1.07 KB)
Logos and pictos
D right SVG (1.77 KB)
Logos and pictos
D right BW SVG (1.07 KB)
IES file (IES)
LEDTUBE T5 AC HO49 P 1 449 26W 830 LEDV IES (14.42 KB)
LDT file (Eulumdat)
LEDTUBE T5 AC HO49 P 1 449 26W 830 LEDV LDT (10.88 KB)

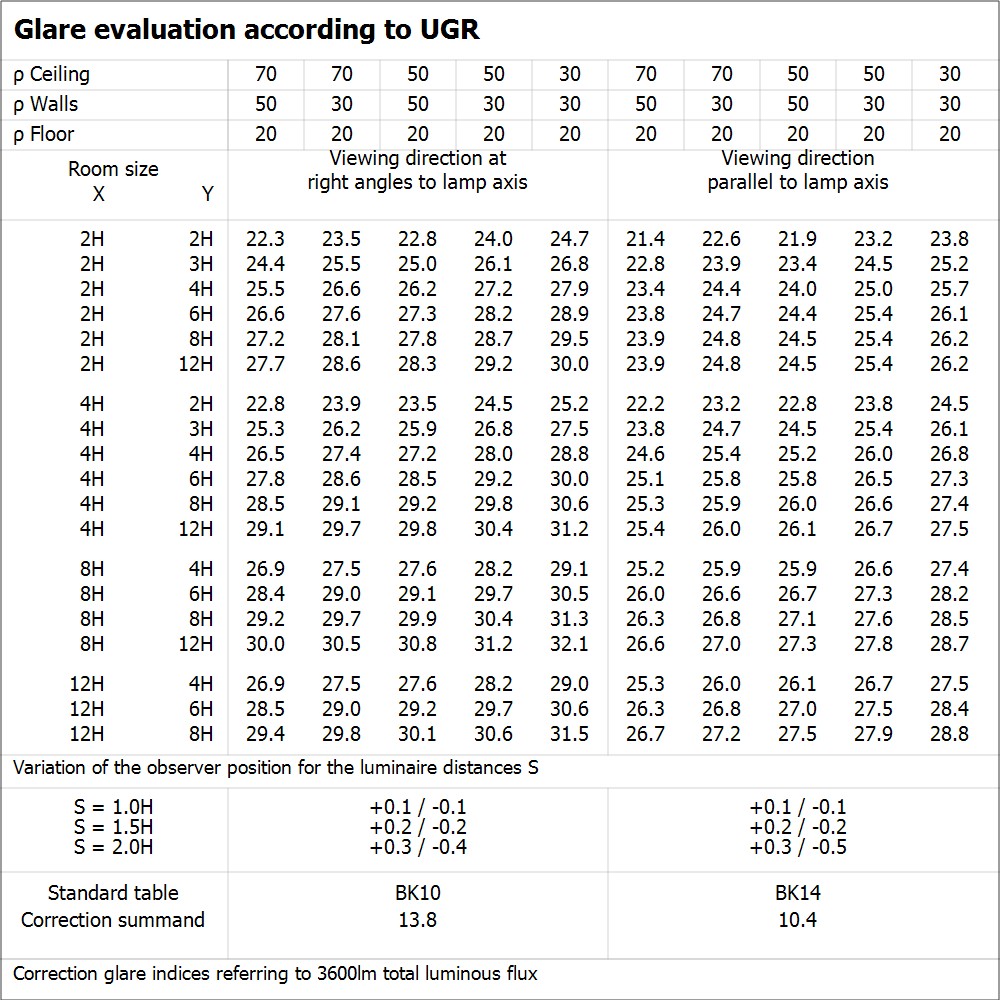

UGR file (UGR table)
LEDTUBE T5 AC HO49 P 1 449 26W 830 LEDV PNG (64.13 KB)
Light distribution curve type polar
LEDTUBE T5 AC HO49 P 1 449 26W 830 LEDV SVG (20.02 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 3000K PNG (115.07 KB)
EAN SEG number STK number EFO number ELDAS number
4058075824171 8298556 4935203 3750220 941818800

LIÊN HỆ BỘ PHẬN   BÁN HÀNG

Hãy liên hệ với đại diện bán hàng của chúng tôi để biết thêm thông tin về các giải pháp, dịch vụ hỗ trợ cá nhân và các cơ hội tăng trưởng tuyệt vời. Đưa doanh nghiệp của bạn lên tầm cao mới!.



Liên hệ với chúng tôi ngay hôm nay
Chia sẻ trang trên mạng xã hội
