Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|

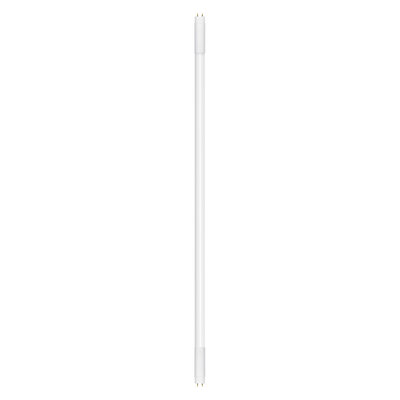

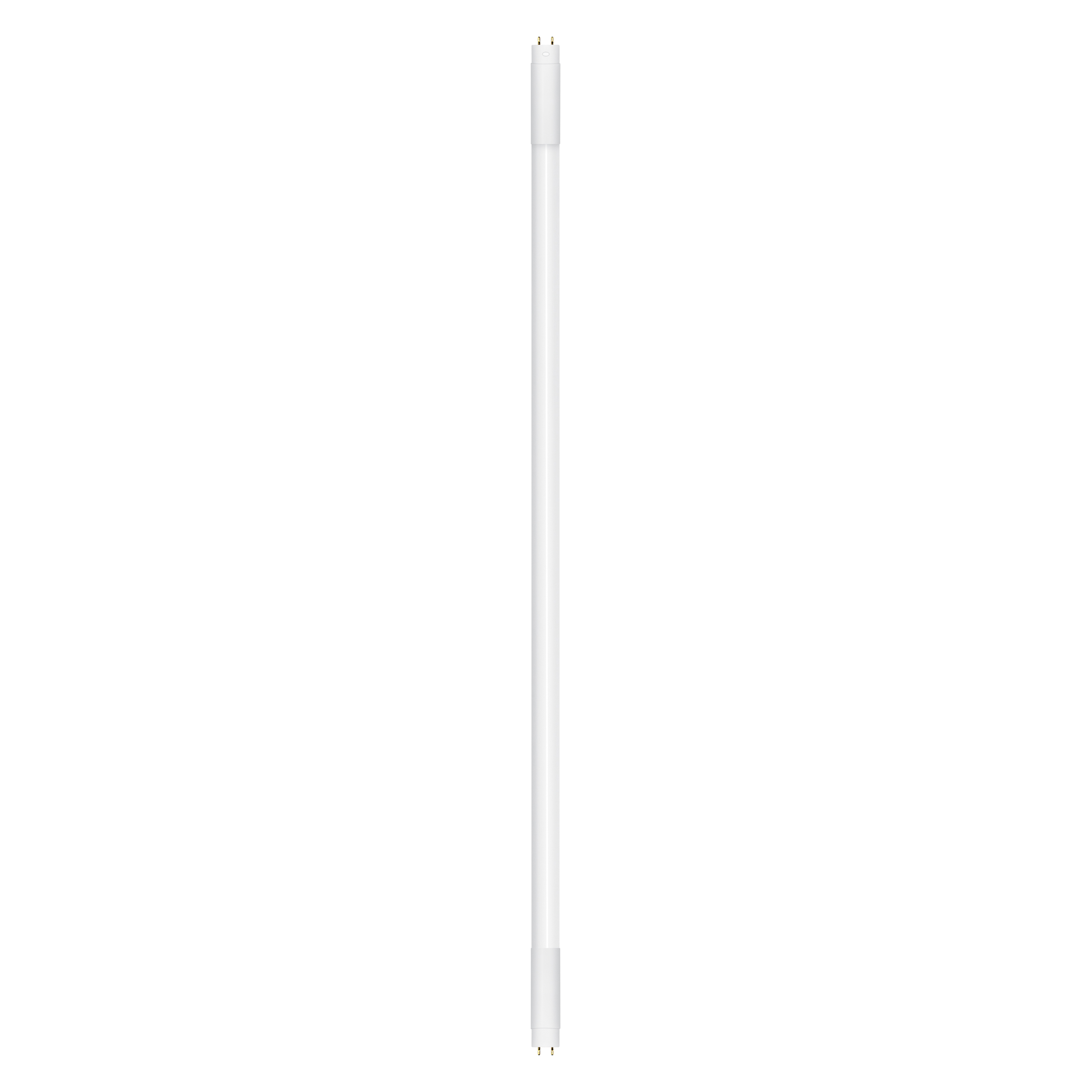

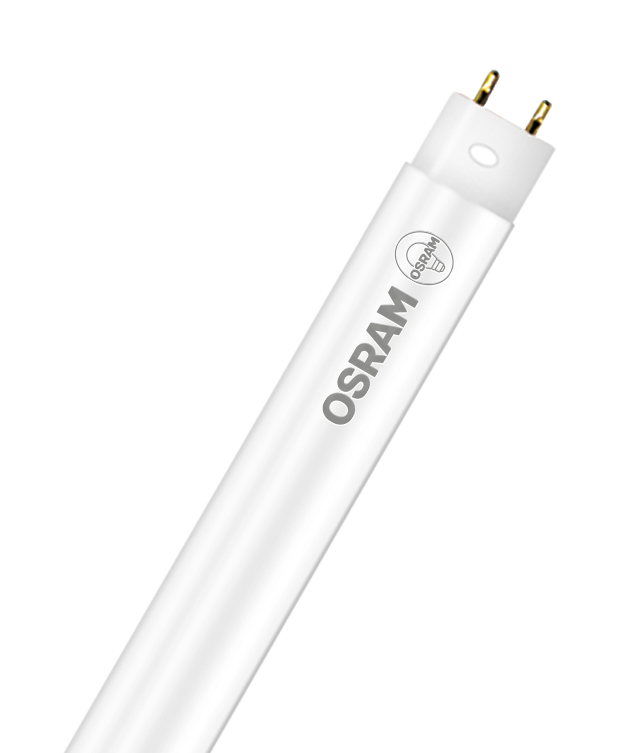

| SubstiTUBE T8 EM Connected 7.5 W/4000 K 600 mm | G13 | 7.5 W | 220…240 V | 50000 h | 1100 lm | 18 W | 160 ° | Yes |
| SubstiTUBE T8 EM Connected 7.5 W/6500 K 600 mm | G13 | 7.5 W | 220…240 V | 50000 h | 1100 lm | 18 W | 160 ° | Yes |
| SubstiTUBE T8 EM Connected 16 W/4000 K 1200 mm | G13 | 16 W | 220…240 V | 50000 h | 2400 lm | 36 W | 160 ° | Yes |
| SubstiTUBE T8 EM Connected 16 W/6500 K 1200 mm | G13 | 16 W | 220…240 V | 50000 h | 2400 lm | 36 W | 160 ° | Yes |
| SubstiTUBE T8 EM Connected 24 W/4000 K 1500 mm | G13 | 24 W | 220…240 V | 50000 h | 3600 lm | 58 W | 160 ° | Yes |
| SubstiTUBE T8 EM Connected 24 W/6500 K 1500 mm | G13 | 24 W | 220…240 V | 50000 h | 3600 lm | 58 W | 160 ° | Yes |
| Nominal wattage | 7.5 W |
| Construction wattage | 7.50 W |
| Nominal voltage | 220…240 V |
| Operating mode | Conventional control gear (CCG), Line voltage |
| Nominal current | 38 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Total harmonic distortion | < 20 % |
| Power factor λ | > 0.90 |
| Luminous flux | 1100 lm |
| Luminous efficacy | 146 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 80 |
| Light color | 840 |
| Standard deviation of color matching | ≤5 sdcm |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0,4 |
| Beam angle | 160 ° |
| Warm-up time (60 %) | ‹ 2.00 s |
| Starting time | < 0.5 s |
| Overall length | 603.00 mm |
| Length with base excl. base pins/connection | 590,00 mm |
| Diameter | 28.00 mm |
| Tube diameter | 26,5 mm |
| Base diameter | 28,0 mm |
| Maximum diameter | 28 mm |
| Product weight | 117.00 g |
| Ambient temperature range | -20…+50 °C |
| Lifespan L70/B50 at 25 °C | 50000 h |
| Number of switching cycles | 200000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
| Base (standard designation) | G13 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Dimmable | Yes |
| Energy efficiency class | D 1) |
| Energy consumption | 8.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
| Order reference | LEDTUBE T8 EM C |
| Temperature range at storage | -20…+80 °C |
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | G13 |
| Connected light source (CLS) | Yes |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | <0,5 W |
| Claim of equivalent power | No |
| Length | 603.00 mm |
| Height | 28.00 mm |
| Width | 28.00 mm |
| Chromaticity coordinate x | 0,382 |
| Chromaticity coordinate y | 0,380 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| Displacement factor | 0.9 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 642878 |
| Model number | AC35443 |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075187337 | Sleeve 1 |
695 mm x 29 mm x 29 mm | 135.00 g | 0.58 dm³ |
| 4058075187344 | Shipping box 10 |
742 mm x 210 mm x 115 mm | 1779.00 g | 17.92 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075187337 | 8294816 | 4731176 | 3720502 | 941804020 |
