Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

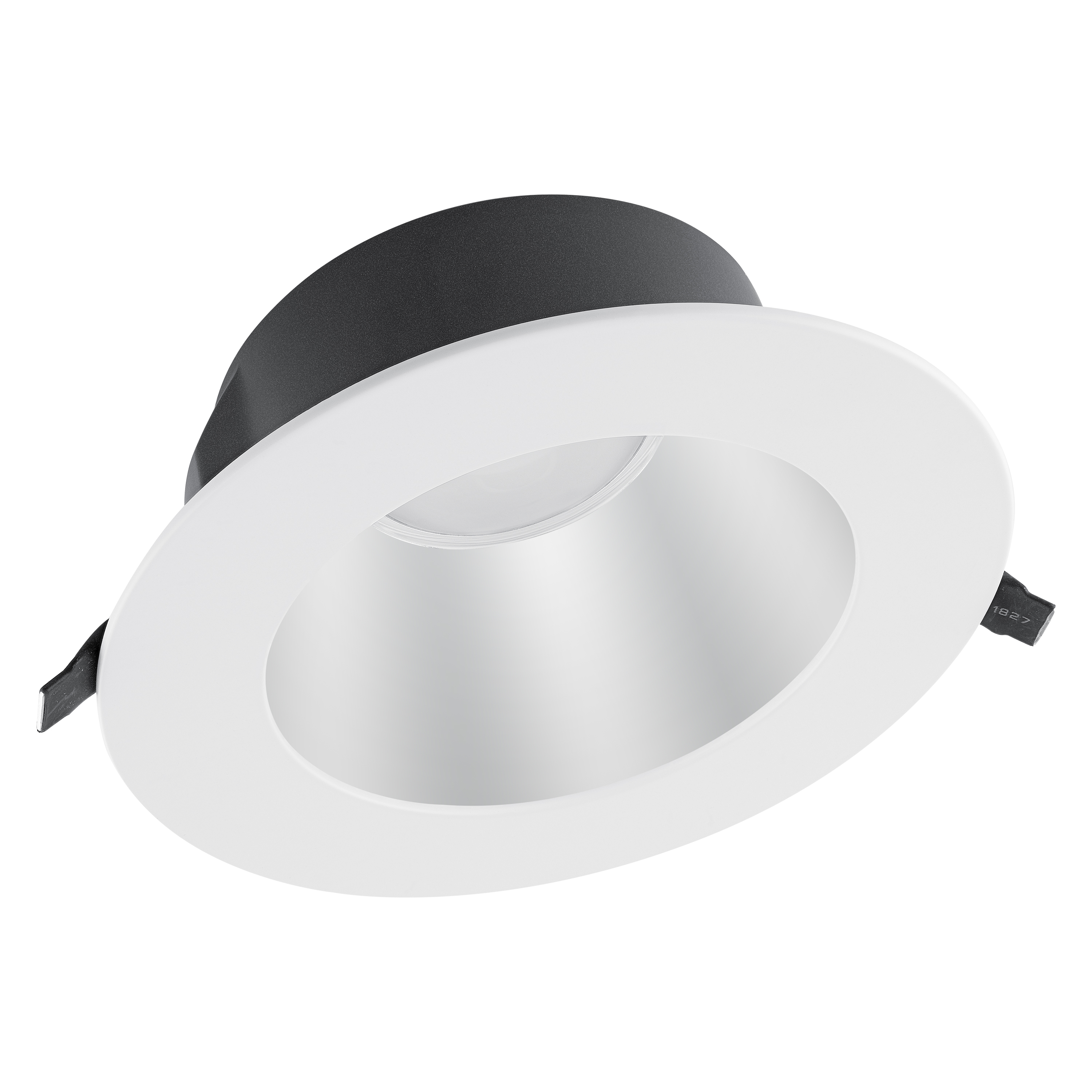

| DL UGR19 PFM DN195 21 W 840 WT IP54 ZBVR | 21.00 W | 100000 | 65 ° | 2520 lm | Yes |
| DL UGR19 PFM DN155 14 W 840 WT IP54 ZBVR | 14.00 W | 100000 | 65 ° | 1600 lm | Yes |
| Nominal wattage | 21.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 170 mA |
| Inrush current | 30 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 120 |
| Max. number of luminaires per miniature circuit breaker C10 | 80 |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 2520 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 65 ° |
| UGR | < 19 |
| Diameter | 220.00 mm |
| Height | 82.00 mm |
| Product weight | 900.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Screwless terminal, 5-Pole (L, N, PE, DA+, DA-) |
| Type of protection | IP54/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | ZIGBEE |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 195,0 mm |
| Mounting depth | 120 mm |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 60000 h 1) |
| Lifespan L90/B10 at 25 °C | 40000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 700 mA |
| ECG - Output ripple current | ≤ 10 % |
| ECG - Length | 180 mm |
| ECG - Width | 44 mm |
| ECG - Height | 33 mm |
| Standards | CE, CB, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | Not relevant |
| Added function | VIVARES |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075459397 | Folding box 1 |
262 mm x 108 mm x 266 mm | 1197.00 g | 7.53 dm³ |
| 4058075459403 | Shipping box 16 |
545 mm x 452 mm x 563 mm | 20749.00 g | 138.69 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075459397 | 7474939 | 4127128 | 3203825 | 941402720 |
