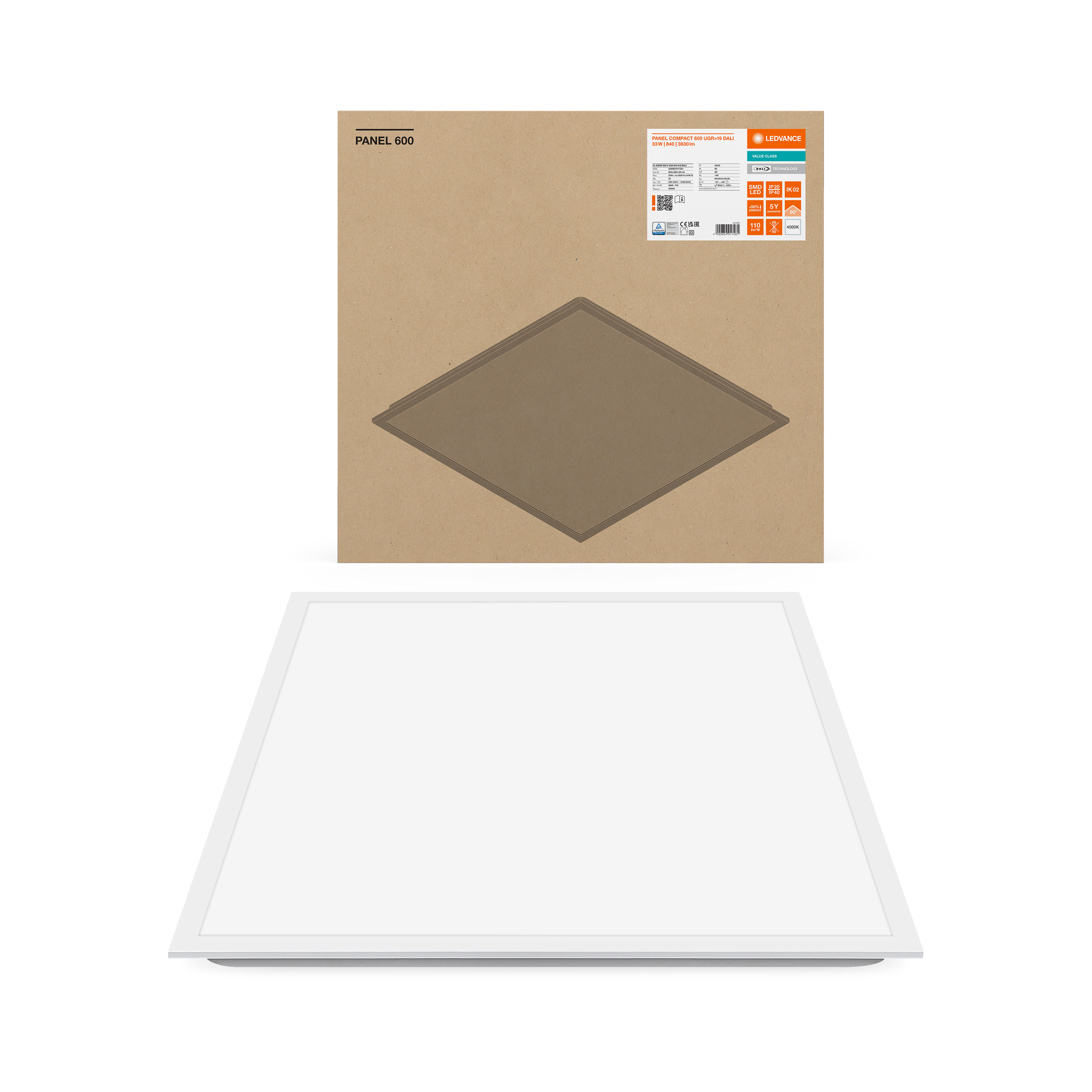

PANEL COMPACT 600 UGR<19 DALI

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PL COMP 600 V 33W 830 U19 DALI 33.00 W 50000 90 ° 3630 lm Yes
PL COMP 600 V 33W 840 U19 DALI 33.00 W 50000 90 ° 3630 lm Yes
PL COMP 600 V 33W 865 U19 DALI 33.00 W 50000 90 ° 3630 lm Yes


PL COMP 600 V 33W 840 U19 DALI

Product benefits
  • Good glare reduction (UGR < 19)
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Suitable for emergency lighting
  • 5 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 190.000 mA
Inrush current 1.7 A
Inrush current time Th50 52 µs
Max. number of luminaires per miniature circuit breaker B16 83
Max. number of luminaires per miniature circuit breaker C10 52
Max. number of luminaires per miniature circuit breaker C16 83
Power factor λ > 0.90
Total harmonic distortion < 10 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3630 lm
Luminous efficacy 110 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 90 °

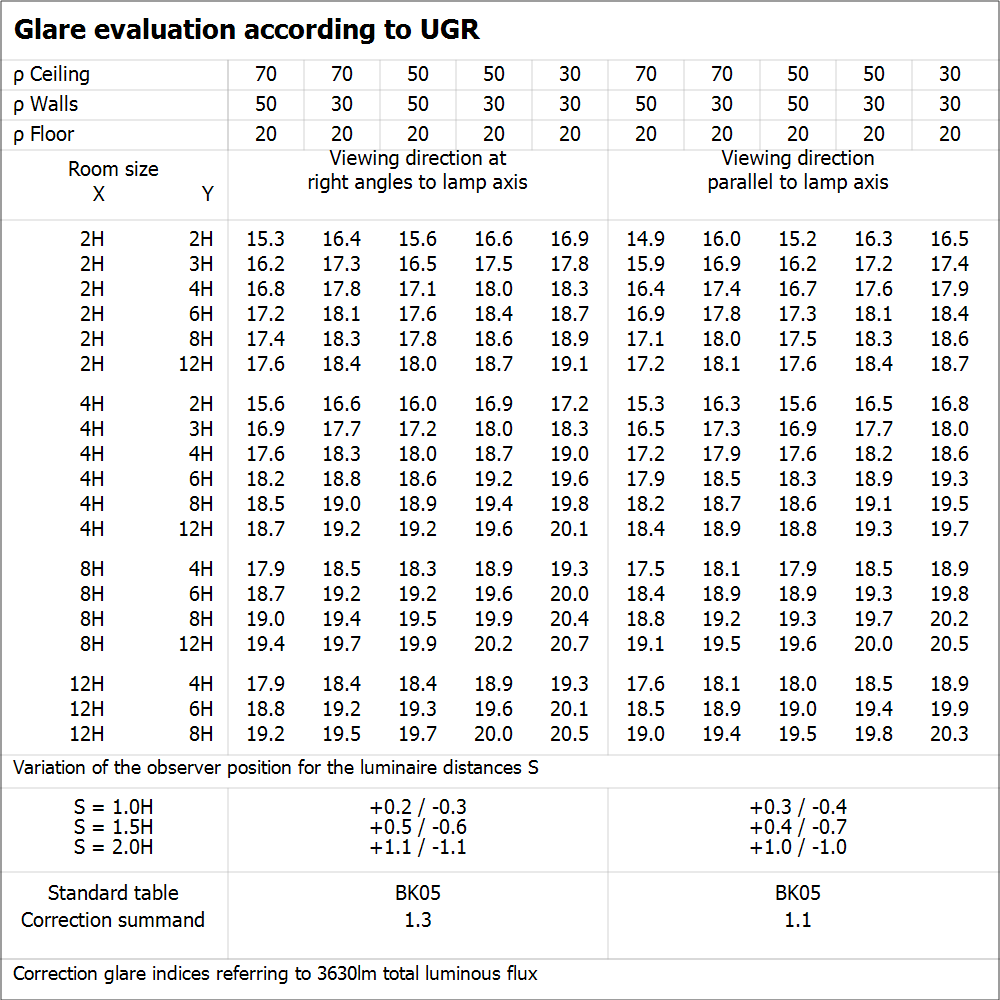

UGR < 19

Dimensions & Weight

Length 595.00 mm
Height 32.00 mm
Width 595.00 mm
Product weight 1790.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polystyrene
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+45 °C
Temperature range at storage -20…+70 °C
Type of connection Screwless terminal, 4-Pole (L,N, DA+, DA-)
Type of protection IP40/IP20
Protection class IK (shock resistance) IK02
Dimmable Yes
Type of dimming DALI2
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
Adjustable No
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 40000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 700 mA
ECG - Output ripple current < 7 %
ECG - Length 168 mm
ECG - Width 49.9 mm
ECG - Height 32 mm
Recommended control gear LEDV DR DALI-P-44/220-240/1050; Tridonic LCA 45W 500-1400mA one4all SC PRE

Emergency lighting

Wattage in emergency operation mode 5 W
Luminous flux in emergency operation mode 400 lm

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00008-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Good glare reduction (UGR < 19)
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Suitable for emergency lighting
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps

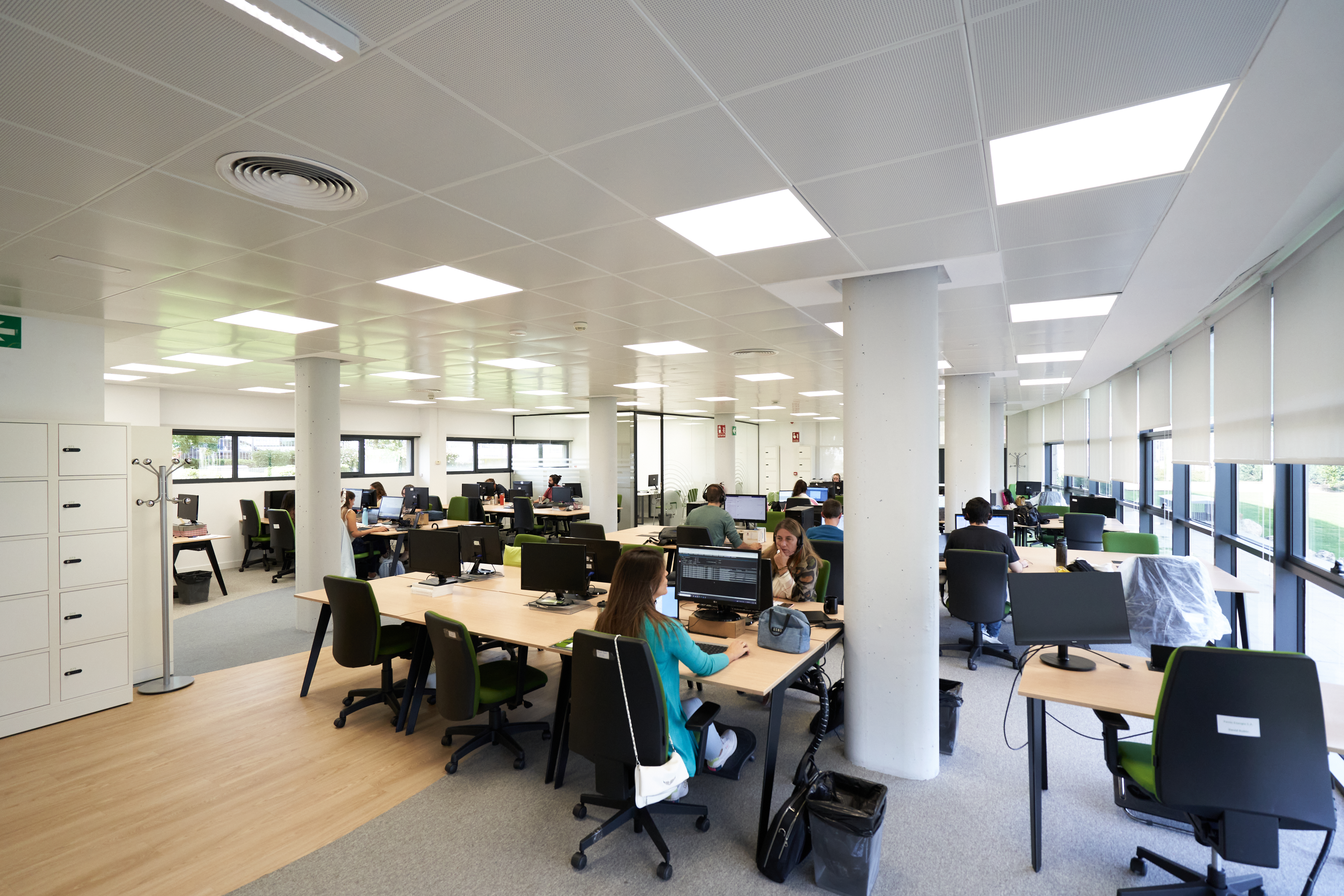

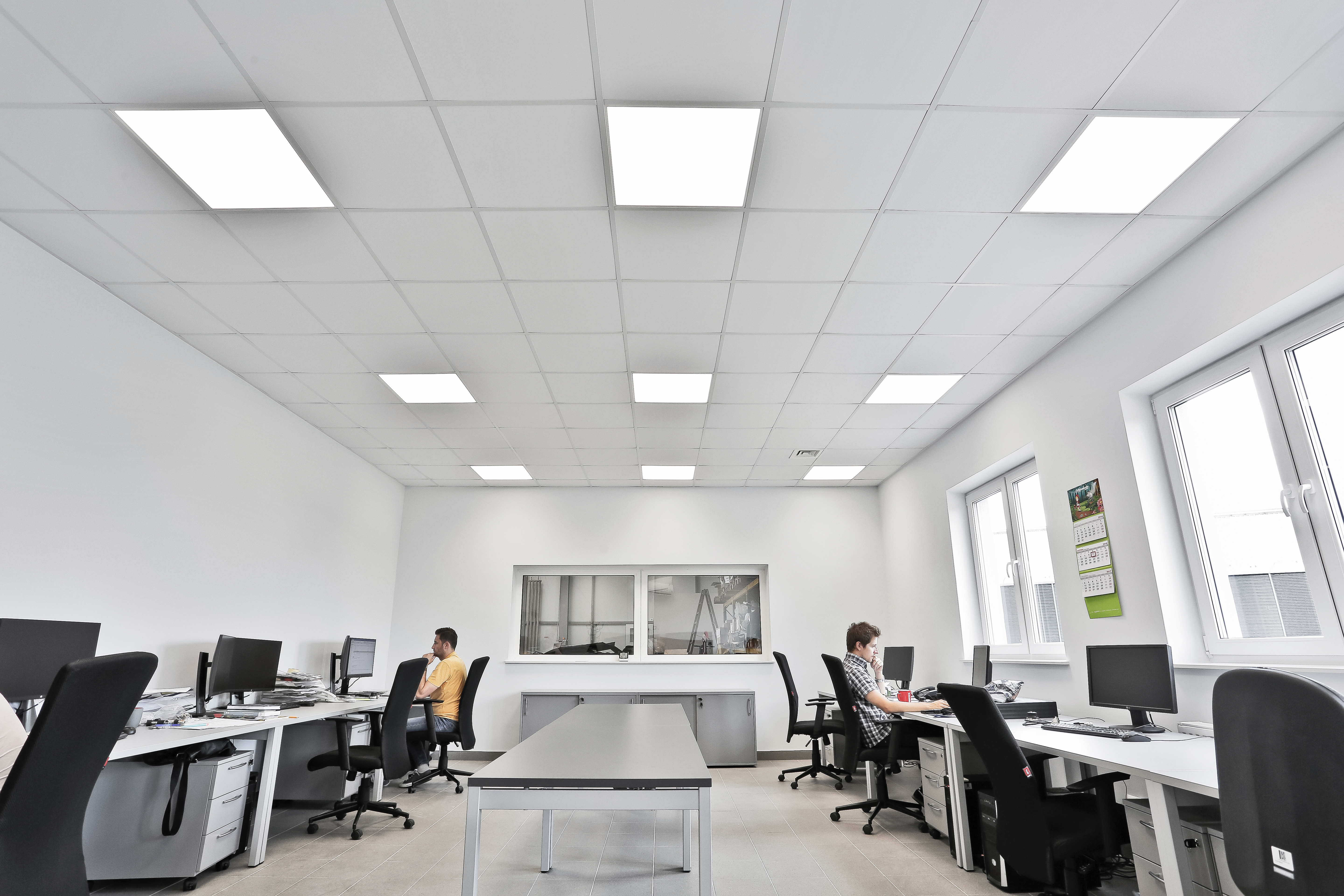

  • Offices, conference rooms

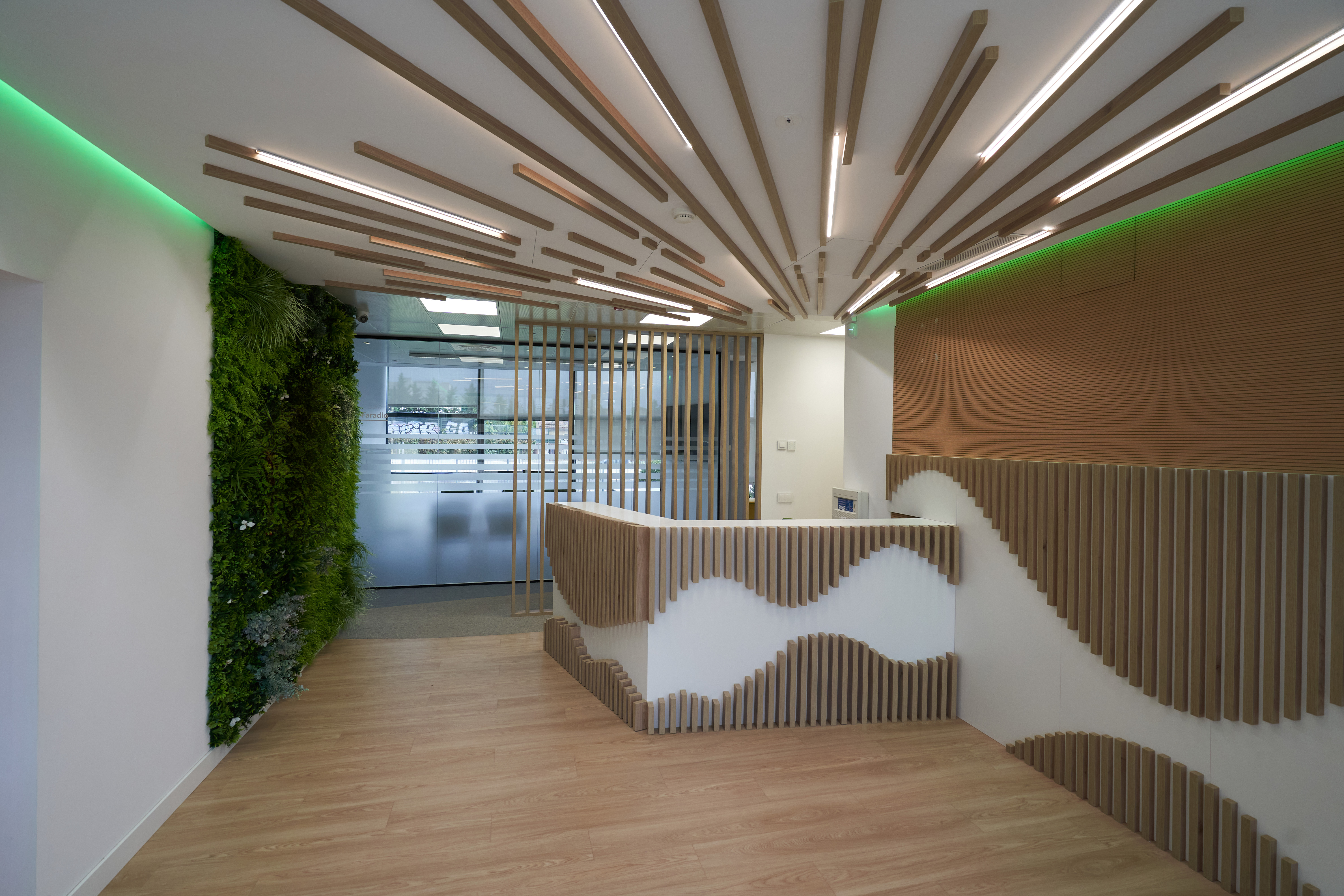

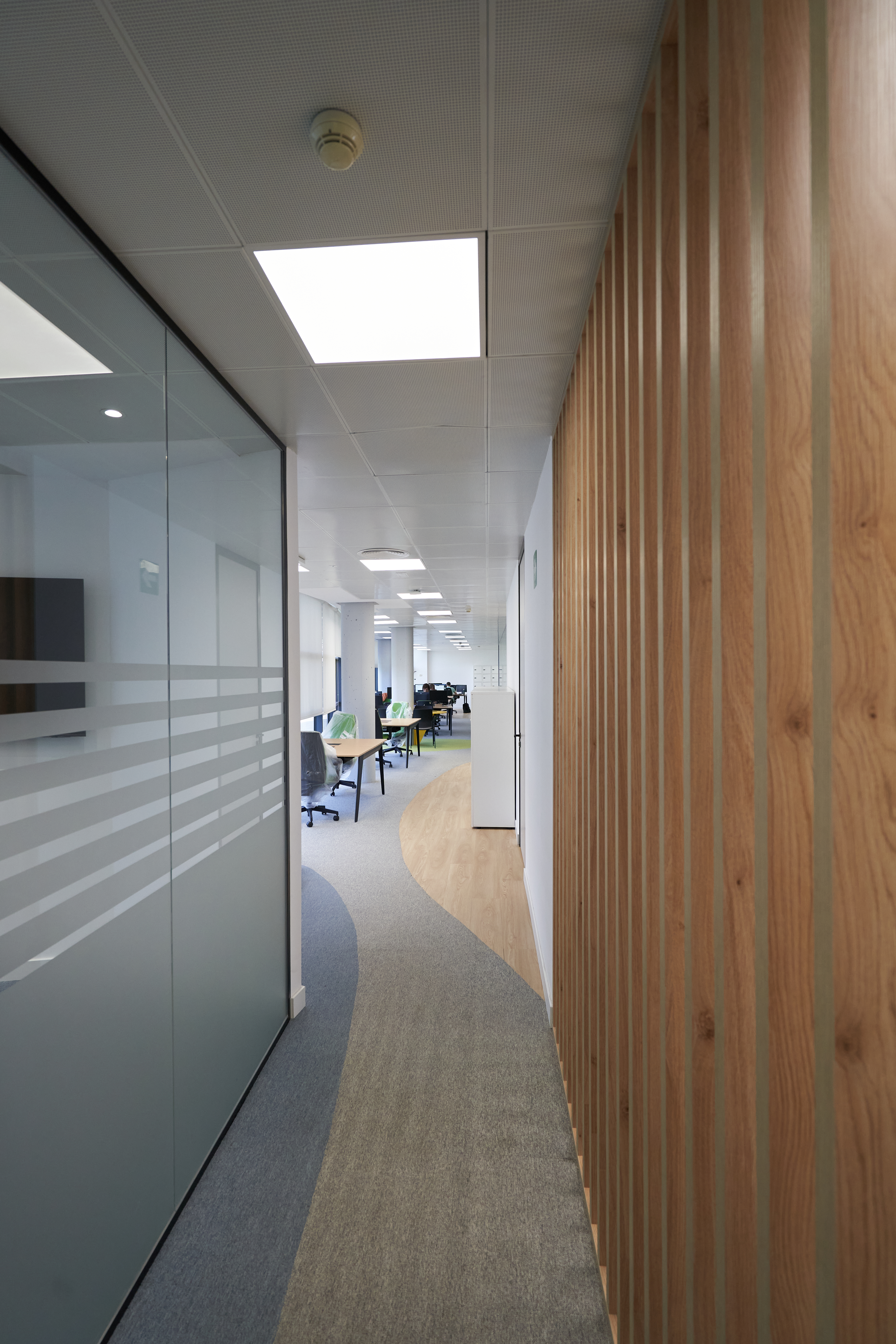

  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Push DIM function for dimming and switching directly on a pushbutton
  • Extruded aluminum frame
  • Polystyrene diffuser
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with seperate Emergency Conversion Box
  • Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

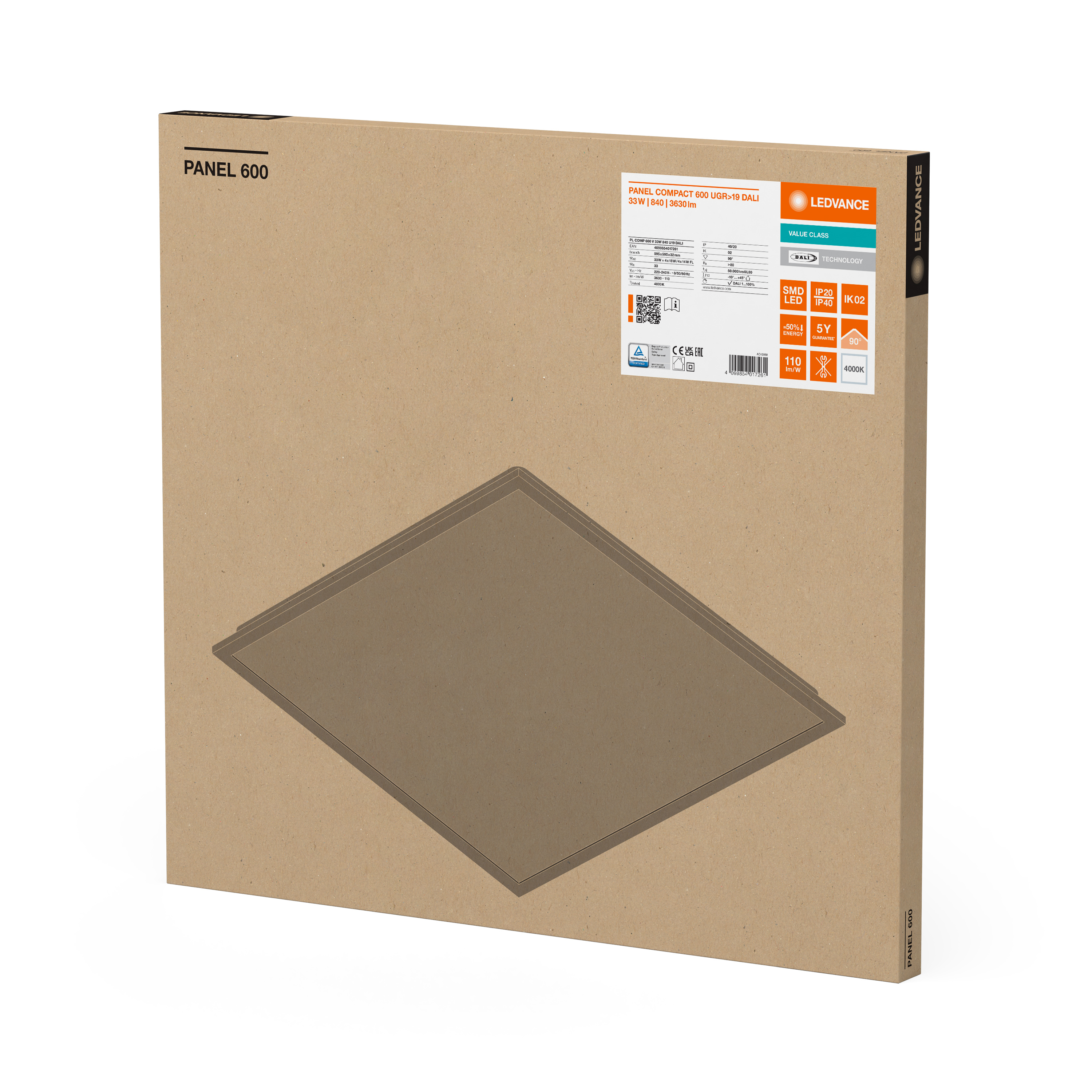

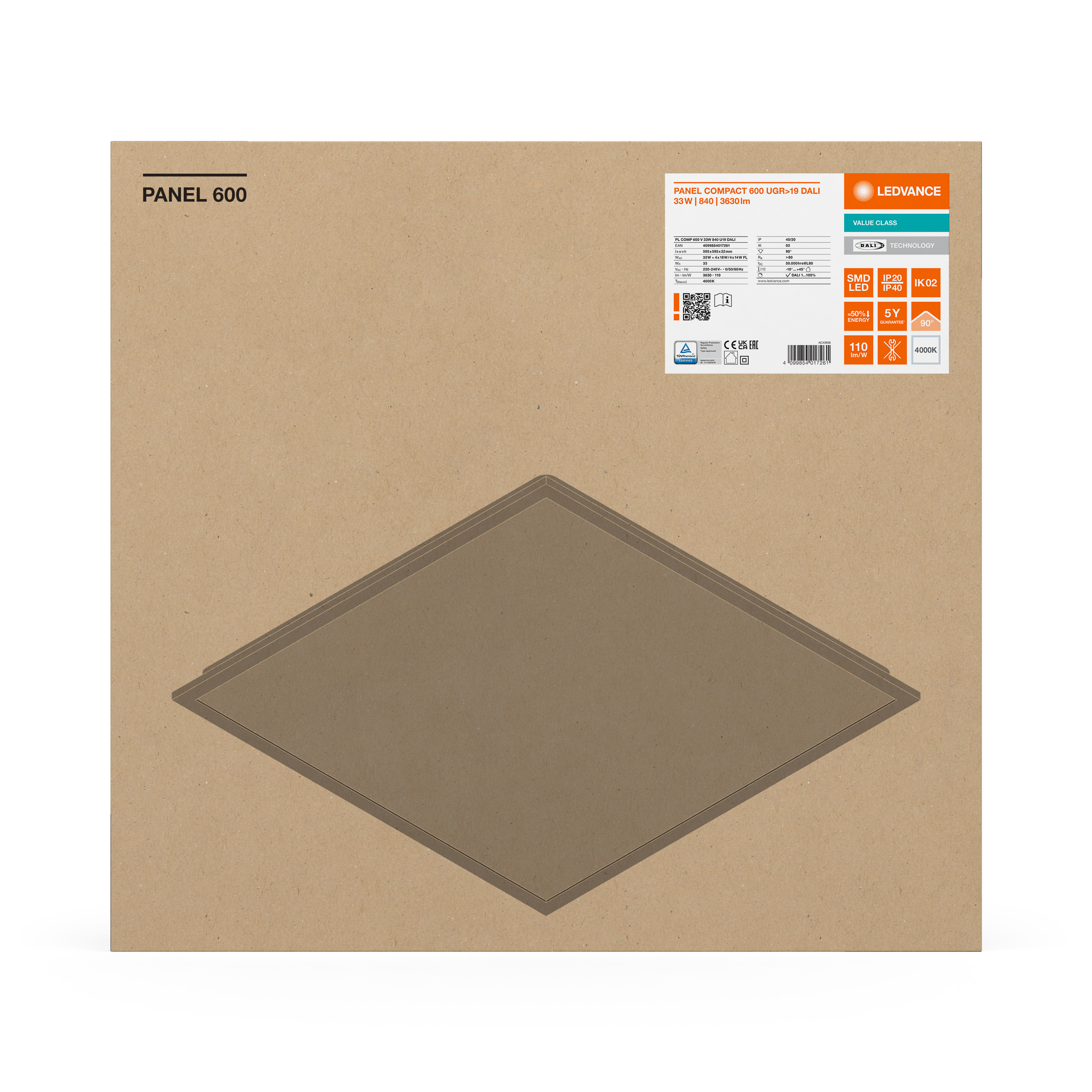

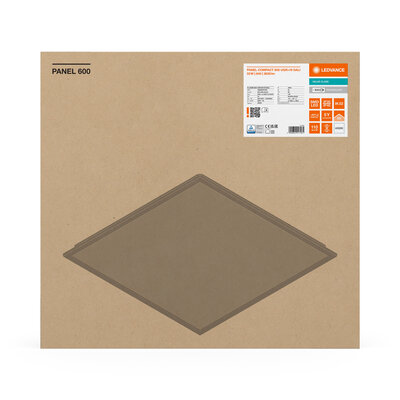

4099854017261 Folding box
1
37 mm x 600 mm x 660 mm 2154.00 g 14.65 dm³
4099854017278 Shipping box
4
680 mm x 168 mm x 625 mm 9546.00 g 71.40 dm³
Product image Product name EAN
DR DALI - P -44/220-240/1050 4058075779723
DR AY ZB+DALI CLAMP DUO 4058075483125
EM CONVERSION BOX 4058075237025
PANEL 600 SURFACE MOUNT KIT H75 4058075472914
PANEL 600 SURFACE MOUNT KIT H70 VAL 4058075402843
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
PANEL 600 RECESSED MOUNT FRAME 4058075402881
PANEL Suspension Kit 4058075402928
CONNECTOR BOX 5POLE L/N/PE/D+/D- 4x 4058075473034
EAN SEG number STK number EFO number ELDAS number
4099854017261 7024394 4136235 3310272 941322190
