Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| PL COMP 600 V 35W 830 840 U19 PS | 35.0 W / 30 W | 50000 | 90 ° | 3300 lm / 3850 lm | No |
| Nominal wattage | 35.0 W / 30 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 170.000 mA |
| Inrush current | 12,3 A |
| Inrush current time Th50 | 52 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 61 |
| Max. number of luminaires per miniature circuit breaker C10 | 48 |
| Max. number of luminaires per miniature circuit breaker C16 | 78 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 10 % |
| Protection class | II |
| Operating mode | External LED driver |

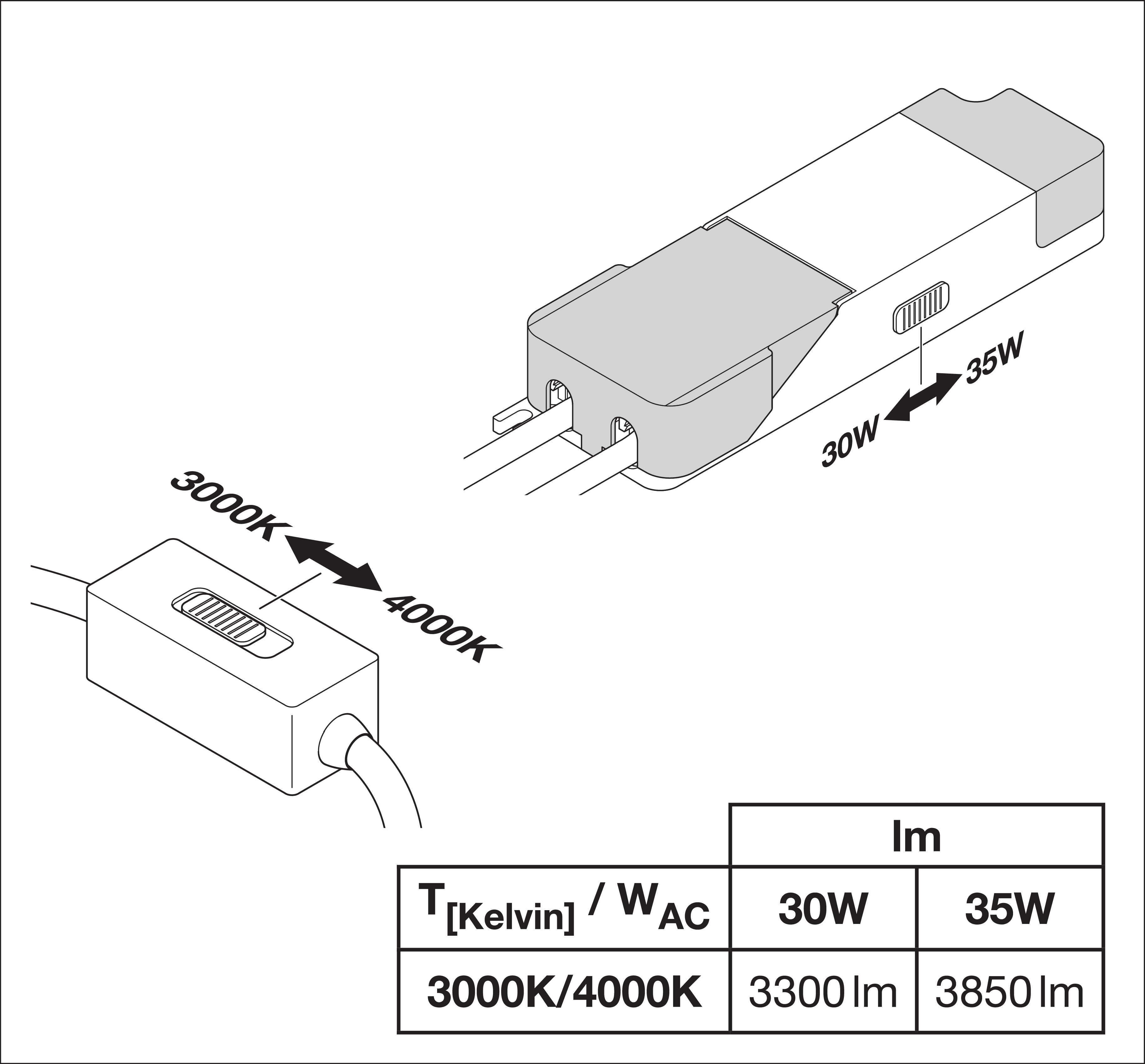

| Luminous flux | 3300 lm / 3850 lm |
| Luminous efficacy | 110 lm/W |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool white |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 90 ° |

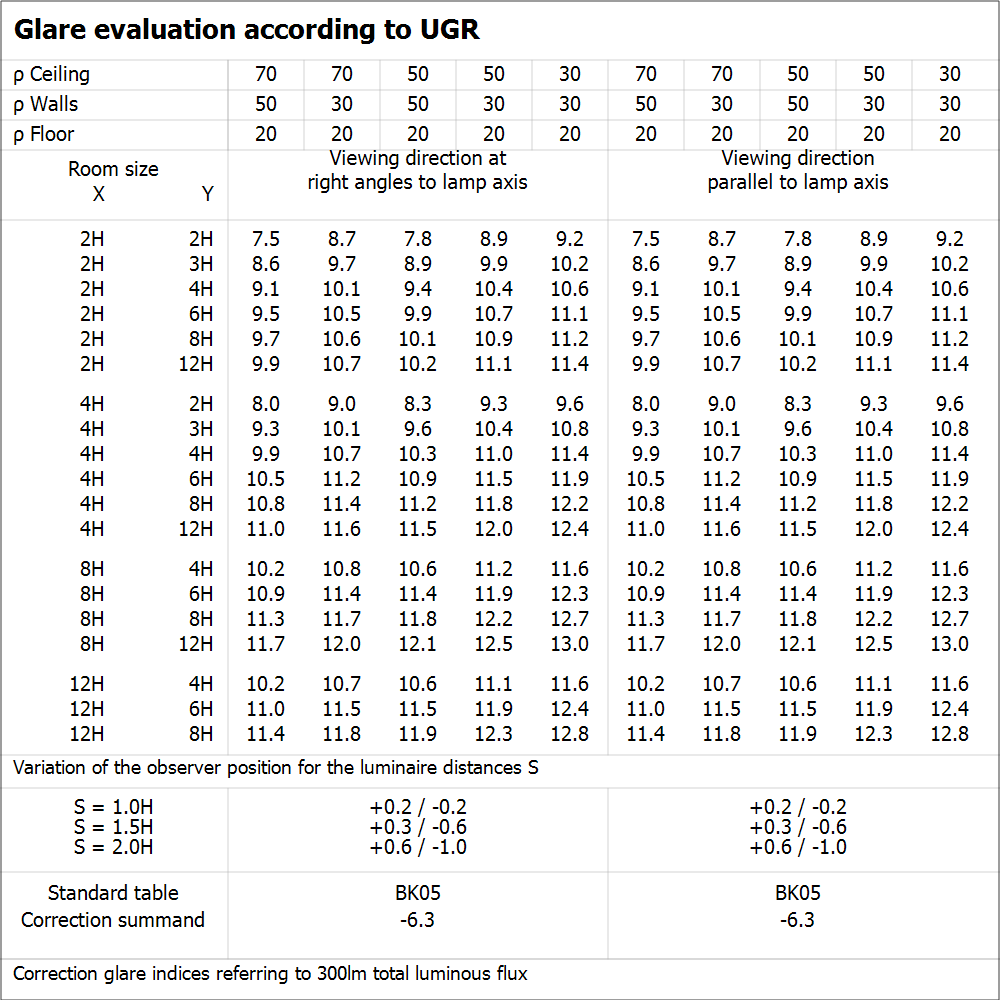

| UGR | < 19 |
| Length | 595.00 mm |
| Height | 32.00 mm |
| Width | 595.00 mm |
| Product weight | 1750.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polystyrene (PS) |
| Light emitting surface material | Polystyrene |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+50 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal, 2-Pole (L, N) |
| Type of protection | IP40/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed/Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 575 mm |
| Mounting width | 595.00 mm |
| Mounting depth | 50,0 mm |
| Adjustable | No |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 40000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 730 mA |
| ECG - Output ripple current | < 5 % |
| ECG - Length | 116.7 mm |
| ECG - Width | 44 mm |
| ECG - Height | 30,0 mm |

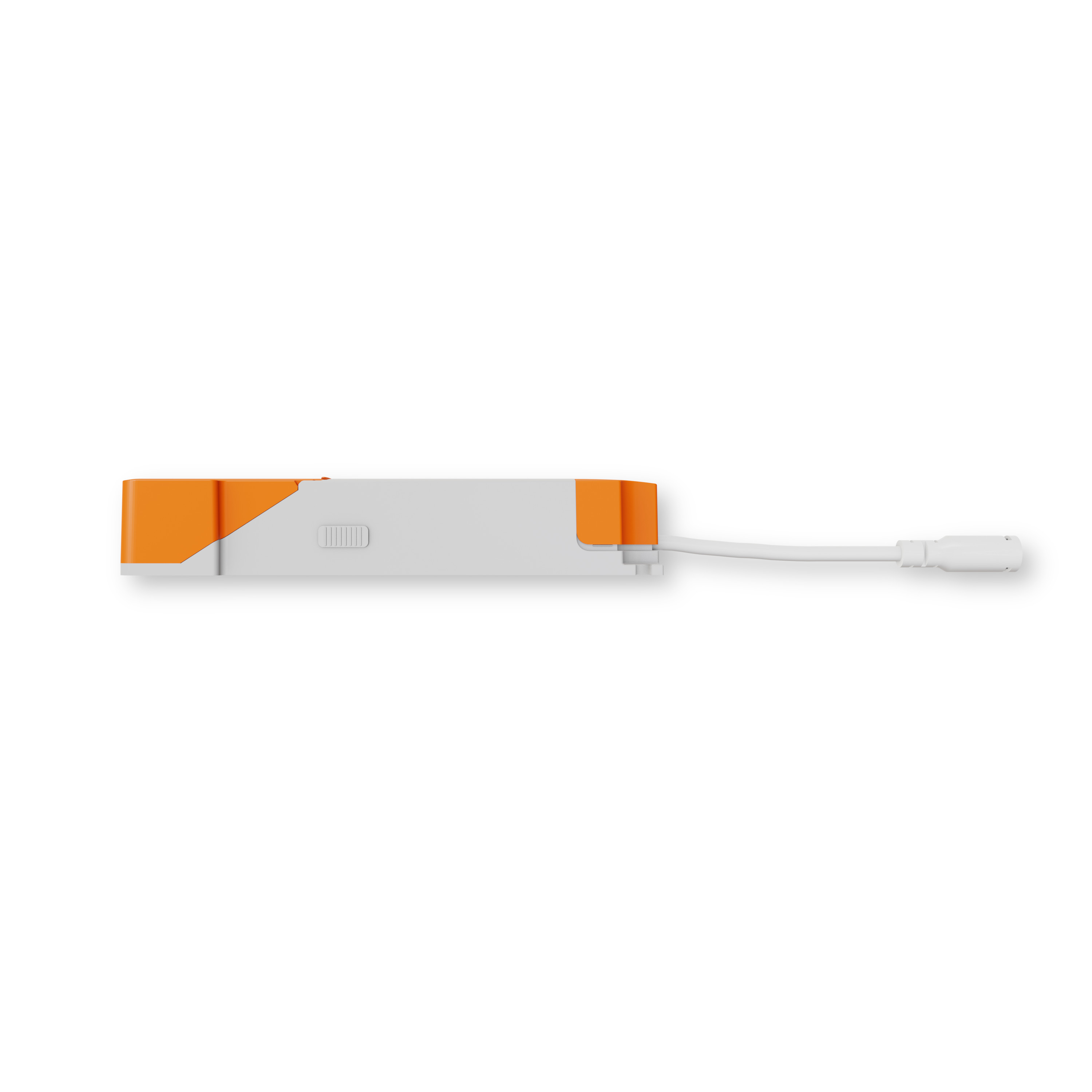

| Recommended control gear | LEDV DR DALI-P-44/220-240/1050 |

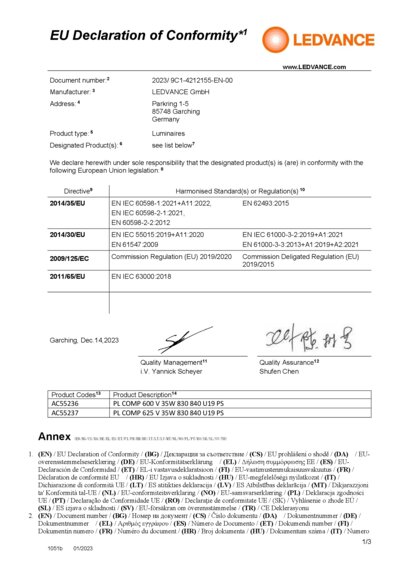

| Standards | CE, CB, ENEC, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Added function | MULTI SELECT |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

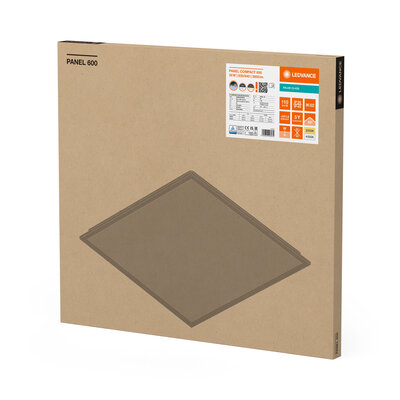

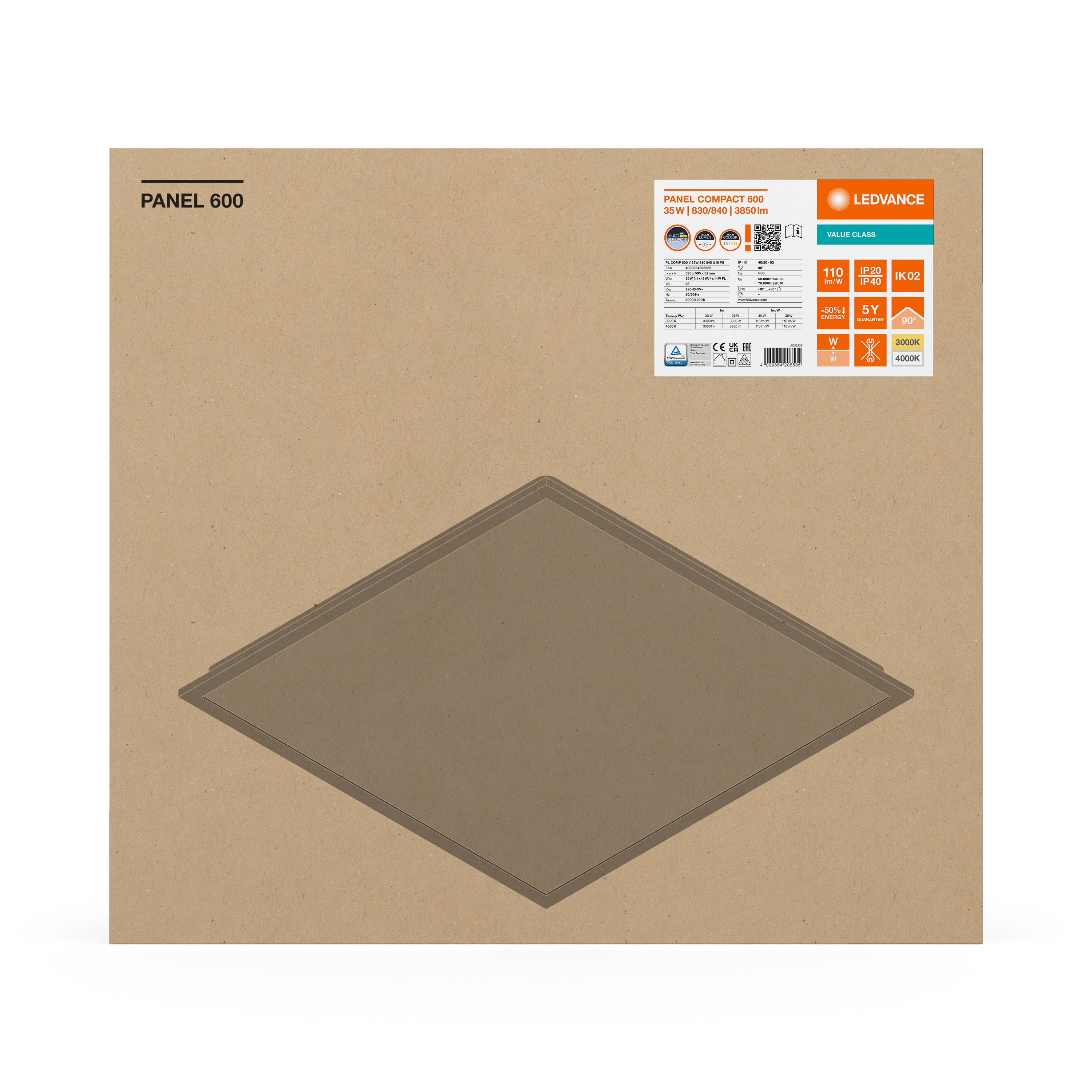

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854206535 | Folding box 1 |
602 mm x 37 mm x 662 mm | 2180.00 g | 14.75 dm³ |
| 4099854206542 | Shipping box 4 |
677 mm x 164 mm x 628 mm | 9630.00 g | 69.73 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4099854206535 | 7027289 | 4152029 | 3361458 | 941391990 |
