Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| PL CMFT 600 P 36W 930 940 U19 DALIVR CS CRI90 | 36.00 W | 50000 | 90 ° | 4200 lm | Yes |
| Nominal wattage | 36.00 W 1) |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 165.000 mA |
| Inrush current | 12 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C10 | 21 |
| Max. number of luminaires per miniature circuit breaker C16 | 33 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
1) For possible options refer to lumen/power table image
| Luminous flux | 4200 lm 1) |
| Luminous efficacy | 118 lm/W 1) |
| Color temperature | 3000 K / 4000 K 1) |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | ≥90 |
| Standard deviation of color matching | 3 sdcm |
| Luminous intensity | - cd |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |

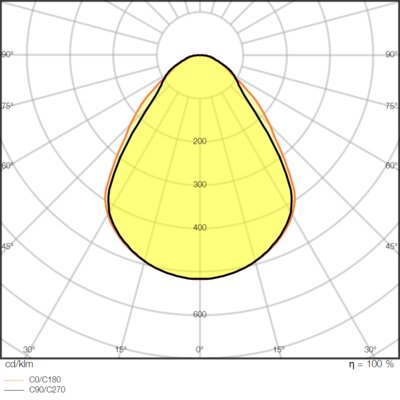

| Beam angle | 90 ° |
| UGR | < 19 |
1) For possible options refer to lumen/power table image
| Length | 595.00 mm |
| Height | 32.00 mm |
| Width | 595.00 mm |
| Product weight | 2050.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polystyrene (PS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+50 °C |
| Type of connection | Screwless terminal, 5-Pole (L, N, PE, DA+, DA-) |
| Type of protection | IP40/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting type | Surface/Recessed |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Mounting length | 575 mm |
| Mounting width | 575 mm |
| Mounting depth | 80,0 mm |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 60000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 1100 mA |
| ECG - Output ripple current | 10 % |
| Wattage in emergency operation mode | 3,0 W |
| Luminous flux in emergency operation mode | 360 lm |
| Standards | CB, CE, ENEC, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Added function | MULTI SELECT, VIVARES |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075694507 | Folding box 1 |
52 mm x 622 mm x 694 mm | 2535.00 g | 22.45 dm³ |
| 4058075694514 | Shipping box 4 |
640 mm x 220 mm x 710 mm | 11435.00 g | 99.97 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075694507 | 7021008 | 4127229 | 3004889 | 941402750 |
