Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
LN INV D 1500 P 52W 930 DAVR SN BK	52 W / 48 W / 44 W / 39 W	25000	90 °	4700 lm / 5250 lm / 5450 lm / 5950 lm	Yes
LN INV D 1500 P 52W 940 DAVR SN BK	52 W / 48 W / 44 W / 39 W	25000	90 °	5100 lm / 5700 lm / 5850 lm / 6250 lm	Yes

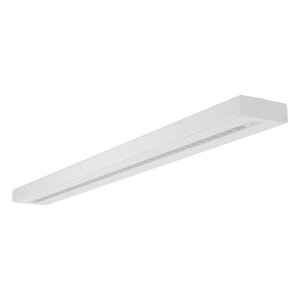

LN INV D 1500 P 52W 930 DAVR SN WT	52 W / 48 W / 44 W / 39 W	25000	90 °	6100 lm / 5600 lm / 5400 lm / 4850 lm	Yes
LN INV D 1500 P 52W 940 DAVR SN WT	52 W / 48 W / 44 W / 39 W	25000	90 °	6400 lm / 6000 lm / 5850 lm / 5250 lm	Yes

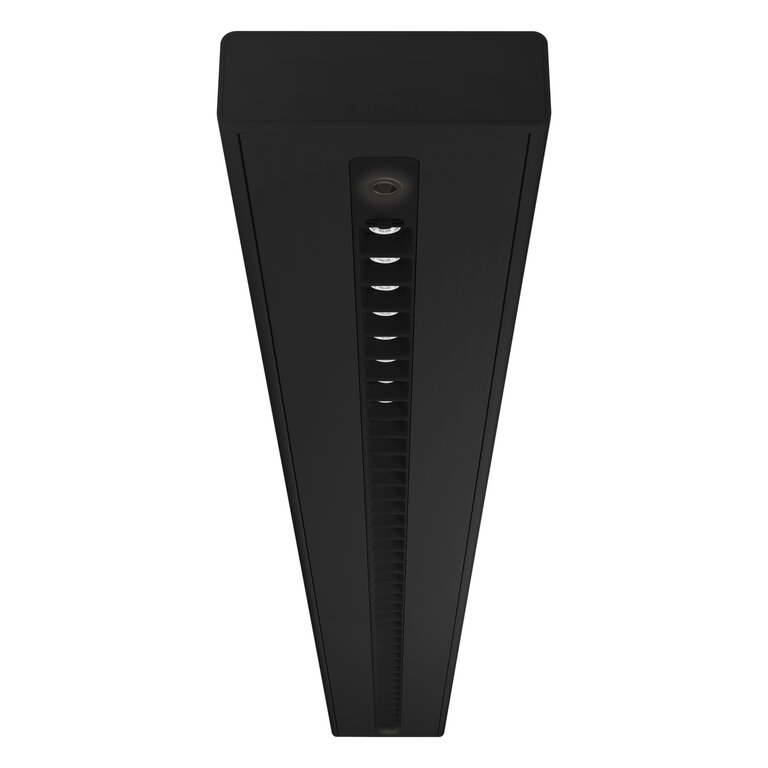

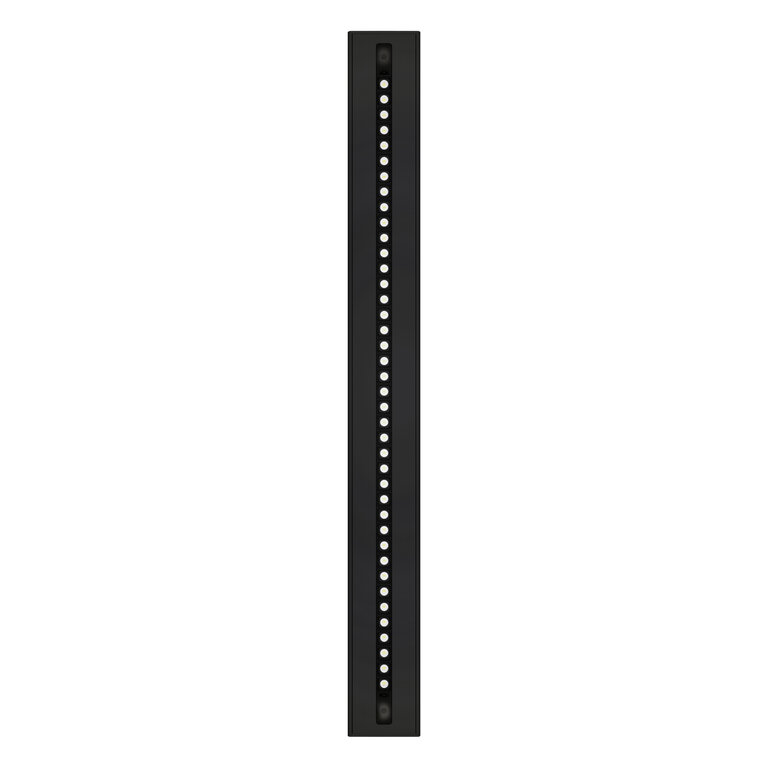

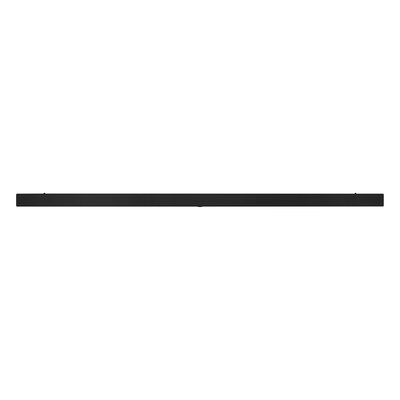

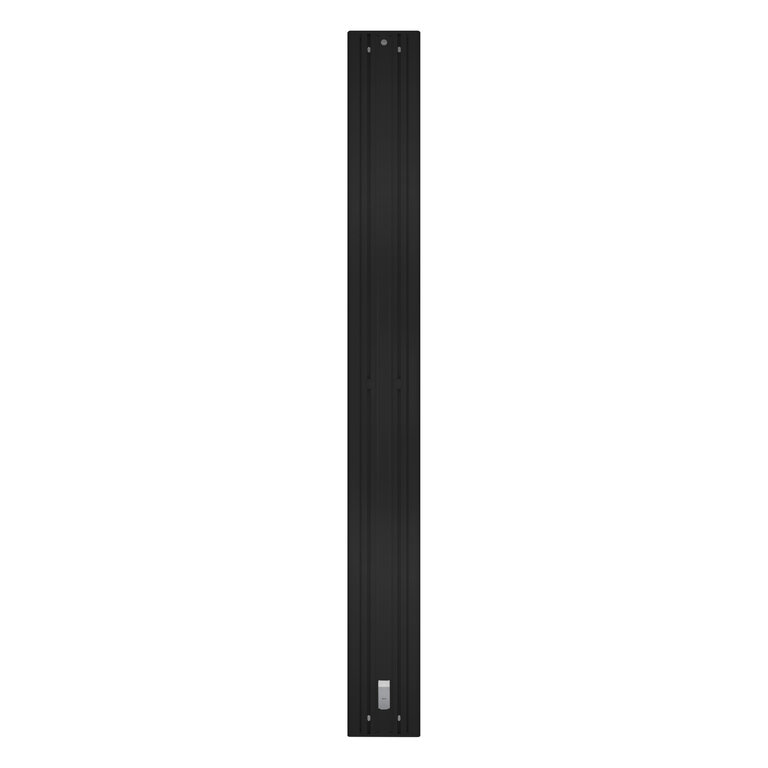

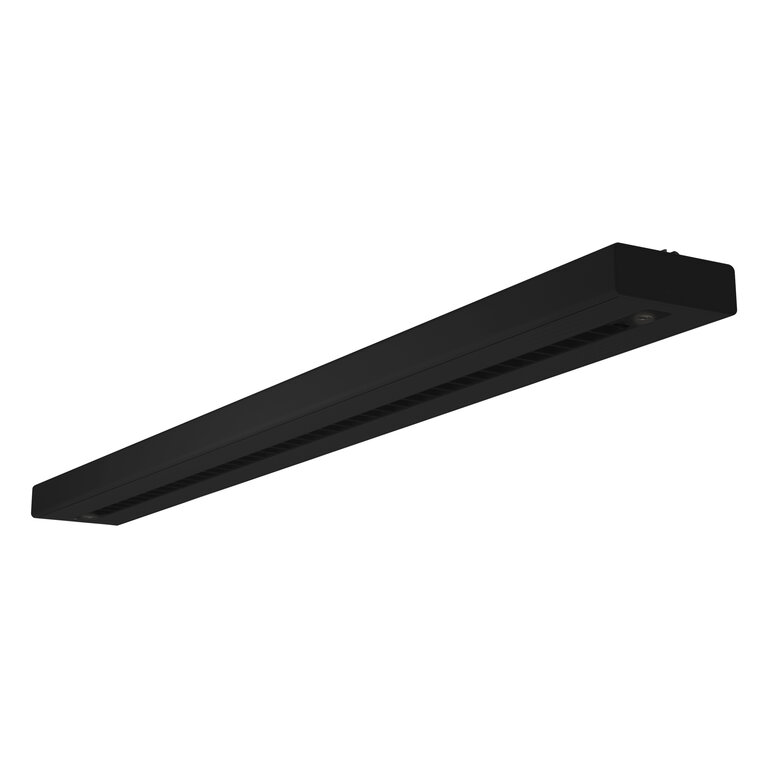

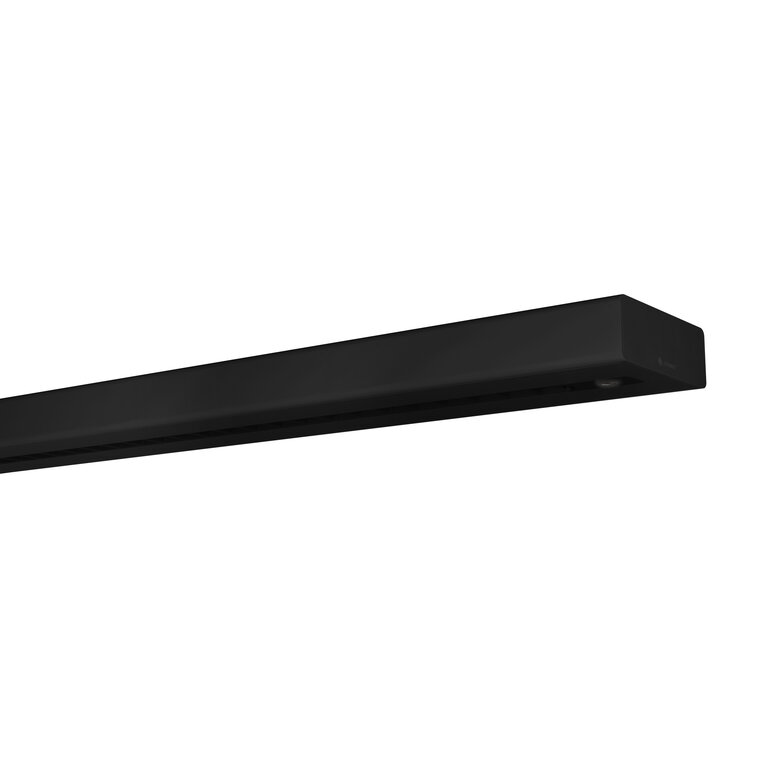

LN INV D 1500 P 52W 930 DAVR SN BK

Easy upgradeability of light source and driver (EVERLOOP design)
Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
High performance with CRI90 and up to 130 lm/W
Symmetric and asymmetric light distribution for various application areas
High color consistency with SDCM 3
Easy installation
Low flicker light thanks to special electronic control gear
Suitable for battery emergency installations acc. to EN 60598-2-22
Multiple mounting options thanks to different accessories

Nominal wattage	52 W / 48 W / 44 W / 39 W
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	232…210…200…185 mA
Inrush current	25.2 A
Inrush current time T_h50	40 µs
Max. number of luminaires per miniature circuit breaker B16	29
Max. number of luminaires per miniature circuit breaker C10	23
Max. number of luminaires per miniature circuit breaker C16	22
Power factor λ	≥0.90
Total harmonic distortion	≤ 20 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	4700 lm / 5250 lm / 5450 lm / 5950 lm
Luminous efficacy	121 lm/W / 119 lm/W / 114 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	> 90
Standard deviation of color matching	< 3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4
Photobiological safety group acc. to EN62778	RG0
Photobiological safety group acc. to EN62471	RG0
Beam angle	90 °

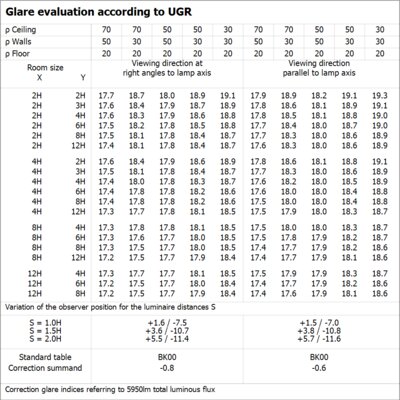

UGR	< 19

Product color	Black
Housing color	Black
Body material	Aluminum
Cover material	Polymethylmethacrylate (PMMA)
Light emitting surface material	Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Ambient temperature range	-20…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection	IP20
Protection class IK (shock resistance)	IK06
Dimmable	Yes
Type of dimming	DALI2
Mounting type	Suspended/Surface
Mounting location	Ceiling
Application environment	Indoor
Adjustable	No
With light source	Yes

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Type of sensor	Motion, Light
Sensor technology	Passive infrared/Photocell
Sensor detection angle	80 °
Sensor controlled switching time	10 s … 30 min
Detection range of motion sensor	1.7 m … 4 m

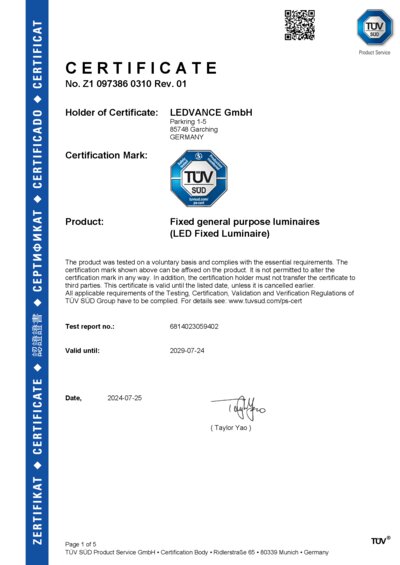

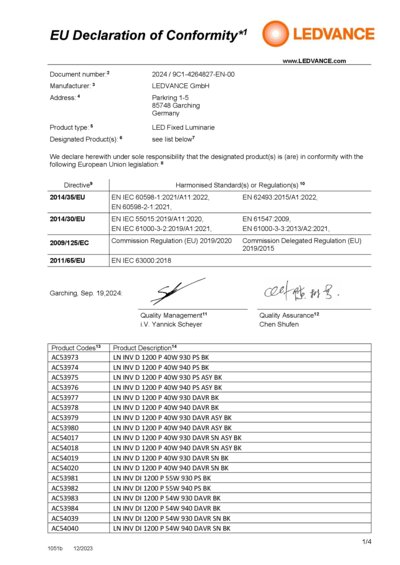

Standards	CE, CB, ENEC, TÜV SÜD, UKCA, EAC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	By the end consumer

Added function

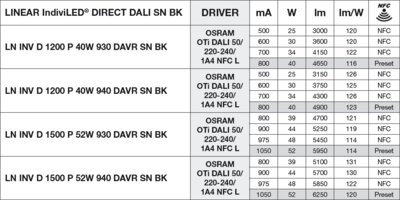

EVERLOOP, VIVARES, Programmable Multi Lumen

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Easy upgradeability of light source and driver (EVERLOOP design)
Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
High performance with CRI90 and up to 130 lm/W
Symmetric and asymmetric light distribution for various application areas
High color consistency with SDCM 3
Easy installation
Low flicker light thanks to special electronic control gear
Suitable for battery emergency installations acc. to EN 60598-2-22
Multiple mounting options thanks to different accessories

Areas of application

Product features

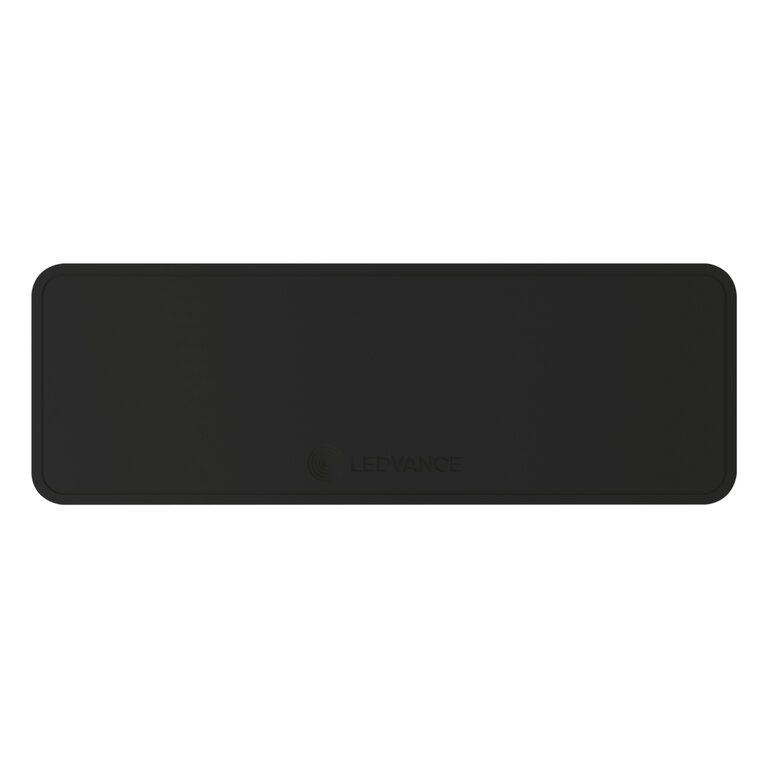

Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
Includes EVERLOOP: Convenient replacement of light source and LED driver
PIR-Sensor with leader-follower function
Combined daylight and motion detection
Individual adjustment of the parameters with configuration software or remote control
Linkable into seamless light line with accessories (surface or pendant mounting)

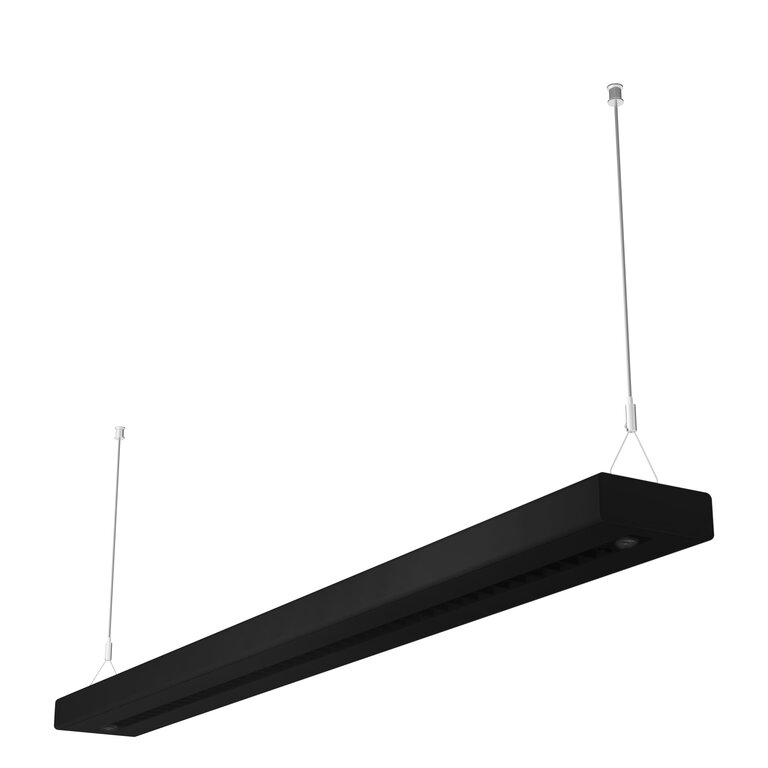

Pendant mounting with suspension kit (to be ordered separetely)
Glow Wire Test according to IEC 60695-2-12: 850 °C
5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Lifetime (L80/B10): 70,000 h (at 25 °C)

Equipment / Accessories

Suspension kit available for pendant luminaire version (to be ordered separately)
Inline, corner and infill connectors available as separate accessory
Through-wiring cable kit available

References / Links

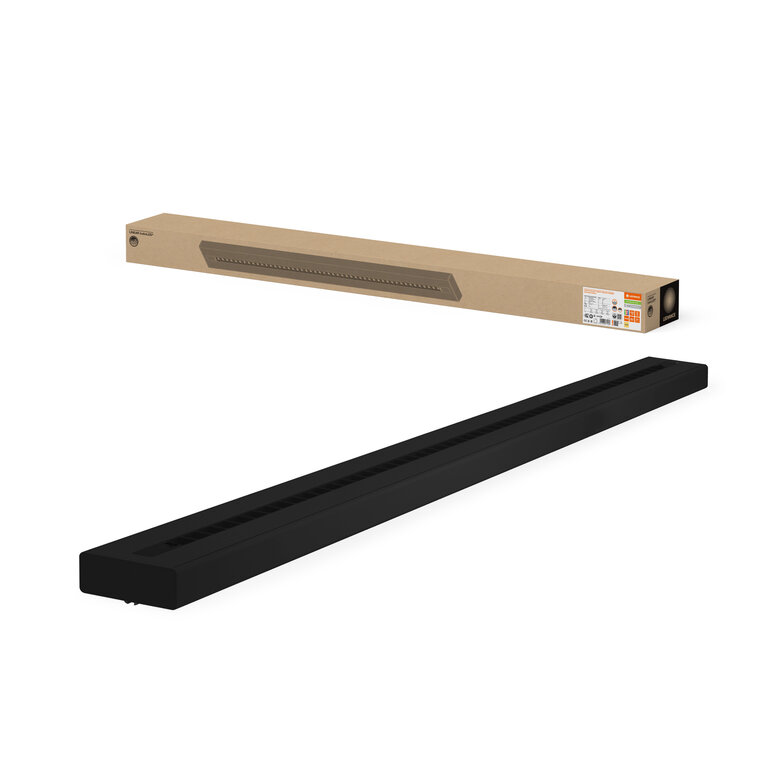

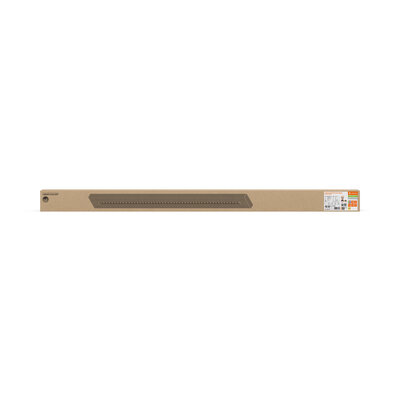

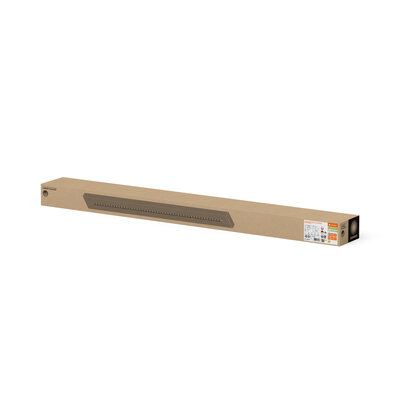

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854371806	Folding box 1	177 mm x 1,530 mm x 102 mm	4570.00 g	27.62 dm³
4099854371813	Shipping box 2	1,550 mm x 197 mm x 224 mm	10740.00 g	68.40 dm³
