Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
LN INV D 1500 P 52W 930 PS BK	52 W / 48 W / 46 W / 40 W	25000	90 °	4700 lm / 5300 lm / 5500 lm / 5900 lm	No
LN INV D 1500 P 52W 940 PS BK	52 W / 48 W / 46 W / 40 W	25000	90 °	5050 lm / 5700 lm / 5900 lm / 6350 lm	No
LN INV D 1500 P 52W 930 PS WT	52 W / 48 W / 46.0 W / 40 W	25000	90 °	6050 lm / 5650 lm / 5450 lm / 4850 lm	No
LN INV D 1500 P 52W 940 PS WT	52 W / 48 W / 46.0 W / 40 W	25000	90 °	6360 lm / 5920 lm / 5900 lm / 5200 lm	No

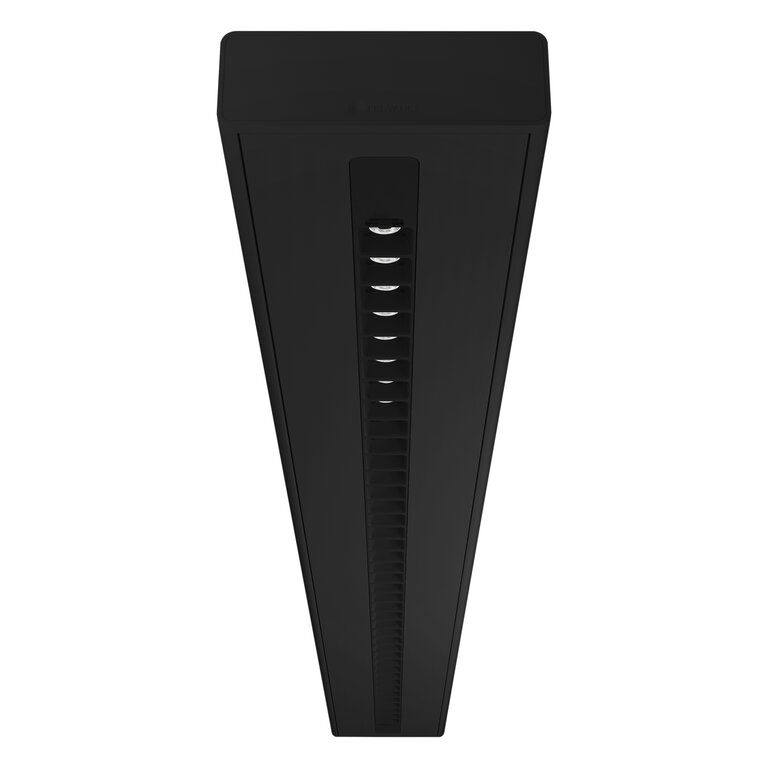

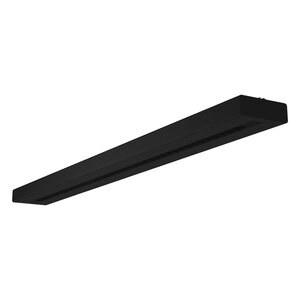

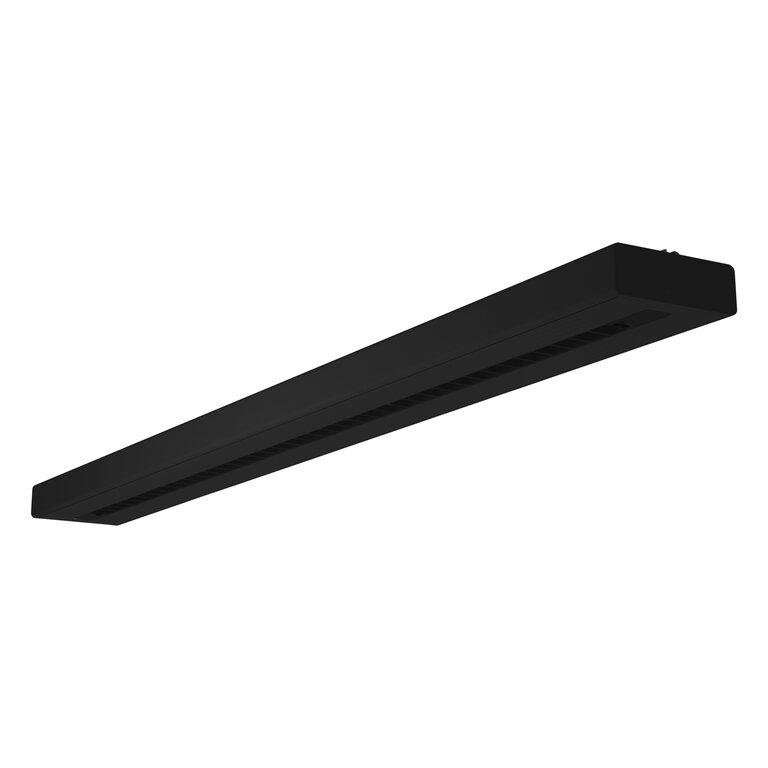

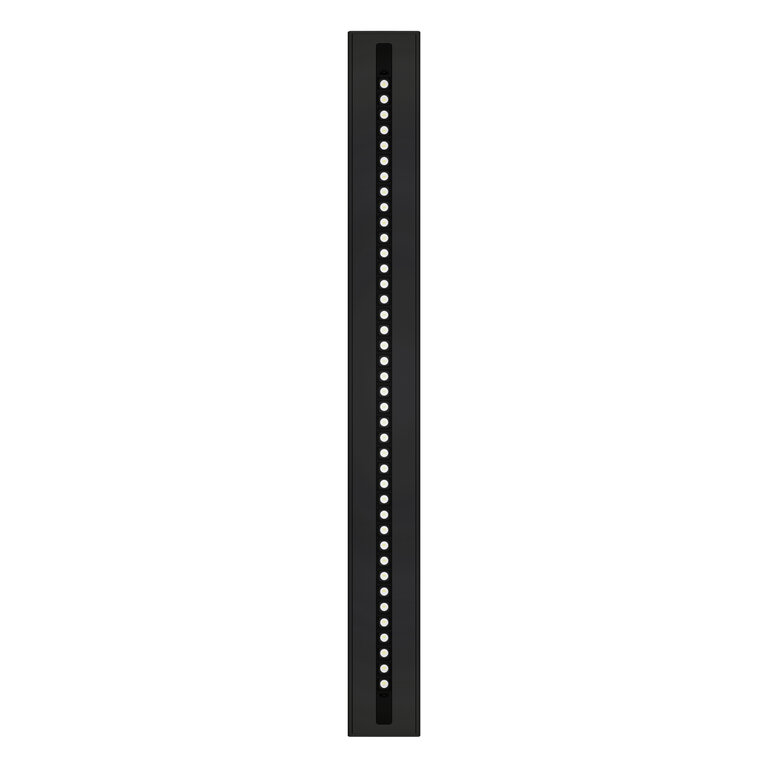

LN INV D 1500 P 52W 930 PS BK

Easy upgradeability of light source and driver (EVERLOOP design)
Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
High performance with CRI90 and up to 130 lm/W

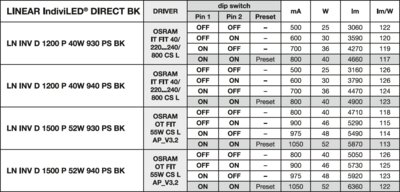

Highly versatile due to selectable power steps (Power Select - PS) on the driver
Symmetric and asymmetric light distribution for various application areas
High color consistency with SDCM 3
Easy installation
Low flicker light thanks to special electronic control gear
Multiple mounting options thanks to different accessories

Nominal wattage	52 W / 48 W / 46 W / 40 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	240…220…205…185 mA
Inrush current	14,6 A
Inrush current time T_h50	170 µs
Max. number of luminaires per miniature circuit breaker B16	28
Max. number of luminaires per miniature circuit breaker C10	23
Max. number of luminaires per miniature circuit breaker C16	38
Power factor λ	≥0.90
Total harmonic distortion	≤ 20 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	4700 lm / 5300 lm / 5500 lm / 5900 lm
Luminous efficacy	118 lm/W / 115 lm/W / 113 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	> 90
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4
Photobiological safety group acc. to EN62778	RG0
Photobiological safety group acc. to EN62471	RG0
Beam angle	90 °

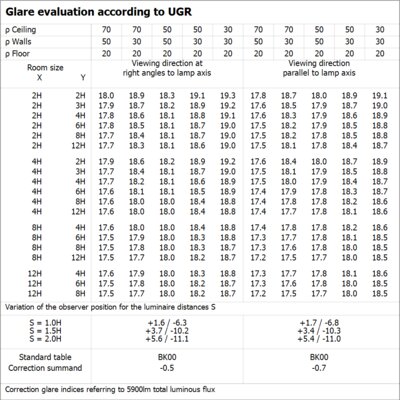

UGR	< 19

Product color	Black
Housing color	Black
Body material	Aluminum
Cover material	Polymethylmethacrylate (PMMA)
Light emitting surface material	Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Ambient temperature range	-20…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection	IP20
Protection class IK (shock resistance)	IK06
Dimmable	No
Mounting type	Suspended/Surface
Mounting location	Ceiling
Application environment	Indoor
Adjustable	No
With light source	Yes

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Standards	CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No

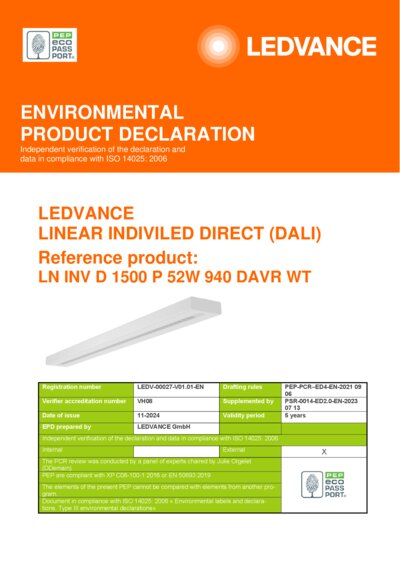

EPD	LEDV-00027-V01.01-EN
Replaceable light source (EPREL)	By the end consumer

Added function

EVERLOOP, MULTI SELECT

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Easy upgradeability of light source and driver (EVERLOOP design)
Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
High performance with CRI90 and up to 130 lm/W
Highly versatile due to selectable power steps (Power Select - PS) on the driver
Symmetric and asymmetric light distribution for various application areas
High color consistency with SDCM 3
Easy installation
Low flicker light thanks to special electronic control gear
Multiple mounting options thanks to different accessories

Areas of application

Product features

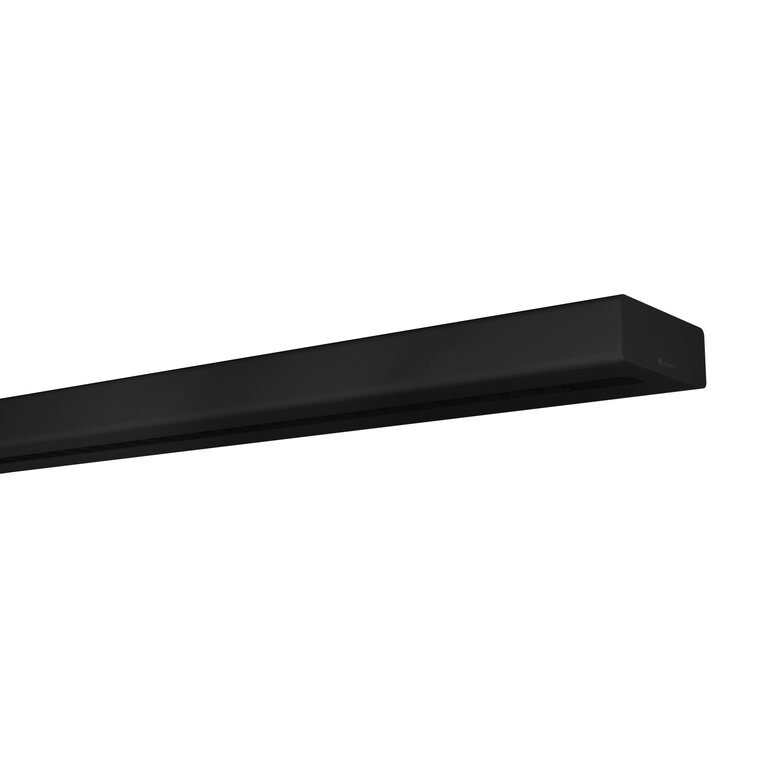

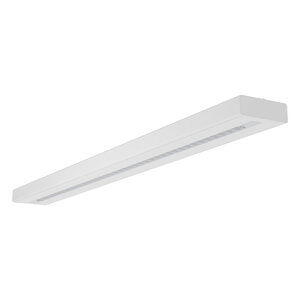

Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
Includes EVERLOOP: Convenient replacement of light source and LED driver
Linkable into seamless light line with accessories (surface or pendant mounting)

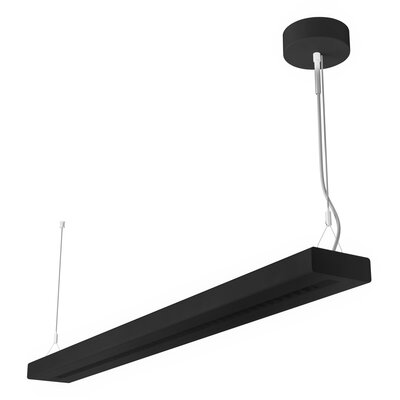

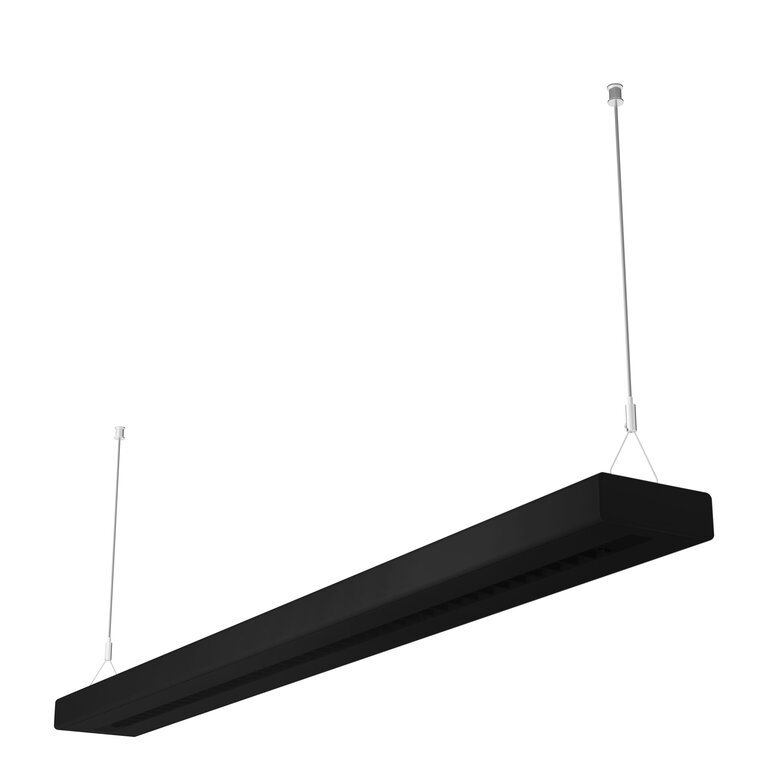

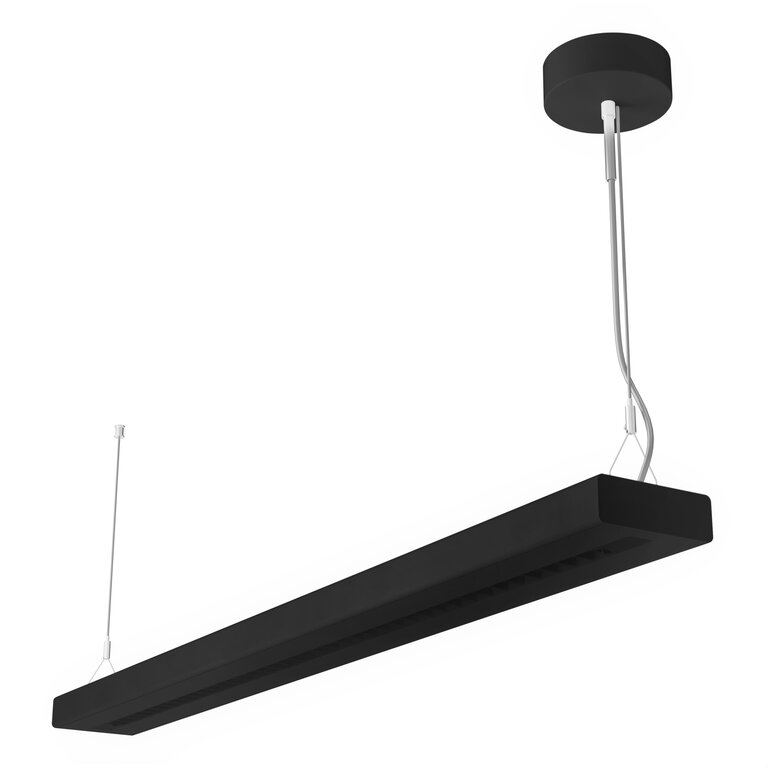

Pendant mounting with suspension kit (to be ordered separetely)
Glow Wire Test according to IEC 60695-2-12: 850 °C
5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Lifetime (L80/B10): 70,000 h (at 25 °C)

Equipment / Accessories

Suspension kit available for pendant luminaire version (to be ordered separately)
Inline, corner and infill connectors available as separate accessory
Through-wiring cable kit available

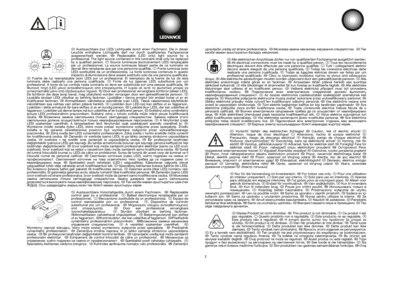

Safety advice

All electrical connections must be made by a qualified person.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume

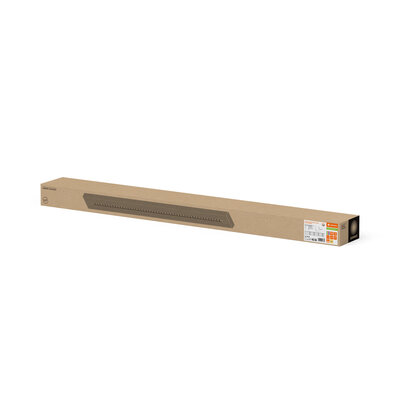

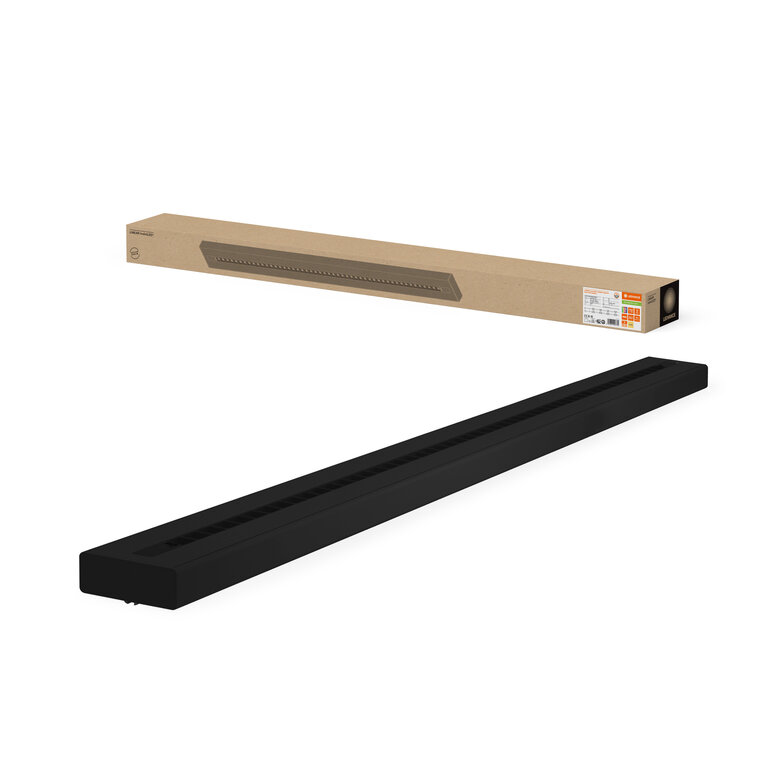

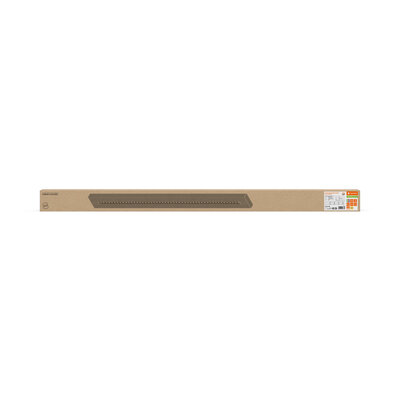

4099854296789	Folding box 1	177 mm x 1,530 mm x 102 mm	4660.00 g	27.62 dm³
4099854296796	Shipping box 2	1,550 mm x 197 mm x 224 mm	10920.00 g	68.40 dm³
