ESSENTIALS CEILING RETROFIT LUMINAIRE

Choose your product version

OVERVIEW

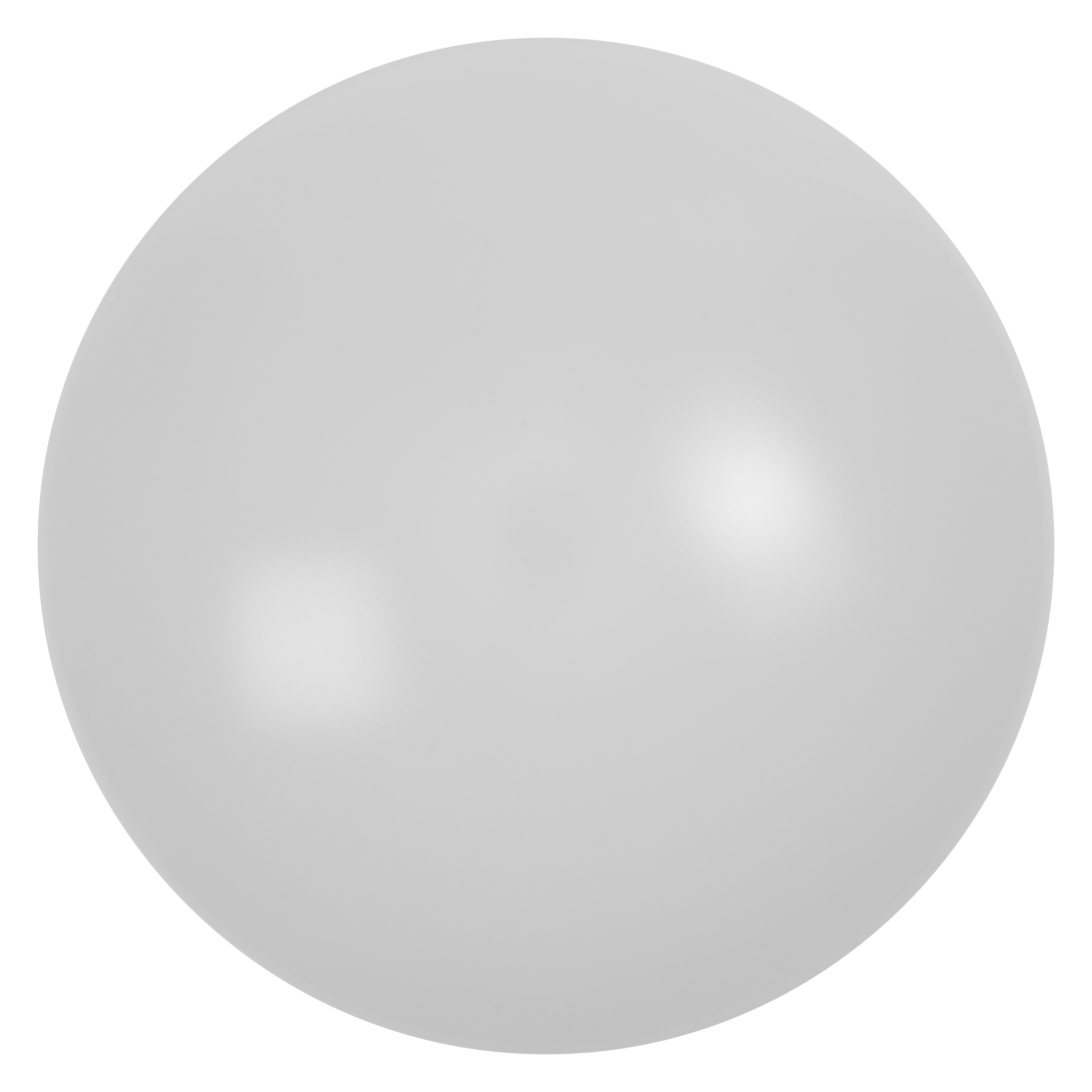

Ceiling Essential 350mm 2xE27

Product benefits
  • Simple installation thanks to light-weight design
  • Decorative wall light

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class I
Operating mode Mains voltage

Dimensions & Weight

Diameter 350.00 mm
Height 115.00 mm
Product weight 560.00 g

Materials & Colors

Product color White
Housing color White
Body material Metal
Cover material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
Adjustable No
With light source No
Holder designation E27

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No

Additional product data

Product remark Maximum bulb wattage: 2 x 25 W (10 LED)
Number of illuminants 1

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Simple installation thanks to light-weight design
  • Decorative wall light
Areas of application
  • Living areas
Product features
  • Wall and ceiling luminaire with E27 socket
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854094583 Folding box
1
120 mm x 386 mm x 386 mm 879.00 g 17.88 dm³
4099854094590 Shipping box
5
625 mm x 410 mm x 410 mm 5411.00 g 105.07 dm³
EAN SEG number STK number EFO number
4099854094583 3378160 4136297 3378160
